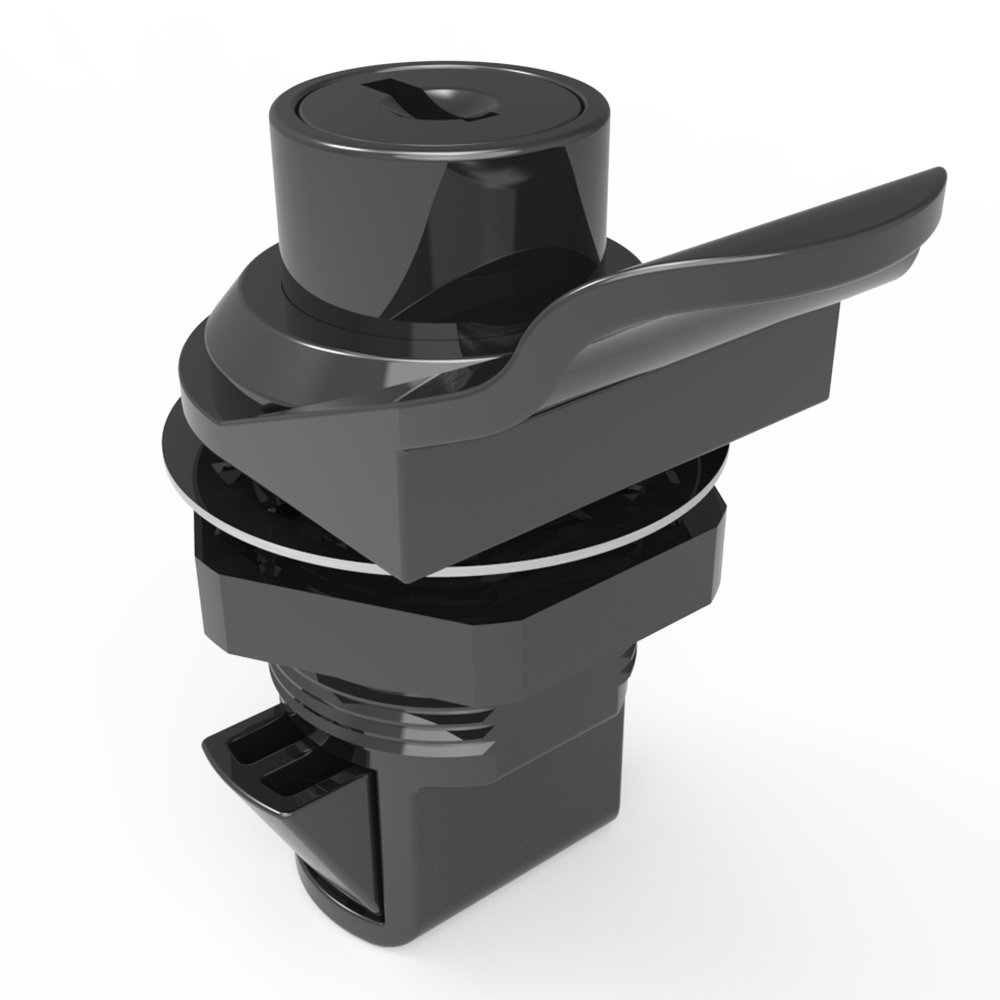

Push to Close Latch, Push Button, Key Locking, Pull tab perpendicular to latching pawl, Plastic, Black C1-1515-1

1. Detailed Materials, Engineering Grade & Environmental Durability

The C1-1515-1 Plastic Push-to-Close Latch is engineered for lightweight electronic enclosures, medical equipment access doors, marine cabinetry, and industrial control panels requiring effortless push-to-slam closure, key-locking security, corrosion-proof material composition, and ergonomic perpendicular tab operation.

• High-Impact Thermoplastic Metallurgy & Polymer Grade: Manufactured using premium high-impact ABS / Polycarbonate (PC) thermoplastic polymer for the outer housing, push button, and perpendicular pull tab, paired with a heavy-duty stainless steel spring and internal locking cylinder. This engineered polymer structure provides exceptional strength-to-weight ratio, dimensional stability, high fatigue resistance, and non-conductive electrical insulation.

• 100% Rust-Proof & Corrosion Immunity: Unlike metal latches that rely on surface coatings, the high-density black plastic body is inherently immune to chemical corrosion, atmospheric oxidation, salt spray, and UV degradation. It easily withstands continuous exposure to harsh ambient humidity, chemical fumes, and salt air without pitting or degradation, easily exceeding 500-hour neutral salt spray testing (ASTM B117 / ISO 9227) standards for stainless and plastic hardware.

• Perpendicular Pull Tab & Push-to-Close Slam Action: Features an integrated push-to-close (slam latch) action. Closing the panel automatically depresses and snaps the spring-loaded pawl over the keeper without operating the latch by hand. Opening is achieved by depressing the push button to pop out the ergonomic perpendicular pull tab, giving operators high manual leverage to pull the door open effortlessly.

• Ingress Protection & Key Lock Security: Integrated with internal sealing washers and a key cylinder mechanism, the C1-1515-1 achieves an IP54 to IP65 ingress protection rating (EN 60529 / NEMA Type 12, 13 equivalent) when installed with perimeter door gaskets, blocking ambient dust, splashing water, and oil mist while restricting panel access to authorized key holders.

2. Technical Specifications & Parameter Matrix

The parameter table below is structured to optimize search engine rich snippet indexing and facilitate fast engineering procurement evaluations:

3. High-Frequency Industrial Application Scenarios

The C1-1515-1 black plastic push-to-close latch is heavily specified across modern light-to-medium equipment enclosures requiring non-conductive insulation, instant slam closure, and corrosion resistance:

• Electrical & Control Enclosures: Secures low-voltage control panels, junction boxes, and plastic electronics enclosures where electrical insulation and lightweight corrosion resistance are mandatory.

• Medical Equipment & Cleanroom Access Doors: Delivers smooth, easy-to-clean push-button access for medical diagnostic equipment, mobile hospital carts, and laboratory instrument bays.

• Marine Vessel & RV Interior Cabinetry: Provides rust-proof slam latching for boat storage compartments, galley doors, motorhome utility bays, and marine electronics consoles exposed to salt mist.

• Electronic Instrument Housings & Server Accessories: Serves as a sleek black push-button latch for telecom sub-racks, server rack access doors, and automated testing equipment.

• Specialized Transportation & Bus Amenities: Protects overhead luggage bays, driver control access panels, and service hatches on commercial buses and passenger trains.

4. Why Choose CUYUE for Your Industrial Hardware Needs?

At Wenzhou CUYUE Lock Technology Co., Ltd., we combine extensive technical experience with complete internal manufacturing capabilities to support global OEMs, enclosure fabricators, and hardware distributors:

• In-House R&D & Engineering Expertise: Supported by a dedicated R&D design team specializing in cabinet locks, hinges, and handles engineered to strictly match global industrial specifications.

• Integrated Precision Tooling & Plastic Injection Molding: Our manufacturing plant integrates precision mold design and development, high-speed plastic injection molding, automated assembly, and quality testing under one roof for complete quality management.

• Rigorous Quality Testing & Validation: Every production lot undergoes mechanical slam fatigue testing, key cylinder smooth-turn checks, environmental thermal cycle testing, and dimensional verification before dispatch.

• Flexible OEM/ODM Customization & Rapid Delivery: We offer custom keying options (Keyed Alike / Keyed Different), alternative plastic housing colors, custom pawl offsets, and rapid prototyping to keep your production schedules on track.

• Cost-Effective System Solutions: We empower clients to optimize total procurement costs without sacrificing product longevity, delivering complete industrial enclosure hardware systems under one trusted brand.

5. Frequently Asked Questions (Q&A)

Q1: What is the main advantage of a push-to-close slam latch on enclosure doors?

A: A push-to-close (slam) latch allows users to shut the cabinet door simply by pushing it closed. The spring-loaded latching pawl automatically retracts and snaps into place behind the keeper, saving time and ensuring instant closure without manually operating a handle.

Q2: Why is the pull tab orientation on the C1-1515-1 designed perpendicular to the latching pawl?

A: A perpendicular pull tab provides natural ergonomic leverage. When the operator depresses the push button and pulls the tab, the pulling force aligns directly with the door opening direction, ensuring smooth, unhindered panel operation.

Q3: What are the benefits of using high-impact thermoplastic plastic over metal latches?

A: High-impact engineering plastics (ABS/PC) offer 100% rust-proof corrosion resistance, electrical insulation, lower weight, and cost-effective volume manufacturing while retaining high mechanical strength for light-to-medium enclosure doors.

Q4: Is the C1-1515-1 push-to-close latch suitable for outdoor and marine environments?

A: Yes. Because the latch body is made of UV-stabilized polymer and internal springs are stainless steel, the C1-1515-1 will not rust, corrode, or degrade when exposed to outdoor weather, rain, or ocean salt spray.

Q5: How does the key locking feature work on the C1-1515-1 push-button latch?

A: Locking the internal key cylinder prevents the push button from being depressed. This locks the perpendicular pull tab in place and restricts access to authorized personnel holding the matching key.

Q6: What protection level does the IP54 / IP65 rating provide for plastic push-button latches?

A: When paired with continuous door gaskets, the C1-1515-1 blocks airborne dust particles, oil splashes, and water spray from penetrating the cabinet interior, protecting sensitive electronics.

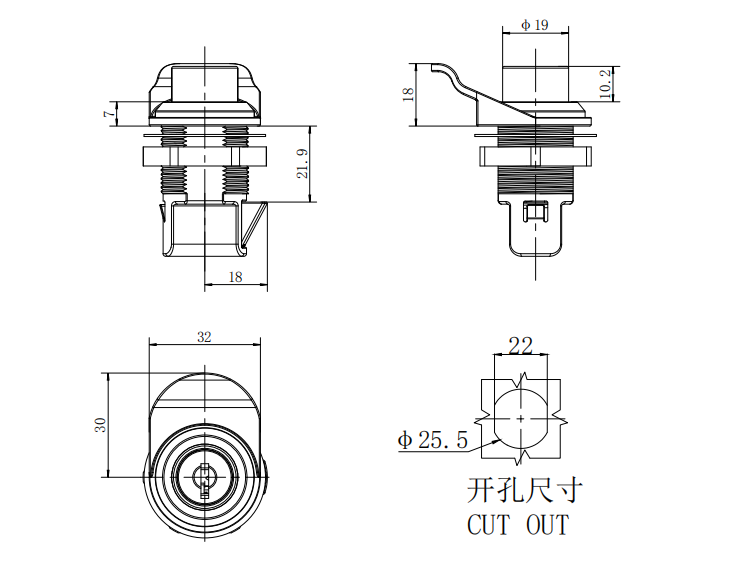

Q7: What panel cutout preparation is required to install the C1-1515-1 latch?

A: The C1-1515-1 mounts into a standard single-hole panel cutout. It snaps directly into place or is secured from behind using a mounting bracket or nut, leaving a sleek exterior profile.

Q8: Can the C1-1515-1 plastic slam latch handle equipment vibration?

A: Yes. High-strength internal springs maintain constant positive tension on the latching pawl, preventing door rattle and accidental unlatching during movement in medical carts, vehicles, or marine vessels.

Q9: What operating temperature range can the C1-1515-1 plastic latch handle?

A: Constructed from high-grade engineering polymers, the C1-1515-1 operates reliably across temperatures ranging from -30°C to +70°C (-22°F to +158°F).

Q10: Why purchase industrial plastic latches directly from a Chinese manufacturer like CUYUE?

A: Sourcing directly from Wenzhou CUYUE Lock Technology Co., Ltd. delivers factory-direct pricing, certified raw material grades, custom injection mold capabilities, and rapid order turnaround backed by ISO-aligned quality validation.
