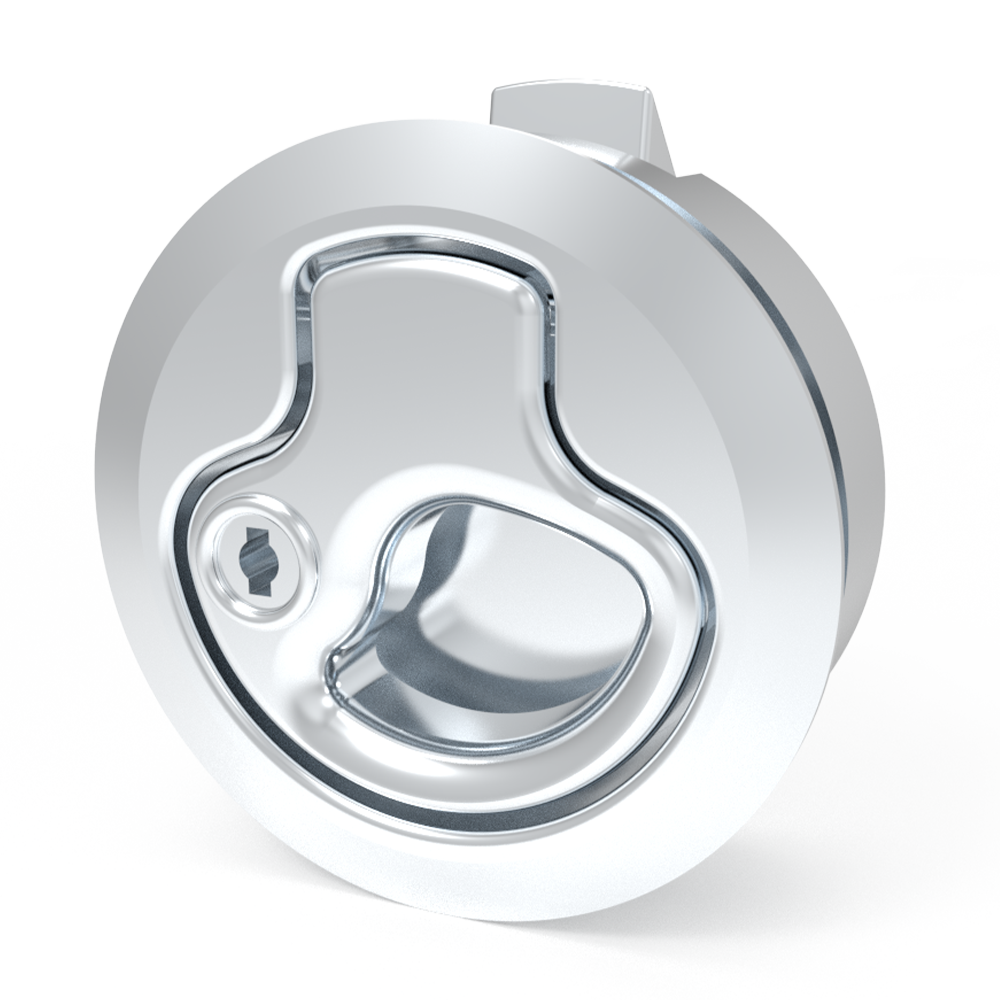

Showing Slide 1 of 5: Push-to- Close Lock-M1-1102-20 Sides

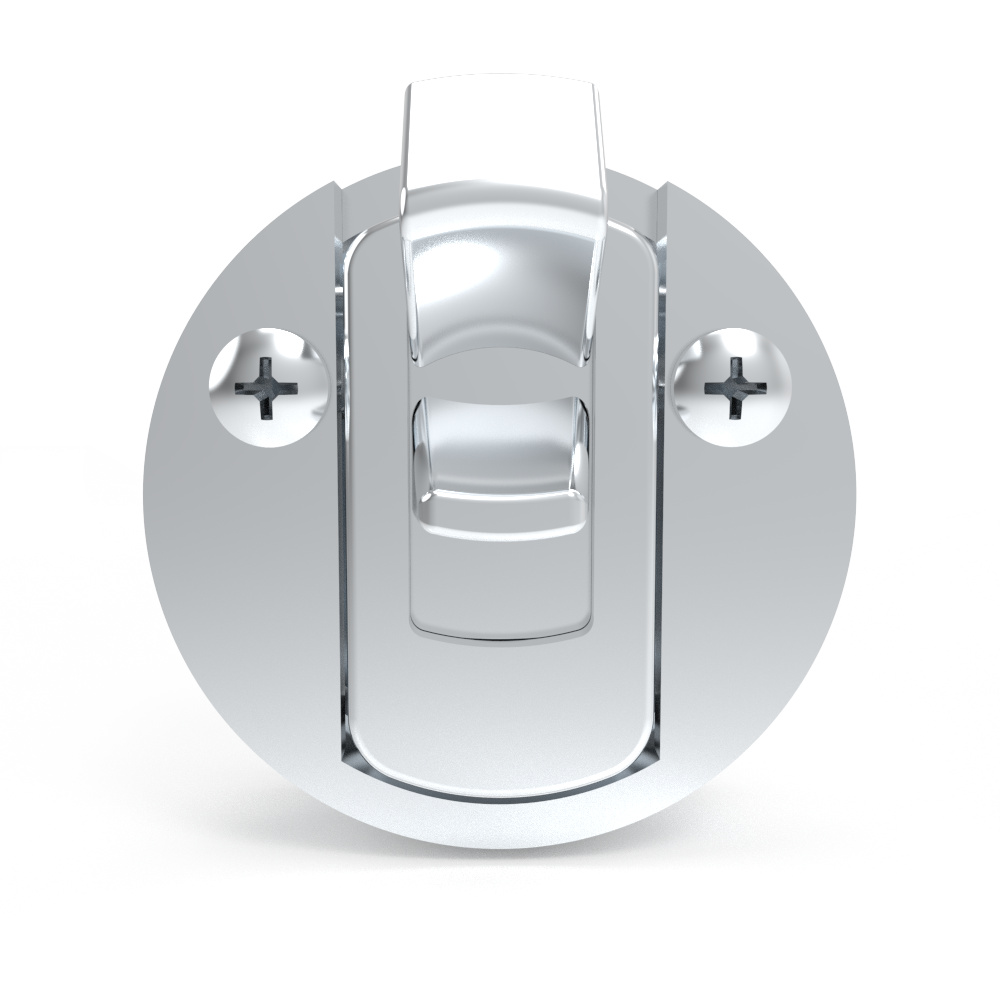

Push-to- Close Lock-M1-1102-20 Back side

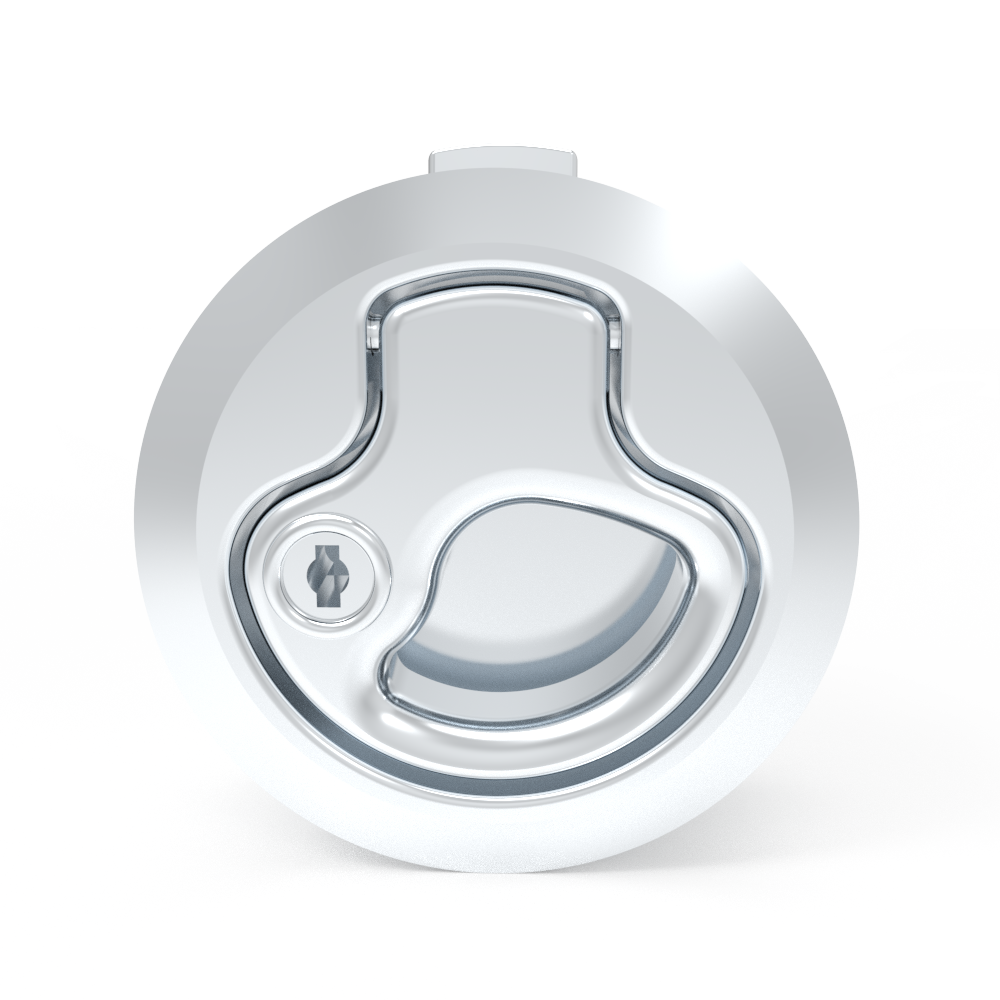

Push-to- Close Lock-M1-1102-20 Front side

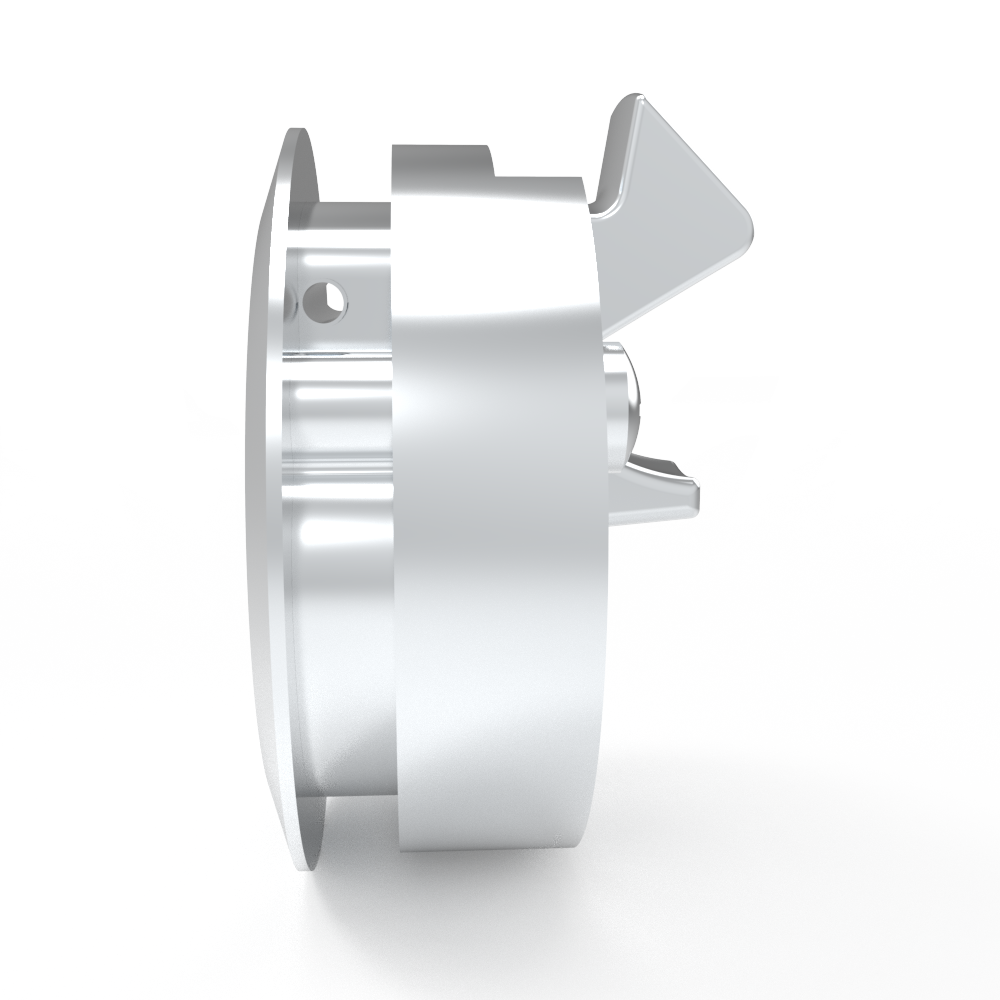

Push-to- Close Lock-M1-1102-20 Left side

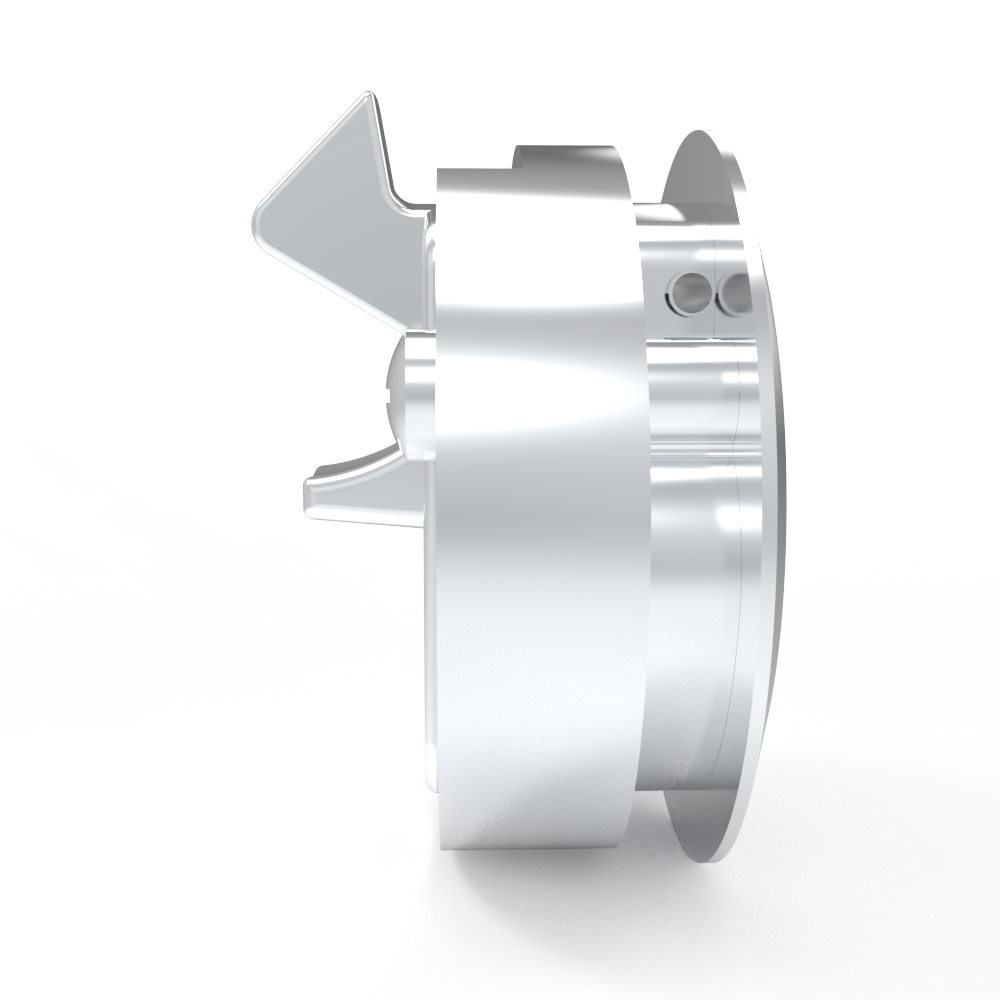

Push-to- Close Lock-M1-1102-20 Right side

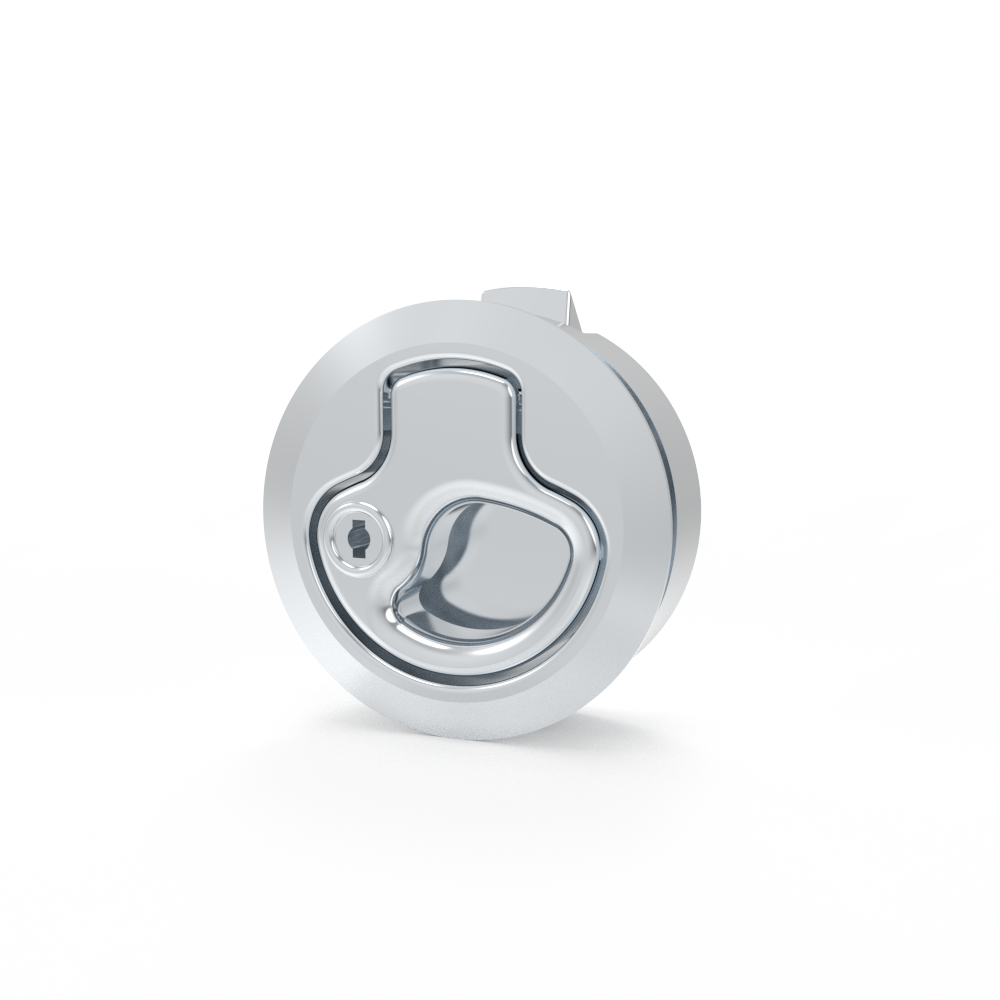

Push-to-Close Latch, Medium Size, key lock, 2 – 7mm (.075 – .275 in) Door thickness, 25.5mm (1.00 in) Grip, zinc alloy, chrome plating, bright,M1-1102-20

Name: Push-to-Close Latch, Medium Size, key lock, 2 – 7mm (.075 – .275 in) Door thickness, 25.5mm (1.00 in) Grip, zinc alloy, chrome plating, bright,M1-1102-20
Brand: CUYUE
SKU: CY-5280
Availability: InStock

1.Material and Surface Treatment:
Lock Body, Handle ： Zinc Alloy or Stainless Steel 304
PC/ABT Mixture
2. Performance Parameters:
Protection Class: IP40
Maximum Working Load of Stainless Steel:835N
Maximum Working Load of PC/ABT Mixture:270N
Working Temperature Range: -18 º C to 60 º
Flame Retardant Grade: UL94-HB (plastic Version)
3. Remarks:
Default Keyed K170

Get A Free Quote

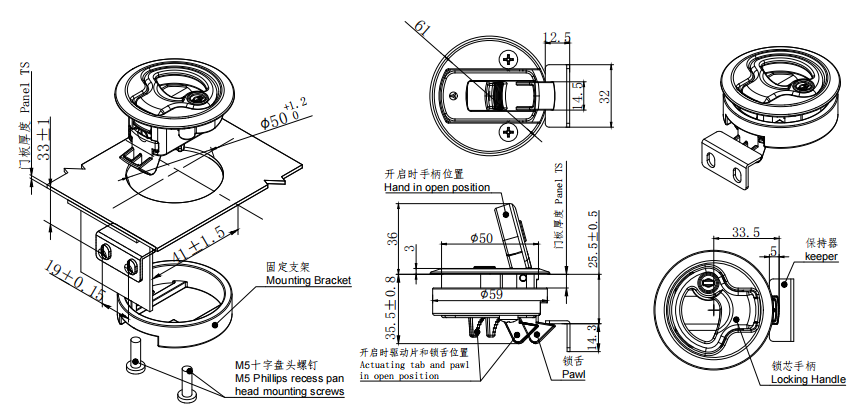

Download Drawings
