Paddle latch-MS912-10-1 Sides
Paddle latch-MS912-10-1 Sides

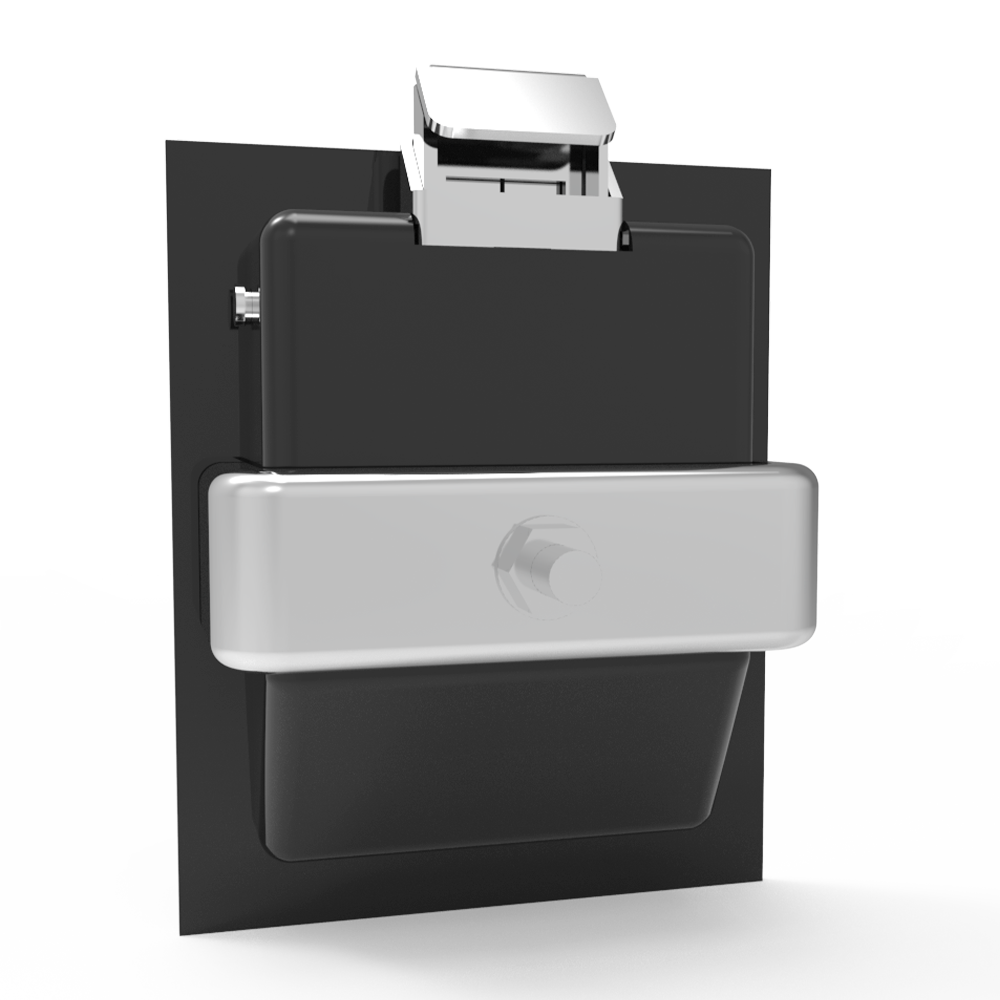

Paddle latch-MS912-10-1 Back side

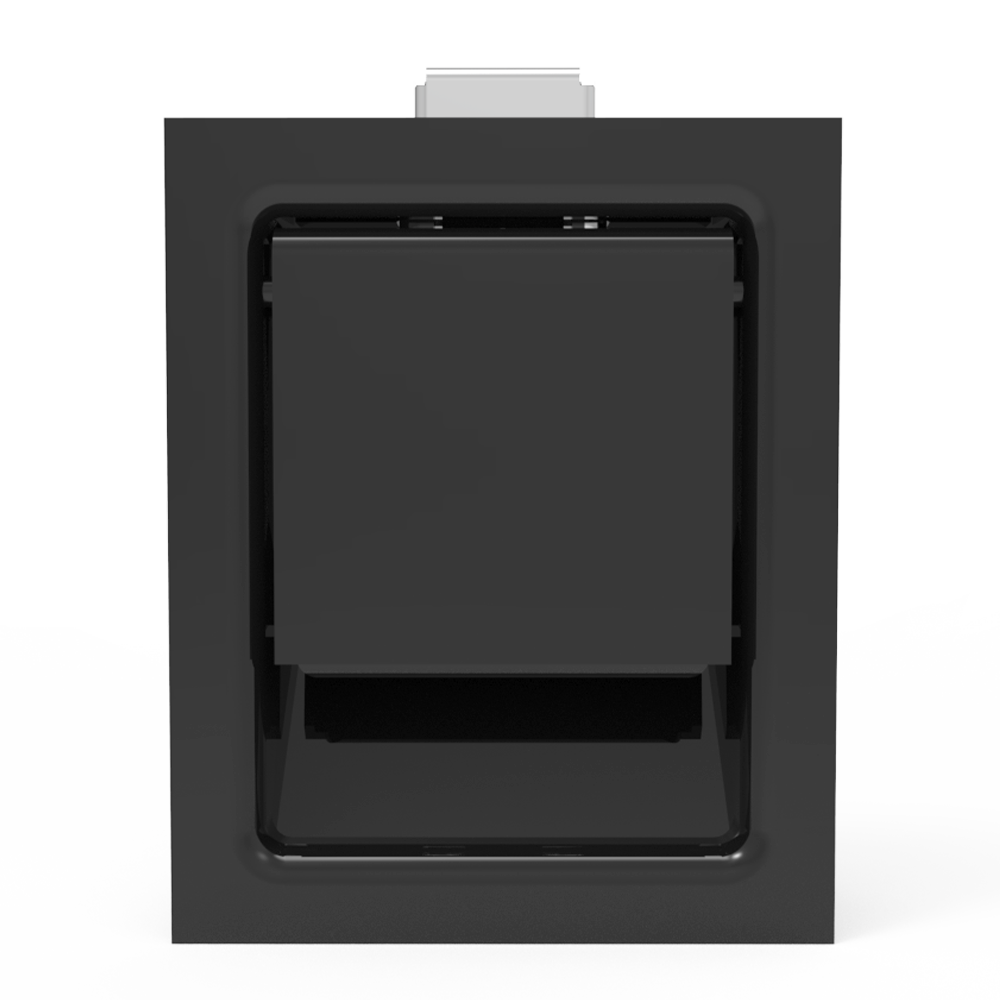

Paddle latch-MS912-10-1 Front side
Paddle latch-MS912-10-1 Left side

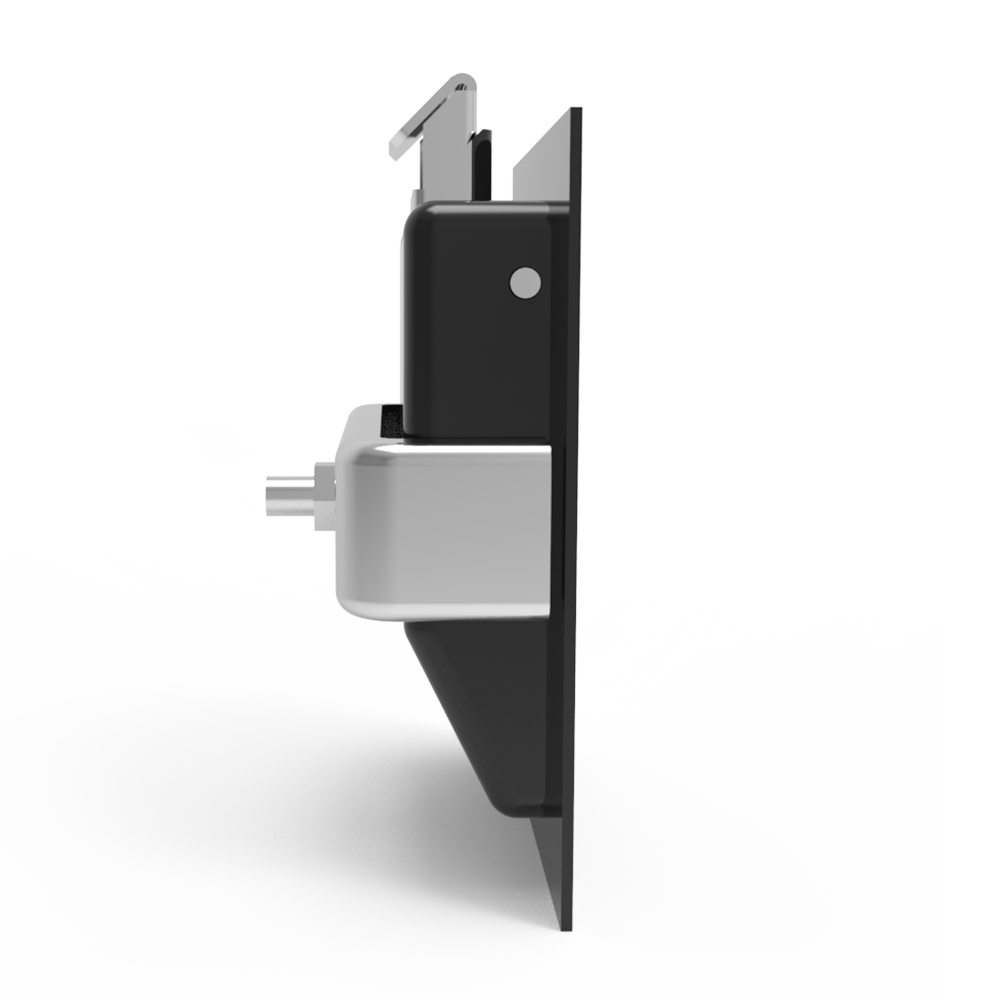

Paddle latch-MS912-10-1 Right side

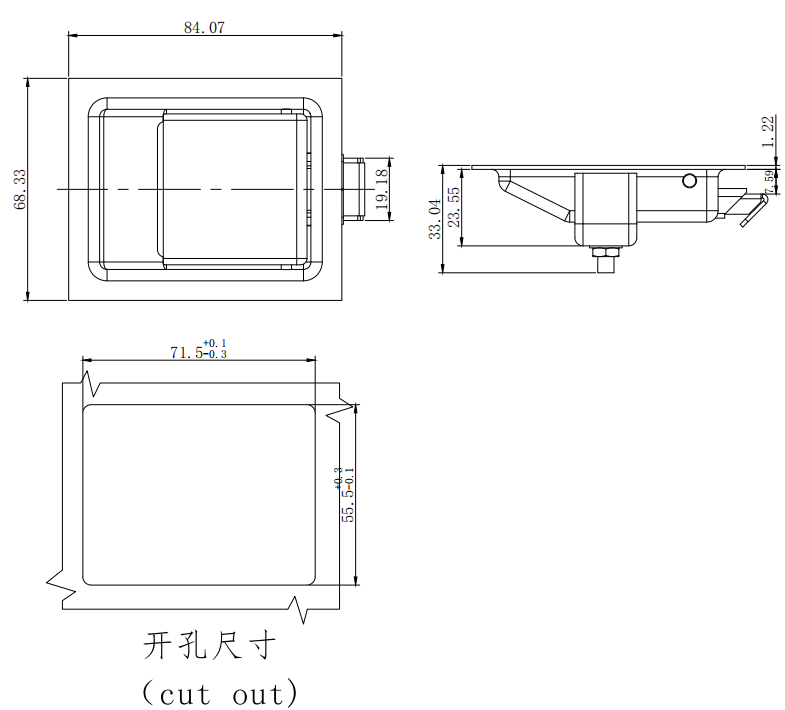

Paddle latch, medium,No limit, 7.9 mm (.31 in) grip, stainless steel, Powder coating, black MS912-10-1

1.Material and Surface Treatment:
Lock Body, Handle :Stainless Steel 304
Door Pin: PA66+30%GF
2. Performance Parameters:
Protection Class: IP40

Push To Close Latch-D6-1605-1 Sides
Push to cloese latch, key lock, zinc alloy, chrome plating, bright,D6-1605-1
Paddle latch-MS919-2-A1 Sides
Paddle latch, large, No limit, stainless steel, mirror polished, bright，MS919-2-A1
Push-to-Close Slide Latch-DK728-2A Sides
Push-to-Close Slide Latch, Minor Size, 1.3mm (0.05in) Panel Thickness,,ABS,Black DK728-2A
Paddle latch-MS919-1-A1 Sides
Paddle latch, large,CH751 key locking, stainless steel, mirror polished, bright,MS919-1-A1
Push To Close Latch-D6-1604-2 Sides
Push to cloese latch, No limit, zinc alloy, Powder coating, black D6-1604-2
Push-to-Close Latch-DK737-3 Sides
Push-to-Close Latch, Snap-In Mounting, 13N (3 lbf), Plastic, Black,DK737-3
Push-to- Close Lock-M1-1102-A1 Sides
Push-to-Close Latch, Medium Size, key lock, 2 – 7mm (.075 – .275 in) Door thickness, 25.5mm (1.00 in) Grip, stainless steel,polishing,bright M1-1102-A1
Push-to-Close Latch-M1-1101-A2 Sides
Push-to-Close Latch, Small Size, No Restriction, 1 – 21mm (.04 – .83 in) Door thickness, 23mm (.91 in) Grip, 316 Stainless Steel, Electropolished M1-1101-A2
