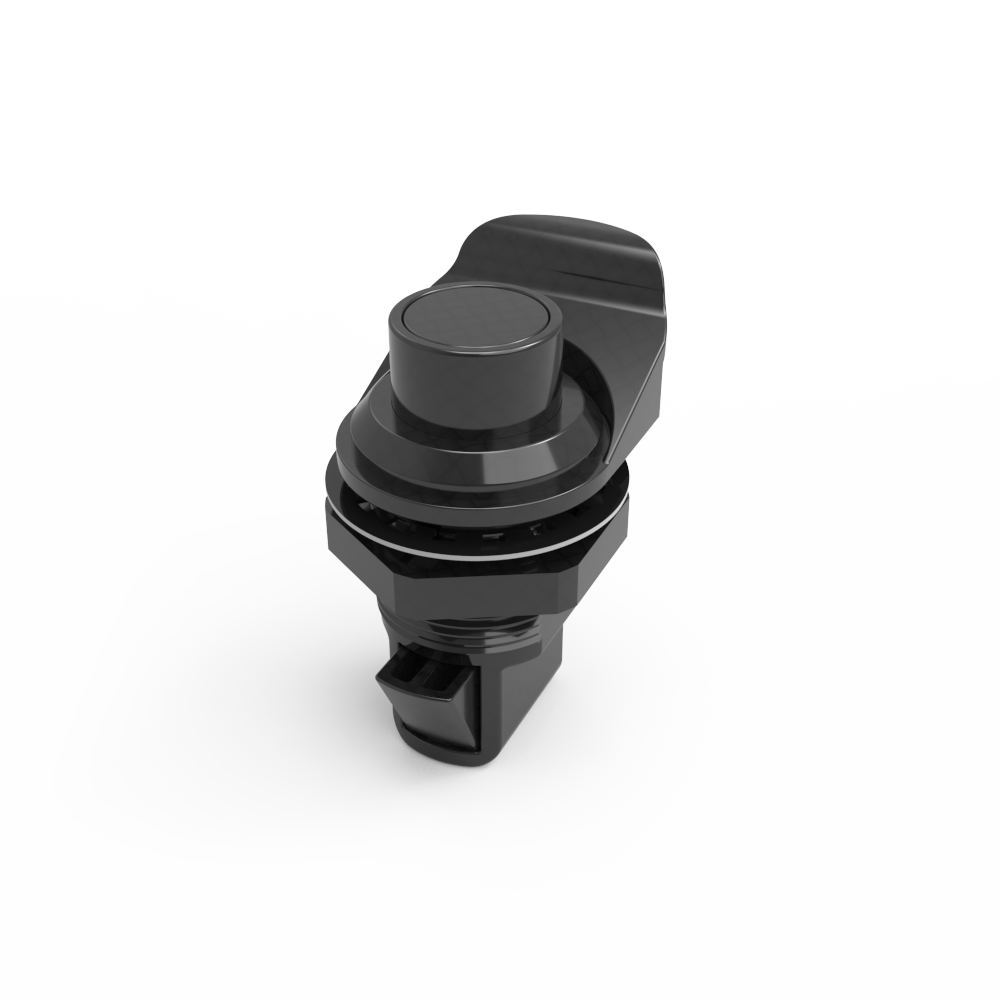

Push to Close Latch, Push Button, Pull tab parallel to latching pawl, Plastic, Black C1-1515-NS

1. Detailed Materials, Engineering Grade & Environmental Durability

The C1-1515-NS Push-to-Close Latch (Push-Button Slam Latch) is engineered for medical diagnostic carts, electronic instrument cabinets, modular server racks, marine cabin hatches, and automotive interior panels requiring lightweight construction, instant tool-free push closing, ergonomic push-button unlatching, high impact resistance, and complete immunity to chemical corrosion.

• High-Impact Engineering Polymer Metallurgy (UV-Stabilized ABS/PA Polymer): Injection-molded using high-grade, UV-stabilized engineering plastic (ABS / Polyamide PA66 glass-reinforced polymer) for the main housing body, push button, and latching pawl, paired with a high-tensile stainless steel spring return assembly. This structural plastic construction delivers exceptional strength-to-weight ratios, high fatigue life, and zero electrical conductivity.

• Corrosion Immunity & Environmental Protection: Because the structural housing and actuator consist entirely of high-grade engineering polymers, the C1-1515-NS is 100% immune to rust, pitting, and galvanic corrosion. It easily passes 240-hour to 500-hour neutral salt spray testing (ASTM B117 / ISO 9227), making it superior to metal latches in high-humidity marine environments, chemical processing areas, and sterile medical facilities.

• Slam Action Push-to-Close & Parallel Pull Tab Actuation: Designed with an intuitive slam-latching push-to-close mechanism. Pushing the door shut automatically depresses and snaps the spring-loaded pawl behind the frame keeper. Opening is achieved by depressing the integrated push button, which actuates a pull tab parallel to the latching pawl, allowing effortless finger-pull unlatching in one natural motion.

• IP Rating Matching & Silent Operation: Fitted with internal shaft O-rings and a perimeter mounting flange gasket. When installed on sheet metal, plastic, or composite doors fitted with continuous perimeter gaskets, the C1-1515-NS achieves an IP54 to IP65 ingress protection rating (EN 60529 / NEMA Type 12, 13 equivalent), blocking airborne dust, oil mist, and splashing water while dampening panel rattle during vibration.

2. Technical Specifications & Parameter Matrix

The parameter table below is structured to optimize search engine rich snippet indexing and facilitate fast engineering procurement evaluations:

3. High-Frequency Industrial Application Scenarios

The C1-1515-NS black plastic push-button push-to-close latch is heavily specified across modern industrial cabinets requiring lightweight, corrosion-proof, quick-access latching:

• Electrical & Control Enclosures: Secures low-voltage control panels, junction boxes, and factory automation bays requiring lightweight, insulated, tool-free latching.

• Medical Diagnostic Equipment & Workstations: Provides clean, silent, corrosion-proof slam latching for mobile medical carts, diagnostic analyzer covers, and sterile storage lockers.

• Marine Vessels & RV Storage Compartments: Serves as a rust-proof push-to-close latch for boat cabin doors, galley drawers, RV baggage bays, and utility hatches exposed to salt spray.

• Modular IT Server Racks & Telecom Bays: Delivers sleek black aesthetics, quiet slam closing, and fast push-button opening for server rack access doors, network distribution hubs, and power kiosks.

• Specialty Vehicle Interiors & Bus Utility Panels: Secures overhead storage lockers, passenger service compartments, and dashboard access panels subject to vehicle motion.

4. Why Choose CUYUE for Your Industrial Hardware Needs?

At Wenzhou CUYUE Lock Technology Co., Ltd., we combine extensive technical experience with complete internal manufacturing capabilities to support global OEMs, enclosure fabricators, and hardware distributors:

• In-House R&D & Engineering Expertise: Supported by a dedicated R&D design team specializing in cabinet locks, hinges, and handles engineered to strictly match global industrial specifications.

• Integrated Precision Tooling & Plastic Molding: Our manufacturing plant integrates precision plastic injection molding tool design, automated CNC machining, assembly, and quality testing under one roof for complete quality management.

• Rigorous Quality Testing & Validation: Every production lot undergoes mechanical push-button actuation fatigue testing, spring return force checks, salt spray corrosion testing, and dimensional verification before dispatch.

• Flexible OEM/ODM Customization & Rapid Delivery: We offer custom resin formulations (fire-retardant UL94-V0 plastic), custom color matching (gray, white, custom RAL shades), custom keeper profiles, and rapid prototyping to keep your production schedules on track.

• Cost-Effective System Solutions: We empower clients to optimize total procurement costs without sacrificing product longevity, delivering complete industrial enclosure hardware systems under one trusted brand.

5. Frequently Asked Questions (Q&A)

Q1: How does a push-to-close slam latch like the C1-1515-NS operate?

A: A push-to-close slam latch features an angled, spring-loaded pawl that retracts automatically when the door is pushed shut against the frame keeper. Pressing the push button retracts the pawl, allowing the user to pull the tab parallel to the pawl to open the door in one fluid motion.

Q2: What is the main advantage of an engineering plastic push-to-close latch over metal latches?

A: Engineering plastic latches are 100% rust-proof, lightweight, electrically non-conductive, and cost-effective. They eliminate paint chipping and are ideal for corrosive marine, medical, and chemical environments.

Q3: What does “pull tab parallel to latching pawl” mean on the C1-1515-NS?

A: It means the release handle or pull tab is aligned directly parallel to the movement of the spring-loaded pawl. This ergonomic design allows operators to push the button and pull the door open using a single, natural grip orientation.

Q4: Is the C1-1515-NS plastic slam latch suitable for harsh outdoor and marine conditions?

A: Yes. Formulated with high-impact UV-stabilized polymers and stainless steel springs, the C1-1515-NS resists salt spray, chemical cleaning solutions, and UV degradation without rusting or color fading.

Q5: Is the C1-1515-NS push-button latch universal for left-hand and right-hand doors?

A: Yes. The C1-1515-NS features a universal non-handed design (LH/RH), allowing panel builders to install the same latch model on both left-opening and right-opening cabinet doors.

Q6: Can the C1-1515-NS handle vibration in moving vehicles or marine craft?

A: Yes. High-tensile stainless steel internal springs maintain constant latching tension against the frame keeper, preventing pawl chatter, door rattle, and accidental unlatching during vehicle or vessel movement.

Q7: What panel cutout preparation is required to install the C1-1515-NS latch?

A: The C1-1515-NS installs into a standard rectangular panel cutout. It snaps into place or is clamped securely from behind using a rear mounting bracket and screws, leaving a flush exterior bezel.

Q8: Can the C1-1515-NS push-button latch assist in achieving an IP54 or IP65 rating?

A: Yes. When mounted with its flange gasket against sheet metal, plastic, or fiberglass doors fitted with continuous perimeter rubber seals, it maintains firm compression to seal out dust and water spray.

Q9: What operating temperature range can the C1-1515-NS plastic latch handle?

A: Constructed from high-grade engineering polymers and stainless steel springs, the C1-1515-NS operates reliably across temperatures ranging from -30°C to +80°C (-22°F to +176°F).

Q10: Why purchase industrial push-to-close latches directly from a Chinese manufacturer like CUYUE?

A: Sourcing directly from Wenzhou CUYUE Lock Technology Co., Ltd. delivers factory-direct pricing, certified raw material grades, custom plastic injection tooling capabilities, and rapid order turnaround backed by ISO-aligned quality validation.
