1. Detailed Materials, Engineering Grade & Environmental Durability

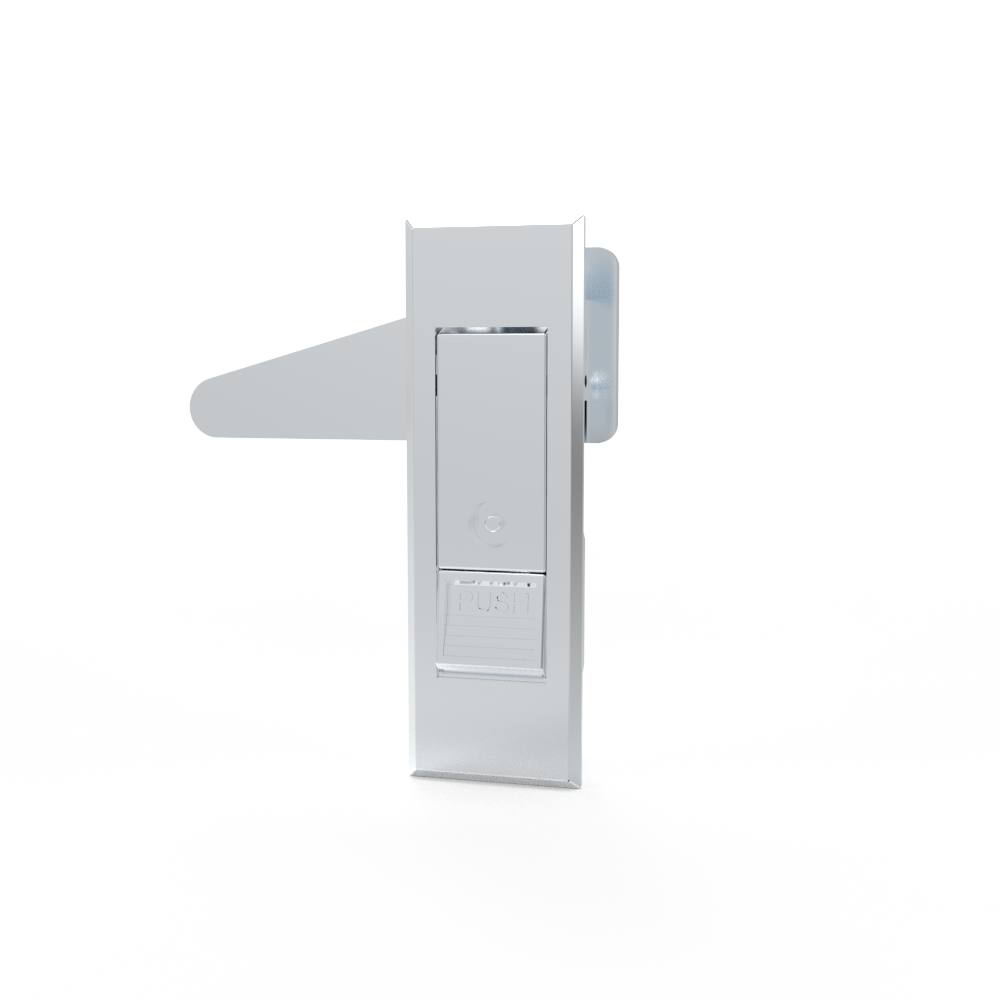

The MS603-3-1W Plane Lock (Flush Pop-Out Swing Handle Lock) is engineered for modern electrical control cabinets, modular server racks, and industrial switchgear doors requiring sleek flush surface integration, universal left/right hand installation, tool-less press-button convenience, high torsional strength, and long-term environmental protection.
High-Density Die-Cast Zinc Alloy Metallurgy: Manufactured using high-strength ZAMAK die-cast zinc alloy (ZDC) for the main housing body, silver actuation press button, pop-out handle lever, and internal gear drive mechanism. This structural composition delivers exceptional dimensional stability, high tensile strength, and superior mechanical resistance under continuous daily turning loads.
Multi-Layer Bright Electroplating & Salt Spray Immunity: Features a premium bright chrome / nickel electroplated surface finish. This multi-layer metallic barrier shields the zinc alloy substrate against atmospheric oxidation, chemical fumes, oil mist, and UV exposure. It easily withstands 48-hour to 96-hour neutral salt spray testing (ASTM B117 / ISO 9227) without blistering, pitting, or surface tarnishing, making it highly reliable for indoor automated factory bays and sheltered outdoor control enclosures.
Universal Left / Right (LH/RH) Handing & Silver Press-Button Release: Designed with a universal non-handed reversible architecture, allowing panel fabricators to install the lock seamlessly on either right-hand (RH) or left-hand (LH) opening doors without altering internal components. Depressing the ergonomic silver push button automatically releases the spring-loaded handle to pop out, providing high manual leverage for smooth, low-effort quarter-turn actuation.
Ingress Protection & Gasket Sealing Support (IP Rating Matching): Integrated with internal shaft O-ring seals and a perimeter rubber base gasket. When mounted flush against sheet metal doors fitted with continuous EPDM perimeter gaskets, the MS603-3-1W achieves an IP54 to IP65 ingress protection rating (EN 60529 / NEMA Type 12, 13 equivalent), effectively blocking splashing water, airborne dust, and industrial lubricants while preventing door rattle caused by machinery vibration.
2. Technical Specifications & Parameter Matrix
The parameter table below is structured to optimize search engine rich snippet indexing and facilitate fast engineering procurement evaluations:
| Technical Parameter | Specification / Grade Value |
| Model Code | MS603-3-1W |
| Product Type | Plane Lock / Flush Pop-Out Swing Handle Series |
| Material Grade | High-Density Die-Cast Zinc Alloy (ZAMAK / ZDC) |
| Surface Finish | Multi-Layer Bright Electroplated Chrome / Nickel Finish |
| Actuation Style | Silver Push-Button Release with Pop-Out Handle |
| Handing / Application | Universal Non-Handed (Right-Hand / Left-Hand Reversible LH/RH) |
| IP Protection Rating | IP54 / IP65 Certified (Enclosure & Gasket Dependent) |
| NEMA Rating Equivalent | NEMA Type 4, 12, 13 |
| Operation Angle | 90° Quarter-Turn Handle Rotation for Cam Drive |
| Mounting Style | Single-Hole Cutout Mounting with Rear Retaining Stiffener Bracket |
| Grip Range (Grip Distance) | Fully Adjustable Cam / Stepped Offset Cam Options |
| Operating Temperature | -30°C to +80°C (-22°F to +176°F) |
| RoHS / REACH Status | Fully Compliant |
3. High-Frequency Industrial Application Scenarios
The MS603-3-1W bright electroplated plane lock is heavily specified across modern industrial equipment cabinets requiring ergonomic handle leverage, flush aesthetics, and quick button-release access:
Electrical & Control Enclosures: Secures low/medium voltage switchgear panels, motor control centers (MCC), and factory automation control cabinets requiring high handle turning leverage and sleek panel aesthetics.
Outdoor 5G Telecom & Power Distribution Kiosks: Protects remote telecommunications housing, optical fiber junction nodes, and outdoor battery bays against windborne dust, splash rain, and environmental humidity.
Modular IT Server Racks & Data Center Cabinets: Delivers bright mirror aesthetics and secure push-to-open access control for enterprise server rack bays, network distribution hubs, and power kiosks.
Industrial CNC Machinery & Equipment Guards: Provides quick-access, vibration-resistant latching for metalworking machine guards, air compressor hoods, and conveyor control enclosures.
HVAC Systems & Large Air Handling Units (AHU): Maintains uniform door seal pressure on pressurized air handling unit access doors, industrial chillers, and rooftop HVAC control bays.
4. Why Choose CUYUE for Your Industrial Hardware Needs?
At Wenzhou CUYUE Lock Technology Co., Ltd., we combine extensive technical experience with complete internal manufacturing capabilities to support global OEMs, enclosure fabricators, and hardware distributors:
In-House R&D & Engineering Expertise: Supported by a dedicated R&D design team specializing in cabinet locks, hinges, and handles engineered to strictly match global industrial specifications.
Integrated Precision Tooling & Casting: Our manufacturing plant integrates precision mold design and development, zinc alloy die-casting, automated CNC machining, electroplating, and quality testing under one roof for complete quality management.
Rigorous Quality Testing & Validation: Every production lot undergoes mechanical handle pop-out fatigue testing, spring bounce checks, salt spray corrosion testing, and dimensional verification before dispatch.
Flexible OEM/ODM Customization & Rapid Delivery: We offer custom keying options, alternative surface finishes (such as matte black powder coating or satin nickel), custom cam offsets, multi-point rod control adapters, and rapid prototyping to keep your production schedules on track.
Cost-Effective System Solutions: We empower clients to optimize total procurement costs without sacrificing product longevity, delivering complete industrial enclosure hardware systems under one trusted brand.
5. Frequently Asked Questions (Q&A)
Q1: How does the push-button pop-out mechanism work on the MS603-3-1W plane lock?
A: Depressing the silver push button triggers an internal spring catch, causing the flush handle lever to pop out. The operator then rotates the handle 90 degrees to disengage the cam and open the enclosure door.
Q2: Is the MS603-3-1W plane lock universal for left-hand and right-hand opening doors?
A: Yes. The MS603-3-1W features a universal non-handed reversible design (LH/RH), allowing panel builders to install the same lock on both left-hinged and right-hinged doors to reduce stocking SKUs.
Q3: What is the benefit of a plane lock (flush pop-out handle) on electrical enclosures?
A: A plane lock sits completely flush with the cabinet door face when closed, eliminating protruding hardware that could snag operators working in narrow service aisles or equipment rooms.
Q4: How does the bright electroplated finish protect the MS603-3-1W zinc alloy body?
A: Multi-layer bright electroplating (copper-nickel-chromium) forms a non-porous protective shell over the zinc alloy substrate, passing 48-hour to 96-hour neutral salt spray tests (ASTM B117) to prevent oxidation, rust, and tarnishing.
Q5: Can the MS603-3-1W plane lock be adapted for multi-point rod control systems?
A: Yes. The rear drive hub of the MS603-3-1W can be fitted with multi-point rod control adapters, allowing it to drive top and bottom connecting rods for multi-point latching on tall cabinet doors.
Q6: What IP protection rating does the MS603-3-1W achieve on enclosure doors?
A: When mounted with its perimeter rubber base sealing gasket against sheet metal doors with continuous frame gaskets, the MS603-3-1W achieves an IP54 to IP65 ingress protection rating, blocking dust and water spray.

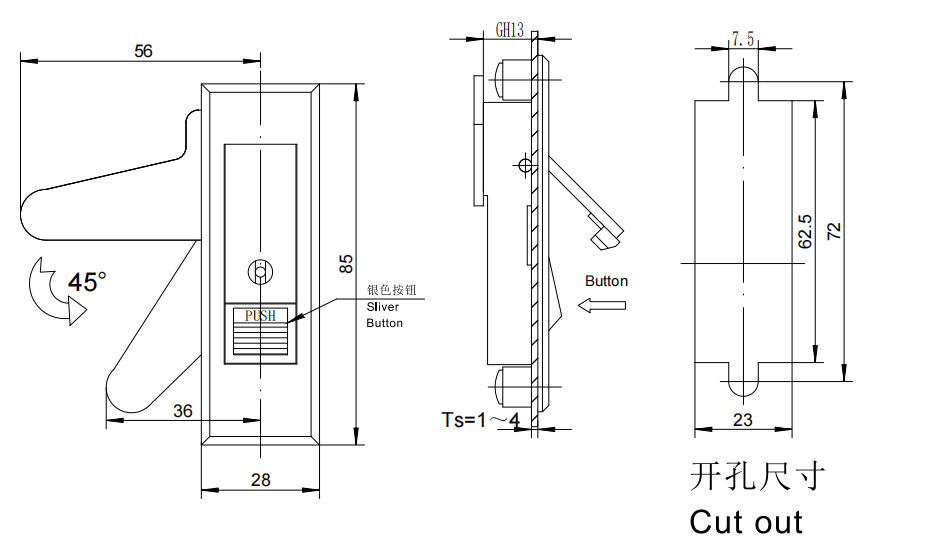

Q7: What panel cutout preparation is required to install the MS603-3-1W lock?
A: The MS603-3-1W installs into a standard industrial rectangular panel cutout. It is clamped securely from behind using rear mounting brackets and studs, leaving no visible fasteners on the exterior face.
Q8: Can the MS603-3-1W plane lock withstand heavy machinery vibration?
A: Yes. The internal spring mechanism and precise cam engagement maintain positive tension when closed, preventing handle chatter, door rattle, and accidental unlatching during continuous machine vibration.
Q9: What operating temperature range can the MS603-3-1W zinc alloy lock handle?
A: Constructed from high-strength die-cast zinc alloy and durable internal springs and seals, the MS603-3-1W operates reliably across temperatures ranging from -30°C to +80°C (-22°F to +176°F).
Q10: Why purchase industrial plane locks directly from a Chinese manufacturer like CUYUE?
A: Sourcing directly from Wenzhou CUYUE Lock Technology Co., Ltd. delivers factory-direct pricing, certified raw material grades, custom mold development capabilities, and rapid order turnaround backed by ISO-aligned quality validation.
