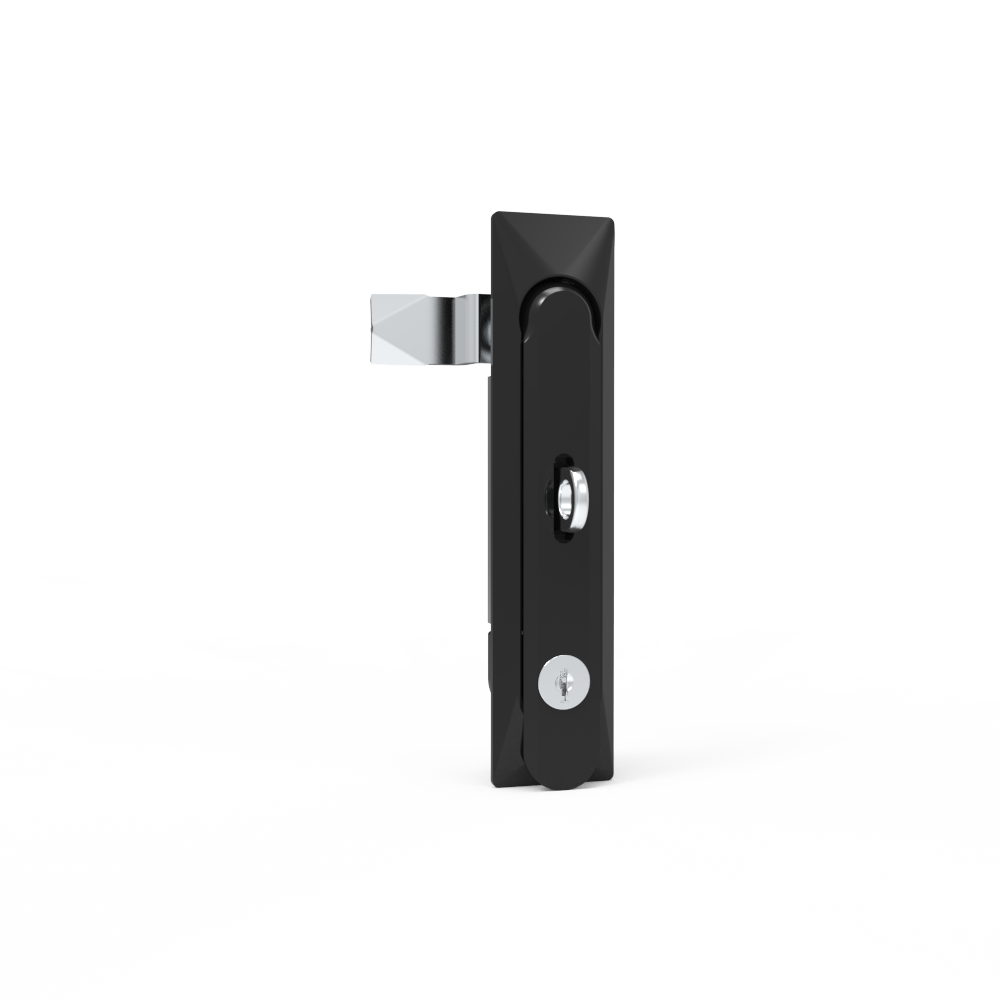

Swing handle lock,K333 key lock, padlockable,left and right universal, rotary handle open, zinc alloy, powder coated, black,MS861-2G

1.Material and Surface Treatment:
Lock body, handle：Zinc Alloy or PA66+30%GF
Steel bolt: iron galvanized or SUS304
Sealing ring: EPDM foam.
2. Performance Parameters:
Protection class: IP65
Handle bearing tension value: ≤ 390N
Handle bearing torque value: ≤ 12N. m
Maximum static load: 300N
3. Function Description:
Open the handle upwards and rotate it 90°
to achieve opening
4. Remarks:
Default key K333
