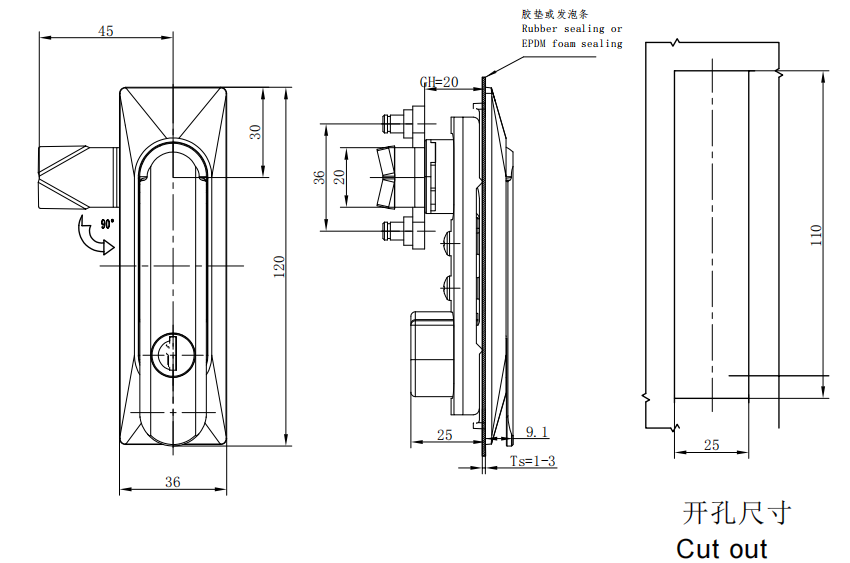

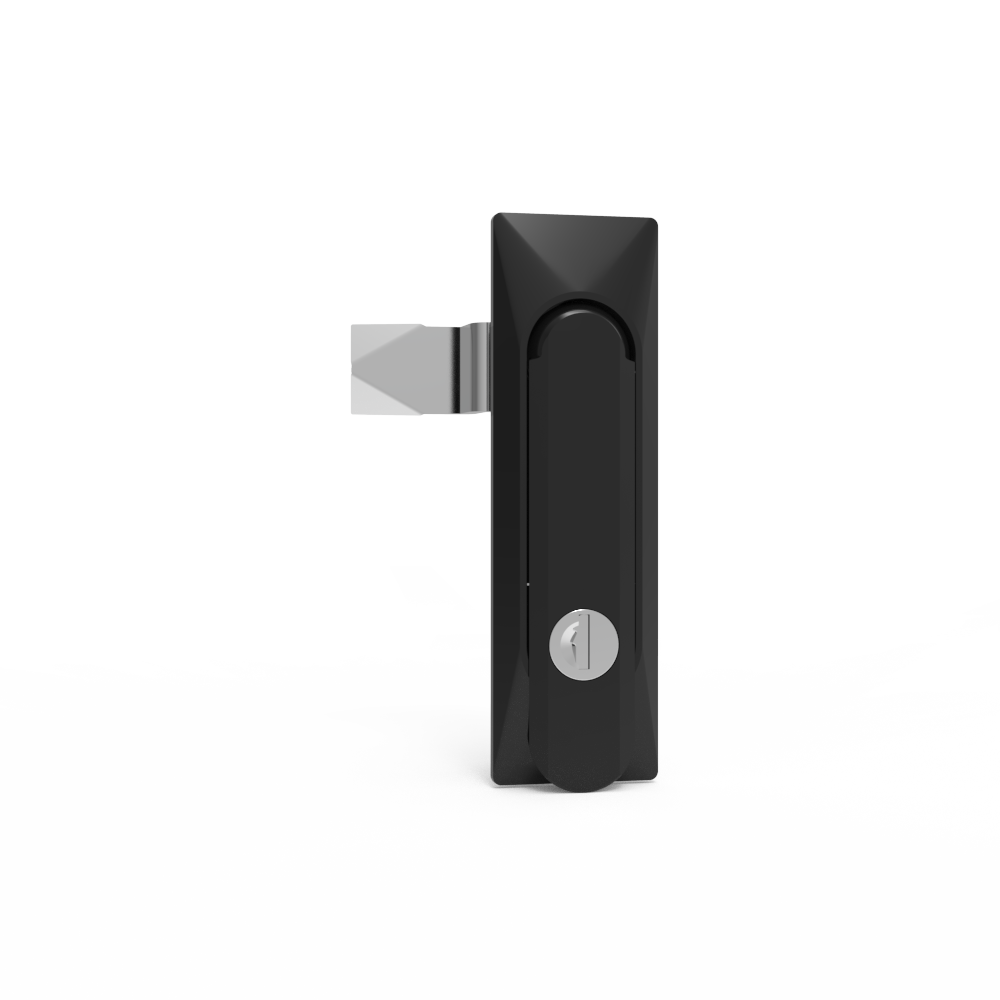

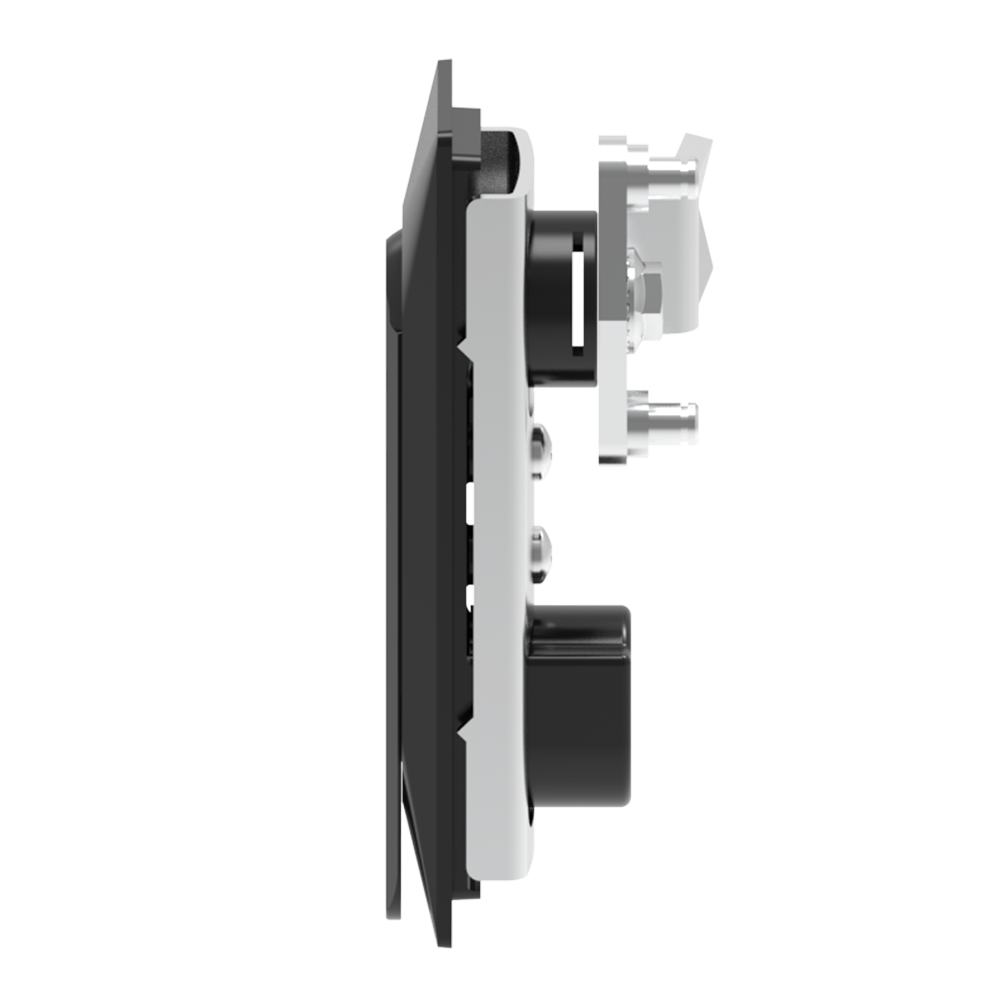

Flat Swing Handle Lock, Small Size, Matt Black Coated, Zinc Die, PA6 Base, Single point or Three point locking，MS861-4
1.Material and surface treatment:
Lock body, handle：Zinc alloy or PA66+30%GF
Steel bolt: iron galvanized or SUS304
Sealing ring: EPDM foam.
2. Performance parameters:
Protection class: IP65
Handle bearing tension value: ≤ 390N
Handle bearing torque value: ≤ 12N. m
Maximum static load: 300N
3. Function Description:
Open the handle upwards and rotate it 90°
to achieve opening
4. Remarks:
Default key K333
