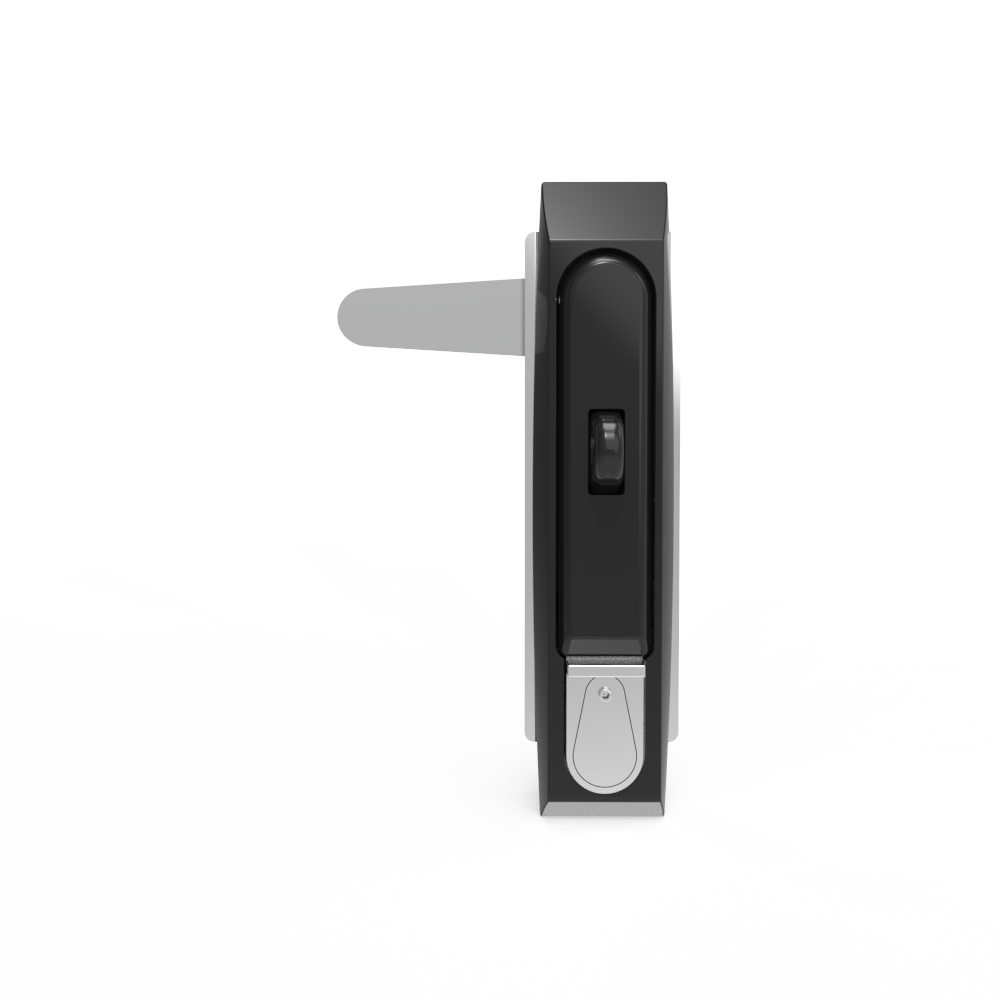

Swing handle lock,K200 key lock, with padlock, left and right universal, rotary handle open, zinc alloy, powder coated, black,MS834-5-10
1.Material and surface treatment:
Lock body, handle dust cover ：Zinc alloy
Dust cover ：SUS304
Steel bolt: iron galvanized
Sealing ring: EPDM foam.
2. performance parameter:
Protection level: IP65
Handle bearing tension value: ≤ 310N
Handle bearing torque value: ≤ 33N. m
Maximum static load: 300N
3. Function Description:
Open the handle upwards and rotate it 90 °
to achieve opening
Can be equipped with a padlock
4. Remarks:
Optional dedicated key
Default K200 key
