Push-to-Close Slide Latch-DK728-2A Sides
Push-to-Close Slide Latch-DK728-2A Sides
Push-to-Close Slide Latch-DK728-2A Back side
Push-to-Close Slide Latch-DK728-2A Front side

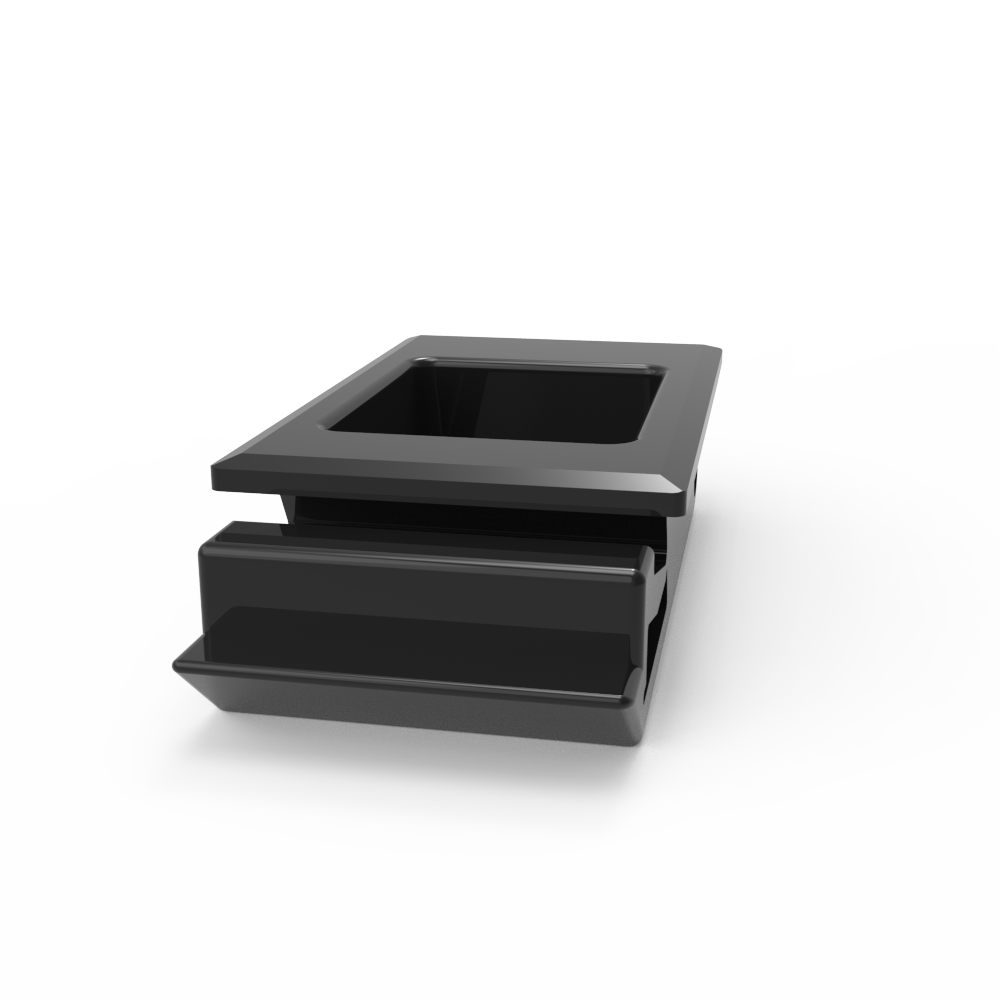

Push-to-Close Slide Latch-DK728-2A Left side

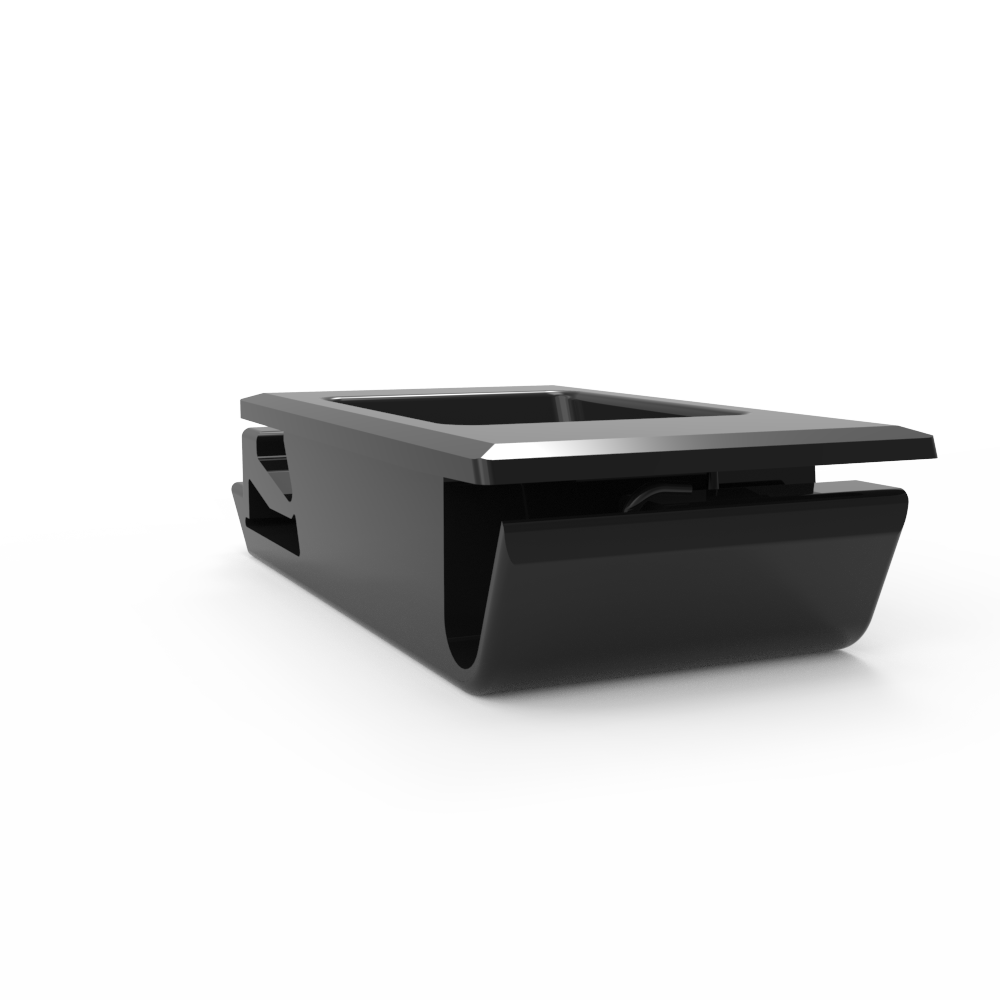

Push-to-Close Slide Latch-DK728-2A Right side

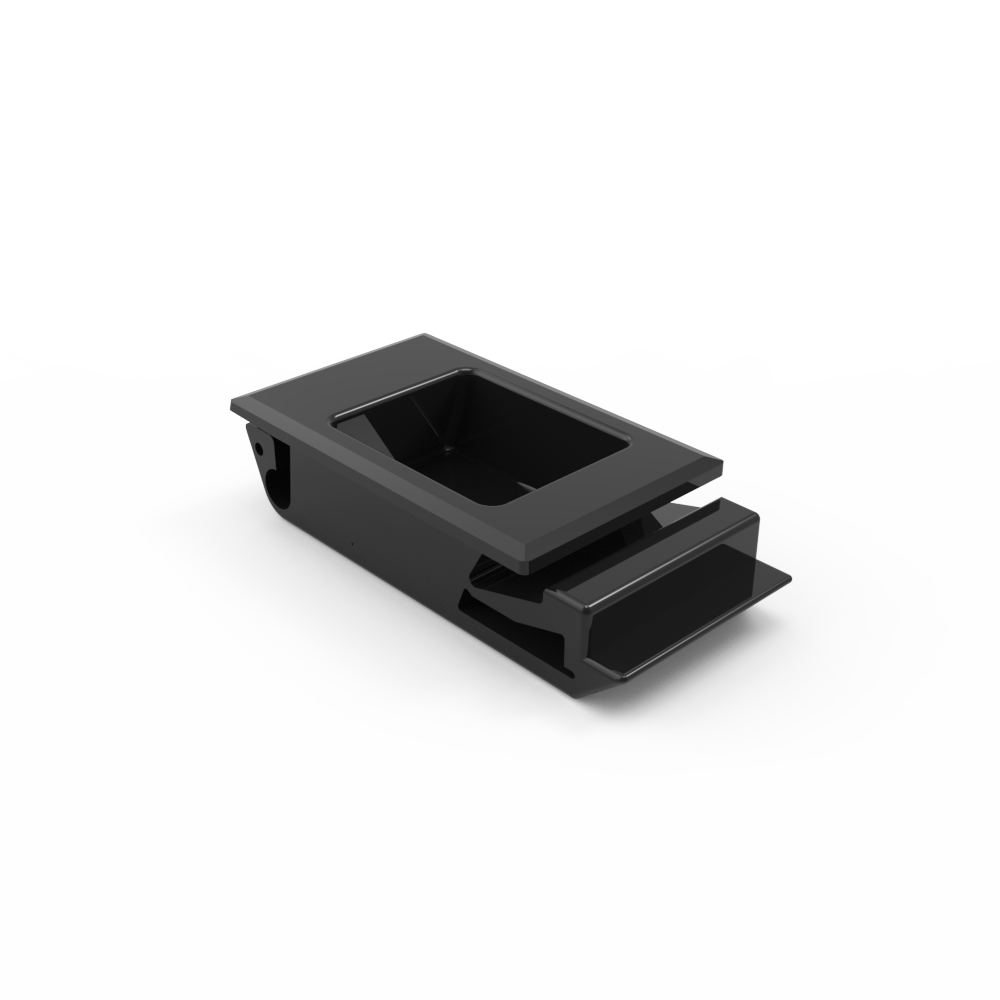

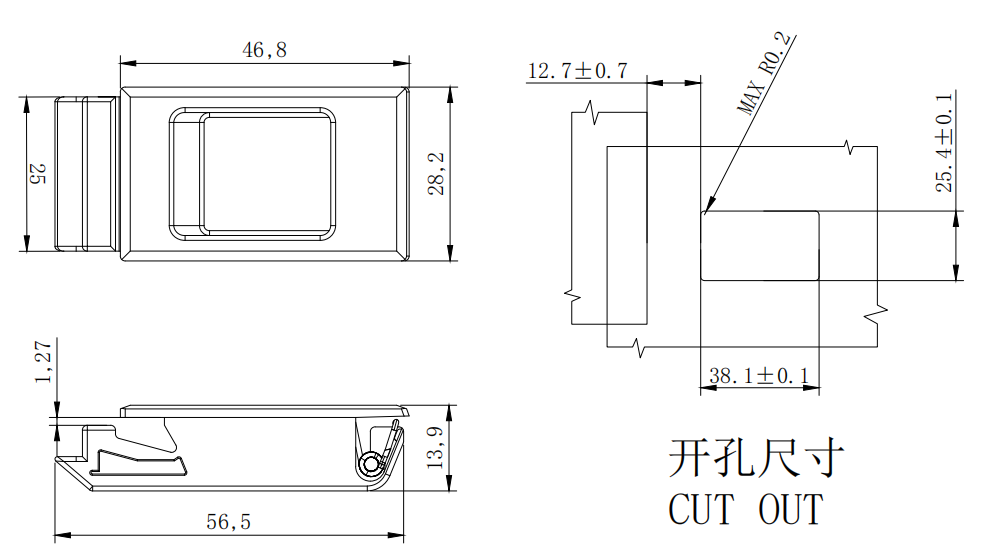

Push-to-Close Slide Latch, Minor Size, 1.3mm (0.05in) Panel Thickness,,ABS,Black DK728-2A

1.Material and Surface Treatment:
Latch:ABS, Black
Spring: Stainless Steel
2.Performance Details
90 Series 140N(32lbf)
40 Series 180 N(40 lbf)
50 and 99 series 220N(50lbf)
Operating Temperature Range:-40C(-40F)to60C(140F)

Ball catch-DK736-1 Sides
Ball catch, 50mm, stainless steel, passivated, bright，DK736-1
Push To Close Latch-C1-1520 Sides
Drawer Lock push-in close with key, zinc alloy, Chrome plated, polished,C1-1520
Push-to-Close Latch-C1-2003 Sides
Push-to-Close Latch, No Restriction, Plastic,Electrochromic plating, Chrom,C1-2003
Push-to-Close Slide Latch-DK728-3 Sides
Push-to-Close Slide Latch, Middle- Size, 2.2mm (0.080in) Panel Thickness,,ABS,Black DK728-3
Push-to-Close Latch-M1-1103-20 Sides
Push-to-Close Latch, Medium Size, No limit, 2 – 7mm (.075 – .275 in) Door thickness, 25.5mm (1.00 in) Grip, zinc alloy, chrome plating, bright, M1-1103-20
Push To Close Latch-D6-1606-1 Sides
Push to cloese latch,No limit , zinc alloy, chrome plating, bright D6-1606-1
Paddle latch-MS912-10-1 Sides
Paddle latch, medium,No limit, 7.9 mm (.31 in) grip, stainless steel, Powder coating, black MS912-10-1
Push-to- Close Lock-M1-1102-10 Sides
Push-to-Close Latch, Medium Size, key lock, 2 – 7mm (.075 – .275 in) Door thickness, 25.5mm (1.00 in) Grip, zinc alloy,black M1-1102-10
