Push To Close Latch-D6-1605-1 Sides
Push To Close Latch-D6-1605-1 Sides

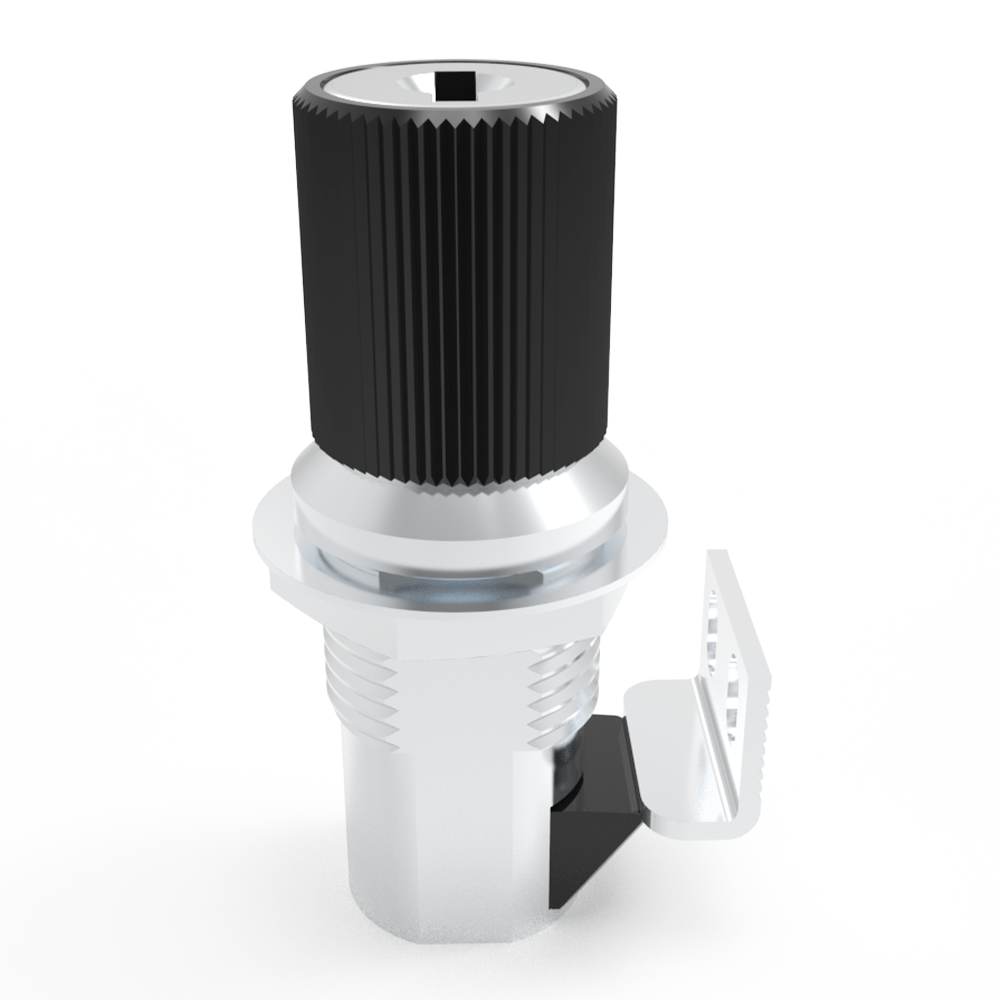

Push To Close Latch-D6-1605-1 Right side

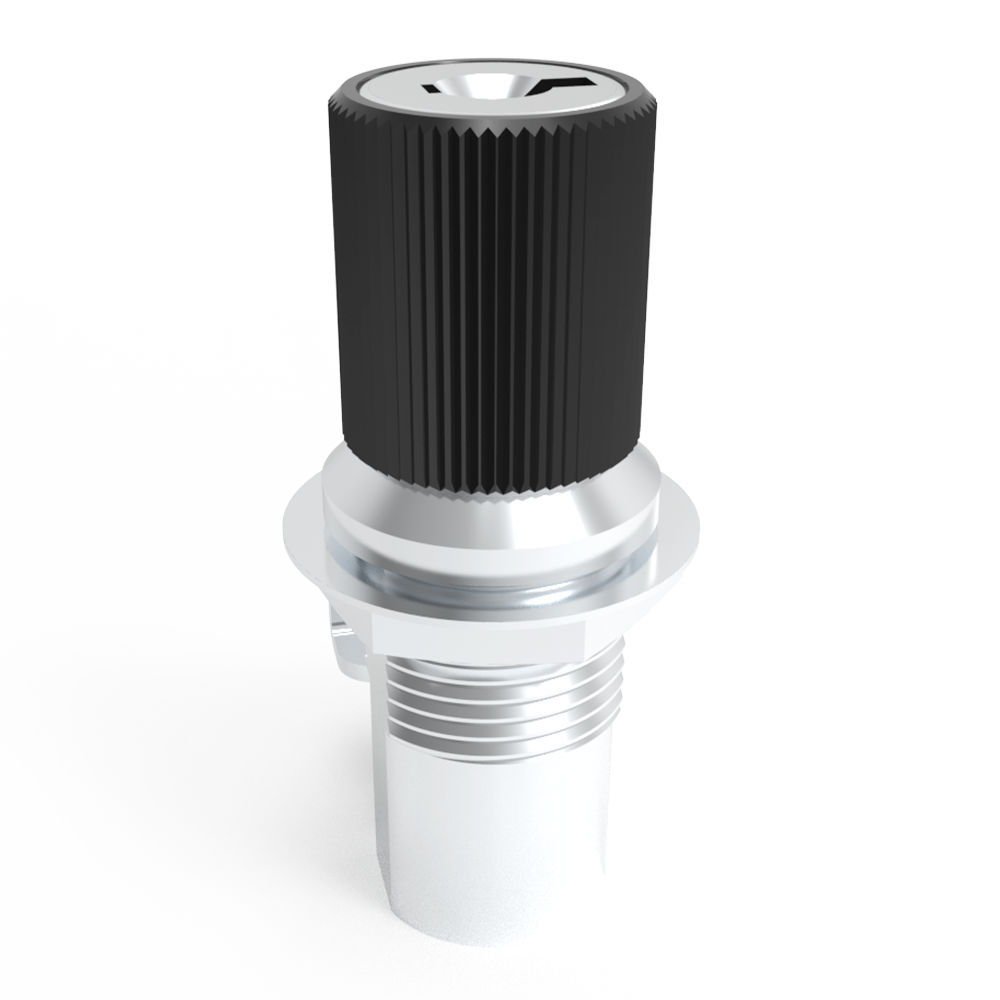

Push To Close Latch-D6-1605-1 Back side

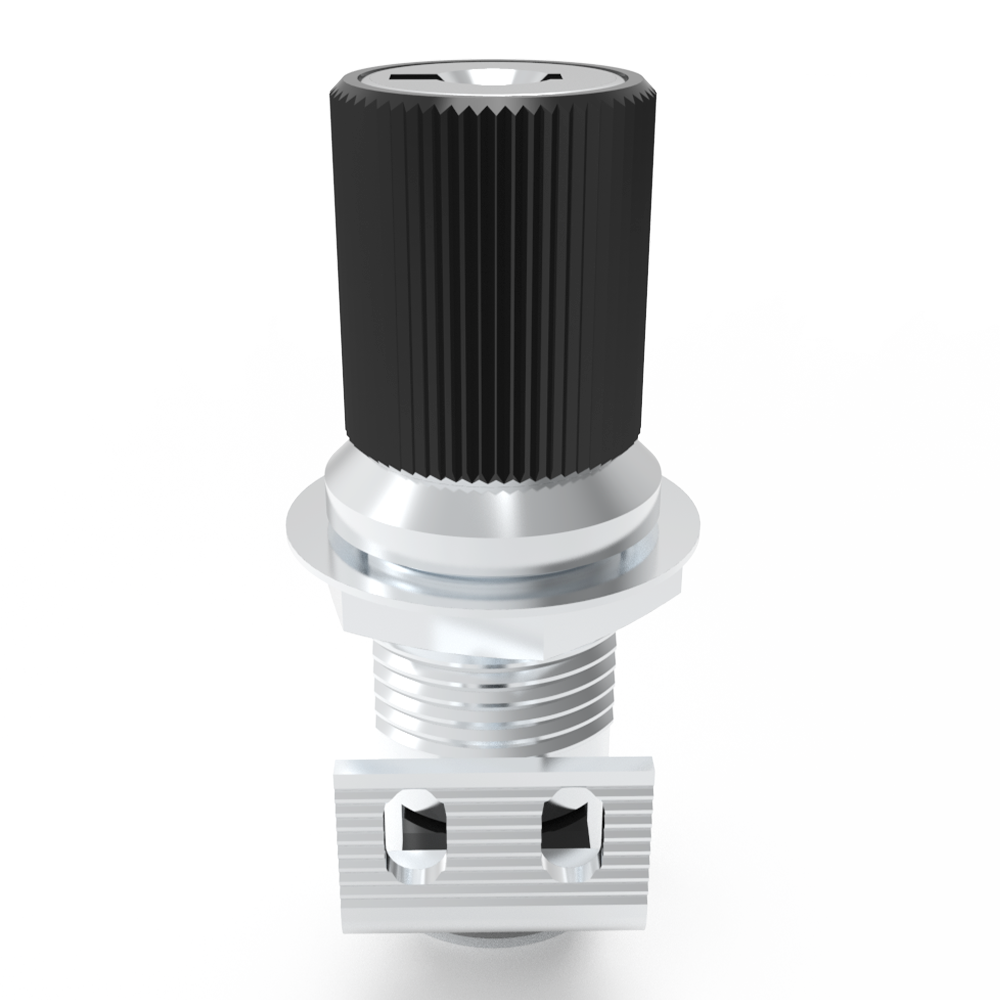

Push To Close Latch-D6-1605-1 Front side

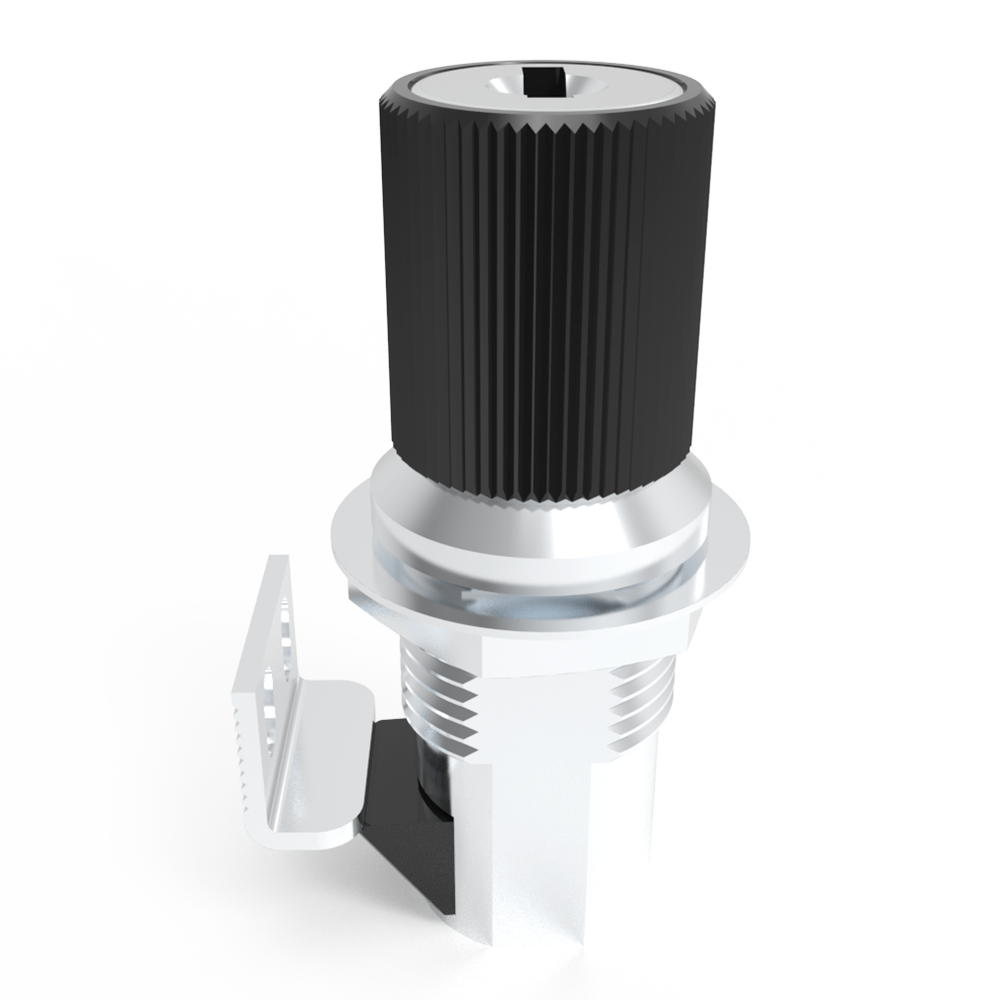

Push To Close Latch-D6-1605-1 Left side

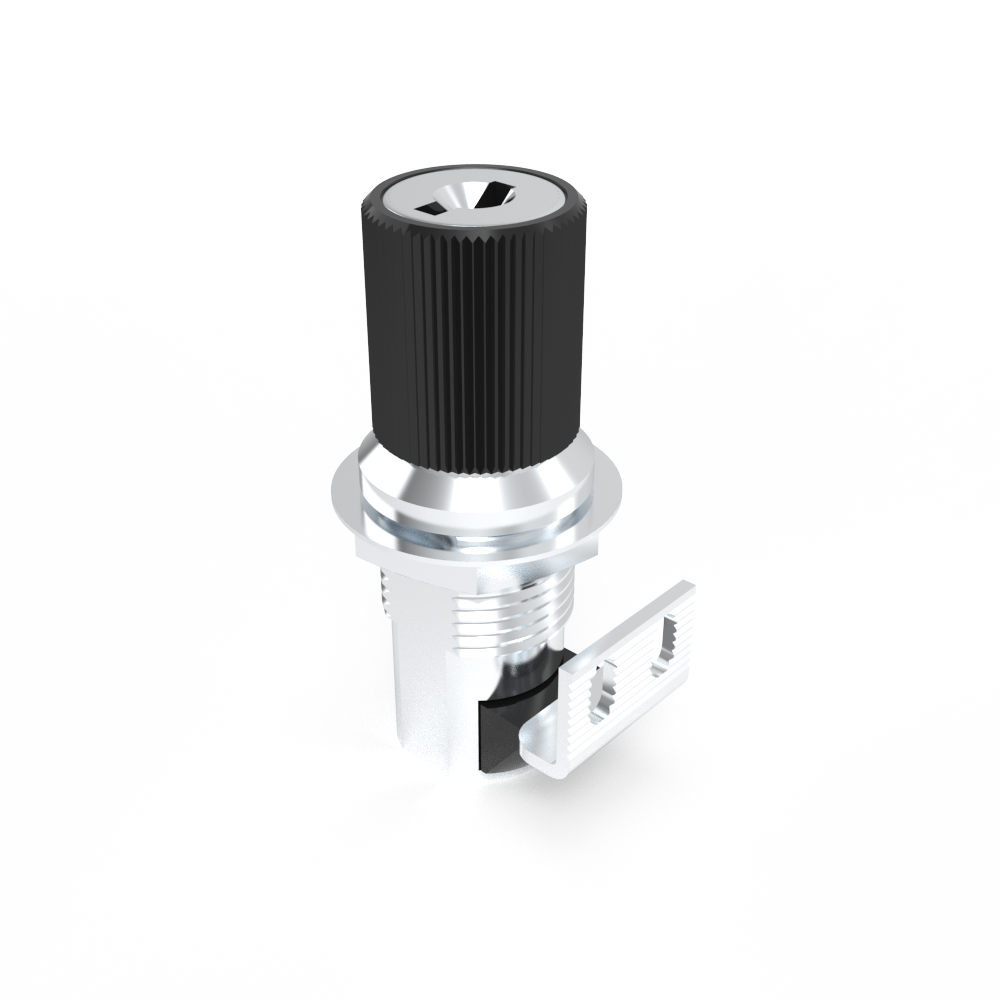

Push to cloese latch, key lock, zinc alloy, chrome plating, bright,D6-1605-1

1.Material and Surface Treatment:
Lock Body ：Zamak DIN-EN 1774-ZnAl4Cu1
2. Performance Parameters:
Protection Class: IP40
Maximum Working Load:
Large: 560N
Small Size: 330N
Working Temperature Range: -18 to 65 º C
Flame Retardant Grade: UL94-HB
3. Remarks:
Default CH751 key

Paddle latch-MS910-1 Sides
Paddle latch, Small Size, 1.2 – 2 mm (. 047 – .078 in) Grip, Stainless Steel, Brushed Finish MS910-1
Paddle latch-MS913-A1 Sides
Paddle latch, large size, key lock, rivet mount, stainless steel, polished finish MS913-A1
Paddle latch-MS912-A1 Sides
Paddle latch, medium, CH751 key lock, 7.9 mm (.31 in) grip, stainless steel, brushed finish, bright MS912-A1
Push-to-Close Slide Latch-DK729-2 Sides
Psuh-to-close latch, snap-in, large size,No limit, 1.6mm(. 060 in) Panel thickness, ABS, black DK729-2
Push-to-Close Latch-M1-1103-10 Sides
Push-to-Close Latch, Medium Size, No limit, 2 – 7mm (.075 – .275 in) Door thickness, 25.5mm (1.00 in) Grip,zinc alloy,black M1-1103-10
Paddle latch-MS916-1-A1 Sides
Paddle latch, large size, key lock, rivet mount, stainless steel, polished finish MS916-1-A1
Push-to-Close Slide Latch-DK731-2 Sides
Push-to-Close Latch, lift&right，Key Locking, Plastic DK731-2
Push To Close Latch-C1-1515 Sides
Push to Close Latch, Push Button, Key Locking, Pull tab parallel to latching pawl, Plastic, Black C1-1515
