Push-to-Close Latch-DK737-3 Sides
Push-to-Close Latch-DK737-3 Sides

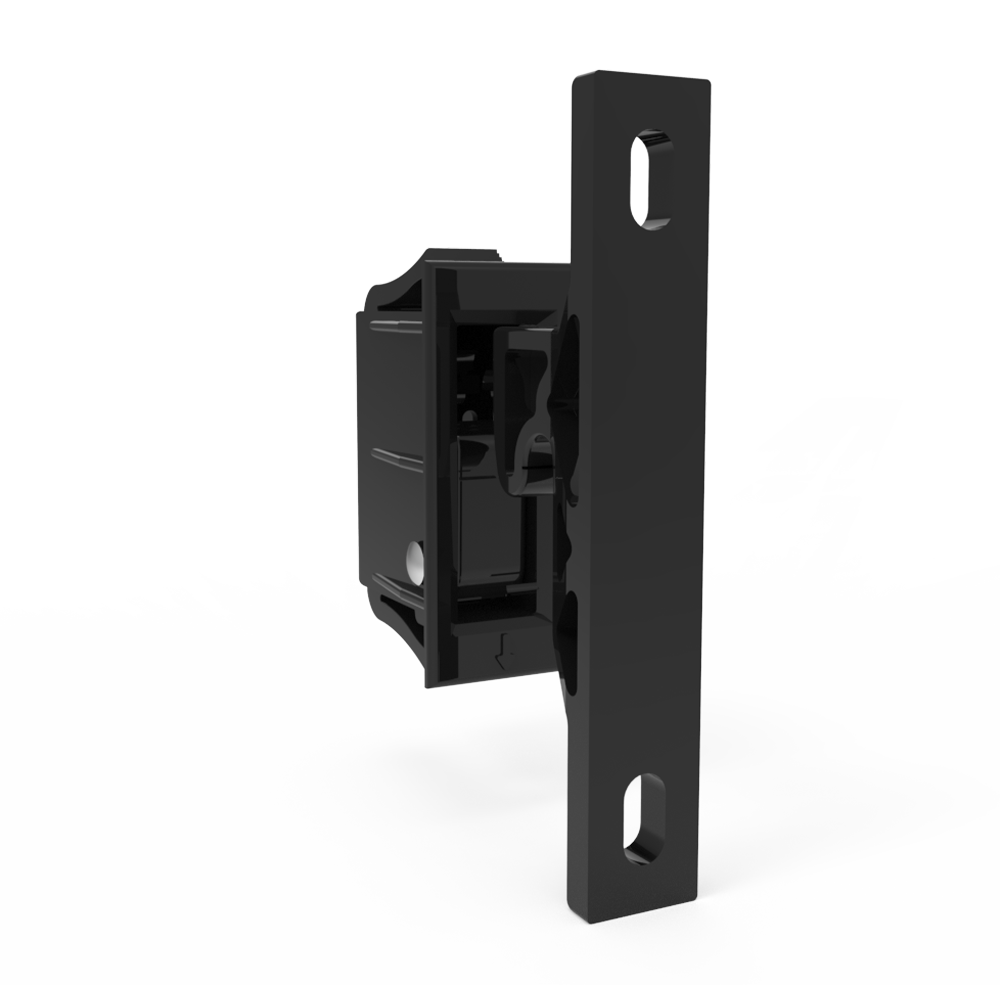

Push-to-Close Latch-DK737-3 Back side

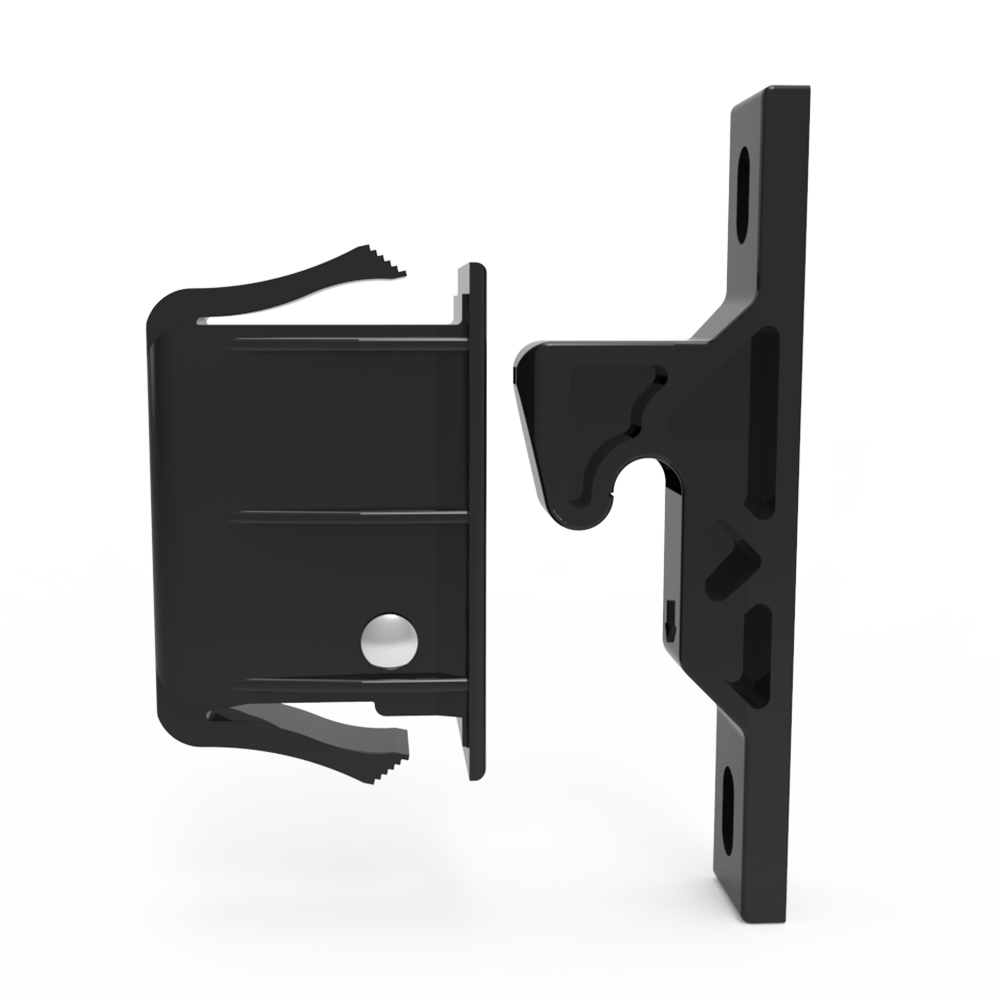

Push-to-Close Latch-DK737-3 Left side

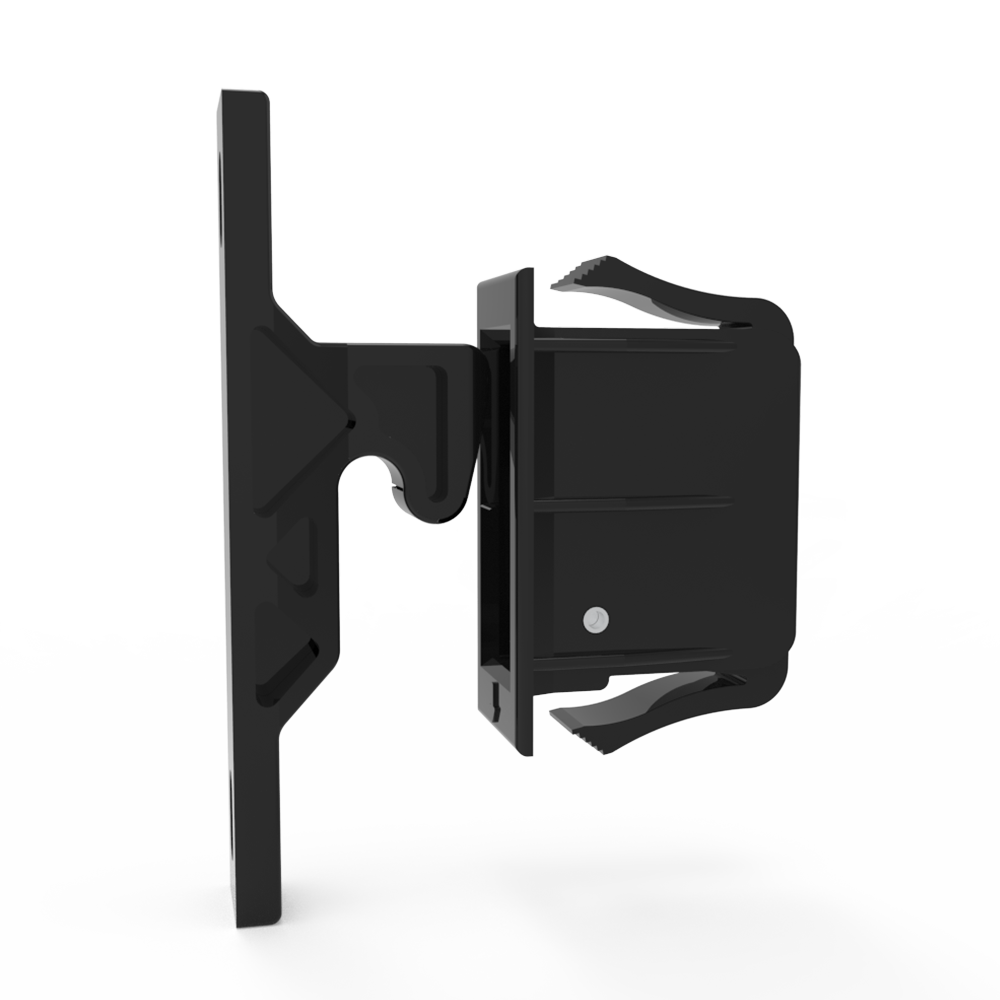

Push-to-Close Latch-DK737-3 Right side

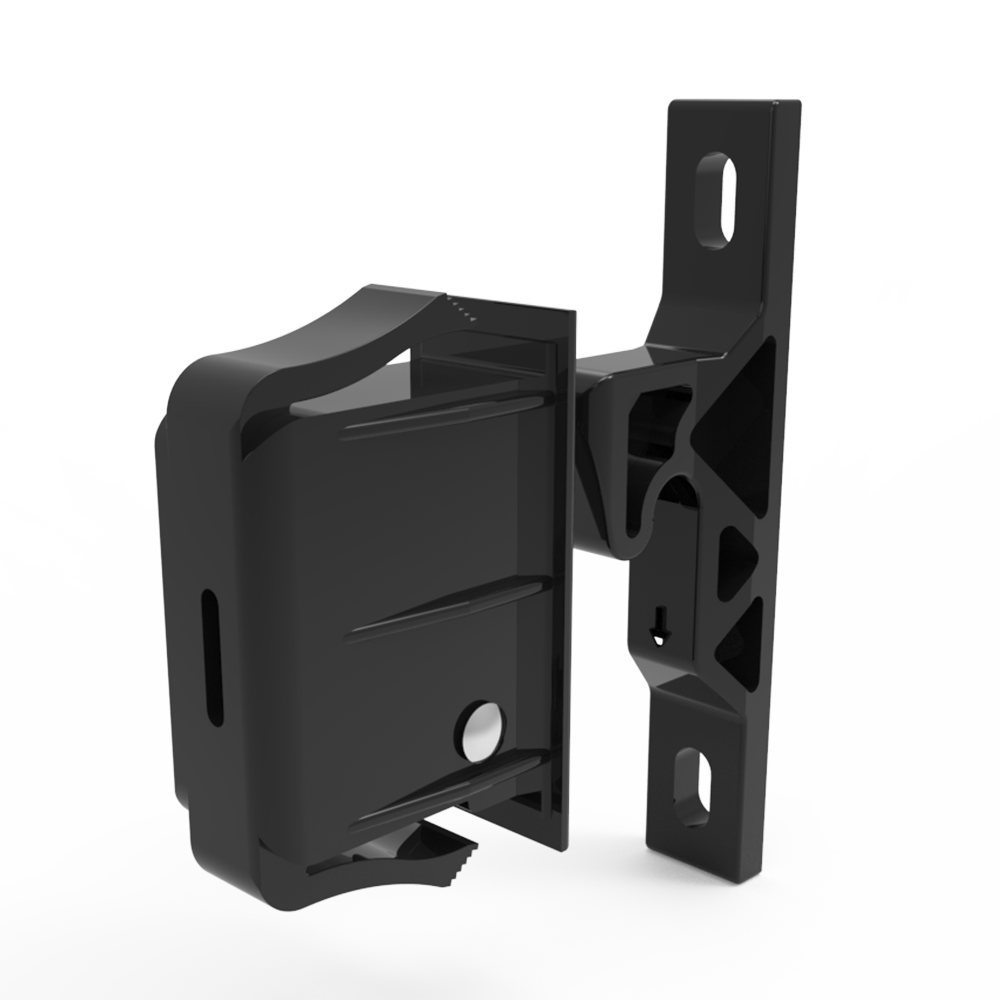

Push-to-Close Latch-DK737-3 Side
Push-to-Close Latch-DK737-3 side2

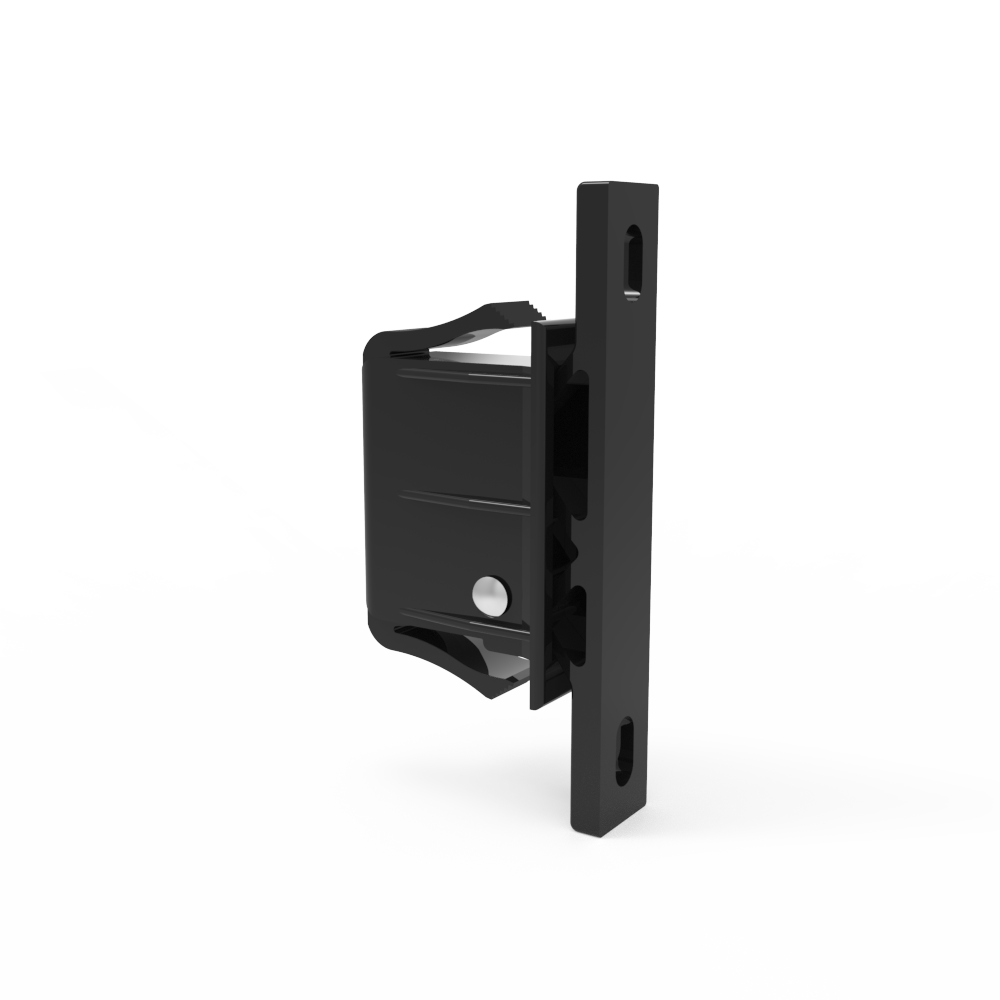

Push-to-Close Latch, Snap-In Mounting, 13N (3 lbf), Plastic, Black,DK737-3

1.Material and Surface Treatment:
Housing: PC/ABS or Glass-Filled nylon
Keeper: Mineral filled nylon
2.Performance Details
Operating temperature range:-30ºC (-20ºF) to 60ºC (140ºF)
Flammability rating: UL94-HB

Push To Close Latch-C1-1519 Sides
Push to close latch, key lock, PA66+30%GF, black C1-1519
Push To Close Latch-C1-1512-2 Sides
Push to cloes latch, key lock, zinc alloy, chrome plating, bright C1-1512-2
Push-to-Close Latch-DK737-2 Sides
Push-to-Close Latch, Snap-In Mounting, 13N (3 lbf), Plastic, Black，DK737-2
Push-to-Close Slide Latch-DK727-3 Sides
Push-to-Close Slide Latch, Snap-in, Small Size, 1.2mm (.050 in) Panel Thickness, 4.8mm (.190 in) Total Grip, ABS, Black DK727-3
Paddle latch-MS919-2-10 Sides
Paddle latch, large,No limit, stainless steel, powder coating, black，MS919-2-10
Push To Close Latch-D6-1603-1 Sides
Push to cloese latch, key lock, zinc alloy, chrome plating, bright D6-1603-1
Push-to-Close Latch-M1-1101 Sides
Push-to-Close Latch, Small Size, No Restriction, 1 – 21mm (.04 – .83 in) Door thickness, 23mm (.91 in) Grip, zinc alloy, chrome plating, bright,M1-1101
Push To Close Latch-C1-1512-3 Sides
Push to cloese latch, key lock, zinc alloy, chrome plating, bright，C1-1512-3
