Paddle latch-MS916-1-A1 Back side
Paddle latch-MS916-1-A1 Back side
Paddle latch-MS916-1-A1 Sides
Paddle latch-MS916-1-A1 Front side
Paddle latch-MS916-1-A1 Left side

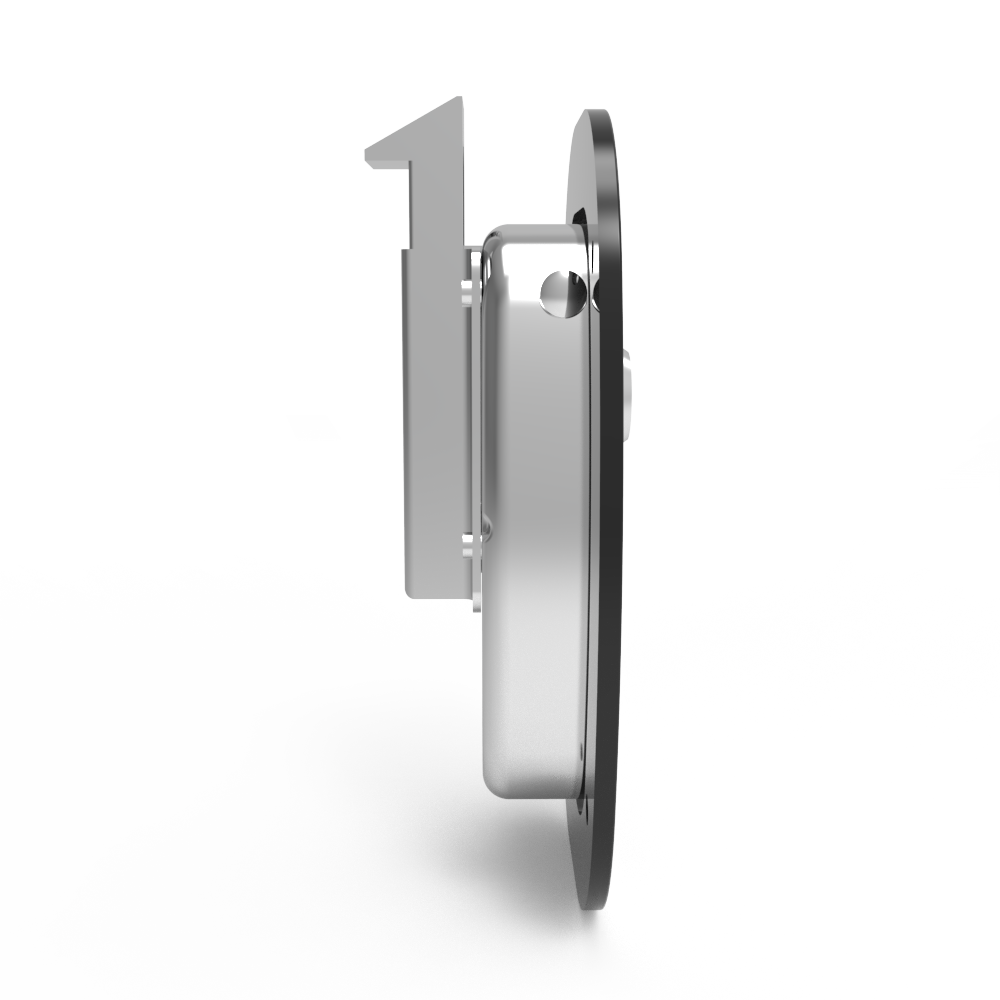

Paddle latch-MS916-1-A1 Right side

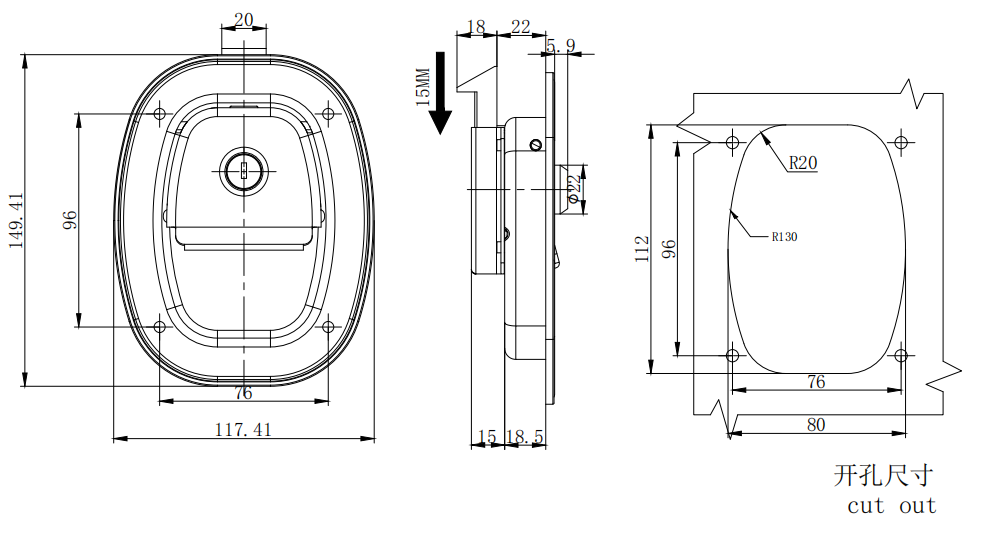

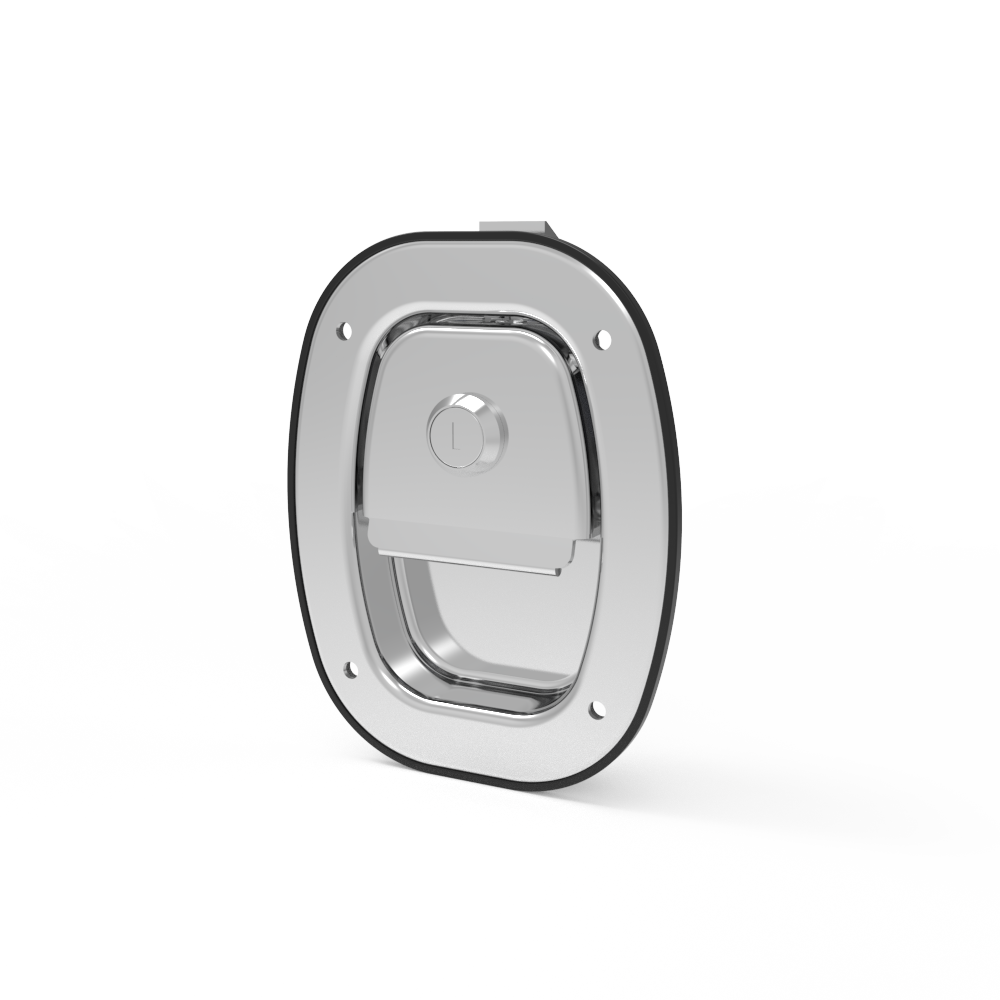

Paddle latch, large size, key lock, rivet mount, stainless steel, polished finish MS916-1-A1

1.Material and Surface Treatment:
Lock Body, Handle : Stainless Steel 304
2. Performance Parameters:
Protection Class: IP40
Handle Bearing Tension Value: < 630N
Bearing Capacity of Latch < 1000N
3. Remarks:
Default CH751 Key

Push-to-Close Slide Latch-DK728-2B Sides
Push-to-Close Slide Latch, Miniature Size, 1.6mm (0.06in) Panel Thickness,,ABS,Black DK728-2B
Push-to-Close Latch-M1-1103-20 Sides
Push-to-Close Latch, Medium Size, No limit, 2 – 7mm (.075 – .275 in) Door thickness, 25.5mm (1.00 in) Grip, zinc alloy, chrome plating, bright, M1-1103-20
Ball catch-DK736-2 Sides
Ball catch, 63mm, stainless steel, passivated, bright，DK736-2
Paddle latch-MS914-A1 Sides
Paddle latch, small size, key lock, rivet mount, stainless steel, polished finish, MS914-A1
Paddle latch-MS912-A1 Sides
Paddle latch, medium, CH751 key lock, 7.9 mm (.31 in) grip, stainless steel, brushed finish, bright MS912-A1
Push-to-Close Slide Latch-DK729-1 Sides
Psuh-to-close latch, snap-in, large size, CH751 Key lock, 1.6mm(. 060 in) Panel thickness, ABS, black DK729-1
Push-to-Close Slide Latch-DK728-1B Sides
Push-to-Close Slide Latch, Miniature Size, 1.6mm (0.06in) Panel Thickness,ABS,Black DK728-1B
Push-to-Close Latch-C1-2002 Sides
Push-to-Close Latch, No Restriction, Plastic,Black,C1-2002
