1. Detailed Materials, Engineering Grade & Environmental Durability

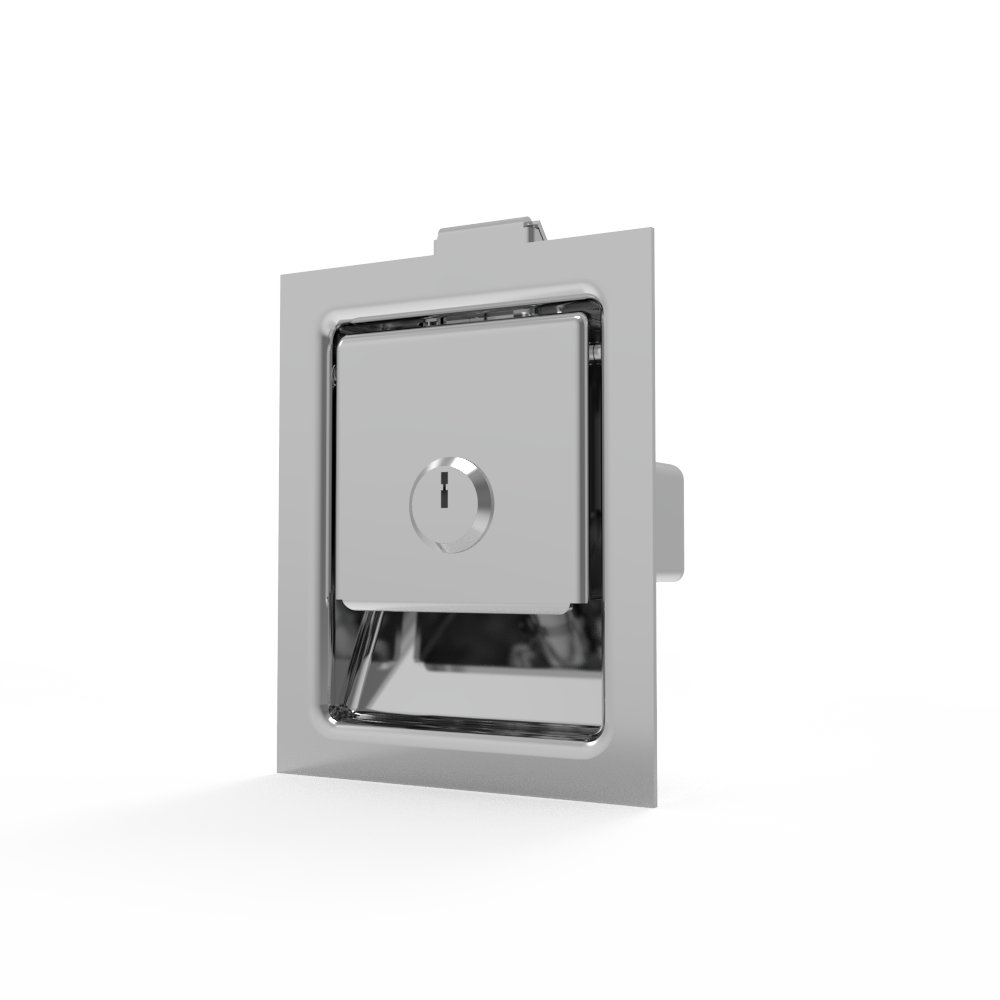

The MS912-A1 Stainless Steel Medium Paddle Latch is engineered for medium-to-heavy industrial enclosure doors, power generator access panels, and utility vehicle storage compartments requiring flush mounting, rapid paddle-pull entry, physical key security, and long-term environmental durability.
Premium Stainless Steel Metallurgy: Precision-stamped and fabricated using high-grade 304 (1.4301) or optional 316 (1.4401) stainless steel for the outer pan housing, flush paddle handle, and internal trigger mechanism. This structural architecture delivers exceptional tensile strength, heavy load capacity, and resistance to structural distortion under frequent mechanical pull actions.
Brushed Bright Finish & Passivated Corrosion Resistance: The outer surface features a clean, passivated bright brushed finish (satin finish) that hides fingerprints, resists scuffs, and provides superior resistance against atmospheric oxidation, chemical fumes, and outdoor weathering. It easily passes 240-hour to 500-hour neutral salt spray testing (ASTM B117 / ISO 9227) without pitting or surface staining, making it highly reliable for coastal utility installations, marine enclosures, and sanitary washdown bays.
Standardized CH751 Key Lock Security: Integrated with a heavy-duty CH751 key lock cylinder, restricting cabinet panel access to authorized maintenance personnel while offering a universally recognized keyway across fleet machinery and utility enclosures.
Flush Surface Profile & Vibration Resistance: Installed flush against the enclosure door sheet metal, the MS912-A1 eliminates protruding handles, reducing physical interference in narrow access corridors. The internal spring-loaded trigger maintains positive detent latching tension, preventing door rattle and accidental unlatching caused by continuous harmonic vibrations from operating diesel generators, compressors, or vehicle motion.
2. Technical Specifications & Parameter Matrix
The parameter table below is structured to optimize search engine rich snippet indexing and facilitate fast engineering procurement evaluations:
| Technical Parameter | Specification / Grade Value |
| Model Code | MS912-A1 |
| Product Type | Flush Paddle Latch / Medium Paddle Lock Series |
| Material Grade | Premium 304 Stainless Steel (1.4301) / 316 Optional |
| Surface Finish | Passivated Bright Brushed Finish (Satin Stainless Steel) |
| Key Lock Cylinder | Standardized CH751 Key Lock Mechanism (2 Keys Included) |
| Grip Distance (Grip Range) | 7.9 mm (0.31 in) Fixed Grip |
| Latch Scale | Medium-Size Industrial Series |
| IP Protection Rating | IP54 / IP65 (With Perimeter Sealing Gasket) |
| NEMA Equivalent | NEMA Type 4, 4X, 12, 13 |
| Mounting Style | Flush Cutout Panel Mount (Bracket & Stud Fastening) |
| Operation Style | Manual Pull Paddle Handle Trigger Release |
| Operating Temperature | -40°C to +120°C (-40°F to +248°F) |
| RoHS / REACH Status | Fully Compliant |
3. High-Frequency Industrial Application Scenarios
The MS912-A1 stainless steel paddle latch is widely specified across equipment housings requiring flush aesthetics, rapid pull-to-open access, and key-controlled security:
Electrical & Control Enclosures: Provides flush-mount access control and vibration-proof door closure for low/medium voltage switchgear panels, outdoor power distribution kiosks, and motor control centers (MCC).
Power Generators & Compressor Housings: Secures diesel generator access hoods, air compressor soundproof canopies, and mobile power plant doors exposed to continuous vibration and outdoor weather.
Specialized Utility Vehicles & Work Truck Toolboxes: Delivers heavy-duty flush latching for service truck compartments, fire engine storage bays, utility trailers, and RV service doors.
Outdoor 5G Telecom & Power Cabinets: Protects remote telecommunications housing, battery backup enclosures, and solar inverter stations against rain, windborne dust, and unauthorized access.
HVAC Systems & Environmental Control Units: Serves as a smooth, heavy-duty flush handle for air handling unit (AHU) doors, industrial chillers, and rooftop HVAC access panels.
4. Why Choose CUYUE for Your Industrial Hardware Needs?
At Wenzhou CUYUE Lock Technology Co., Ltd., we combine extensive technical experience with complete internal manufacturing capabilities to support global OEMs, enclosure fabricators, and hardware distributors:
In-House R&D & Engineering Expertise: Supported by a dedicated R&D design team specializing in cabinet locks, hinges, and handles engineered to strictly match global industrial specifications.
Integrated Precision Tooling & Stamping: Our manufacturing facility integrates precision progressive die stamping, stainless steel forming, automated assembly, chemical passivation, and quality testing under one roof.
Rigorous Quality Testing & Validation: Every production lot undergoes mechanical pull fatigue testing, CH751 key cylinder smooth-turn checks, salt spray corrosion testing, and dimensional verification before dispatch.
Flexible OEM/ODM Customization & Rapid Delivery: We offer custom grip distances, alternative keying options (Keyed Alike / Keyed Different), 316L stainless steel material upgrades, custom mounting studs, and rapid prototyping to keep your production schedules on track.
Cost-Effective System Solutions: We empower clients to optimize total procurement costs without sacrificing product longevity, delivering total industrial enclosure hardware systems under one trusted brand.
5. Frequently Asked Questions (Q&A)
Q1: What is the main advantage of a flush paddle latch on industrial cabinet doors?
A: A flush paddle latch sits flat within the door panel cutout, creating a smooth exterior profile. This prevents accidental snagging by operators in narrow machinery aisles while providing high pulling leverage for fast, unhindered door entry.
Q2: Why is the CH751 key lock profile widely used on paddle latches?
A: The CH751 key profile is an industry-standard keyway universally recognized across industrial equipment, utility trucks, generator hoods, and electrical enclosures, allowing fleet maintenance teams to manage multiple access doors with a single key design.
Q3: What does the 7.9 mm (0.31 in) grip range specify on the MS912-A1 paddle latch?
A: The 7.9 mm (0.31 in) grip distance measures the gap between the inner face of the latch mounting flange and the latching surface of the pawl. It dictates the required panel-to-frame engagement depth for a tight door closure.
Q4: Is 304 stainless steel suitable for outdoor utility vehicle toolboxes and generator hoods?
A: Yes. Grade 304 passivated stainless steel provides excellent immunity to rain, ambient humidity, road salt splash, and industrial grime. For severe marine offshore or coastal salt haze environments, CUYUE can supply the MS912-A1 in grade 316 stainless steel.
Q5: How does the MS912-A1 paddle latch achieve an IP65 protection rating?
A: When fitted with a perimeter rubber sealing gasket around the flush mounting cup and securely clamped against the door sheet metal, the MS912-A1 blocks water jets, driving rain, and airborne dust from penetrating internal electrical components.
Q6: Can the MS912-A1 paddle latch handle heavy machinery vibration?
A: Yes. The internal spring mechanism maintains constant positive pressure on the latching trigger and key cylinder, preventing door rattle and accidental unlatching during continuous vibration from operating diesel engines or compressors.
Q7: What surface finish is applied to the MS912-A1 stainless steel paddle latch?
A: The latch features a passivated bright brushed (satin) finish. This mechanical brush pattern conceals minor scuffs and fingerprints while highlighting the premium aesthetic of natural stainless steel.

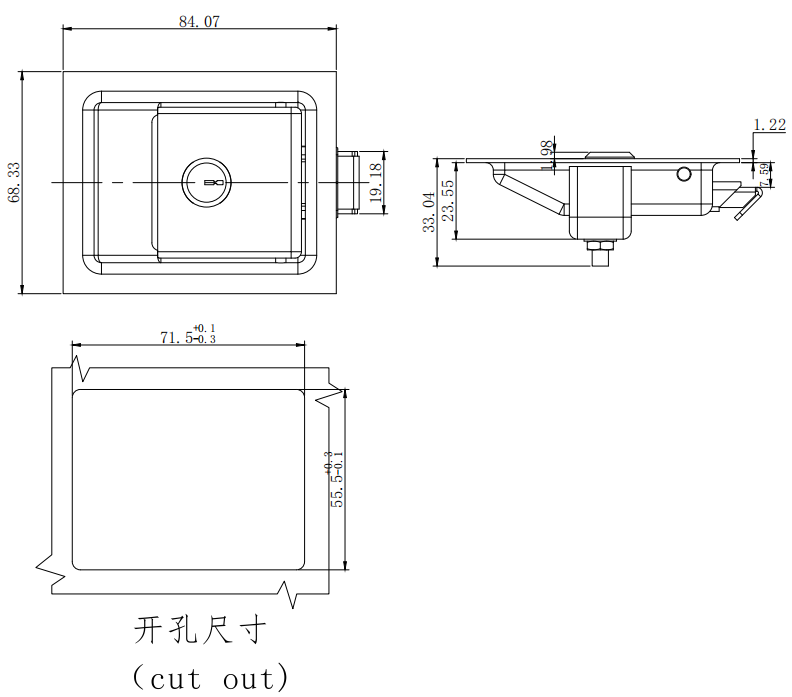

Q8: What cutout preparation is required to install the MS912-A1 medium paddle latch?
A: The MS912-A1 requires a standardized rectangular panel cutout with mounting stud holes. It is secured from the inside using mounting brackets and nuts, leaving no exposed screw heads on the outer door surface for enhanced anti-tamper security.
Q9: Does CUYUE offer custom keying or master key systems for the MS912-A1 series?
A: Yes. Wenzhou CUYUE Lock Technology Co., Ltd. provides full OEM customization. Beyond the standard CH751 keyway, we can supply custom key cylinder codes, master keying systems, or non-locking paddle options.
Q10: Why purchase industrial paddle latches directly from a Chinese manufacturer like CUYUE?
A: Sourcing directly from Wenzhou CUYUE Lock Technology Co., Ltd. delivers factory-direct pricing, certified raw material grades, custom tooling capabilities, and rapid order turnaround backed by ISO-aligned quality validation.
