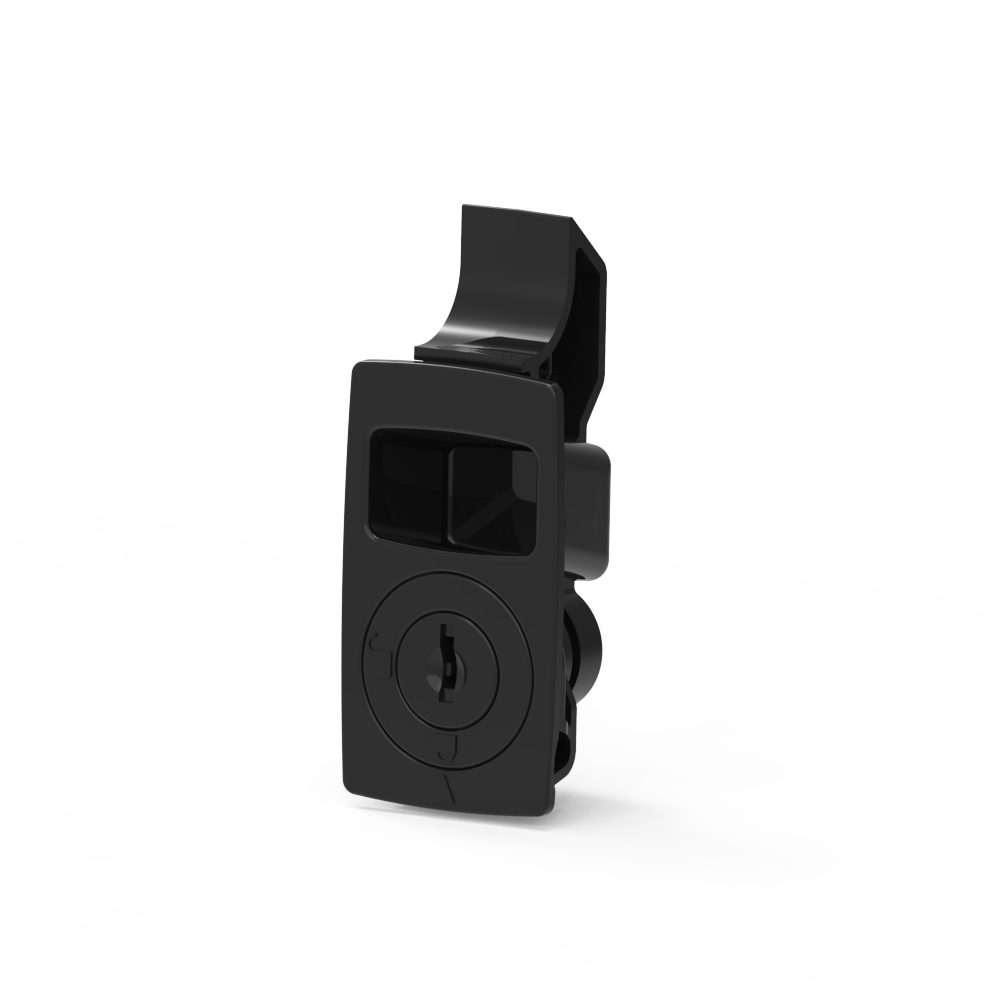

Psuh-to-close latch, snap-in, large size, CH751 Key lock, 1.6mm(. 060 in) Panel thickness, ABS, black DK729-1

1. Detailed Materials, Engineering Grade & Environmental Durability

The DK729-1 Snap-In Push-to-Close Latch is engineered for rapid panel installation, key-locking access security, non-conductive electrical safety, and tool-free mounting on 1.6 mm (.060 in.) sheet metal and composite doors across modern industrial cabinets and electronic equipment housings.

• High-Impact Engineering Polymer Metallurgy & ABS Composition: Manufactured using heavy-duty, flame-retardant UV-stabilized Acrylonitrile Butadiene Styrene (ABS) thermoplastic, paired with high-tensile stainless steel spring components and a standardized CH751 zinc alloy key cylinder core. This structural polymer architecture provides an exceptional strength-to-weight ratio, high impact toughness, excellent dimensional stability, and non-conductive electrical insulation.

• 100% Rust-Proof & Corrosion Immunity: The high-density black ABS polymer housing is inherently immune to chemical corrosion, atmospheric oxidation, salt spray, and UV degradation. Unlike painted or plated sheet steel latches, the DK729-1 will never peel, rust, or stain when exposed to high humidity, ocean salt mist, or chemical washdowns, easily exceeding 500-hour neutral salt spray testing (ASTM B117 / ISO 9227) standards for metal hardware.

• Tool-Less Snap-In Mounting (1.6 mm / .060 in. Panel Thickness): Engineered with integrated flexible side retention pawls designed specifically for a precise 1.6 mm (.060 in.) door panel cutout thickness. Technicians can push the latch body directly into the rectangular cutout, where it snaps securely into place instantly—eliminating screws, rivets, mounting brackets, and extra assembly labor.

• Push-to-Close Slam Action & Universal CH751 Key Security: Features an automatic push-to-close (slam latch) mechanism. Closing the panel depresses the spring-loaded latch pawl, which automatically snaps back behind the frame keeper. Integrated with a industry-standard CH751 key lock cylinder, it restricts access to authorized operators holding standardized CH751 keys. When paired with continuous perimeter door gaskets, the DK729-1 achieves an IP54 to IP65 ingress protection rating (EN 60529 / NEMA Type 12, 13 equivalent).

2. Technical Specifications & Parameter Matrix

The parameter table below is structured to optimize search engine rich snippet indexing and facilitate fast engineering procurement evaluations:

3. High-Frequency Industrial Application Scenarios

The DK729-1 black ABS snap-in push-to-close latch is heavily specified across modern light-to-medium equipment enclosures requiring rapid assembly, key security, non-conductive insulation, and total rust-proof durability:

• Electrical & Control Enclosures: Secures low-voltage control boxes, junction cabinets, and plastic/sheet metal electronics enclosures where fast snap-in assembly and electrical insulation are paramount.

• Modular IT Server Racks & Telecom Bays: Delivers clean black aesthetics, CH751 key security, and tool-free mounting for server rack accessories, network distribution kiosks, and sub-racks.

• Medical Diagnostic Equipment & Mobile Carts: Serves as a sanitary, easy-to-clean push-to-close latch for portable medical devices, mobile hospital workstations, and laboratory instrument bays.

• HVAC Systems & Precision Air Control Bays: Maintains uniform door seal pressure on compact air monitoring boxes, thermostat covers, and environmental control panels.

• Specialty Vehicles & Marine Consoles: Provides rust-proof slam latching for RV utility compartments, marine instrument panels, bus control hatches, and utility truck storage boxes.

4. Why Choose CUYUE for Your Industrial Hardware Needs?

At Wenzhou CUYUE Lock Technology Co., Ltd., we combine extensive technical experience with complete internal manufacturing capabilities to support global OEMs, enclosure fabricators, and hardware distributors:

• In-House R&D & Engineering Expertise: Supported by a dedicated R&D design team specializing in cabinet locks, hinges, and handles engineered to strictly match global industrial specifications.

• Integrated Precision Tooling & Injection Molding: Our manufacturing plant integrates precision mold design and development, high-speed plastic injection molding, automated assembly, and quality testing under one roof for complete quality management.

• Rigorous Quality Testing & Validation: Every production lot undergoes mechanical slam fatigue testing, CH751 key cylinder smooth-turn checks, snap-tab retention force validation, and dimensional verification before dispatch.

• Flexible OEM/ODM Customization & Rapid Delivery: We offer custom panel thickness snap-in tabs, custom keying options, alternative housing colors, custom pawl offsets, and rapid prototyping to keep your production schedules on track.

• Cost-Effective System Solutions: We empower clients to optimize total procurement costs without sacrificing product longevity, delivering complete industrial enclosure hardware systems under one trusted brand.

5. Frequently Asked Questions ( Q&A)

Q1: How does the tool-less snap-in mounting work on the DK729-1 push-to-close latch?

A: The DK729-1 features flexible side retention pawls molded into the ABS housing. When pushed into a 1.6 mm (.060 in.) rectangular door cutout, the tabs compress and snap outward behind the sheet metal, securing the latch firmly without screws, nuts, or rivets.

Q2: What panel thickness is required to install the DK729-1 snap-in latch?

A: The DK729-1 is precisely calibrated for a 1.6 mm (.060 in.) panel thickness cutout, ensuring a tight, rattle-free fit against standard sheet metal enclosure doors.

Q3: What is the main benefit of a push-to-close slam latch on industrial enclosures?

A: A push-to-close (slam) latch allows operators to shut cabinet doors simply by pushing them closed. The internal spring-loaded pawl automatically depresses and snaps into place behind the frame keeper, ensuring instant, effortless door closure.

Q4: Why is the CH751 key cylinder significant for cabinet locks?

A: The CH751 key profile is the global industry standard for electrical enclosures, IT server racks, and utility cabinets. Using a CH751 cylinder allows maintenance engineers to access multiple enclosure bays across a facility using a single standardized key.

Q5: What are the advantages of using high-impact ABS thermoplastic over metal latches?

A: ABS plastic offers 100% rust-proof corrosion immunity, non-conductive electrical insulation, lightweight durability, and lower unit cost, making it ideal for electronic enclosures and humid indoor/outdoor applications.

Q6: Does the DK729-1 snap-in latch provide weatherproofing protection?

A: Yes. When installed on sheet metal doors fitted with continuous perimeter gaskets, the DK729-1 assists in achieving an IP54 to IP65 protection rating, blocking windborne dust, oil mist, and water splashes.

Q7: Can the DK729-1 plastic slam latch withstand machinery vibration?

A: Yes. High-strength internal stainless steel springs maintain constant positive tension on the latching pawl, while the precise 1.6 mm snap-in tabs prevent latch body wobble and door rattle during machine operation.

Q8: What operating temperature range can the DK729-1 ABS latch handle?

A: Constructed from high-grade UV-stabilized engineering polymers, the DK729-1 operates reliably across temperatures ranging from -30°C to +70°C (-22°F to +158°F).

Q9: Can CUYUE customize the snap-in latch for different panel thicknesses?

A: Yes. Wenzhou CUYUE Lock Technology Co., Ltd. provides custom mold modifications and tailored snap-tab dimensions to fit specific sheet metal thicknesses ranging from 1.0 mm to 3.0 mm upon request.

Q10: Why purchase industrial plastic snap-in latches directly from a Chinese manufacturer like CUYUE?

A: Sourcing directly from Wenzhou CUYUE Lock Technology Co., Ltd. delivers factory-direct pricing, certified raw material grades, custom injection molding capabilities, and rapid order turnaround backed by ISO-aligned quality validation.
