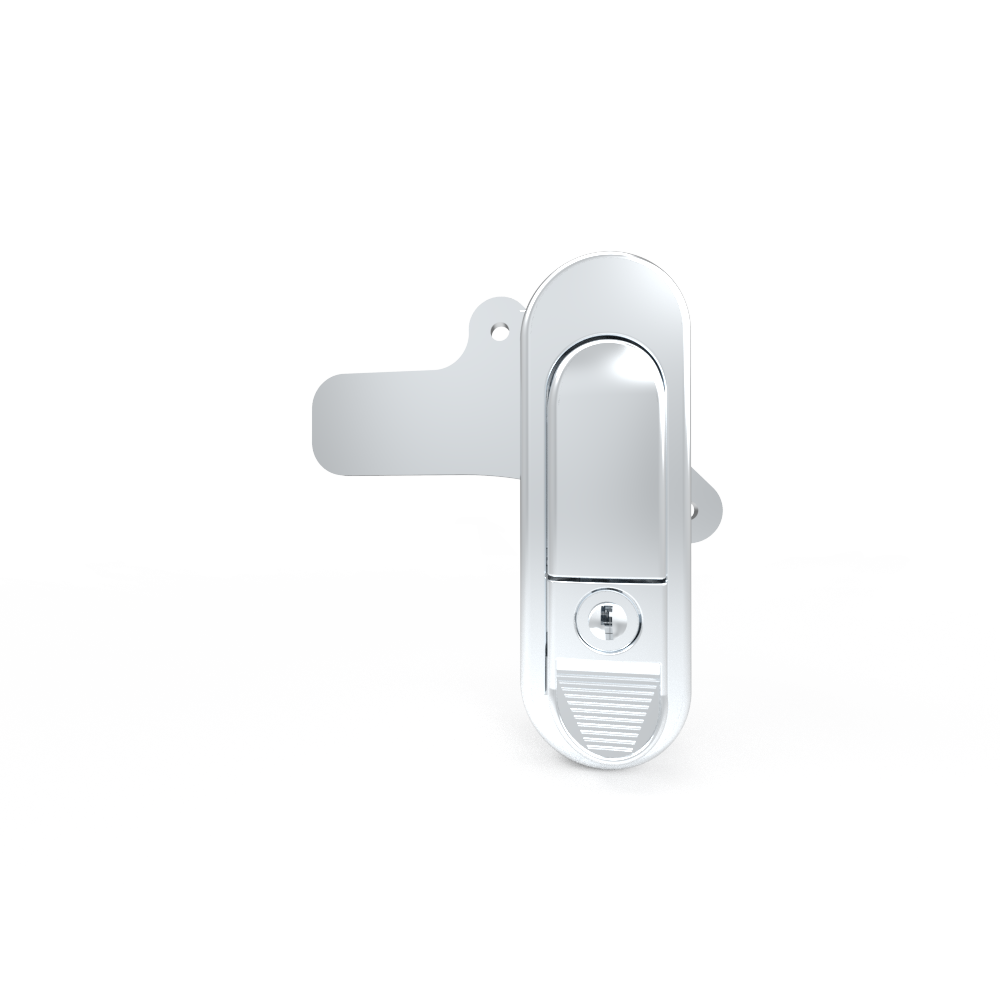

Swingl handle lock, K200 key lock, left and right universal, swivel handle open, zinc alloy, spray paint, silver,AB303-30

1.Material and Surface Treatment:
Lock body, handle :Zinc alloy or SUS304
Steel bolt: iron galvanized or SUS304
Sealing ring: EPDM foam.
2. Performance Parameters:
Protection class: IP65
Handle bearing tension value: ≤ 180N
Handle bearing torque value: ≤ 14N. m
Maximum static load: 190N
3. Function Description:
Open the handle upwards and rotate it
90 degrees to achieve opening or closing.
Universal left and right locks.
4. Remarks:
Default key K200
