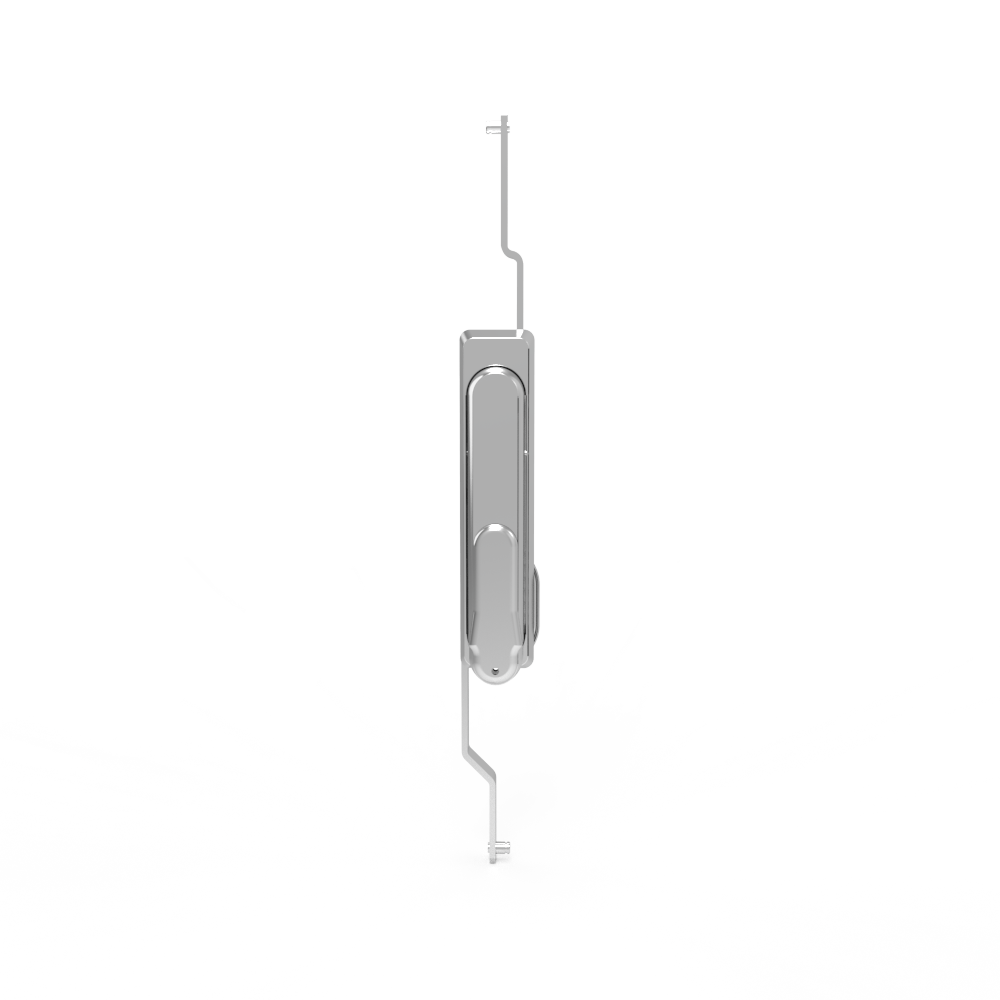

Swing Handle Lock MS840-1-C-A1
Swing Handle Lock MS840-1-C-A1

Swing Handle Lock with padlock buckle, three point, Stainless Steel brushed polished, Passivated,MS840-1-C-A1

1.Material and Surface Treatment:
Lock body, Handle, Dust cover :Stainless Steel 304
Steel bolt: Stainless steel 304
Sealing ring: EPDM foam.
2. Performance Parameters:
Protection class: IP65
Handle bearing tension value: ≤ 400N
Handle bearing torque value: ≤ 35N. m
3.Remarks:
Default Keyed K333
