1. Detailed Materials, Engineering Grade & Environmental Durability

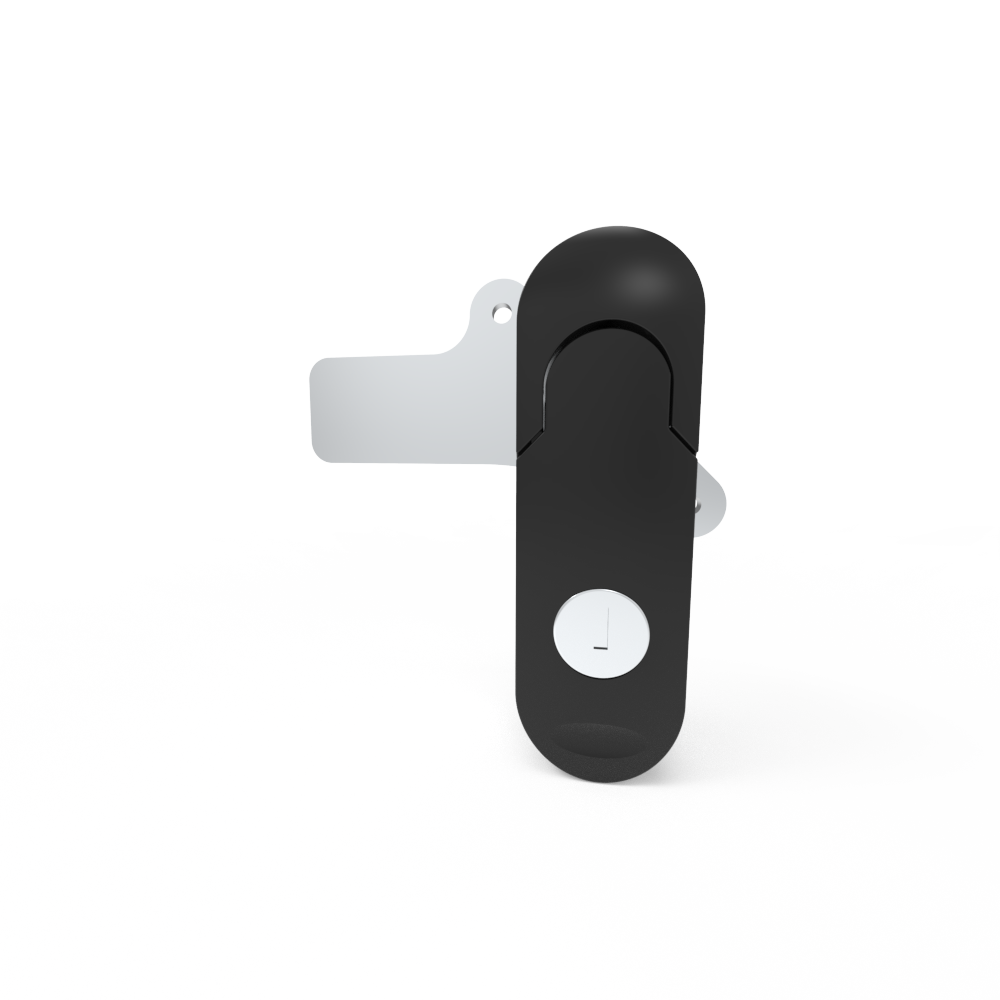

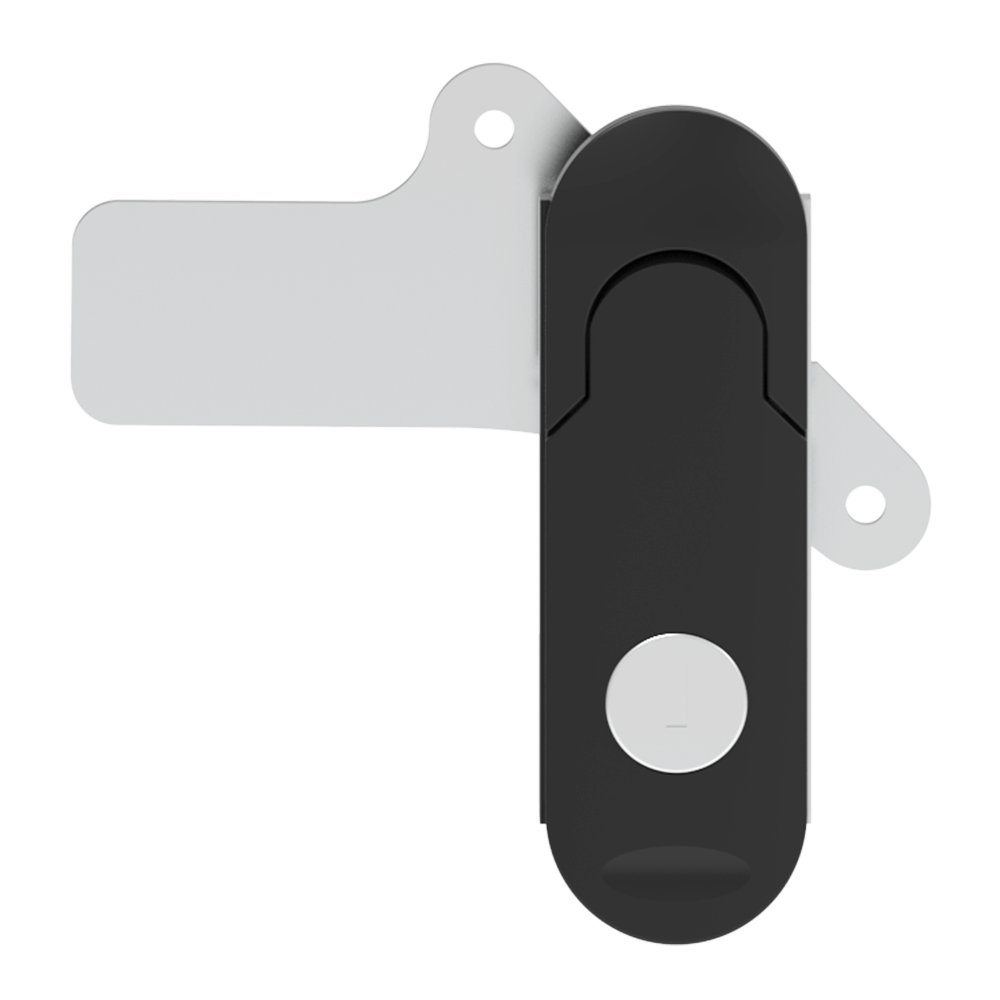

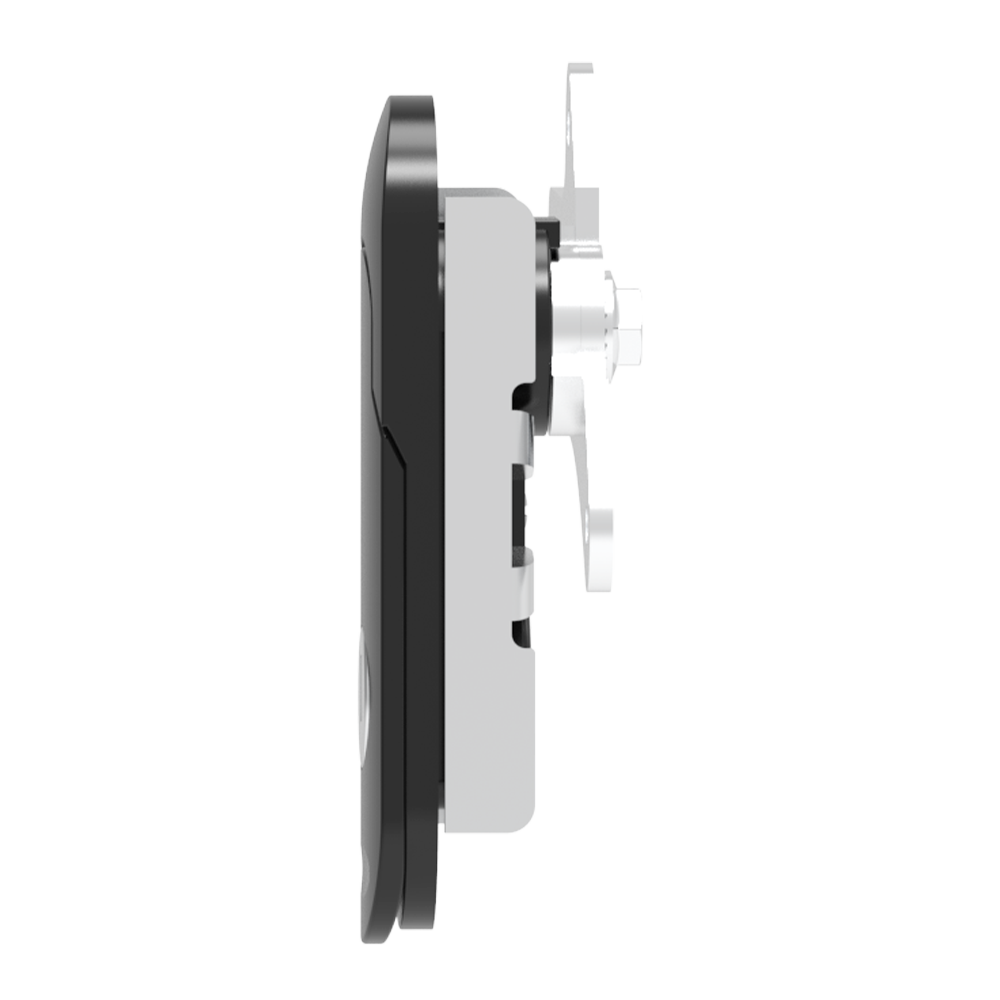

The MS843-1-10 Swing Handle Lock is engineered for modern electrical control cabinets, modular server racks, and industrial switchgear doors requiring clean flush aesthetics, universal left/right door flexibility, high torsional strength, physical key security, and robust environmental protection.
High-Density Die-Cast Zinc Alloy Metallurgy: Manufactured using high-strength ZAMAK die-cast zinc alloy (ZDC) for the main escutcheon housing, swivel lever, and internal drive cam mechanism. This structural composition delivers high tensile strength, precise dimensional stability, and high torsional resistance under heavy operational turning loads.
Electrostatic Powder Coating & Salt Spray Immunity: The outer housing and ergonomic swivel handle are finished with a durable, scratch-resistant matte black electrostatic powder coating. This protective shield guards the zinc alloy substrate against atmospheric oxidation, chemical fumes, oil splashes, and UV degradation. It easily withstands 48-hour to 96-hour neutral salt spray testing (ASTM B117 / ISO 9227) without blistering or surface corrosion, making it highly reliable for indoor industrial bays and sheltered outdoor enclosures.
Ingress Protection & Perimeter Sealing (IP54 / IP65 Rating): Integrated with an internal shaft sealing washer and a heavy-duty perimeter rubber base gasket. When properly installed on sheet metal doors with perimeter frame gaskets, the MS843-1-10 achieves an IP54 to IP65 ingress protection rating (EN 60529 / NEMA Type 12, 13 equivalent), effectively blocking splashing water, oil mist, and airborne dust.
Universal Left / Right (LH/RH) Handing & K200 Key Security: Features a universal non-handed reversible design that installs seamlessly on either right-hand (RH) or left-hand (LH) opening doors without modifying internal components, helping panel fabricators minimize SKU management. Integrated with a standardized K200 key lock cylinder, it restricts cabinet panel access to authorized maintenance personnel.
2. Technical Specifications & Parameter Matrix
The parameter table below is structured to optimize search engine rich snippet indexing and facilitate fast engineering procurement evaluations:
| Technical Parameter | Specification / Grade Value |
| Model Code | MS843-1-10 |
| Product Type | Flush Swing Handle Lock / Swivel Handle Series |
| Material Grade | High-Density Die-Cast Zinc Alloy (ZAMAK / ZDC) |
| Surface Finish | Electrostatic Matte Black Powder Coating |
| Handing / Application | Universal Non-Handed (Right-Hand / Left-Hand Reversible LH/RH) |
| Key Lock Cylinder | Standardized K200 Key Lock Mechanism |
| Actuation Style | Pop-Out Swivel Lever Handle Operation |
| IP Protection Rating | IP54 / IP65 Certified (Enclosure & Gasket Dependent) |
| NEMA Rating Equivalent | NEMA Type 4, 12, 13 |
| Operation Angle | 90° Handle Rotation for Cam / Rod Drive |
| Mounting Style | Single-Hole Cutout Mounting with Rear Retaining Bracket & Studs |
| Operating Temperature | -30°C to +80°C (-22°F to +176°F) |
| RoHS / REACH Status | Fully Compliant |
3. High-Frequency Industrial Application Scenarios
The MS843-1-10 black powder-coated swing handle lock is heavily specified across modern industrial cabinets requiring ergonomic swivel handle operation, flush aesthetics, and secure key access:
Electrical & Control Enclosures: Secures low/medium voltage switchgear panels, motor control centers (MCC), and factory automation control cabinets requiring reliable door sealing and clean exterior lines.
Outdoor 5G Telecom & Power Distribution Kiosks: Protects remote telecommunications housing, optical fiber nodes, and solar inverter cabinets against windborne dust, rain, and unauthorized intrusion.
Modular IT Server Racks & Data Center Cabinets: Provides sleek black aesthetics and secure key access control for enterprise server rack bays, network distribution hubs, and power kiosks.
HVAC Systems & Large Air Handling Units (AHU): Maintains uniform door seal pressure on pressurized air handling unit doors, industrial chillers, and rooftop HVAC access bays.
Industrial Machinery Access Bays: Delivers heavy-duty flush-mount latching on CNC machine tool housings, air compressor canopies, and automated conveyor control enclosures.
4. Why Choose CUYUE for Your Industrial Hardware Needs?
At Wenzhou CUYUE Lock Technology Co., Ltd., we combine extensive technical experience with complete internal manufacturing capabilities to support global OEMs, enclosure fabricators, and hardware distributors:
In-House R&D & Engineering Expertise: Supported by a dedicated R&D design team specializing in cabinet locks, hinges, and handles engineered to strictly match global industrial specifications.
Integrated Precision Tooling & Casting: Our manufacturing plant integrates precision mold design and development, zinc alloy die-casting, automated CNC machining, electrostatic powder coating, and quality testing under one roof for complete quality management.
Rigorous Quality Testing & Validation: Every production lot undergoes mechanical pull fatigue testing, K200 key cylinder smooth-turn checks, salt spray corrosion testing, and dimensional verification before dispatch.
Flexible OEM/ODM Customization & Rapid Delivery: We offer custom keying options, alternative powder coating colors (such as grey or bright chrome plating), custom cam offsets, multi-point rod control adapters, and rapid prototyping to keep your production schedules on track.
Cost-Effective System Solutions: We empower clients to optimize total procurement costs without sacrificing product longevity, delivering complete industrial enclosure hardware systems under one trusted brand.
5. Frequently Asked Questions (Q&A)
Q1: What is the main benefit of a swing handle lock on industrial control cabinets?
A: A swing handle lock sits flush within the enclosure door cutout when closed, preventing accidental snagging by operators in narrow aisles. When unlocked, the handle pops out to provide high leverage for smooth, ergonomic turning.
Q2: Is the MS843-1-10 swing handle lock universal for left-hand and right-hand doors?
A: Yes. The MS843-1-10 features a universal non-handed reversible architecture (LH/RH), allowing panel builders to install the same lock model on both left-hinged and right-hinged doors to simplify inventory.
Q3: What key profile is used in the MS843-1-10 swing handle lock?
A: The MS843-1-10 utilizes a standardized K200 key lock cylinder, restricting cabinet access to authorized maintenance technicians while maintaining key consistency across industrial facilities.
Q4: How does the matte black powder coating protect the MS843-1-10 lock body?
A: The electrostatic black powder coating forms a non-porous protective shell over the die-cast zinc alloy substrate, passing 48-hour to 96-hour neutral salt spray tests (ASTM B117) to prevent oxidation, rust, and oil staining.
Q5: Can the MS843-1-10 swing handle lock be adapted for multi-point rod control systems?
A: Yes. The rear drive hub of the MS843-1-10 can be fitted with multi-point rod adapters or cams, allowing it to drive top and bottom connecting rods for multi-point latching on tall cabinet doors.
Q6: What IP protection rating does the MS843-1-10 achieve on enclosure doors?
A: When installed with its rubber base sealing gasket against sheet metal, the MS843-1-10 achieves an IP54 to IP65 ingress protection rating, shielding internal electrical components against dust, oil mist, and water spray.

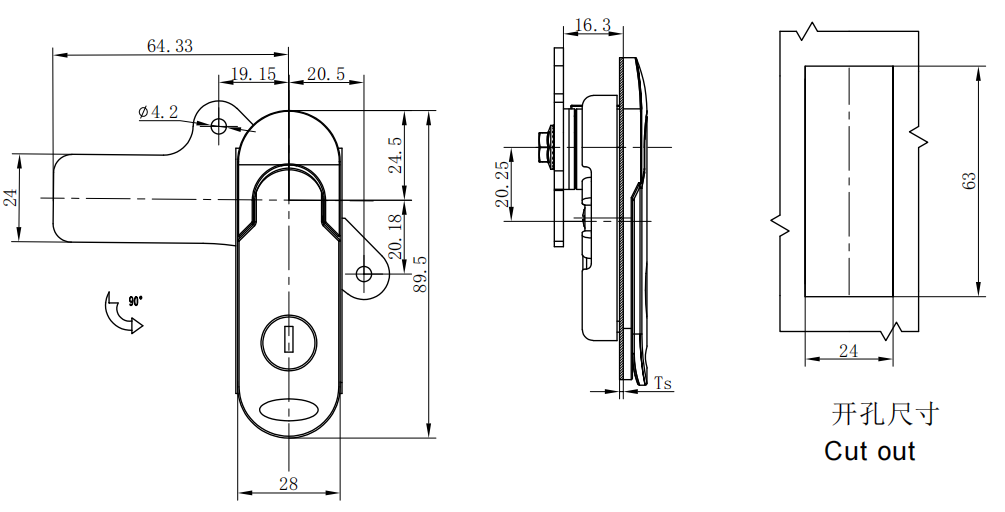

Q7: What door panel cutout preparation is required to install the MS843-1-10 lock?
A: The MS843-1-10 installs into a standard industrial rectangular panel cutout. It is clamped securely from the rear using mounting studs and brackets, leaving a clean exterior surface with no exposed screws.
Q8: Can the MS843-1-10 swing handle handle heavy machinery vibration?
A: Yes. The internal spring mechanism and precise cam engagement maintain continuous tension when closed, preventing handle chatter, door rattle, and accidental unlatching during continuous machine vibration.
Q9: What operating temperature range can the MS843-1-10 zinc alloy lock withstand?
A: Constructed from high-strength zinc alloy and durable internal seals, the MS843-1-10 operates reliably across temperatures ranging from -30°C to +80°C (-22°F to +176°F).
Q10: Why purchase industrial swing handle locks directly from a Chinese manufacturer like CUYUE?
A: Sourcing directly from Wenzhou CUYUE Lock Technology Co., Ltd. delivers factory-direct pricing, certified raw material grades, custom mold development capabilities, and rapid order turnaround backed by ISO-aligned quality validation.
