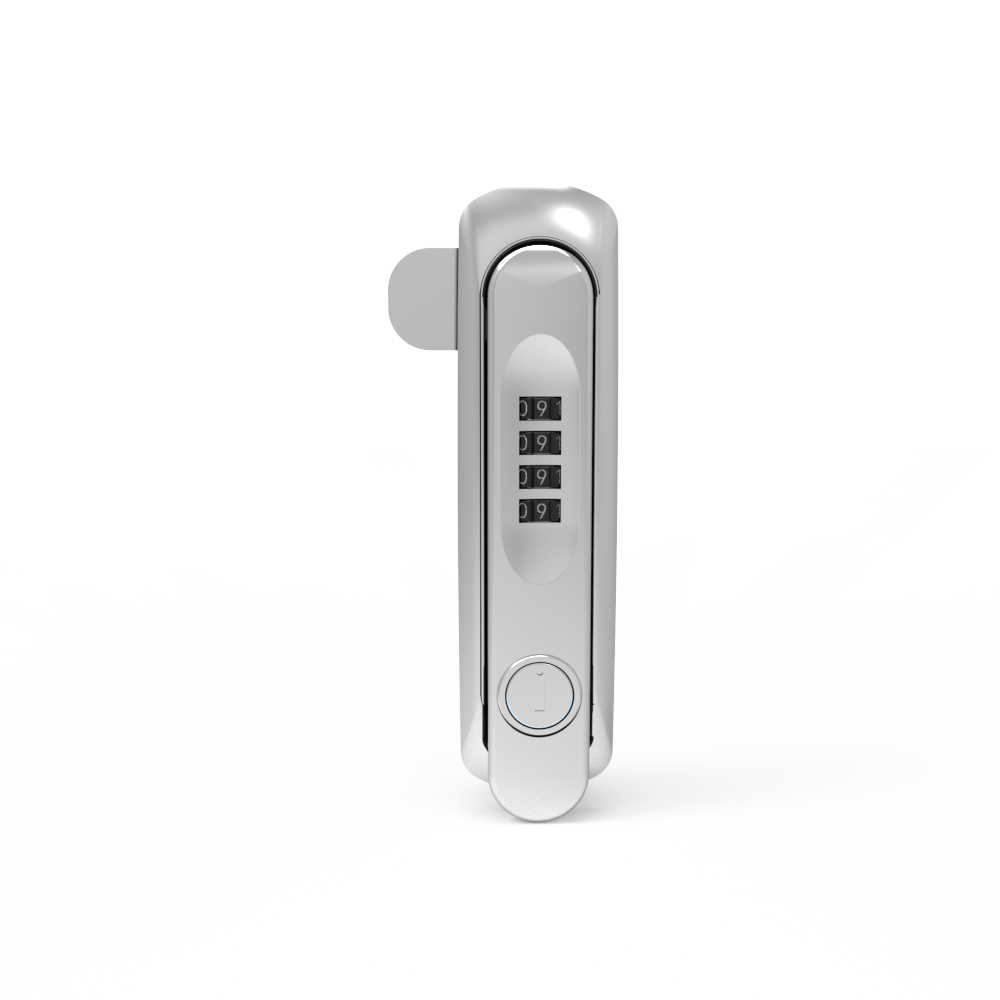

Swing handle lock, 4-digit combination code, left and right universal, rotary handle open, Zinc alloy, chrome plating, bright,MS819-20
1.Material and surface treatment:
Lock body, handle：Zinc alloy
Steel bolt: iron galvanized
Sealing ring: EPDM foam.
2. Performance parameters:
Protection class: IP65
Handle bearing tension value: ≤ 390N
Handle bearing torque value: ≤ 12N. m
Maximum static load: 300N
3. Function Description:
Set the activation password, which can be
used to unlock the lock. The administrator
can use the management key to unlock or
retrieve the password.
Handle opens upwards, 90 degree rotation
opens.
4. Remarks:
Default key K333
