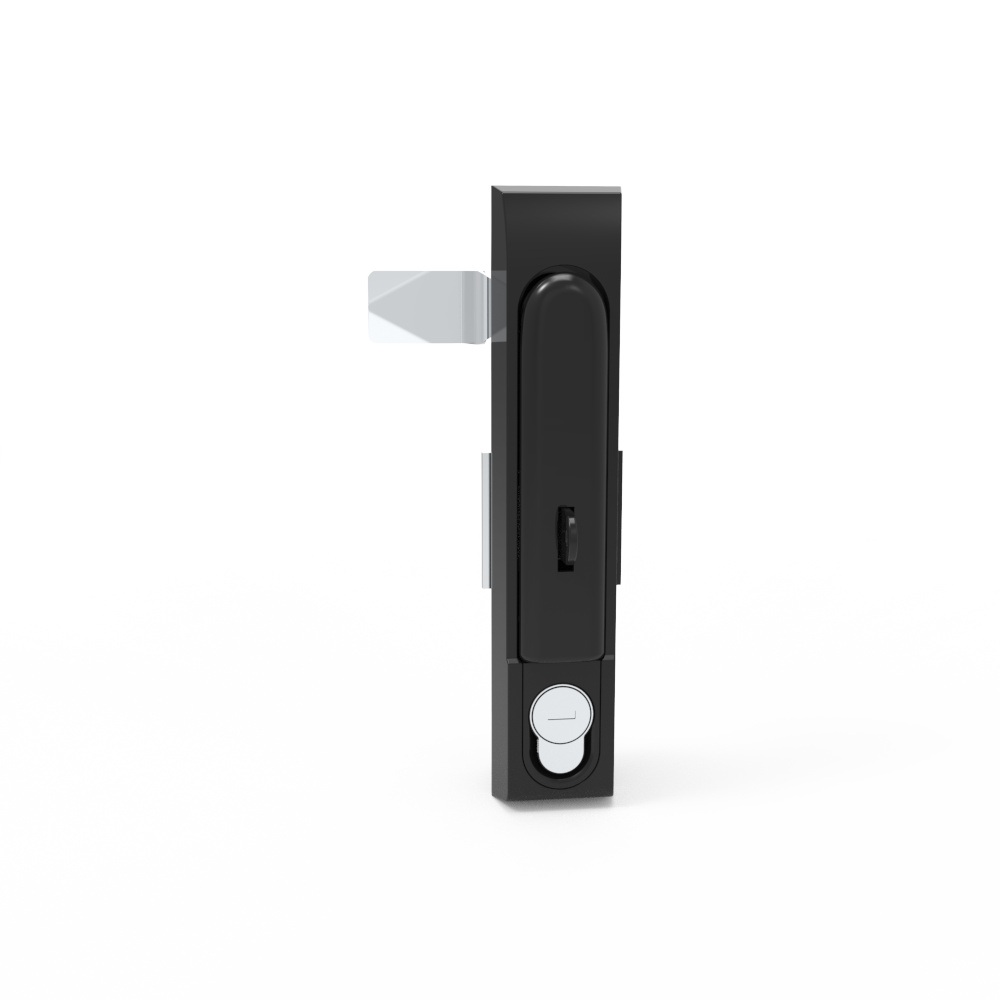

Swingl handle with padlock, key lock, single point, zinc alloy, powder coating, black,MS818-G-10
1.Material and Surface Treatment:
Lock body, Handle, Dust cover ： Zinc Alloy Powder Coated Black
Steel bolt: iron galvanized
Sealing ring: EPDM foam.
2. Performance Parameters:
Protection class: IP65
Handle bearing tension value: ≤ 225N
Handle bearing torque value: ≤ 20N. m
Maximum static load: 270N
3.Remark：
Padlockable on request
Interchangeable profile cylinder Padlockable on
reques
