L-handle lock-B-1524-1-10 Sides
L-handle lock-B-1524-1-10 Sides
L-handle lock-B-1524-1-10 Back side

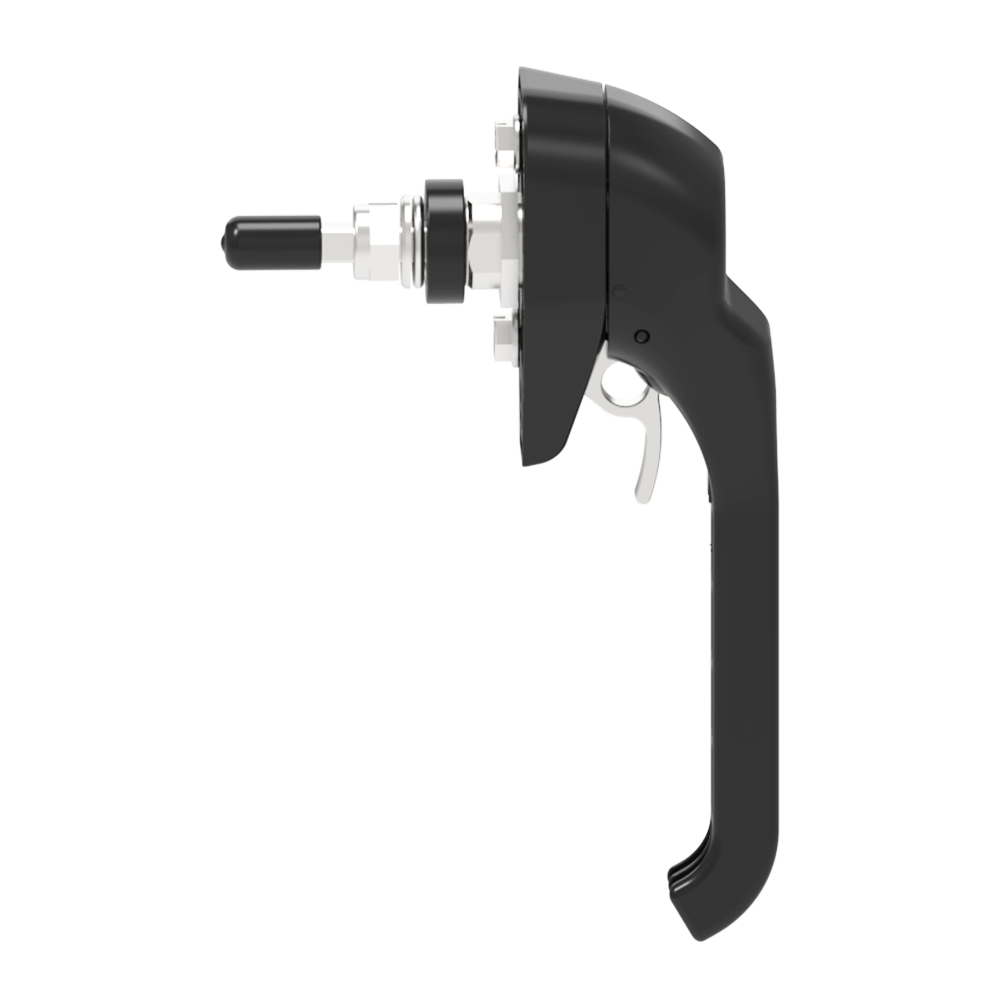

L-handle lock-B-1524-1-10 Left side

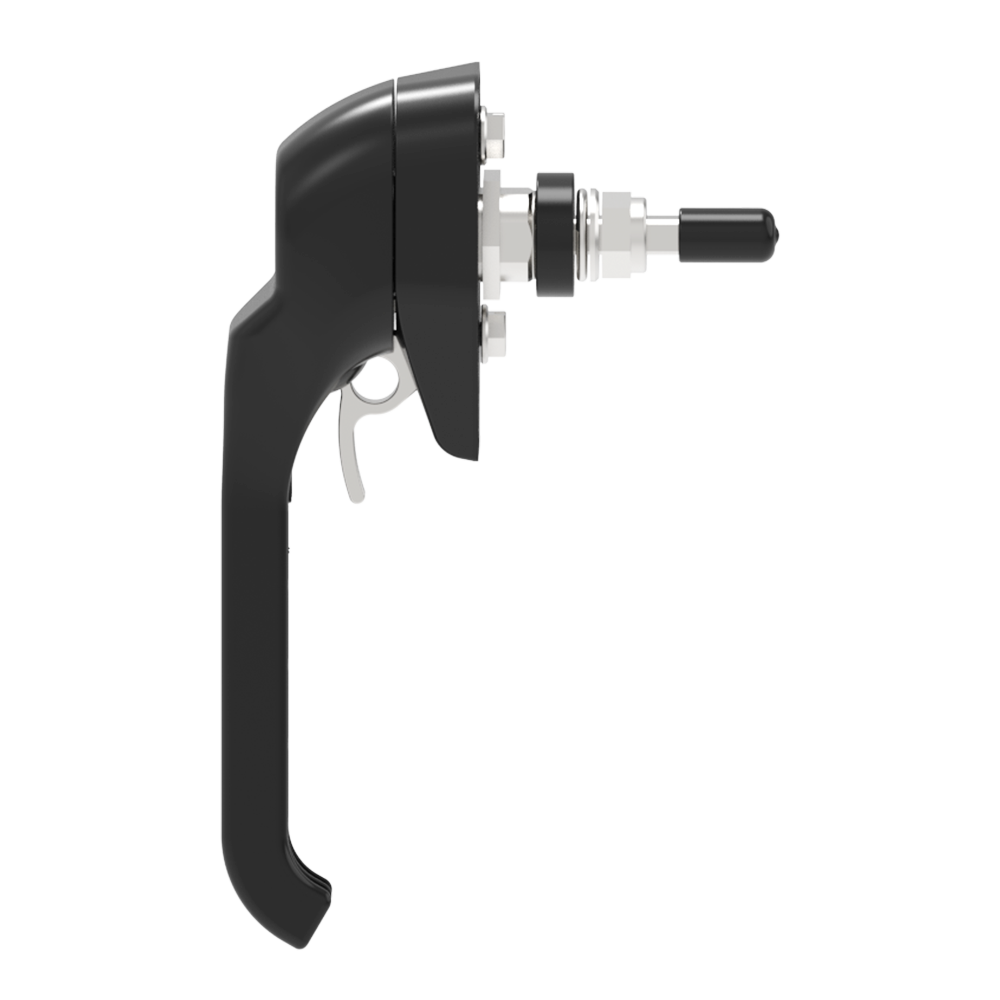

L-handle lock-B-1524-1-10 Right side

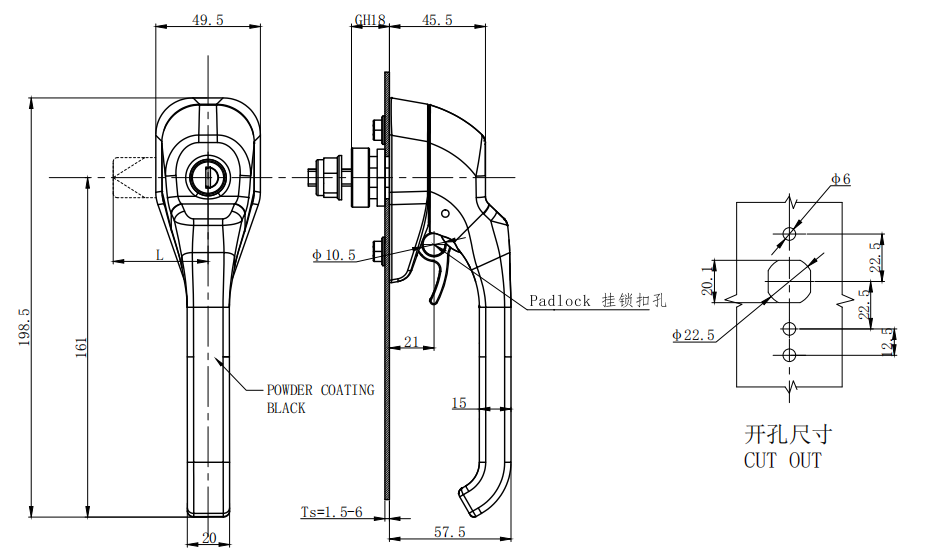

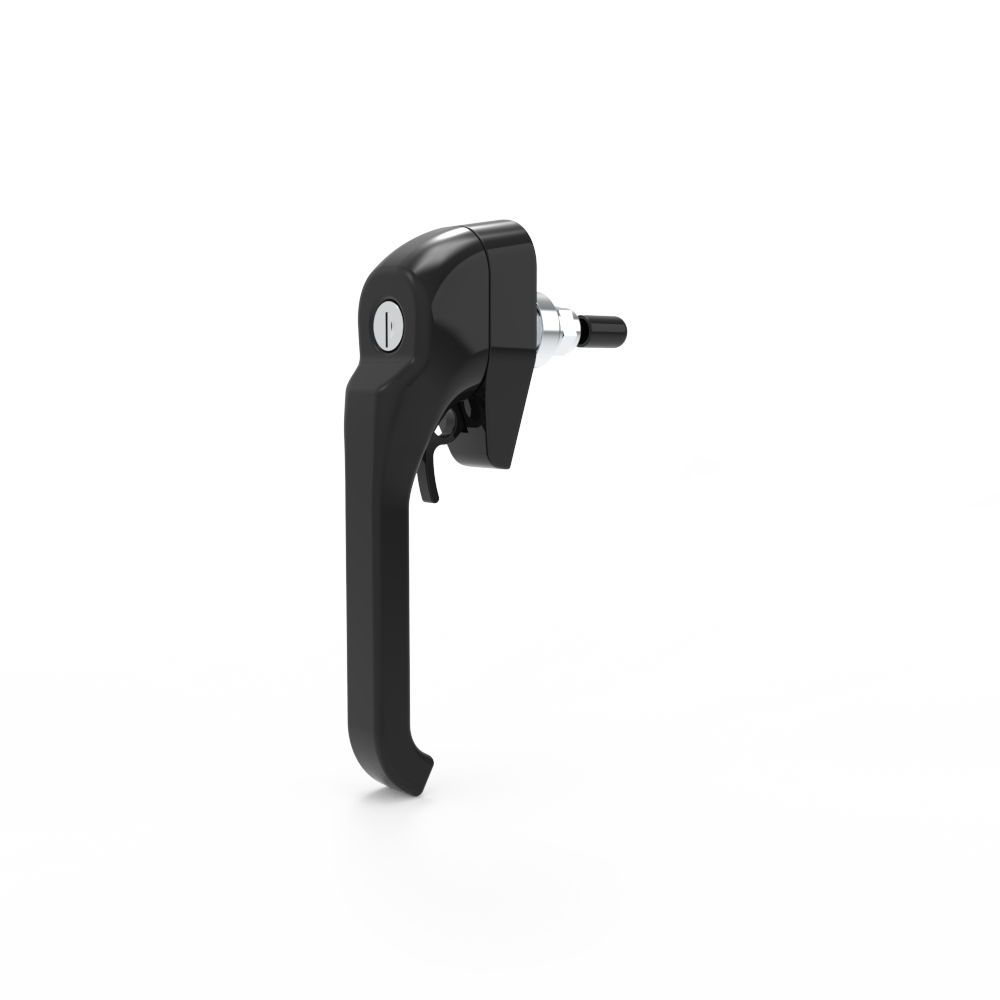

Quarter CAM latch, L-handle, CH751 key locking, no CAM, seal, zinc alloy, powder coating, black,B-1524-1-10

1.Material and surface treatment:
Lock body, handler：Zinc Alloy or SUS304
Steel bolt: iron galvanized or SUS304
Sealing ring: EPDM foam
2. Performance parameters:
Protection class: IP65
3. Remarks:
Key different on request
Stainless steel Padlockable on request
Default Keyed K333

L-handle lock-B-1528 Sides
Multi-point lock, Lift handle, L handle, unlimited, Zinc alloy, Powder coated, black,B-1528
L-handle lock-B-1520-1-A1 Sides
Quarter CAM bolt, L-handle with padlock, no locking, with CAM,stainless steel, polished, bright,B-1520-1-A1
Handle Lock B-1306(MS306-1A)
Handle Lock, Stainless Steel 304, L Handle, Mirror Polished, 60°/90° Opening Optional, with Keys
T-handle-B-1514-1-10 Sides
T-handle, hidden mount, zinc alloy, powder coating, black,B-1514-1-10
L-handle lock-B-1527 Sides
Quarter-turn cam latch, L-handle, unrestricted, without cam, zinc alloy, powder coated, black,B-1527
L-handle lock-B-1524-2-10 Sides
Quarter-turn cam latch, L-handle, 2*4 straight grooved tool lock core, without cam, sealed, Zinc alloy, powder coating, black,B-1524-2-10
Handle Lock B-1309(MS324-3)
Handle Lock, SUS304, L Handle, Non-Keyed, with Adjustable Cam Height Compression Latch B-1309
Handle Lock MS887-3
handle lock zinc die blackpowder-coated black with keyed MS887-3 for Electrical cabinet
