L-handle lock-B-1524-2-10 Sides
L-handle lock-B-1524-2-10 Sides

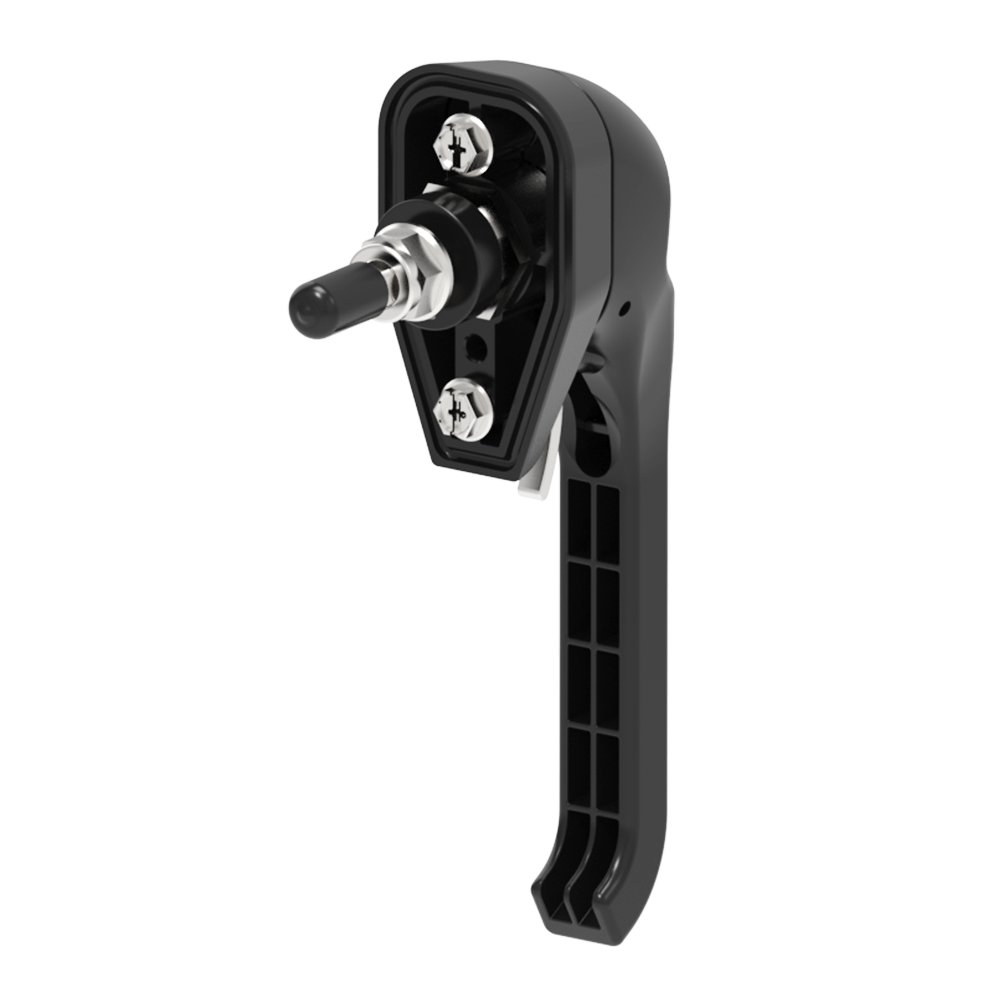

L-handle lock-B-1524-2-10 Back side

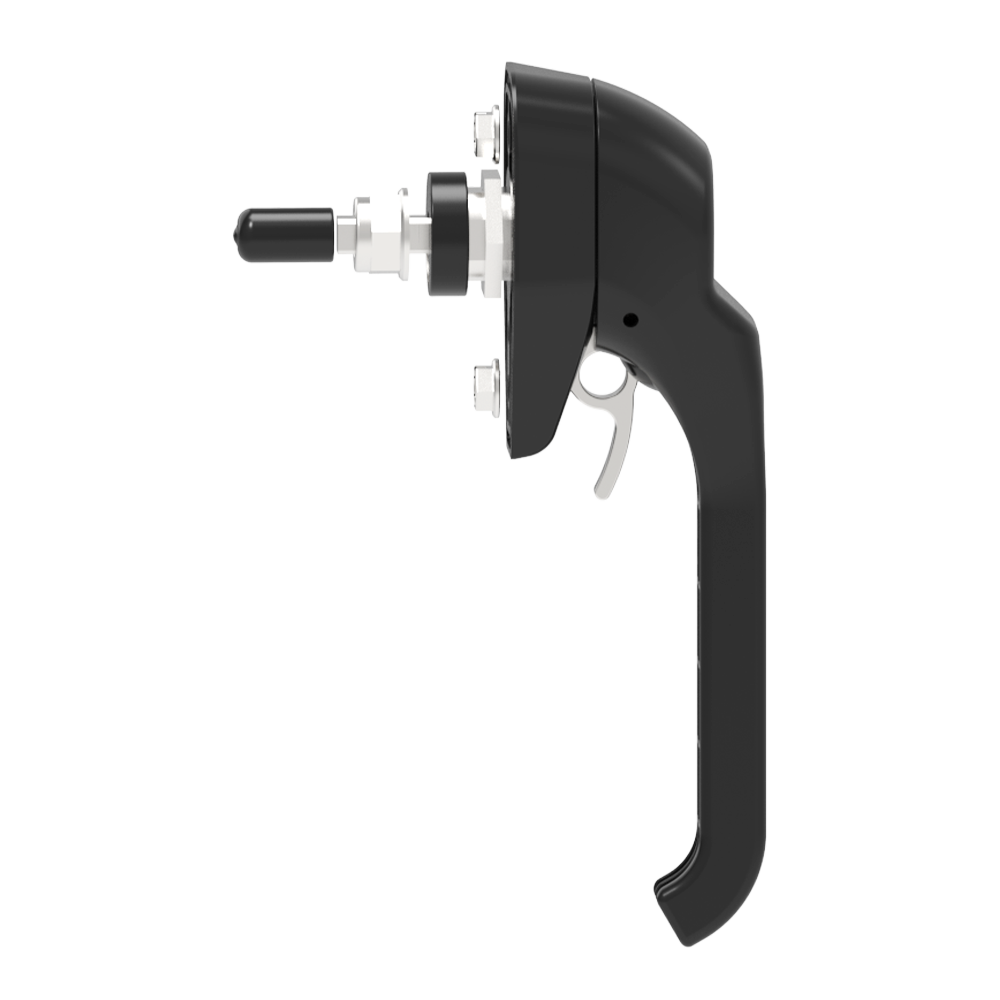

L-handle lock-B-1524-2-10 Left side

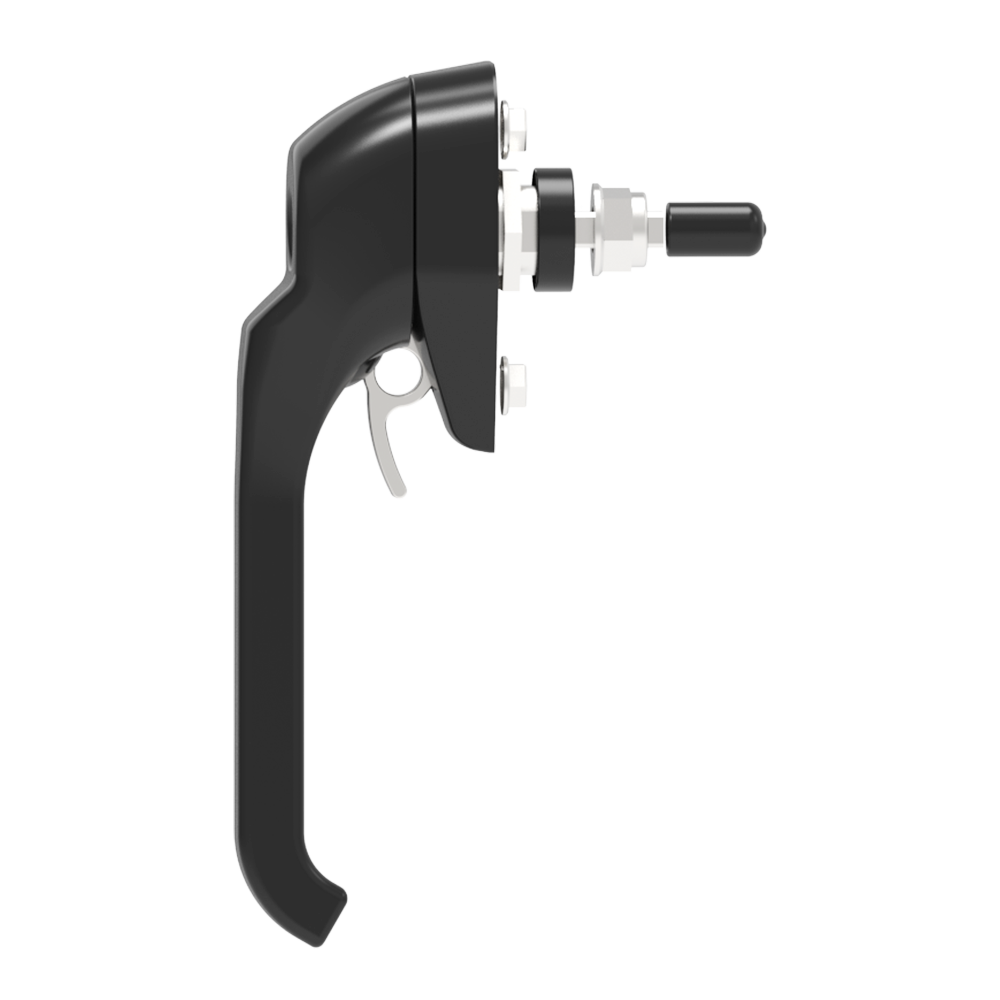

L-handle lock-B-1524-2-10 Right side

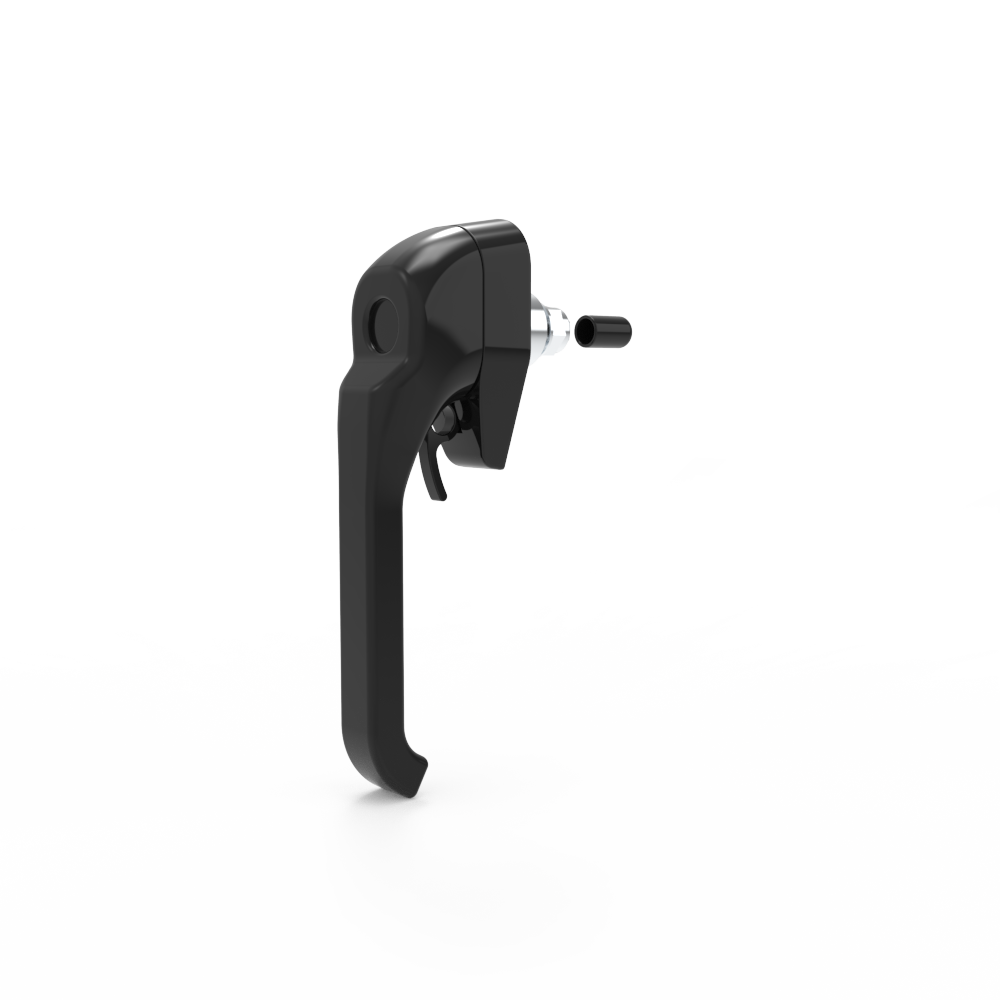

Quarter-turn cam latch, L-handle, 2*4 straight grooved tool lock core, without cam, sealed, Zinc alloy, powder coating, black,B-1524-2-10

1.Material and surface treatment:
Lock body, handler:Zinc Alloy or SUS304
Steel bolt: iron galvanized or SUS304
Sealing ring: EPDM foam
2. Performance parameters:
Protection class: IP65
3. Remarks:
Key different on request
Stainless steel Padlockable on request
Default Keyed K333
