1. Detailed Materials, Engineering Grade & Environmental Durability
The DK726-1 Small-Size Snap-in Push-to-Close Slide Latch is engineered for lightweight industrial enclosures, electronic control modules, and machinery access panels requiring tool-free installation, reliable slam-action closure, and corrosion-proof operation.
Engineering-Grade ABS Thermoplastic Metallurgy & Material Performance: Molded from high-impact Acrylonitrile Butadiene Styrene (ABS) thermoplastic resin. This engineering-grade polymer delivers an exceptional strength-to-weight ratio, high dimensional stability, resistance to mechanical fatigue, and excellent impact absorption under high-frequency operation.
Complete Corrosion Immunity & Environmental Resistance: Being 100% non-metallic on external housing components, ABS resin is completely immune to rust, galvanic corrosion, and chemical oxidation. It passes extended exposure tests without degradation from ambient humidity, chemical fumes, or industrial cleaning solvents, making it superior to metal latches in corrosive indoor environments.
Precision Snap-In Mounting & Tool-Free Assembly: Engineered specifically for 1.2 mm (.050 in) panel thickness cutouts. The integrated flexible side tabs lock into sheet metal panels instantly without requiring screws, rivets, or backing brackets, dramatically reducing assembly line installation time and labor costs.
Slam Latching & Total Grip Performance: Designed with a spring-loaded slide mechanism that provides a 4.8 mm (.190 in) total grip range. The slam-action latching feature allows operators to simply push the door shut to lock it securely without touching the actuator.
2. Technical Specifications & Parameter Matrix
The parameter table below is structured to optimize search engine rich snippet indexing and facilitate rapid engineering procurement evaluations:
| Technical Parameter | Specification / Grade Value |
| Model Code | DK726-1 |
| Product Type | Push-to-Close Slide Latch / Snap-in Slam Latch |
| Material Grade | High-Impact Engineering ABS Thermoplastic |
| Color & Finish | Matte Black Finish |
| Latch Scale | Small-Size Series |
| Applicable Panel Thickness | 1.2 mm (.050 in) |
| Total Grip Distance | 4.8 mm (.190 in) |
| Mounting Style | Snap-in Tool-Free Panel Cutout Mount |
| Operating Mechanism | Push-to-Close Slam Action with Manual Slide Release |
| Corrosion Resistance | 100% Non-Corrosive Polymer (Immune to Rust) |
| Operating Temperature | -20°C to +80°C (-4°F to +176°F) |
| Flame Retardancy | UL94-HB / Optional UL94-V0 Compliant |
| RoHS / REACH Status | Fully Compliant |
3. High-Frequency Industrial Application Scenarios
The DK726-1 ABS slide latch is widely specified across equipment housings requiring tool-free snap-in mounting and quick slam-to-close access:
Electrical & Control Enclosures: Secures interior access doors, low-voltage junction boxes, relay panels, and factory automation equipment control modules.
Server Data Center Racks & IT Infrastructure: Provides quick-release, snap-in door retention for 19-inch enterprise server rack panels, wire management covers, and IT distribution hubs.
Industrial CNC Machinery & Electronic Access Panels: Delivers smooth, anti-rattle latching for electronic instrument housings, air filtration access doors, and conveyor control panels.
Medical Equipment & Laboratory Housings: Used on diagnostic machinery panels, mobile medical carts, and analytical equipment enclosures requiring clean, non-corrosive, non-magnetic latches.
HVAC Units & Office Automation Equipment: Serves as a lightweight access latch for printer/copier service doors, ventilation fan shrouds, and indoor duct filter panels.
4. Why Choose CUYUE for Your Industrial Hardware Needs?
At Wenzhou CUYUE Lock Technology Co., Ltd., we combine extensive technical experience with complete internal manufacturing capabilities to support global OEMs, sheet metal fabricators, and hardware distributors:
In-House R&D & Plastic Injection Tooling: Supported by a dedicated design team, we specialize in custom mold development, high-precision plastic injection molding, and product testing for locks, hinges, and handles.
Integrated Tooling & Quality Control: Our production facility integrates plastic injection molding, automated spring assembly, dimensional verification, and mechanical life-cycle testing under one roof for complete quality management.
Rapid Snap-In Installation Efficiency: Our standard snap-in designs eliminate secondary assembly hardware, helping clients streamline production line throughput and cut assembly labor costs.
Flexible OEM/ODM Customization & Rapid Delivery: We offer custom panel thickness adaptations, alternative grip dimensions, custom colors, UL94-V0 flame-retardant resins, and rapid prototyping to match your exact design specifications.
Cost-Effective System Solutions: We empower clients to optimize total procurement costs without sacrificing product reliability, delivering complete enclosure locking hardware under one trusted Chinese manufacturer.
5. Frequently Asked Questions (Q&A)
Q1: How does a push-to-close snap-in slide latch work?
A: A push-to-close slide latch allows the panel or door to slam shut automatically. The angled slide latch nose retracts upon striking the frame and springs back to lock into position. To open, the operator simply slides the actuator manually to release the catch.
Q2: What are the main benefits of tool-free snap-in mounting for industrial latches?

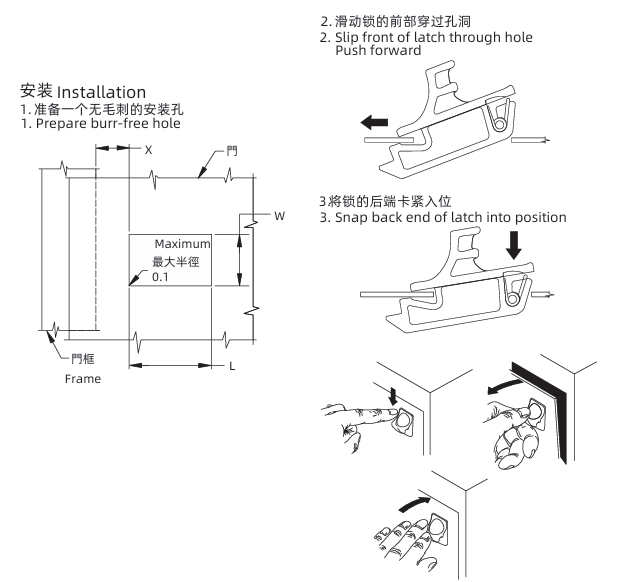

A: Tool-free snap-in mounting eliminates screws, nuts, and rivets. Assembly technicians push the latch body directly into a pre-punched panel cutout, where retaining tabs lock it into place, significantly reducing assembly time and labor cost.
Q3: What panel thickness is compatible with the DK726-1 ABS slide latch?
A: The DK726-1 is precisely designed for 1.2 mm (.050 in) sheet metal or plastic panel thicknesses, providing a snug, vibration-proof snap fit without loose play.
Q4: What is the total grip range of the DK726-1 slide latch?
A: The DK726-1 features a 4.8 mm (.190 in) total grip distance, ensuring positive latch engagement with the cabinet frame or keeper lip.
Q5: Why choose ABS polymer over metal for industrial enclosure latches?
A: Engineering-grade ABS polymer is lightweight, cost-effective, non-magnetic, and completely immune to rust and atmospheric corrosion, making it ideal for indoor electrical panels, medical devices, and IT infrastructure.
Q6: Is the DK726-1 ABS slide latch resistant to high vibration?
A: Yes. The internal stainless steel return spring maintains continuous tension on the slide mechanism, keeping the latch securely engaged even under harmonic vibration from electronic equipment or cooling fans.
Q7: Can CUYUE supply flame-retardant UL94-V0 versions of the DK726-1 series?
A: Yes. Wenzhou CUYUE Lock Technology Co., Ltd. offers full OEM material customization, including UL94-V0 flame-retardant ABS or PC/ABS resins for strict electrical safety standards.
Q8: What cutout shape is required for mounting the DK726-1 snap-in latch?
A: The DK726-1 requires a standard rectangular panel cutout. The molded snap-in side legs expand once pushed through the panel, holding the latch flush against the outer sheet metal surface.
Q9: What industries commonly specify small-size push-to-close slide latches?
A: Small-size slide latches are widely specified across IT server racks, telecom sub-racks, indoor electrical switchgear, diagnostic medical equipment, office automation machinery, and electronic control bays.
Q10: Why purchase snap-in slide latches directly from a Chinese manufacturer like CUYUE?
A: Sourcing directly from Wenzhou CUYUE Lock Technology Co., Ltd. provides direct factory-direct pricing, custom mold development, certified resin quality, and rapid order turnaround backed by comprehensive ISO-aligned quality validation.
