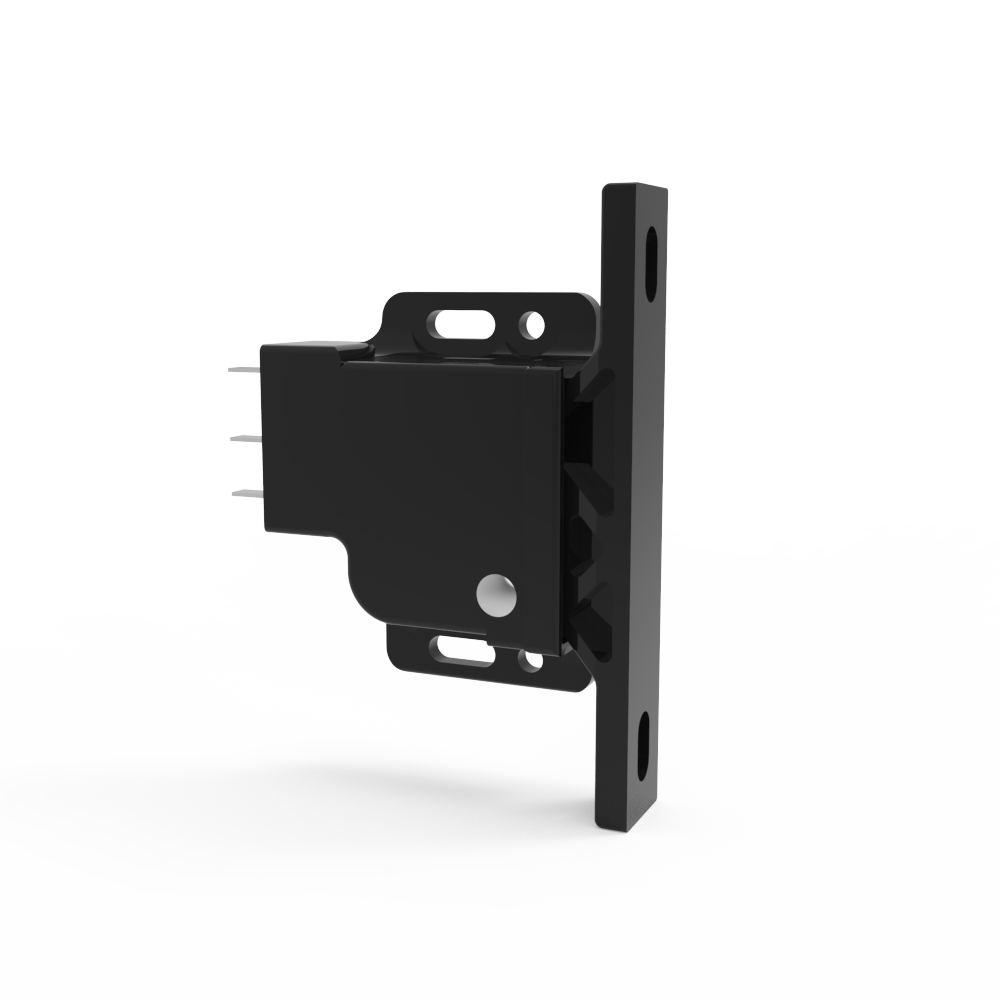

Push-to-Close Latch-DK739 Sides
Push-to-Close Latch-DK739 Sides

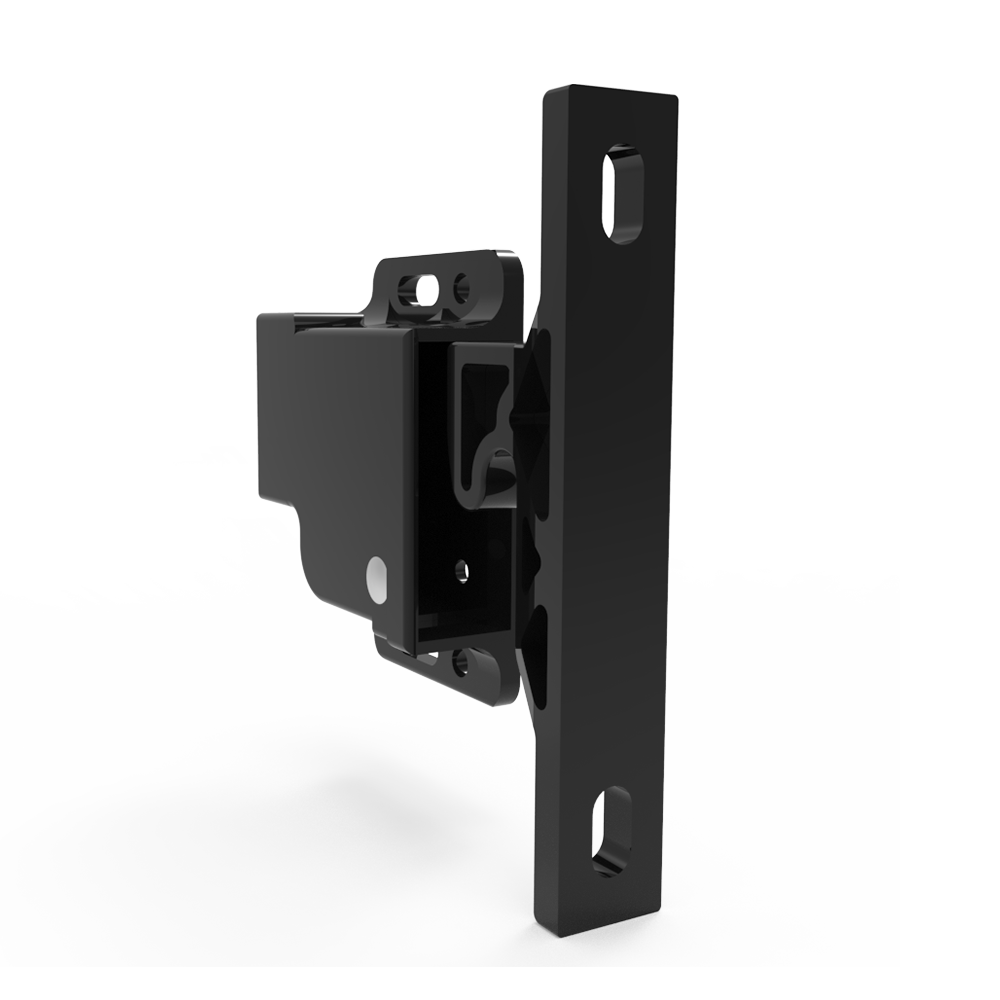

Push-to-Close Latch-DK739 Back side
Push-to-Close Latch-DK739 Left side

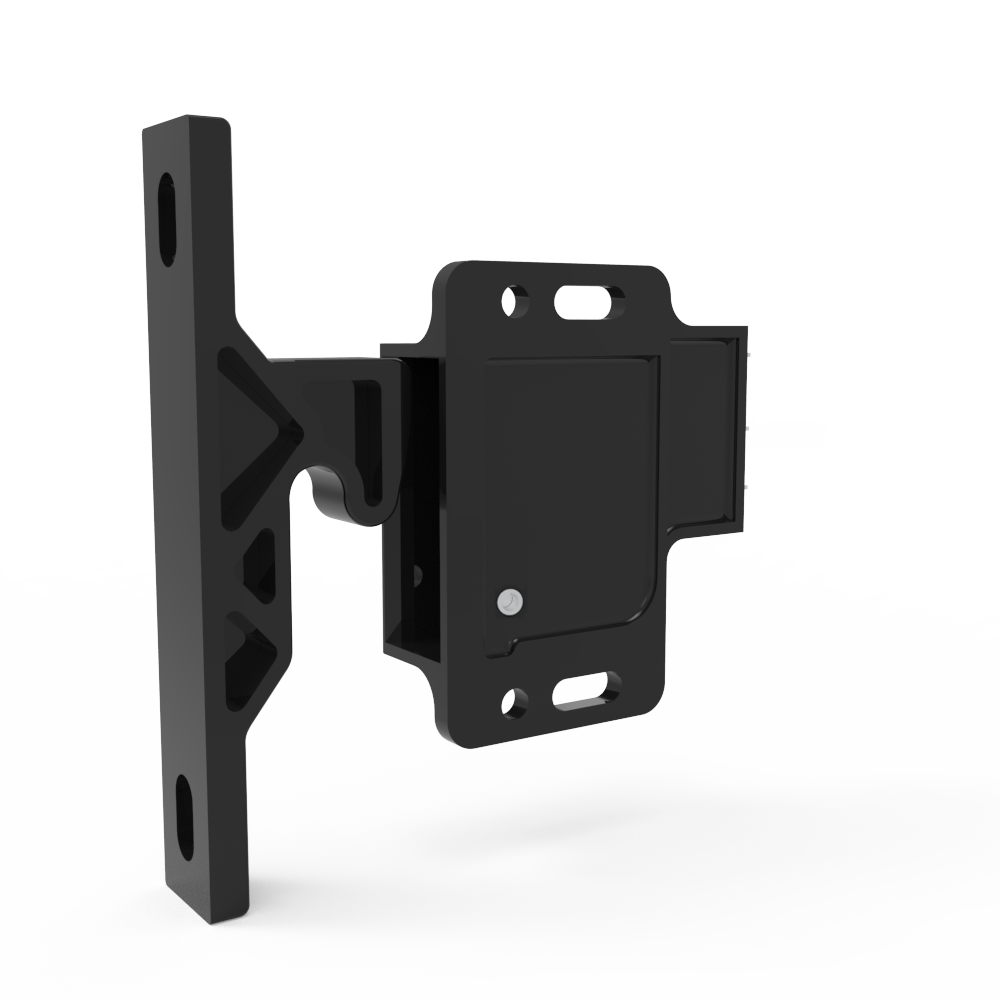

Push-to-Close Latch-DK739 Right side

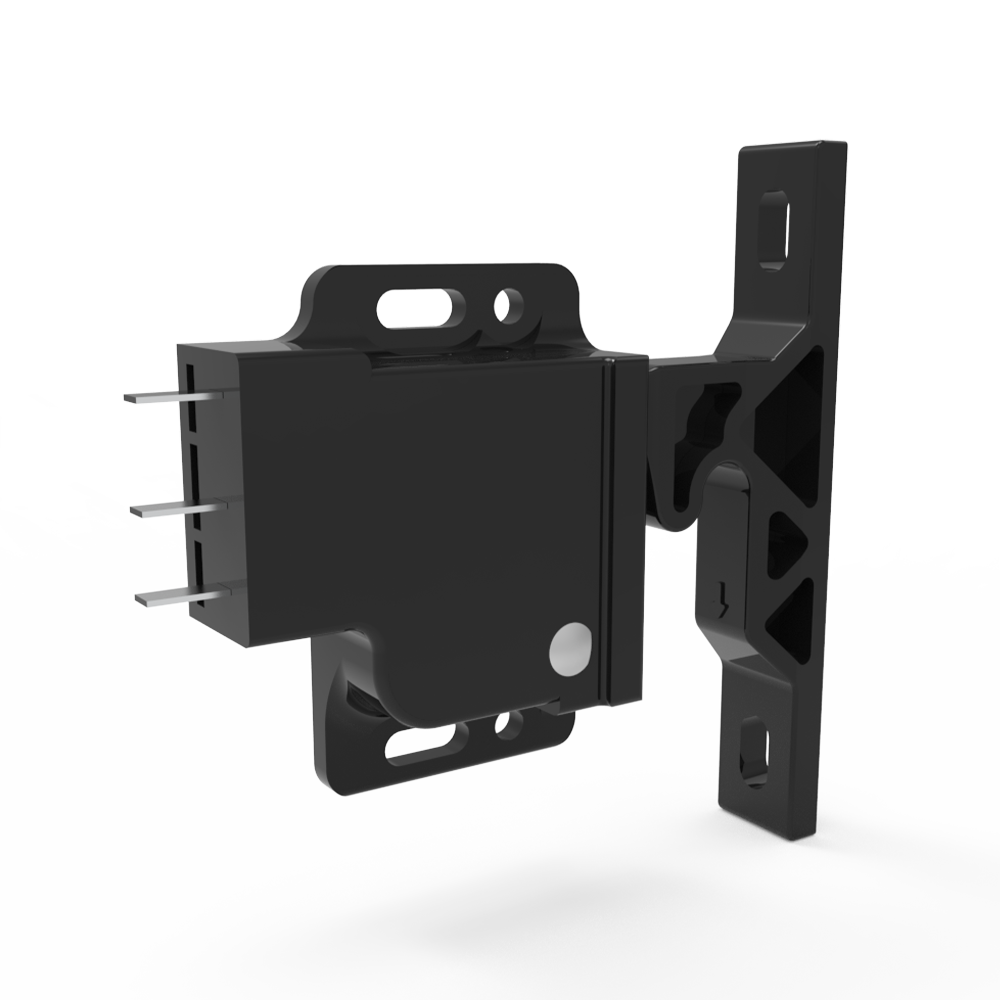

Push-to-Close Latch-DK739 side

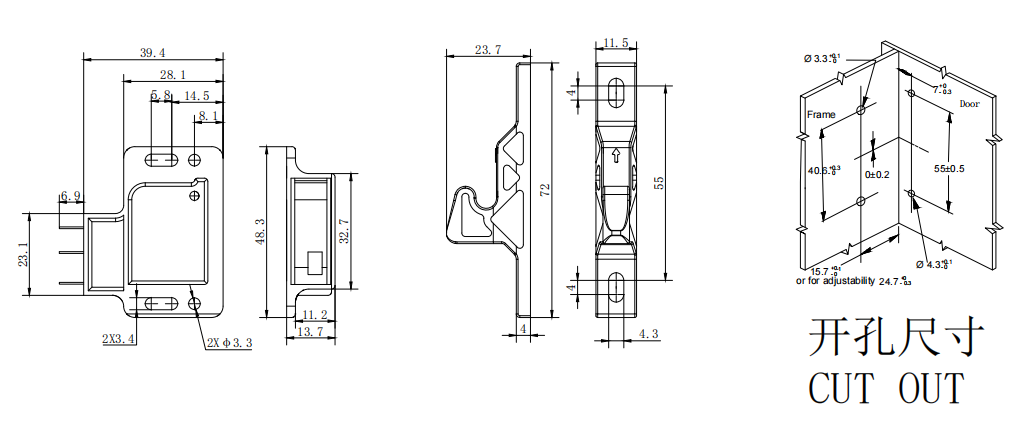

Push-to-Close Latch, Rivet / Screw (thru hole) Mounting, With Microswitch, 13N (3 lbf) , Plastic, Black,DK739

1.Material and Surface Treatment:
Housing: PC/ABS or Glass-Filled Nylon
Keeper: Mineral Filled Nylon
2.Performance Details
Operating temperature range:-40ºC (-40ºF) to 60ºC (140ºF)
Flammability rating: UL94-HB

Push To Close Latch-D6-1603-1 Sides
Push to cloese latch, key lock, zinc alloy, chrome plating, bright D6-1603-1
Paddle latch-MS915-1G Sides
Paddle latch, large size, key lock, with padlock, rivet mount, stainless steel, polished finish. MS915-1G
Push To Close Latch-D6-1601-1 Sides
Push to Close Latch, push button, K150 key lock, Zinc Alloy, chrome plating, bright D6-1601-1
Push-to-Close Latch-DK737-1 Sides
Push-to-Close Latch, Snap-In Mounting, 13N (3 lbf), Plastic, Black,DK737-1
Paddle latch-MS910-2 Sides
Paddle latch, Small Size, 4.4 – 5.2 mm (. 17 – .2 in) Grip, Stainless Steel, Powder coating, black MS910-2
Push To Close Latch-D6-1604-2 Sides
Push to cloese latch, No limit, zinc alloy, Powder coating, black D6-1604-2
Push-to-Close Latch-DK738-1 Sides
Push-to-Close Latch, Rivet / Screw (thru hole) Mounting, 13N (3 lbf), Plastic, Black,DK738-1
Push To Close Latch-D6-1604-1 Sides
Push to cloese latch, No limit, zinc alloy, chrome plating, bright D6-1604-1
