Push To Close Latch-C1-1515-2 Sides
Push To Close Latch-C1-1515-2 Sides
Push To Close Latch-C1-1515-2 Back side
Push To Close Latch-C1-1515-2 Front side
Push To Close Latch-C1-1515-2 Front side
Push To Close Latch-C1-1515-2 Right side

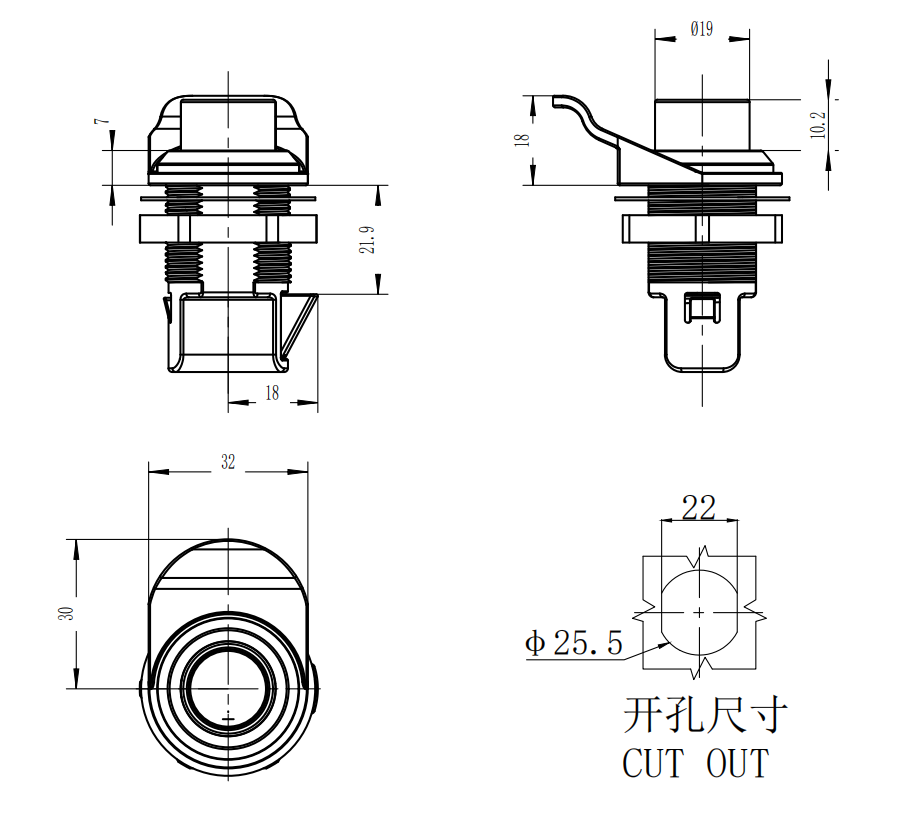

Push to Close Latch, Push Button, Pull tab perpendicular to latching pawl, Plastic, Black C1-1515-2

1.Material and Surface Treatment:
Lock Body, Handle, Dust Cover ：PA66+30%GF
Steel Bolt: PA66+30%GF
Sealing Ring: EPDM foam.
2. Performance Parameters:
Protection Class: IP65
Maximum Working Load: 530N
Flame Retardant Grade: UL94-HB
3.Remark:
Default CH751 Key Code

Push-to-Close Latch-C1-2100 Sides
Point presses, impact doors, cylinder locks, plastic,C1-2100
Push-to-Close Latch-C1-2003 Sides
Push-to-Close Latch, No Restriction, Plastic,Electrochromic plating, Chrom,C1-2003
Push To Close Latch-C1-1519 Sides
Push to close latch, key lock, PA66+30%GF, black C1-1519
Push-to-Close Slide Latch-DK726-1 Sides
Push-to-Close Slide Latch, Snap-in, Small Size, 1.2mm (.050 in) Panel Thickness, 4.8mm (.190 in) Total Grip, ABS, Black DK726-1
Push To Close Latch-C1-1515 Sides
Push to Close Latch, Push Button, Key Locking, Pull tab parallel to latching pawl, Plastic, Black C1-1515
Paddle latch-MS912-10 Sides
Paddle latch, large,CH751 key locking, 11.9 mm (.468 in) grip, stainless steel, powder coating, black MS912-10
Push To Close Latch-D6-1606-2 Sides
Push to cloese latch, No limit, zinc alloy, Powder coating, black D6-1606-2
Push To Close Latch-D6-1605-1 Sides
Push to cloese latch, key lock, zinc alloy, chrome plating, bright,D6-1605-1
