Push-to-Close Latch-C1-2001 Sides
Push-to-Close Latch-C1-2001 Sides

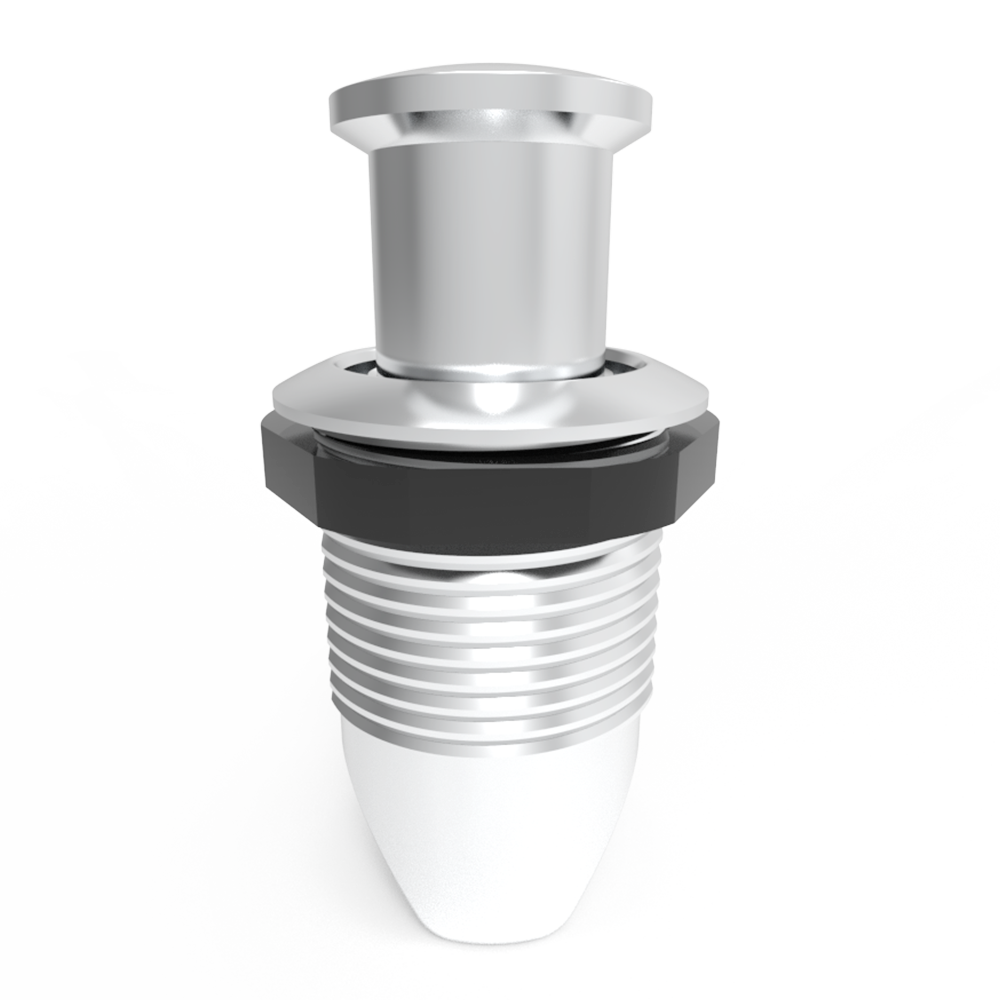

Push-to-Close Latch-C1-2001 Back side

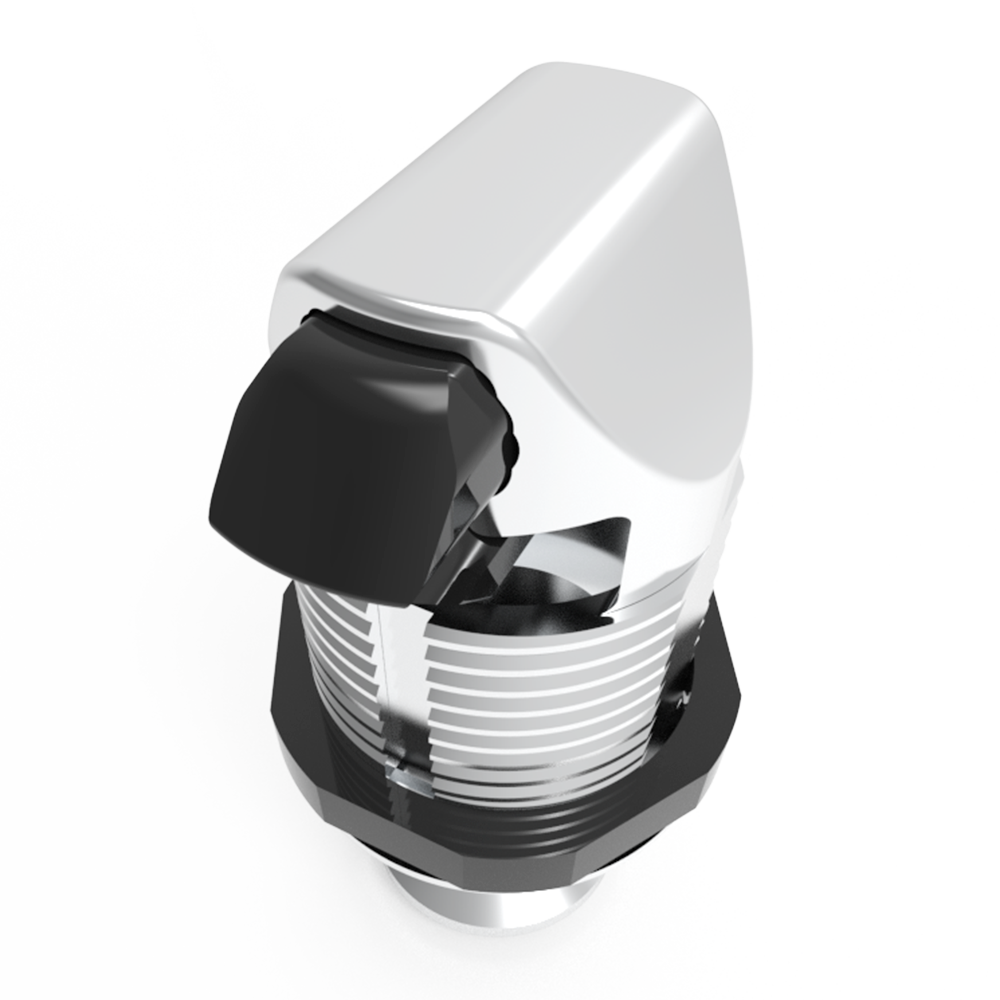

Push-to-Close Latch-C1-2001 Bottom side

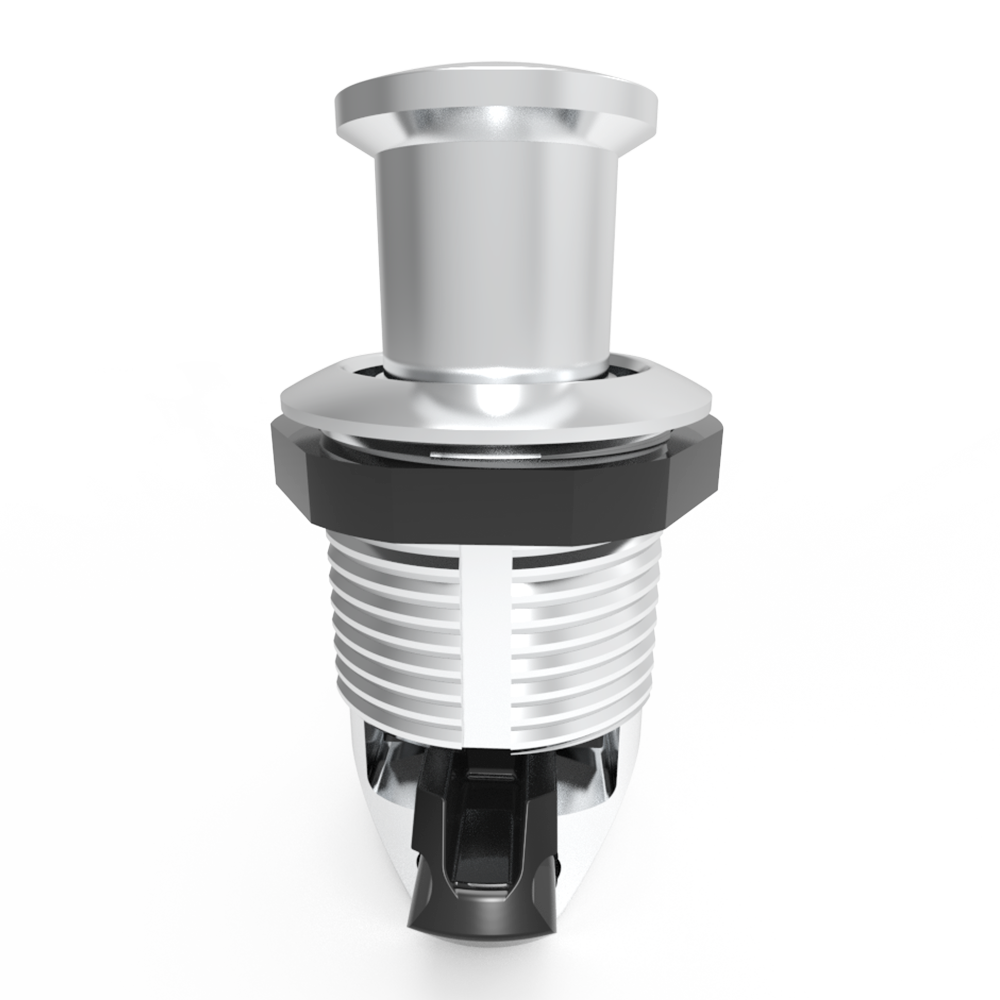

Push-to-Close Latch-C1-2001 Front side

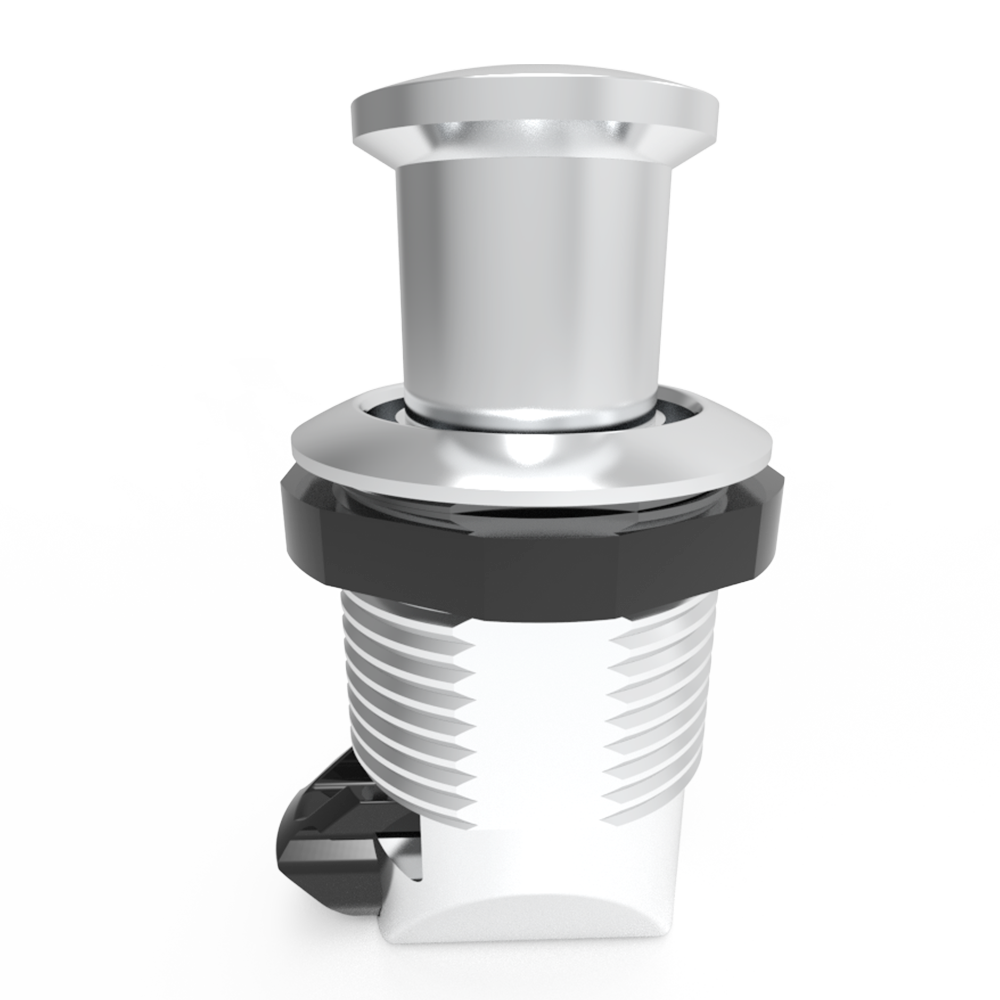

Push-to-Close Latch-C1-2001 Left side

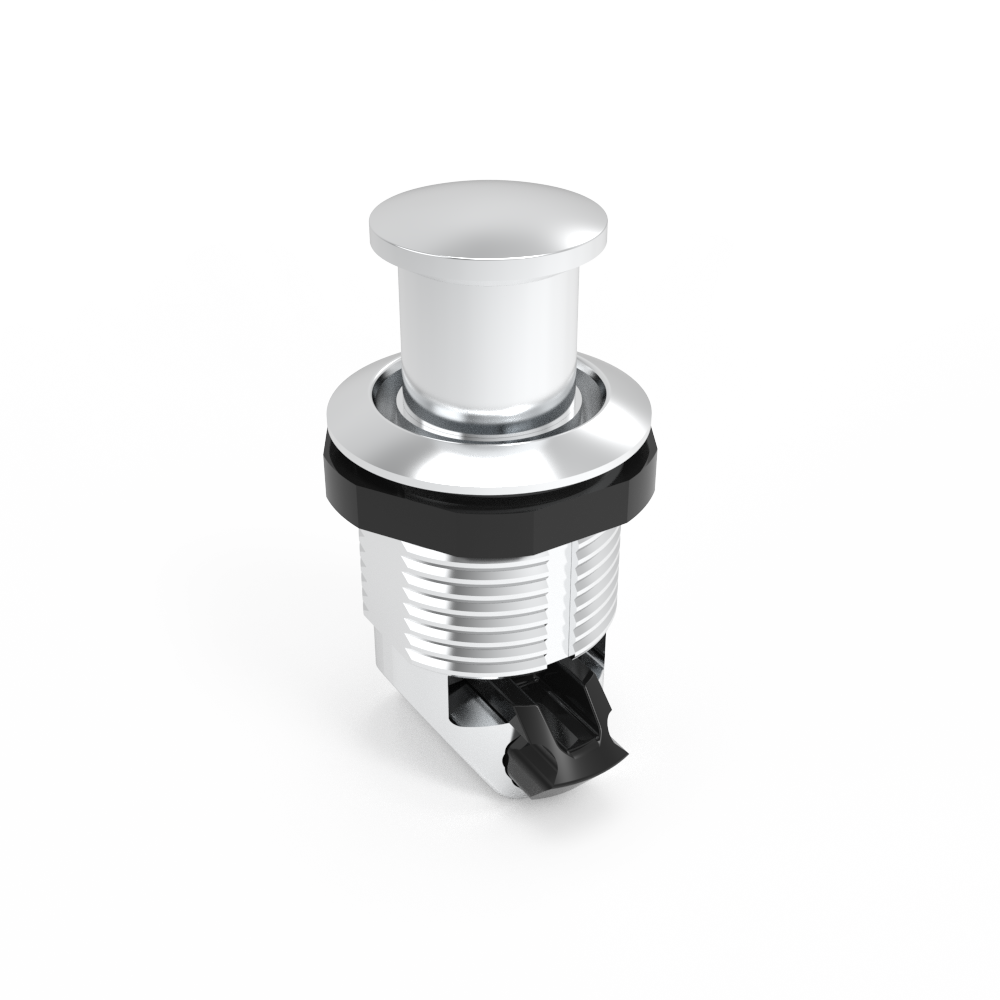

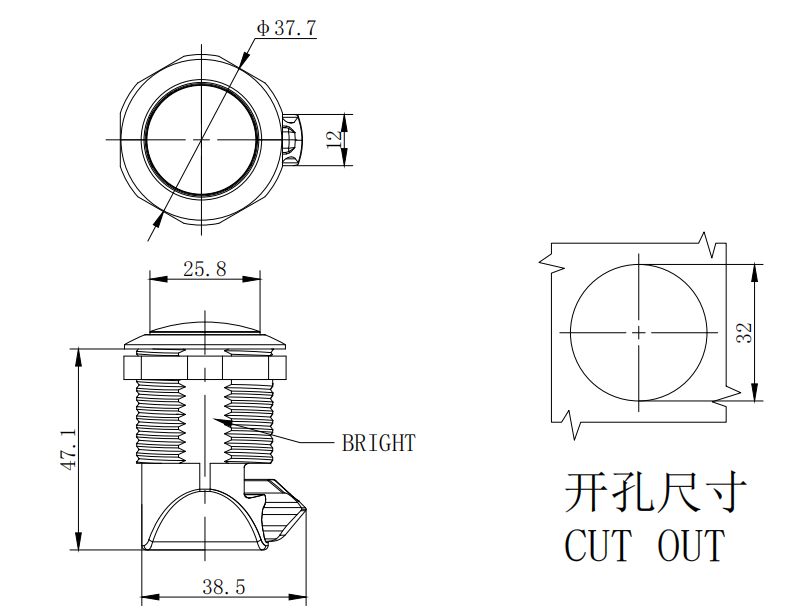

Push-to-Close Latch, No Restriction, Plastic,Electrochromic plating, Chrom,C1-2001

1.Material and Surface Treatment:
Lock Body, Handle,Holder ：PC+ABS
2. Performance Parameters:
Protection Class: IP40
Maximum Working Load: 310N
Working Temperature Range: -30 to 60 º C
Flame Retardant Grade: UL94-HB

Toggle Latch C1-1505
Impact lock Stainless steel AISI 304，triangular 7, with marking left version
Push-to-Close Latch-M1-1103-A1 Sides
Push-to-Close Latch, Medium Size, No limit, 2 – 7mm (.075 – .275 in) Door thickness, 25.5mm (1.00 in) Grip, stainless steel,polishing,bright M1-1103-A1
Push-to- Close Lock-M1-1102-10 Sides
Push-to-Close Latch, Medium Size, key lock, 2 – 7mm (.075 – .275 in) Door thickness, 25.5mm (1.00 in) Grip, zinc alloy,black M1-1102-10
Push-to-Close Slide Latch-DK730-2 Sides
Psuh-to-close latch, snap-in, large size,No limit , 1.6mm(. 060 in) Panel thickness, ABS, black DK730-2
Paddle latch-MS911 Sides
Paddle latch, Small Size, 3 – 3.4 mm (. 118 – .133 in) Grip, Stainless Steel, Brushed Finish MS911
Push To Close Latch-C1-1515-NS Sides
Push to Close Latch, Push Button, Pull tab parallel to latching pawl, Plastic, Black C1-1515-NS
Paddle latch-MS914-A1 Sides
Paddle latch, small size, key lock, rivet mount, stainless steel, polished finish, MS914-A1
Push To Close Latch-D6-1605-2 Sides
Push to cloese latch, key lock, zinc alloy, Powder coating, blackD6-1605-2
