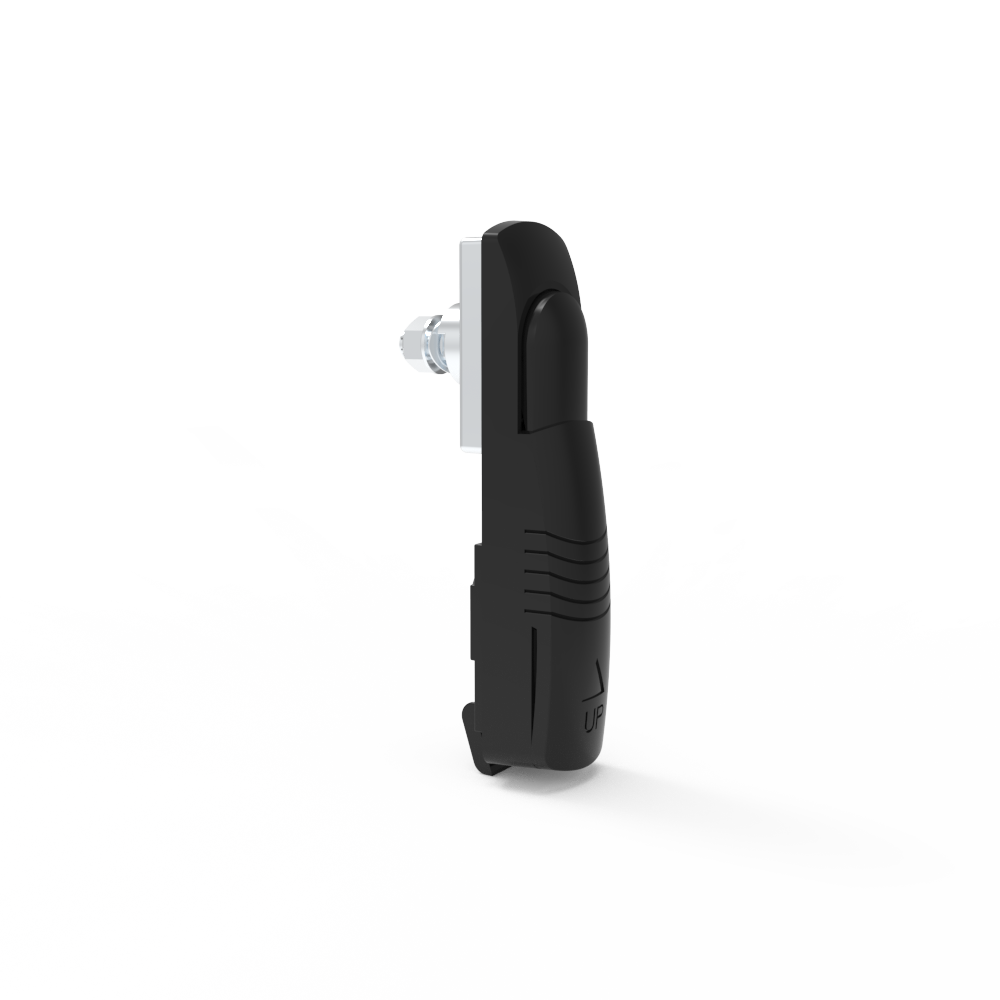

Swing handle lock, CH751 key lock,clamp type, left and right universal, rotary handle open, PA66+30%GF, black,A8002-2
1.Material and surface treatment:
Lock body,handle, dust cover: PA66+30%GF
Steel bolt: iron galvanized or Stainless steel 304
Sealing ring: EPDM foam.
2. Performance parameters:
Protection class: IP65
Handle bearing tension value: ≤ 265N
Handle bearing torque value: ≤ 33N. m
Maximum static load: 270N
3. Remarks:
Key different on request.
CH751 key code on request
