1. Detailed Materials, Engineering Grade & Environmental Durability

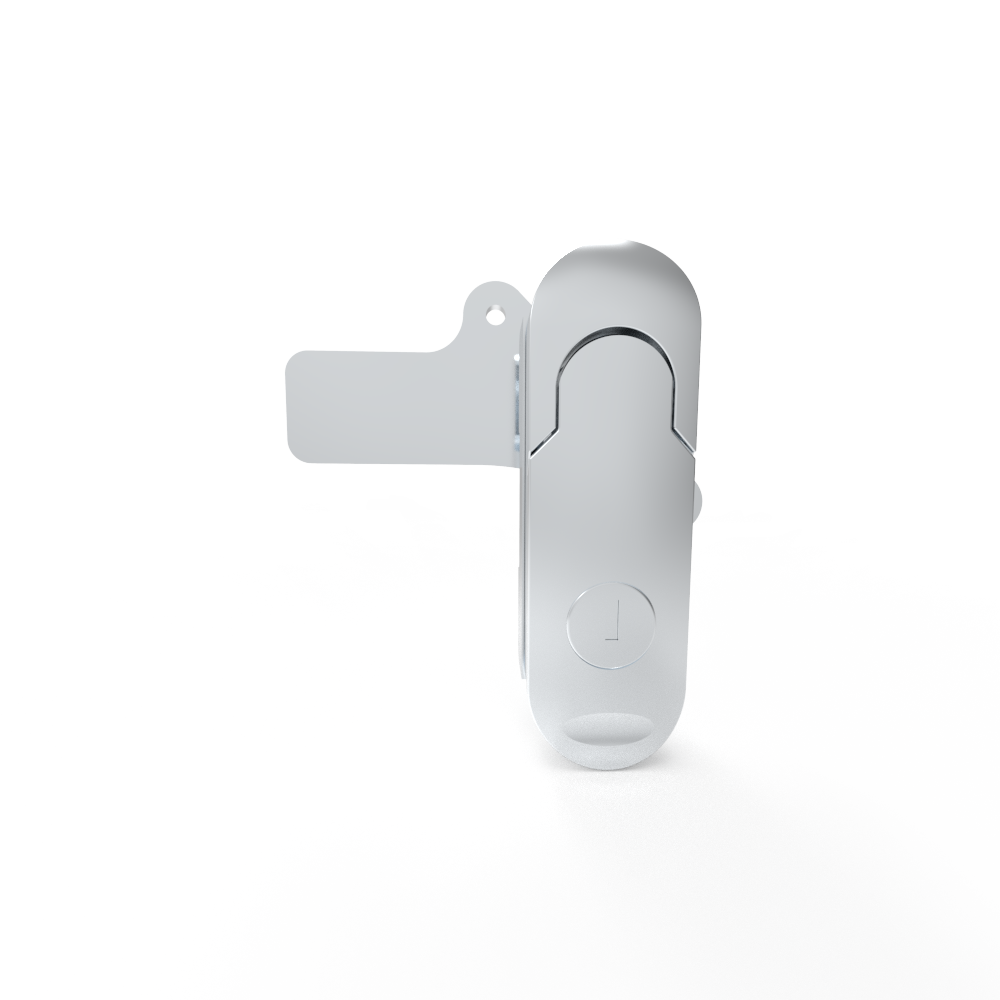

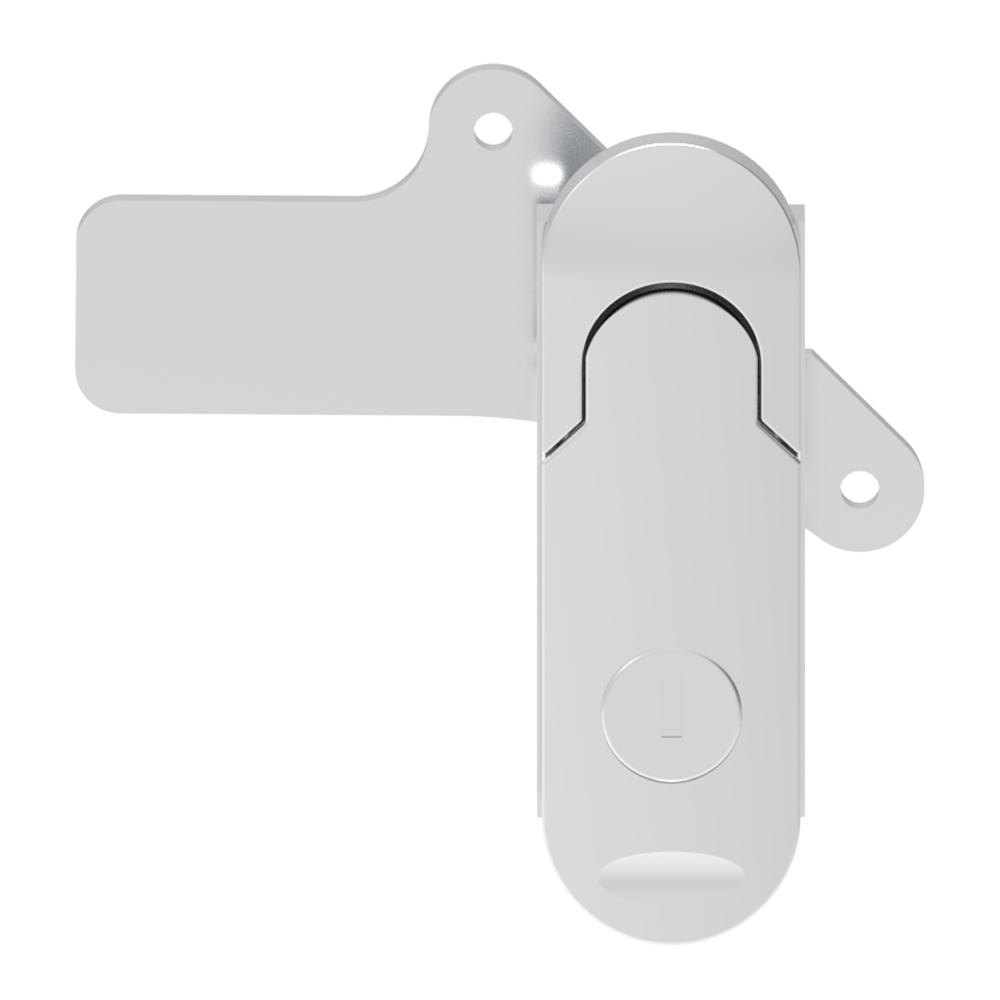

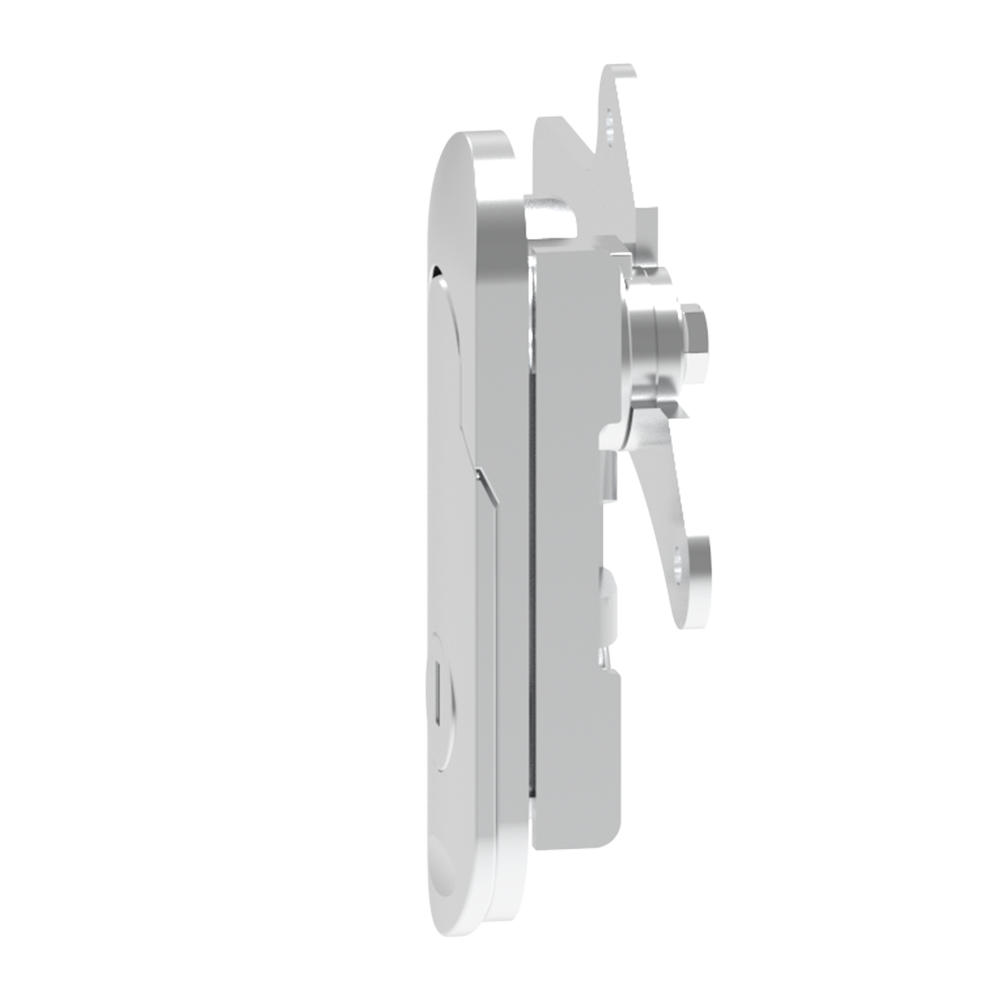

The MS843-1-30 Swivel Swing Handle Lock is engineered for high-demand industrial power distribution cabinets, IT server enclosures, and control panels requiring physical security, high mechanical leverage, and smooth swivel-handle operation.
High-Density Die-Cast Zinc Alloy Metallurgy: Manufactured using high-strength ZAMAK die-cast zinc alloy (ZDC) for the main housing, swivel handle lever, and internal cam drive. This structural composition provides superior tensile strength, excellent impact resistance, and high dimensional stability during high-frequency daily operation.
Silver Spray-Painted Protective Finish: The housing and handle lever are finished with a durable, scratch-resistant silver spray-painted coating. This protective barrier shields the zinc alloy substrate against atmospheric oxidation, industrial dust, grease, and mild chemical fumes. It successfully passes 48-hour to 72-hour neutral salt spray testing (ASTM B117 / ISO 9227) without blistering or corrosion, making it ideal for indoor industrial plants and sheltered control bays.
Standardized K200 Key Cylinder Security: Fitted with a precision K200 industrial key cylinder mechanism, restricting panel access to authorized maintenance personnel while offering a standardized keyway across fleet cabinets.
Universal Left / Right Handed (Non-Handed) Mounting: Designed with a symmetrical reversible mechanism that seamlessly adapts to both left-hand (LH) and right-hand (RH) opening doors without needing internal component modification.
Ingress Protection & Gasket Match (IP Rating Matching): Fitted with perimeter sealing gaskets around the mounting base and driver shaft, achieving an IP54 / IP65 ingress protection rating (EN 60529) against ambient dust, oil splashes, and moisture ingress when compressed against gasketed door frames.
2. Technical Specifications & Parameter Matrix
The parameter table below is structured to optimize search engine rich snippet indexing and facilitate rapid engineering procurement evaluations:
| Technical Parameter | Specification / Grade Value |
| Model Code | MS843-1-30 |
| Product Type | Swivel Swing Handle Lock / Rod Control Handle Series |
| Material Grade | High-Density Die-Cast Zinc Alloy (ZAMAK / ZDC) |
| Key Lock Cylinder | K200 Key Lock Mechanism |
| Surface Finish | Silver Spray Paint Coating |
| Door Orientation | Universal Non-Handed (Left-Hand / Right-Hand Reversible) |
| Operation Style | Swivel Handle Lift & Turn Action |
| IP Protection Rating | IP54 / IP65 (Enclosure Gasket Dependent) |
| Mounting Style | Panel Cutout Mounting with Retaining Bracket & Screws |
| Rod Control Compatibility | Compatible with Multi-Point Rod Latching Systems |
| Operating Temperature | -20°C to +70°C (-4°F to +158°F) |
| RoHS / REACH Status | Fully Compliant |
3. High-Frequency Industrial Application Scenarios
The MS843-1-30 swivel swing handle lock is widely deployed across modern power distribution and industrial control infrastructure:
Electrical & Control Enclosures: Secures low/medium voltage switchgear panels, motor control centers (MCC), and factory automation control bays with smooth swivel leverage.
Outdoor 5G Telecom & Broadband Cabinets: Provides key-controlled physical protection for remote telecommunications housing, optical fiber nodes, and battery backup bays.
Server Data Center Racks & IT Infrastructure: Secures 19-inch enterprise server racks, network distribution frames, and modular IT cabinets requiring standardized K200 key access.
Industrial CNC Machinery & Equipment Housings: Delivers ergonomic, heavy-duty door latching on metalworking machine guards, air compressor hoods, and generator enclosures.
Smart Power Distribution & Kiosks: Serves as a reliable security handle for power meter boxes, solar inverter panels, and outdoor utility distribution kiosks.
4. Why Choose CUYUE for Your Industrial Hardware Needs?
At Wenzhou CUYUE Lock Technology Co., Ltd., we combine extensive technical experience with complete internal manufacturing capabilities to support global OEMs, enclosure fabricators, and hardware distributors:
In-House R&D & Engineering Expertise: Supported by a dedicated R&D design team specializing in cabinet locks, hinges, and handles engineered to strictly match global industrial specifications.
Integrated Precision Tooling & Casting: Our manufacturing plant integrates precision mold design and development, zinc alloy die-casting, automated CNC machining, spray coating, and quality testing under one roof for complete quality management.
Rigorous Quality Testing & Validation: Every production lot undergoes mechanical cycle testing, K200 key cylinder smooth-turn checks, salt spray corrosion testing, and dimensional verification before dispatch.
Flexible OEM/ODM Customization & Rapid Delivery: We offer custom keying systems (like master keying or key-different options), custom spray paint or powder coating finishes, custom cam dimensions, and rapid prototyping to keep your production schedules on track.
Cost-Effective System Solutions: We empower clients to optimize total procurement costs without sacrificing product longevity, delivering complete industrial enclosure hardware systems under one trusted brand.
5. Frequently Asked Questions (Q&A)
Q1: What is the main advantage of a swivel swing handle lock for electrical cabinets?
A: A swivel swing handle lock provides high mechanical leverage to compress thick door gaskets smoothly. When closed, the handle folds flush into its housing, preventing accidental snagging while providing a sleek profile.
Q2: What key profile is used in the MS843-1-30 swing handle lock?
A: The MS843-1-30 utilizes a standardized K200 key lock cylinder, which is widely recognized across industrial utilities to restrict panel access to authorized maintenance technicians.
Q3: Is the MS843-1-30 swing handle lock reversible for left-hand and right-hand doors?
A: Yes. The MS843-1-30 features a universal non-handed design that can be installed on either left-hand (LH) or right-hand (RH) opening enclosure doors without changing internal stop pins.
Q4: Can the MS843-1-30 be integrated into a multi-point rod control system?

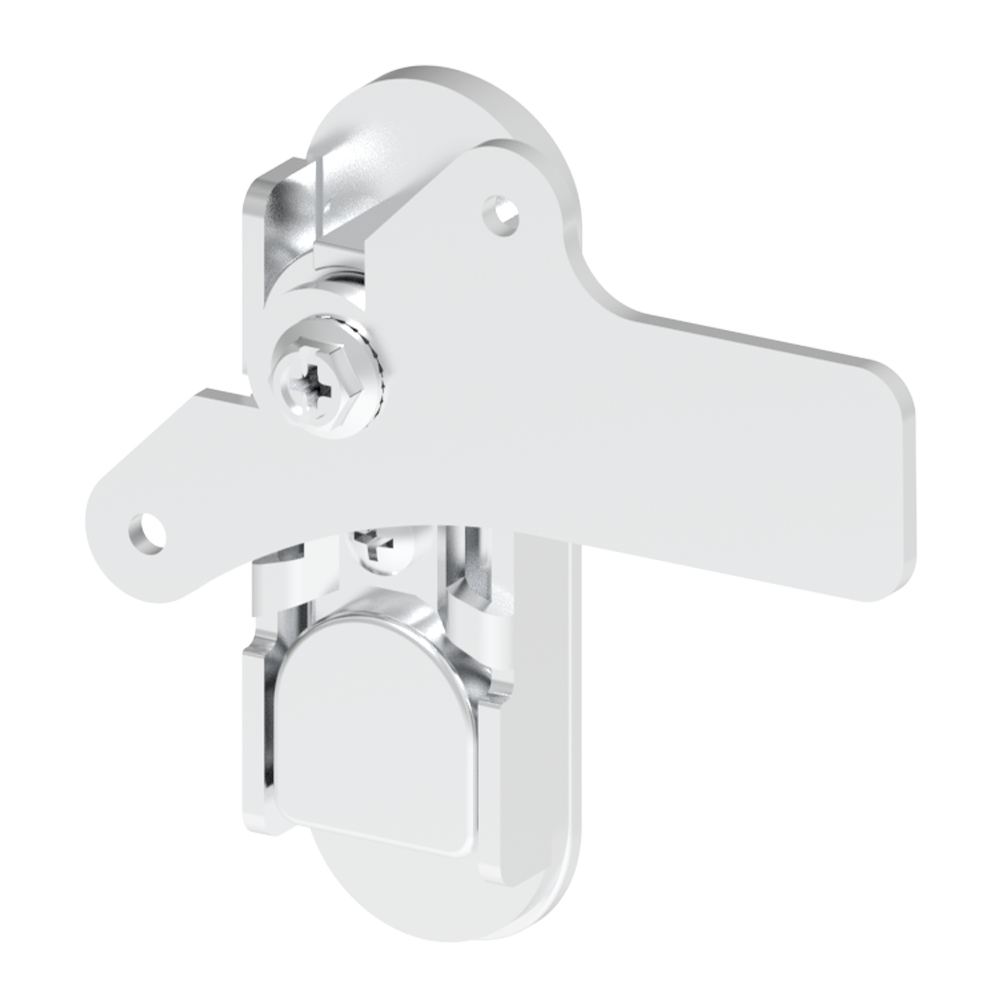

A: Yes. The internal drive mechanism of the MS843-1-30 connects directly to standard industrial multi-point rod latching systems, enabling top, middle, and bottom door latching for tall cabinets.
Q5: How does the silver spray paint coating protect the zinc alloy lock body?
A: The protective silver spray paint creates a durable non-porous layer over the die-cast zinc alloy, passing 48-hour to 72-hour neutral salt spray tests (ASTM B117) to prevent surface oxidation, rust, and oil staining.
Q6: What IP rating does the MS843-1-30 reach when installed on an enclosure?
A: Fitted with its base perimeter sealing gasket, the MS843-1-30 achieves an IP54 to IP65 ingress protection rating, shielding internal electrical components against dust, oil splashes, and moisture.

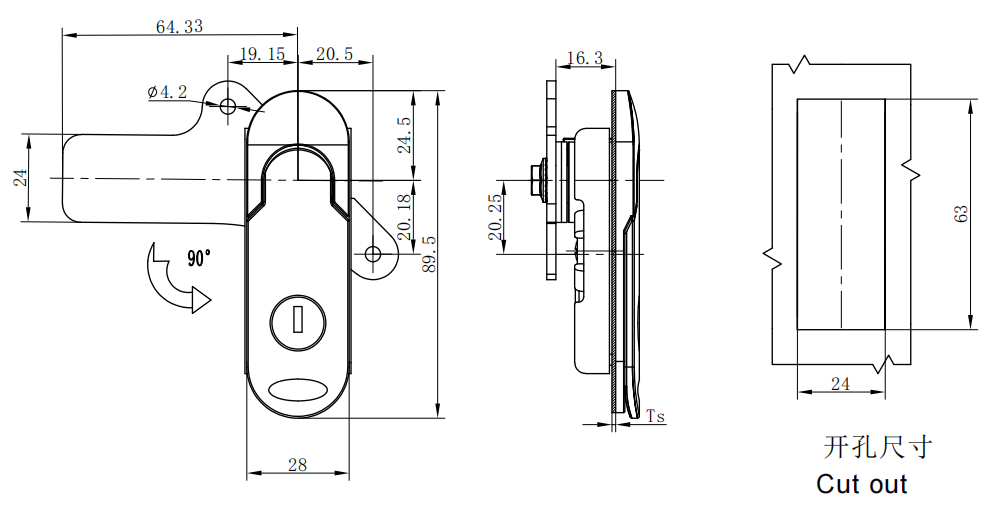

Q7: What panel cutout shape is required to mount the MS843-1-30 handle lock?
A: The MS843-1-30 mounts into standard industrial swing handle rectangular cutouts, using mounting brackets and retaining screws to clamp the lock housing securely against the door sheet metal.
Q8: Can CUYUE supply custom colors or finishes for the MS843-1-30 series?
A: Yes. Wenzhou CUYUE Lock Technology Co., Ltd. provides complete OEM customization. In addition to silver spray paint, we can supply electrostatic black powder coating, chrome plating, or custom RAL color finishes.
Q9: What industries commonly specify K200 key lock swing handles?
A: K200 key swing handles are heavily specified across electrical switchgear, outdoor 5G telecom enclosures, server racks, HVAC units, industrial machinery panels, and power distribution kiosks.
Q10: Why purchase industrial cabinet locks directly from a Chinese manufacturer like CUYUE?
A: Sourcing directly from Wenzhou CUYUE Lock Technology Co., Ltd. delivers factory-direct pricing, certified material quality, in-house mold development capabilities, and rapid order turnaround backed by ISO-aligned quality validation.
