Founded in 2012, Wenzhou Cuyue Lock Technology Co., Ltd. is a leading comprehensive industrial hardware manufacturing enterprise specializing in cabinet locks, hinges, and handles. Driven by an in-house professional research, development, and design team, we maintain total control over product design, precision mold development, advanced manufacturing, and rigorous quality testing validation. By addressing the market’s growing demands for superior product quality, rapid delivery, flexible customization, and strict cost control, Cuyue provides reliable industrial locking system solutions to global partners.
Among our core product lines, the MS705 Quarter Turn Lock with a 7mm Square Head stands out as an efficient, highly reliable access solution designed for standard industrial enclosures.
1. Material Grade & Corrosion Resistance Performance
Material selection and surface protection are critical for ensuring long-term operational reliability in commercial and industrial environments:
High-Strength Die-Cast Zinc Alloy (ZDC): The housing and insert of the MS705 are manufactured from premium die-cast zinc alloy, providing robust structural integrity, mechanical stability, and high impact resistance.
Bright Chrome Plating Surface Treatment: Finished with a high-luster electroplated chrome coating, the lock offers an exceptional aesthetic finish while forming a protective barrier against daily wear, fingerprints, and atmospheric oxidation.
Salt Spray Performance: Designed to withstand standard industrial environments, the electroplated chrome surface undergoes rigorous salt spray testing to resist rust initiation and maintain its polished appearance.
IP54 Ingress Protection: Engineered with precision tolerances and an integrated sealing gasket, the assembly achieves an IP54 rating, offering effective protection against dust accumulation and water splashes from any direction.

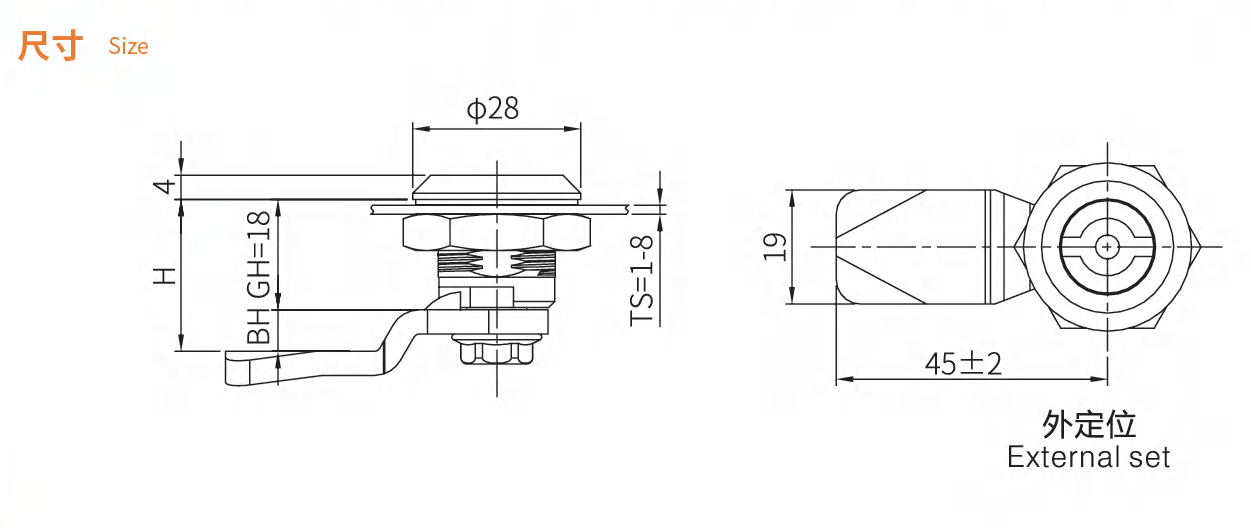

2. Detailed Technical Parameters & Specifications Table
To assist engineers, designers, and procurement managers in quick evaluation, here are the technical specifications for the MS705 quarter turn lock:
| Technical Parameter | Specification Details |
| Model Number | MS705 |
| Primary Material | High-Strength Die-Cast Zinc Alloy (ZDC) |
| Surface Finish | Bright Chrome Plated (Cr) |
| Drive / Head Style | 7mm Square Key Head |
| Operation Mechanism | Quarter-Turn (90° Rotation) Cam Action |
| Ingress Protection (IP) | IP54 Dust-Protected and Splash-Resistant |

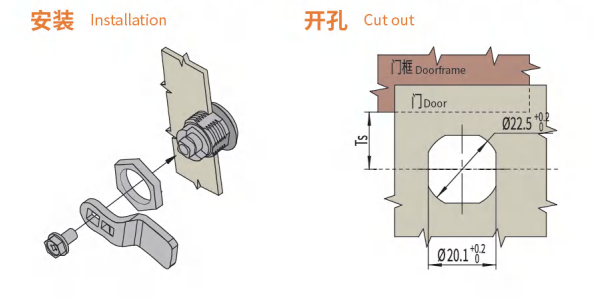

| Mounting Style | Standard Flush Panel Cutout Installation |
| Application Compatibility | Electrical enclosures, machinery access panels, and utility boxes |
3. Typical Industrial Application Scenarios
The MS705 quarter turn lock is engineered for high-frequency industrial environments where quick tool access, secure latching, and clean aesthetics are required:
Electrical & Control Enclosures: Secures low-voltage power distribution boxes, industrial automation control panels, and electrical junction boxes.
HVAC & Environmental Equipment: Fits seamlessly onto air handling units, ventilation filter access doors, and heating equipment housings.
Industrial Machinery Panels: Provides reliable, vibration-resistant door latching for CNC machine covers and automated production line service doors.
Server Racks & Communication Cabinets: Offers secure, cost-effective door locking for indoor IT racks and telecommunication sub-assemblies.
4. Why Choose the Cuyue MS705 Quarter Turn Lock?
Efficient 90-Degree Operation: The quarter-turn mechanism allows maintenance personnel to quickly open and secure enclosure doors using a standard 7mm square key tool, streamlining routine servicing.
Durable & Cost-Effective: Combining high-strength zinc alloy with a sleek chrome finish, the MS705 delivers an optimal balance of structural performance, corrosion resistance, and economic value.
Direct Manufacturer Advantages: As your direct manufacturing partner, Cuyue offers complete in-house capabilities—from custom cam configurations and logo laser etching to rapid mass production—ensuring high quality and on-time delivery for your OEM projects.
5. Frequently Asked Questions (FAQ)
Q1: What is the primary function of the MS705 quarter turn lock?
A: The MS705 is designed to provide quick, secure 90-degree door latching for industrial cabinets, electrical enclosures, and service access panels using a standard tool-operated key drive.
Q2: What material is used to manufacture the MS705 lock body?
A: The lock is constructed from high-strength die-cast zinc alloy (ZDC), ensuring robust mechanical durability and impact resistance under daily industrial use.
Q3: What surface treatment does the MS705 receive?
A: It features a premium bright chrome-plated finish, which delivers a professional mirror-like appearance and provides effective protection against oxidation and wear.
Q4: What is the IP ingress protection rating of this lock?
A: The MS705 achieves an IP54 protection grade, making it dust-protected and resistant to water splashes from everyday industrial environments.
Q5: What tool is required to operate the 7mm square head?
A: It requires a standard 7mm square utility key, restricting unauthorized access while allowing quick, tool-operated opening by authorized technicians.
Q6: How many degrees does the lock rotate to engage or disengage?
A: The lock operates on a standard 90-degree quarter-turn rotation, allowing fast opening and closing actions.
Q7: Is the MS705 suitable for outdoor electrical enclosures?
A: While it features an IP54 splash-resistant rating suitable for sheltered outdoor or indoor environments, harsh coastal or heavy rain conditions may require higher IP-rated stainless steel alternatives.
Q8: Can CUYUE customize cam plates or provide OEM branding?
A: Yes. As an experienced industrial hardware manufacturer with in-house R&D and mold development, Cuyue fully supports custom cam sizes, lock lengths, and OEM logo branding.
Q9: What panel thickness is compatible with this quarter turn lock?
A: The MS705 is engineered to fit standard industrial door panel thicknesses commonly used in metal enclosures and cabinets.
Q10: Why choose Cuyue as a supplier for industrial cabinet locks?
A: Cuyue combines over a decade of manufacturing expertise, in-house mold tooling, strict quality control, and flexible customization to deliver reliable industrial locking solutions worldwide.
