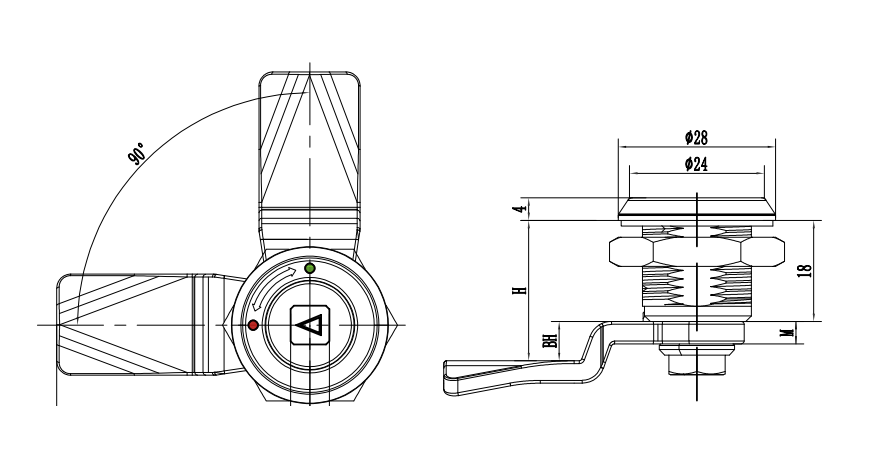

Quarter Turn Lock, Square 7mm, Stainless Steel, Passivated, IP65 D1-1440
1. Material and Surface Treatment：
Stainless Steel 316 or 304
2. Performance Parameters:
Protection level: lP65
3.installation Instructions:
Fixing screw torque 8N.M
Fixing nut torque 17N.M
4.Applicable Door Thickness:
1-8mm

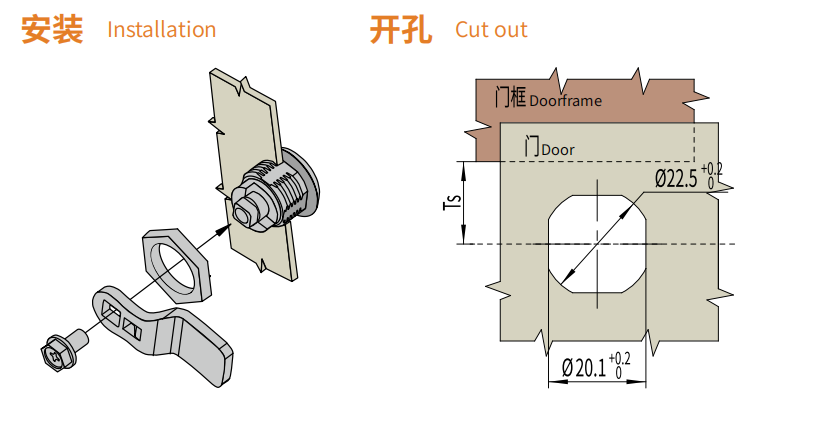

Installation
Material
Protection Rating
Door Thickness
