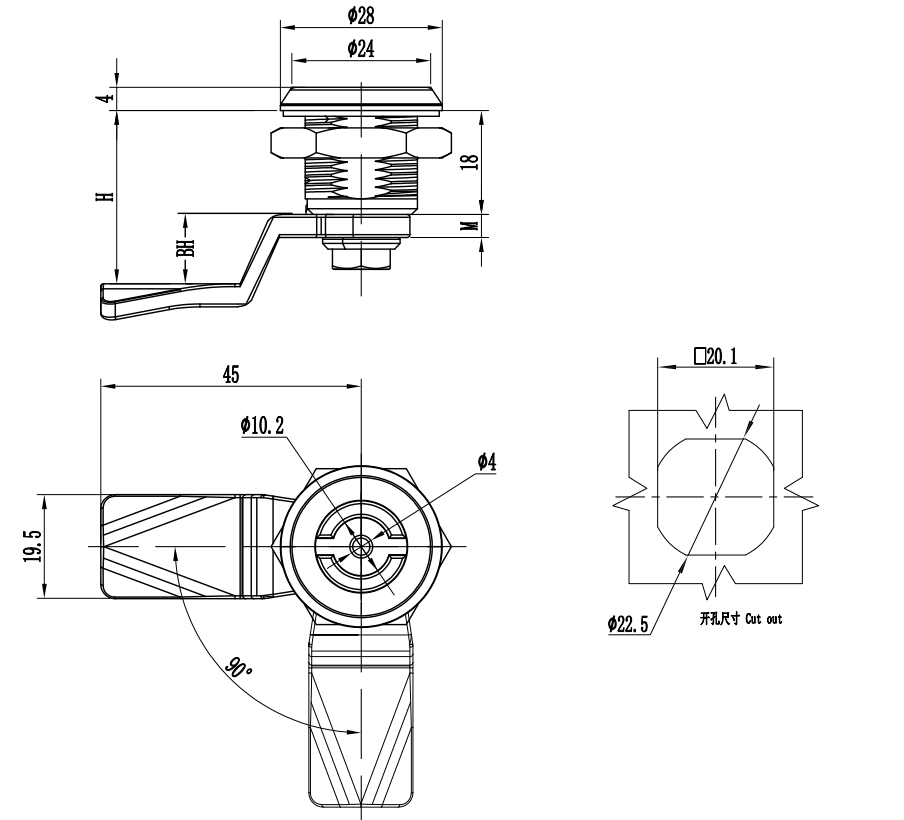

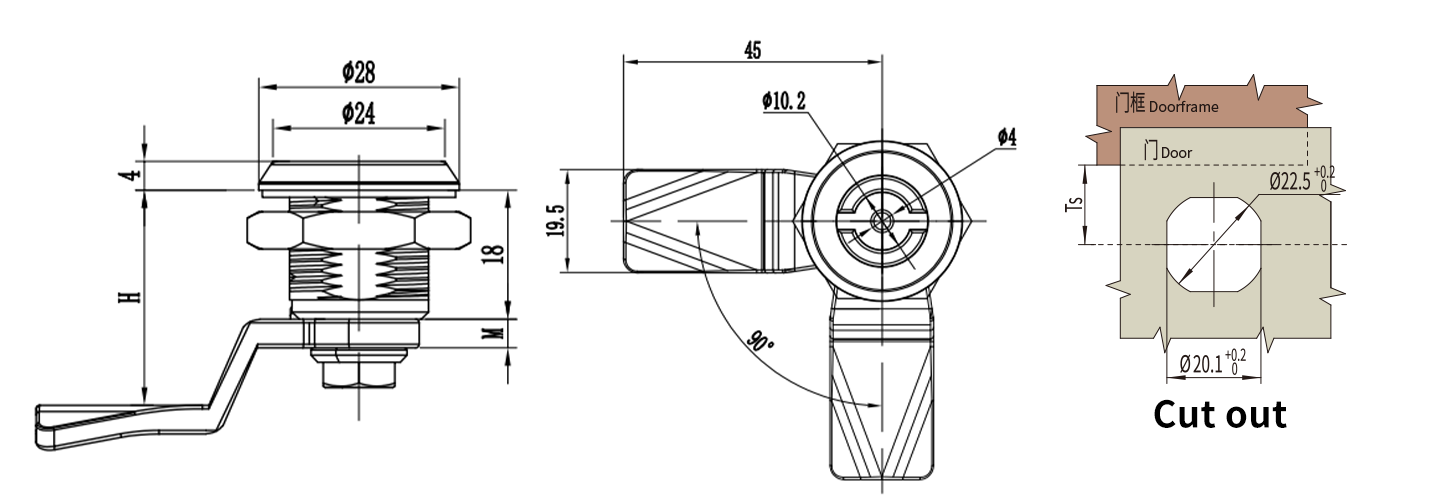

Quarter turn lock Double bit 4mm,IP65 Stainless steel,D1-1401-014
1. Material and Surface Treatment：
Stainless Steel 316 or 304
2. Performance Parameters:
Protection level: IP65
3. Installation Instructions:
Fixing screw torque 8N.M, fixing nut torque 17N.M, applicable door thickness 1-8mm.
Installation
1
Material
304 stainless steel (or custom 316 stainless steel)
Protection Rating
IP54
Door Thickness
1-8mm
Installation
1
Material
304 stainless steel (or custom 316 stainless steel)
Protection Rating
IP54
Door Thickness
1-8mm
Product Overview
D1-1401-014
Selection Guide
Please confirm the mounting dimensions and required locking configuration before ordering. Contact our team if you need assistance selecting the correct model.
