L-handle lock-B-1524-1-A1 Sides
L-handle lock-B-1524-1-A1 Sides
L-handle lock-B-1524-1-A1 Back side

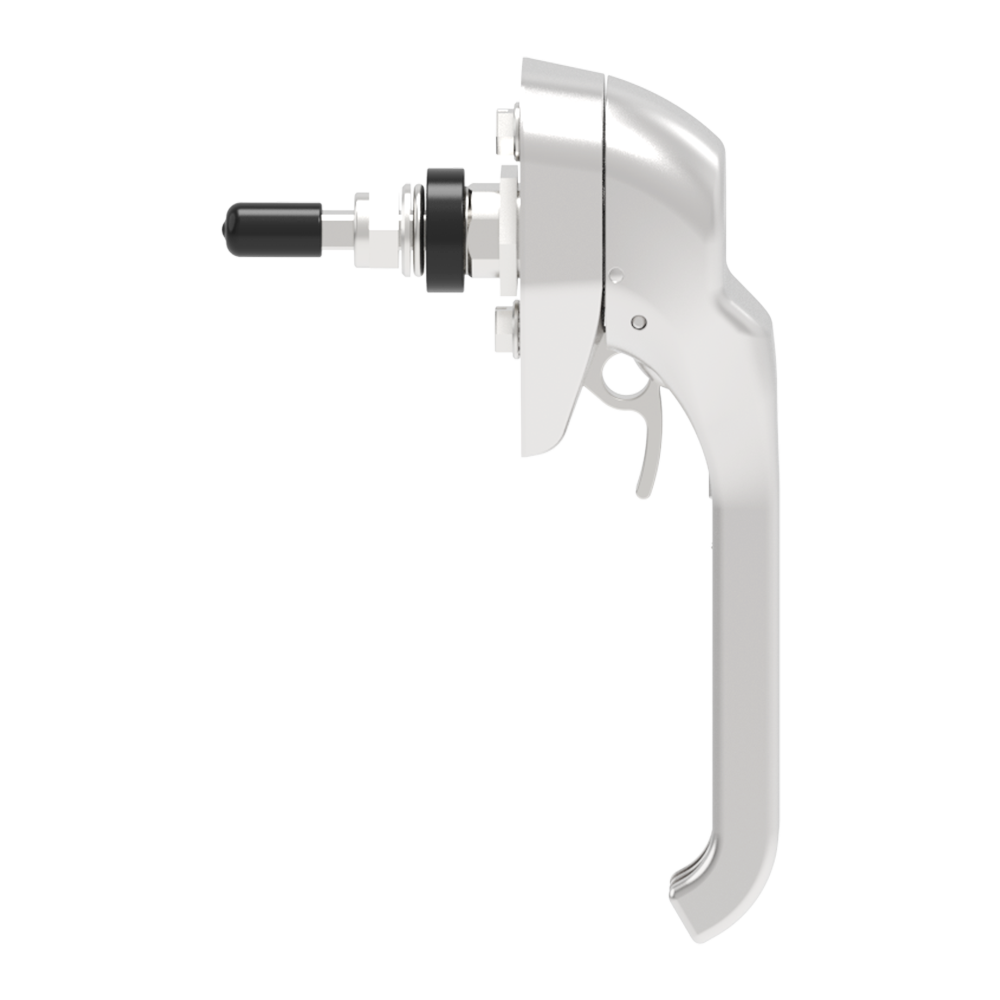

L-handle lock-B-1524-1-A1 Left side
L-handle lock-B-1524-1-A1 Right side

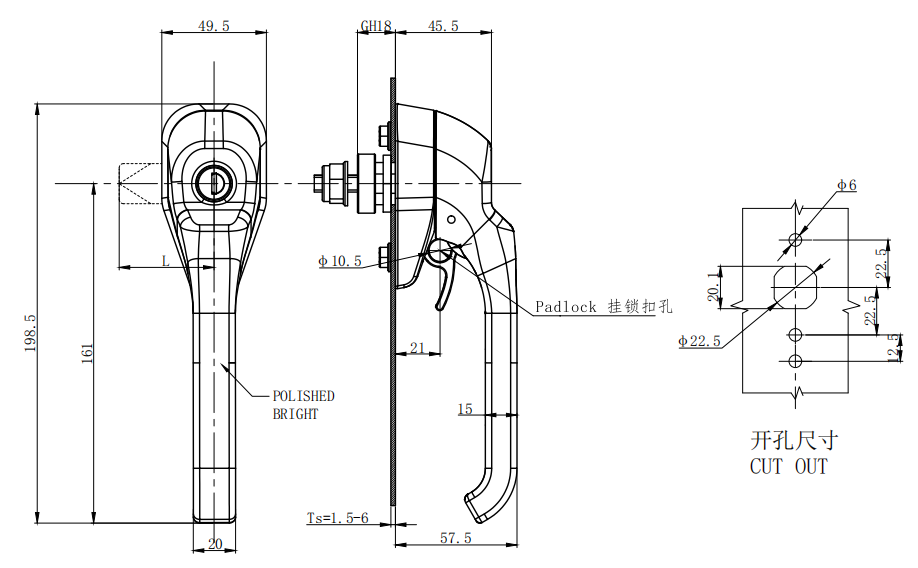

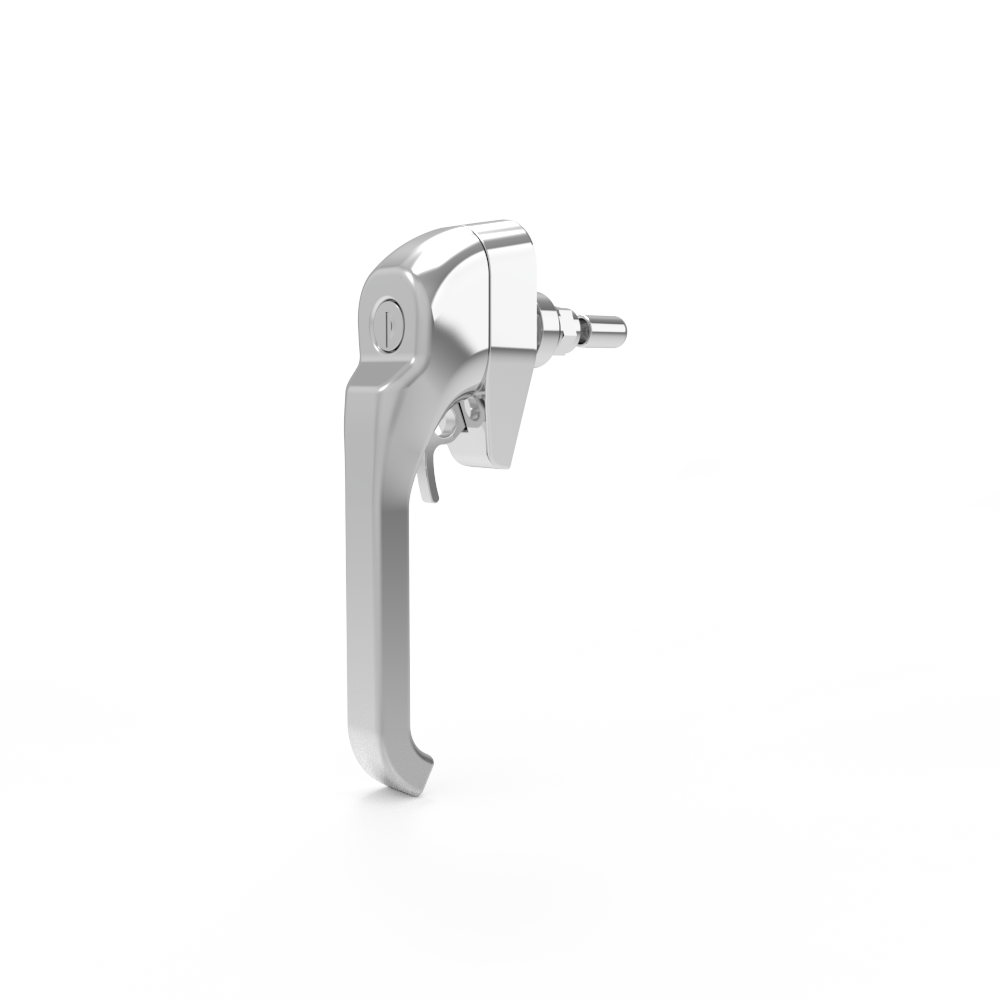

Quarter CAM latch, L-handle, CH751 key lock, no CAM, sealed, stainless steel, polished, bright,B-1524-1-A1

1.Material and surface treatment:
Lock body, handler:Zinc Alloy or SUS304
Steel bolt: iron galvanized or SUS304
Sealing ring: EPDM foam
2. Performance parameters:
Protection class: IP65
3. Remarks:
Key different on request
Stainless steel Padlockable on request
Default Keyed K333
