Push-to-Close Slide Latch-DK728-1A Sides
Push-to-Close Slide Latch-DK728-1A Sides

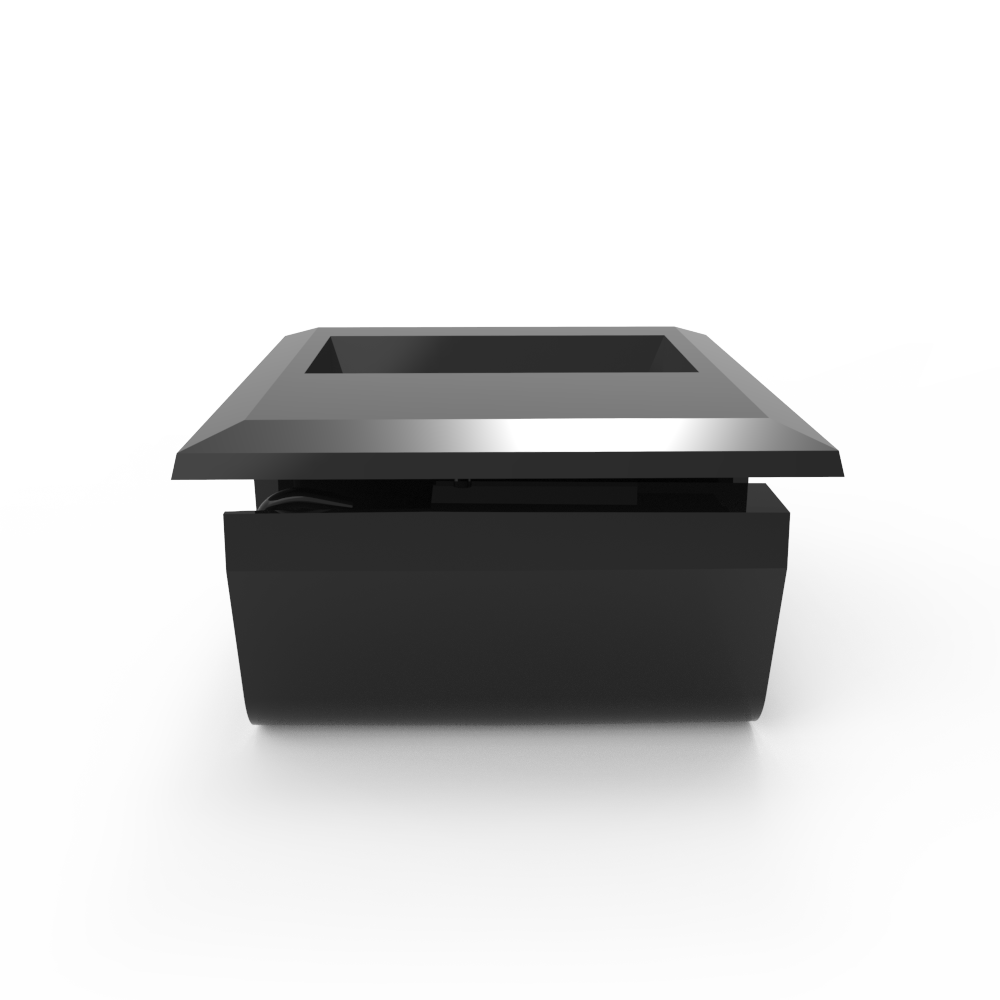

Push-to-Close Slide Latch-DK728-1A Back side

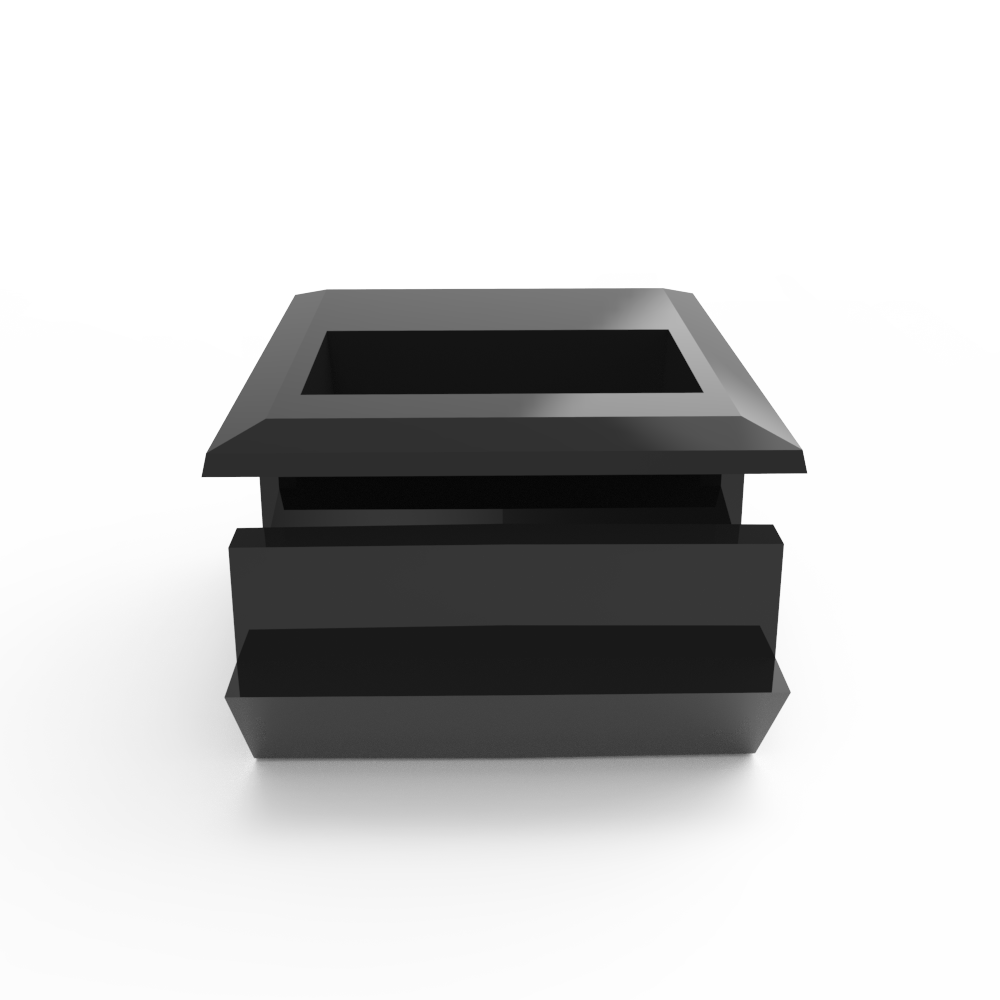

Push-to-Close Slide Latch-DK728-1A Front side

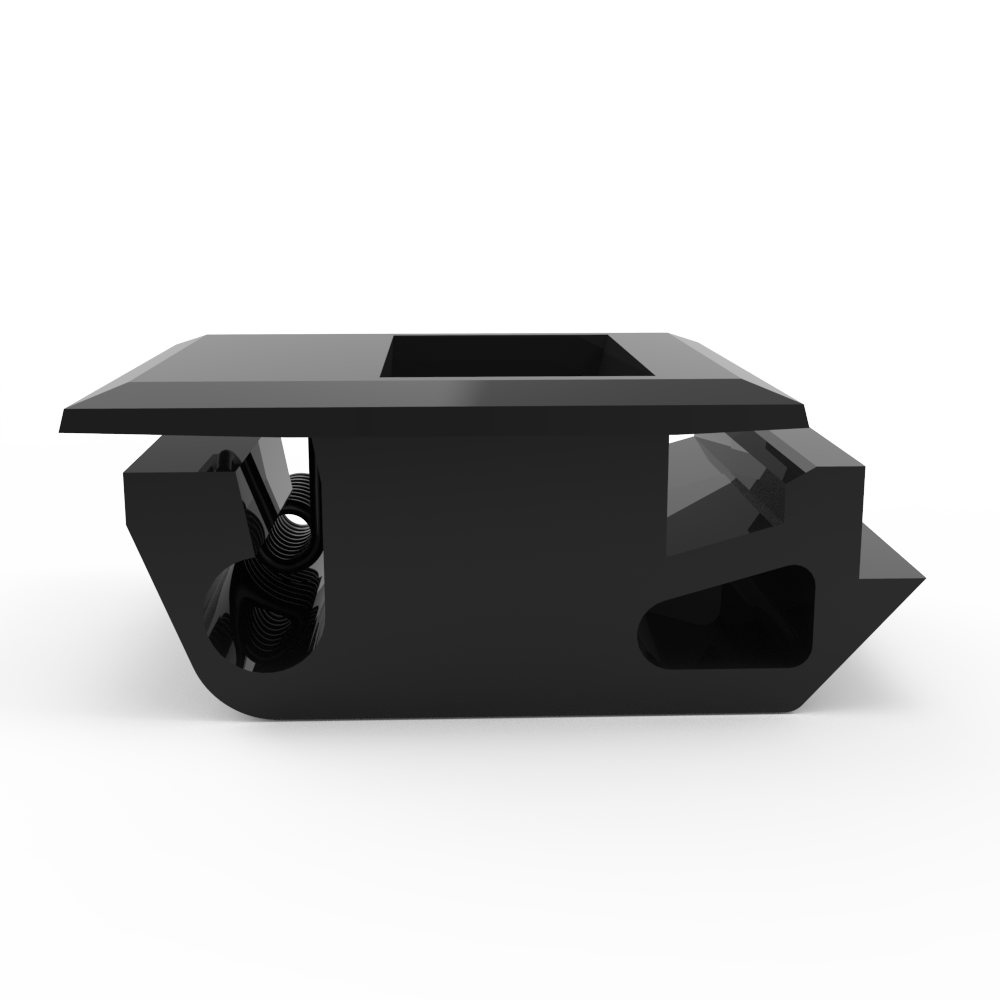

Push-to-Close Slide Latch-DK728-1A Left side
Push-to-Close Slide Latch-DK728-1A Right side

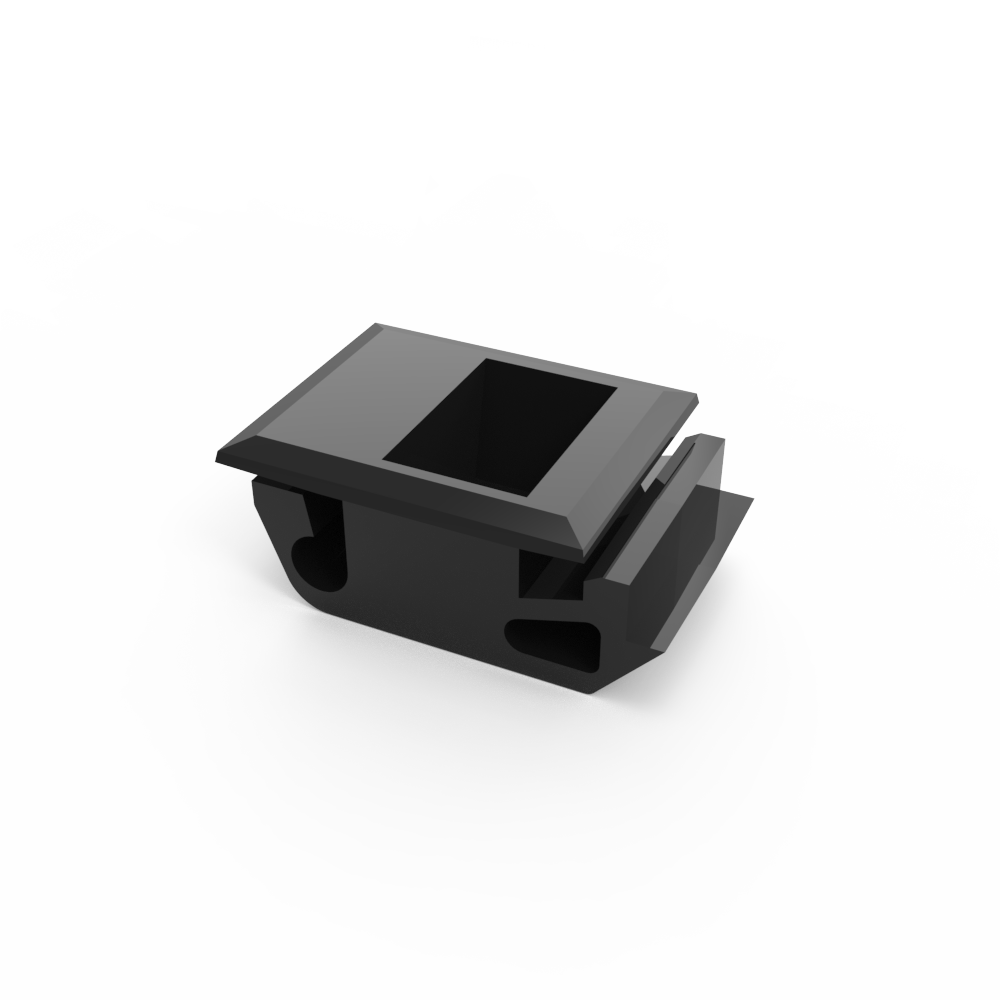

Push-to-Close Slide Latch, Miniature Size, 1.3mm (0.05in) Panel Thickness,ABS,balck DK728-1A

1.Material and Surface Treatment:
Latch:ABS, Black
Spring: Stainless Steel
2.Performance Details
90 series 140N(32lbf)
40 series 180 N(40 lbf)
50 and 99 series 220N(50lbf)
Operating Temperature Range:-40C(-40F)to60C(140F)

Push To Close Latch-D6-1603-1 Sides
Push to cloese latch, key lock, zinc alloy, chrome plating, bright D6-1603-1
Push-to-Close Latch-C1-2100 Sides
Point presses, impact doors, cylinder locks, plastic,C1-2100
Push-to-Close Slide Latch-DK731-1 Sides
Push-to-Close Latch, right，Key Locking, Plastic DK731-1
Push-to-Close Slide Latch-DK726-2 Sides
Push-to-Close Slide Latch, Snap-in, Small Size, 1.2mm (.050 in) Panel Thickness, 4.8mm (.190 in) Total Grip, ABS, BlackDK726-2
Paddle latch-MS911 Sides
Paddle latch, Small Size, 3 – 3.4 mm (. 118 – .133 in) Grip, Stainless Steel, Brushed Finish MS911
Push-to-Close Slide Latch-DK729-1 Sides
Psuh-to-close latch, snap-in, large size, CH751 Key lock, 1.6mm(. 060 in) Panel thickness, ABS, black DK729-1
Push-to-Close Latch-DK737-2 Sides
Push-to-Close Latch, Snap-In Mounting, 13N (3 lbf), Plastic, Black，DK737-2
Push-to- Close Lock-M1-1102-A1 Sides
Push-to-Close Latch, Medium Size, key lock, 2 – 7mm (.075 – .275 in) Door thickness, 25.5mm (1.00 in) Grip, stainless steel,polishing,bright M1-1102-A1
