Compression Latches special tool key lock type,Stainless steel AISI 304 IP54 C4-1402S
1. Material and surface treatment:
Stainless steel 316 or 304
2. Performance parameters:
Unlocking torque: less than or equal to 0.79N/M
Limit load: 200N
Tightening and expansion: 4.5mm
Protection level: IP65

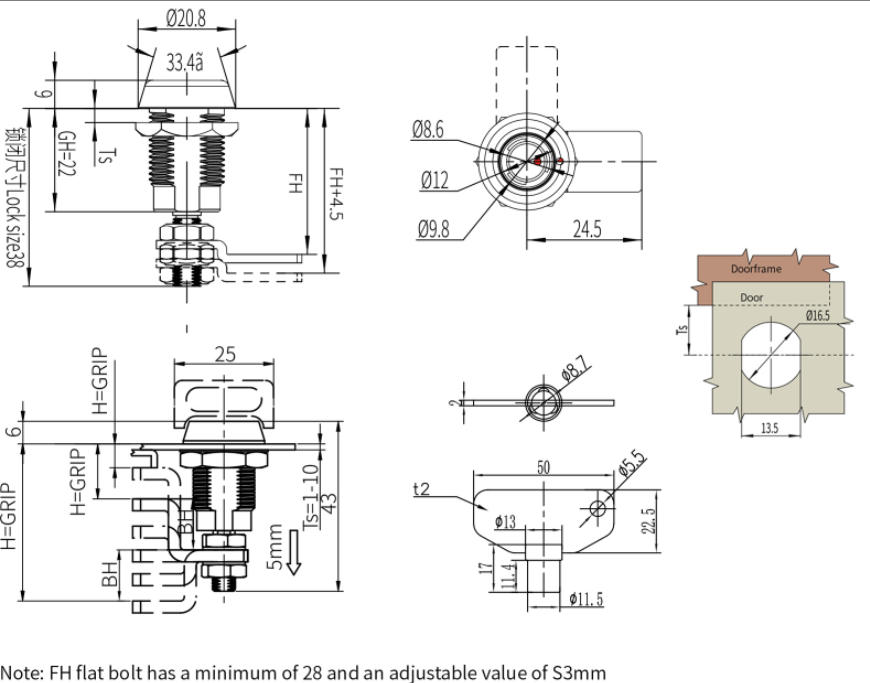

3. Installation instructions:
Fixing screw torque 6N.M
Fixing nut torque 9N.M
Applicable door thickness: 1-3mm
