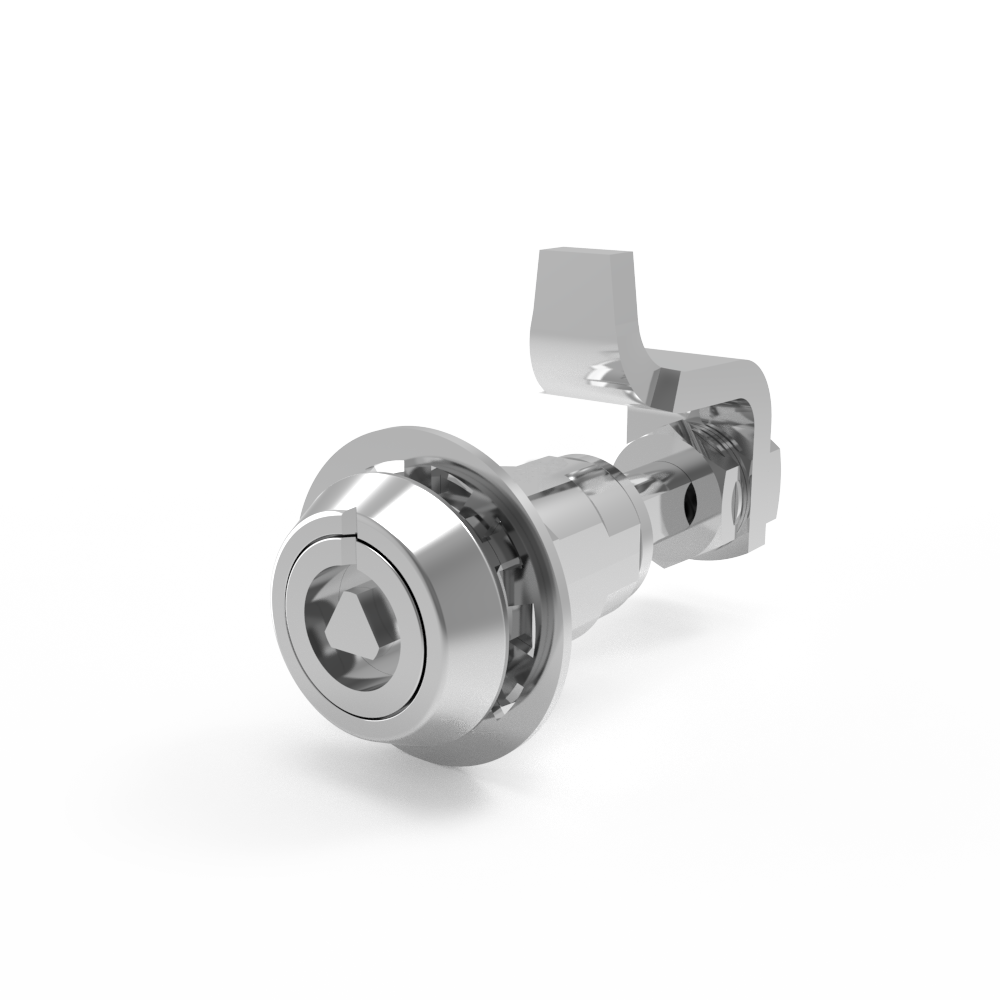

Compression Latch, Large Size, 7 mm Triangle, Stainless Steel,CY3-13-12

1. Detailed Materials, Engineering Grade & Environmental Durability

CY3-13-12 Stainless Steel Large-Size 7mm Triangle Compression Latch is engineered specifically for severe-duty industrial applications where physical door security, gasket memory seal maintenance, and environmental protection are vital.

• Premium Stainless Steel Metallurgy: Precision-cast and forged using high-grade 304 (1.4301) or 316 (1.4401) stainless steel, offering superior yield strength and exceptional mechanical resistance under heavy door loads.

• Corrosion Resistance & Surface Integrity: The natural passive chromium oxide film inherent to 304/316 stainless steel provides exceptional protection against rust, industrial fumes, chemical splashes, and organic acids. It passes standard 240-hour to 500-hour neutral salt spray tests (ASTM B117 / ISO 9227) without pit formation, making it ideal for coastal and harsh washdown environments.

• Ingress Protection & Gasket Compression (IP Rating Matching): Designed to deliver a standardized 6 mm compression stroke against continuous door seals. When installed with suitable EPDM or silicone perimeter seals, the CY3-13-12 achieves an IP65 / IP66 ingress protection rating (EN 60529 / NEMA 4X), safeguarding internal components from pressurized water jets, dust, oil, and atmospheric moisture.

• Vibration & Shock Resistance: The anti-vibration compression cam mechanism prevents latch backing-off caused by harmonic vibrations from high-horsepower pumps, engine housings, or transit motion.

2. Technical Specifications & Parameter Matrix

The following spec matrix is optimized for engineering procurement checks and structured snippet indexing by search engines:

3. High-Frequency Industrial Application Scenarios

The CY3-13-12 compression latch is widely deployed across critical equipment housings requiring IP65/IP66 sealing and physical security:

• Electrical & Control Enclosures: Provides reliable gasket tension and secure access for low/medium voltage switchgear panels, outdoor distribution boards, and industrial automation control cabinets.

• Outdoor 5G Telecom & Broadband Cabinets: Protects remote telecommunications housing, optical fiber junction nodes, and battery backup bays against rain, dust, UV exposure, and environmental humidity.

• Industrial CNC Machinery & Automation Access Panels: Delivers vibration-resistant door locking on metalworking lathes, conveyor drives, air compressors, and heavy industrial machinery compartments.

• Railway Transit & Transportation Compartments: Serves as a heavy-duty access latch for rolling stock electrical boxes, under-chassis train battery housings, and HVAC access doors subject to constant vibration.

• Server Data Center Racks & IT Infrastructure: Ensures flush-mount ergonomic operation and secure latching for modular data center enclosures and network distribution racks.

• HVAC Units & Air Handling Systems: Maintains positive door seal pressure on pressurized air handling units (AHU) to eliminate air leakage and reduce thermal loss.

4. Why Choose CUYUE for Your Industrial Hardware Needs?

At Wenzhou CUYUE Lock Technology Co., Ltd., we combine decades of manufacturing expertise with end-to-end production capabilities to support global OEMs, distributors, and cabinet builders.

• In-House R&D & Engineering Design: Supported by a dedicated design team, we develop advanced locking solutions, cabinet hinges, and industrial handles engineered to exact international standards.

• Complete Tooling & Manufacturing Integration: Our facility integrates precision mold development, die-casting, automated CNC machining, surface finishing, and assembly under one roof for complete quality control.

• Rigorous Testing & Quality Validation: Every batch undergoes comprehensive mechanical load testing, salt spray corrosion testing, and sealing integrity validation to meet strict client specifications.

• OEM/ODM Customization & Rapid Delivery: We offer flexible custom grip ranges, special driver heads, custom finishes, and rapid prototyping to keep your production lines moving without delay.

• Cost-Effective System Solutions: We help clients optimize procurement costs without sacrificing durability, delivering complete industrial enclosure hardware systems under one reliable brand.

5. Frequently Asked Questions (Q&A)

Q1: What is the main advantage of using a 7 mm triangle stainless steel compression latch?

A: A 7 mm triangle compression latch provides two key benefits: a standardized security driver profile that prevents unauthorized access, and a 6 mm compression action that pulls the cabinet door tight against the sealing gasket to prevent water and dust ingress.

Q2: Is 304 or 316 stainless steel better for outdoor electrical enclosure compression latches?

A: Grade 304 stainless steel is ideal for standard outdoor electrical enclosures exposed to rain and weather. For marine environments, chemical processing plants, or coastal telecom cabinets exposed to salt spray, 316 stainless steel offers higher molybdenum content for maximum pitting resistance.

Q3: How does the CY3-13-12 compression latch achieve IP65 and IP66 sealing ratings?

A: The latch mechanism incorporates an internal sealing O-ring around the shaft and applies 6 mm of linear pull-up compression when rotated 90 degrees. This compression forces the enclosure door gasket evenly against the frame, achieving an IP65/IP66 dust-tight and water-jet-resistant seal.

Q4: Can the CY3-13-12 stainless steel latch withstand heavy equipment vibration?

A: Yes. The compression cam mechanism creates a positive detent lock under tension. Once fully rotated and compressed, internal spring tension prevents the latch from loosening under severe mechanical shock or continuous harmonic vibration.

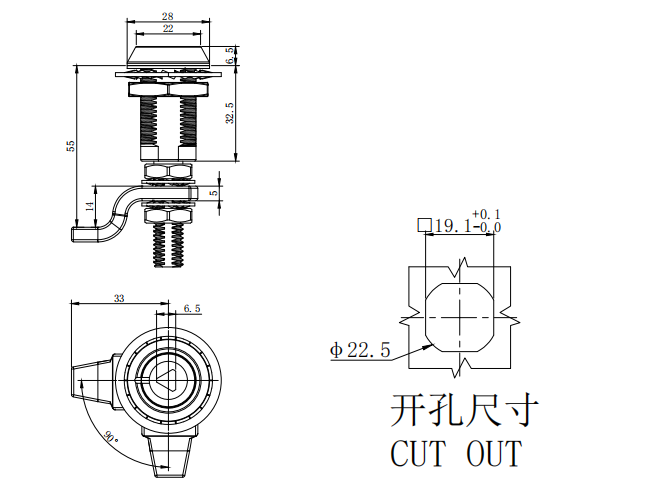

Q5: What cutout dimensions are required for mounting large-size industrial compression latches?

A: Large-size compression latches typically mount into standard single-hole round cutouts with double-D flats (such as 22.5 mm or 20.2 mm cutouts) to prevent the latch body from spinning during key operation.

Q6: How do I adjust the grip range on a 7 mm triangle industrial compression latch?

A: Grip range (the distance from the enclosure frame face to the latching surface of the cam) can be adjusted by repositioning the heavy-duty mounting nuts or swapping the offset cam to suit door panel thicknesses.

Q7: Does CUYUE provide custom OEM driver profiles or alternative materials for the CY3-13-12 series?

A: Yes. Wenzhou CUYUE Lock Technology Co., Ltd. offers full OEM/ODM manufacturing. We can customize driver profiles (such as square, slotted, or double-bit), adapt cam lengths, or manufacture latches in die-cast zinc alloy with chrome or powder-coated finishes.

Q8: What industries commonly require 7 mm triangle driver keys for industrial latches?

A: The 7 mm triangle profile (DIN 43668 standard) is widely specified across electrical utilities, public transit systems, outdoor telecommunications, and municipal switchgear to restrict panel access to authorized maintenance technicians.

Q9: What is the operational temperature range for CUYUE stainless steel compression latches?

A: With standard high-temp EPDM or silicone internal sealing rings, CY3-13-12 compression latches operate reliably between -40°C and +120°C (-40°F to +248°F), suitable for extreme outdoor climates and thermal industrial enclosures.

Q10: Why purchase industrial enclosure latches directly from a Chinese manufacturer like CUYUE?

A: Sourcing directly from CUYUE provides factory-direct pricing, complete control over material grade certifications, custom mold tooling capabilities, and rapid production turnaround backed by ISO-aligned quality validation.
