Founded in 2012, Wenzhou Cuyue Lock Technology Co., Ltd. is a comprehensive industrial hardware manufacturing enterprise specializing in three core product lines: cabinet locks, hinges, and handles. Backed by a professional in-house research, development, and design team, we maintain complete control over product design, precision mold development, advanced manufacturing, and rigorous testing validation. By addressing the market’s growing demands for superior product quality, rapid delivery, flexible customization, and strict cost control, Cuyue provides reliable, end-to-end industrial locking system solutions to global partners.
Among our high-performance access solutions, the Cuyue Three-Point Zinc Die-Casting Rod Control Swing Handle Lock is engineered to deliver synchronized multi-point security and heavy-duty compression for large industrial enclosures.
1. Material Grade & Corrosion Resistance Performance
Material integrity and environmental adaptability are vital for hardware deployed in demanding factory floors and outdoor installations:
High-Strength Die-Cast Zinc Alloy (ZDC): The housing, handle, and structural components are manufactured from premium die-casting zinc alloy, offering exceptional mechanical rigidity, impact strength, and long-term durability under heavy daily use.
Advanced Surface Treatment: Finished with a durable electrostatic black powder coating or high-luster chrome plating, providing superior resistance against scratching, UV degradation, and chemical exposure.
Salt Spray & Atmospheric Performance: Rigorously tested to withstand standard industrial and coastal salt fog environments, preventing premature rust formation and maintaining a professional appearance.
IP Rating Compatibility: Designed with precision tolerances and smooth linkage operation to support enclosure gasketing systems, helping cabinets achieve an IP65 dust-tight and water-resistant rating.
2. Detailed Technical Parameters & Specifications Table
To assist engineers, designers, and procurement managers in quick technical evaluation, below are the core specifications of our three-point rod control swing handle lock:
| Technical Parameter | Specification & Engineering Details |
| Product Type | Three-Point Rod Control Swing Handle Lock |
| Primary Material | High-Strength Die-Cast Zinc Alloy (ZDC) |
| Surface Finish | Textured Black Powder Coated / Bright Chrome Plated |
| Operation Mechanism | 90° Swing Handle Release with Multi-Point Rod Actuation |
| Locking & Security | Keyed Cylinder Mechanism (Custom key options available) |
| Linkage System | Compatible with Standard Top-and-Bottom Rod Control Linkages |
| Mounting Style | Standard Flush Panel Cutout Installation |
| Application Suitability | Large industrial cabinets requiring synchronized multi-point latching |
3. Typical Industrial Application Scenarios
The Cuyue three-point rod control swing handle lock is engineered for high-frequency industrial environments where single-point locking is insufficient to secure tall or pressurized doors:
Electrical & Control Enclosures: Secures large floor-standing power distribution cabinets, industrial switchgear, and factory automation control panels.
5G Telecom & Outdoor Base Station Cabinets: Provides robust, vibration-resistant multi-point locking for outdoor telecommunication housings and fiber-optic distribution racks.
Server Racks & Data Center Enclosures: Delivers secure, synchronized multi-point door closure for enterprise server cabinets and network distribution frames.
Industrial Machinery & Generator Housings: Withstands heavy daily mechanical stress and vibration on large machinery access doors and diesel generator enclosures.
4. Why Choose the Cuyue Three-Point Rod Control Lock?
Synchronized Multi-Point Security: Simultaneously drives rods at the top, bottom, and center of the door, distributing clamping force evenly to prevent gasket warping and air/water leakage.
Ergonomic Swing Handle Leverage: The folding swing handle provides powerful mechanical leverage, making it effortless to unlatch heavy, gasket-sealed enclosure doors.
Direct Manufacturer Advantages: As your direct manufacturing partner, Cuyue offers complete in-house capabilities—from custom rod lengths and mold adjustments to OEM branding—ensuring competitive factory pricing and rapid lead times.
5. Frequently Asked Questions (FAQ)
Q1: What is a three-point rod control swing handle lock used for?
A: It is designed for large industrial cabinets, electrical enclosures, and server racks that require a multi-point linkage system to secure tall doors simultaneously at multiple points.
Q2: What material is used to manufacture this swing handle lock?
A: The lock is constructed from high-strength die-cast zinc alloy (ZDC), providing robust structural durability and impact resistance for demanding industrial settings.
Q3: How does the three-point rod control system improve enclosure sealing?
A: By engaging rods at the top, bottom, and center, it applies uniform pressure against the door gasket, maintaining an airtight and watertight seal across the entire door height.
Q4: Is this lock compatible with IP65 weather-resistant enclosures?
A: Yes, when integrated properly with cabinet gasketing, the lock mechanism supports high-performance IP65 dust-tight and water-resistant protection grades.
Q5: What surface finishes are available for the lock handle?
A: Cuyue offers durable options including textured black powder coating and bright chrome plating to match various industrial enclosure designs.
Q6: Can Cuyue customize key codes or provide Keyed Alike options?
A: Absolutely. As an experienced hardware manufacturer with in-house R&D, we fully support custom keying solutions such as Keyed Alike (KA) or Keyed Different (KD).

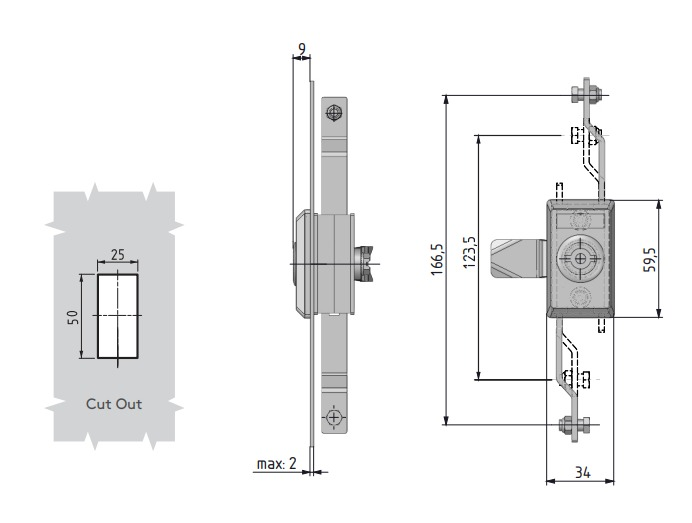

Q7: What panel cutout dimensions are required for installation?
A: The lock is engineered for standard industrial flush-mount panel cutouts, allowing for straightforward retrofitting and assembly on standard metal cabinets.
Q8: How does the swing handle operate during daily use?
A: The handle pops open upon unlocking to provide a comfortable grip, requiring a smooth 90-degree rotation to retract the latches and open the door.
Q9: Are these locks suitable for outdoor electrical and control enclosures?
A: Yes, their robust zinc alloy construction and corrosion-resistant coatings make them ideal for sheltered outdoor electrical switchgear and utility boxes.
Q10: Why choose Cuyue as your industrial cabinet lock manufacturer?
A: Cuyue combines over a decade of manufacturing expertise, in-house mold tooling, strict quality testing, and flexible OEM customization to deliver reliable industrial locking solutions worldwide.
