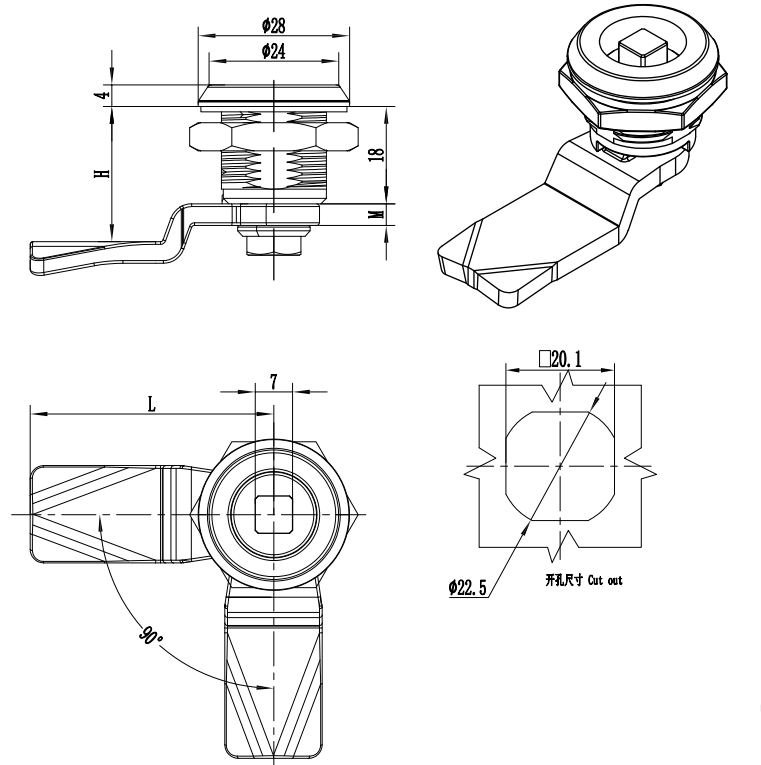

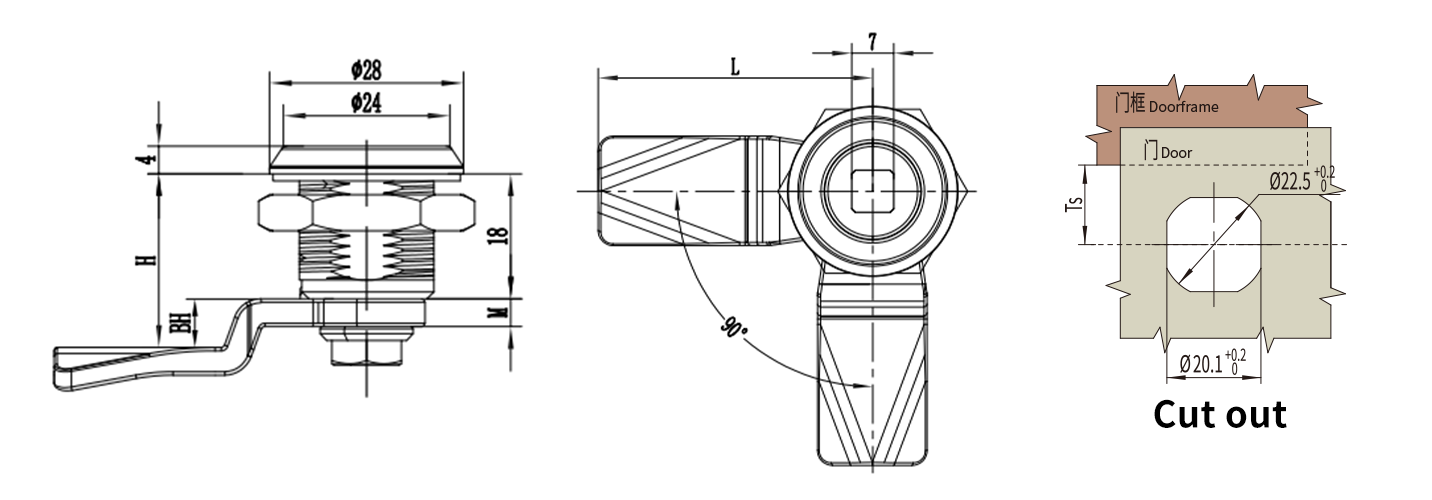

Quarter turn lock Square 7mm,IP65 Stainless steel,D1-1401-047
1. Material and Surface Treatment：
Stainless Steel 316 or 304
2. Performance Parameters:
Protection level: IP65
3. Installation Instructions:
Fixing screw torque 8N.M
Fixing nut torque 17N.M
Applicable door thickness 1-8mm.
Installation
Material
Protection Rating
Door Thickness
