Quarter turn lock MS705 Double bit 4mm,IP54 Zinc Alloy Chrome Plating
1.Material:
Zinc Alloy
2.Surface Treatment:
Bright Chrome
3.Function And Use:
By rotated 90 degrees to open the key, lock and switch lockingplate can be achieved through open left or right.variety locking plate for reference
4.Installation Instructions:

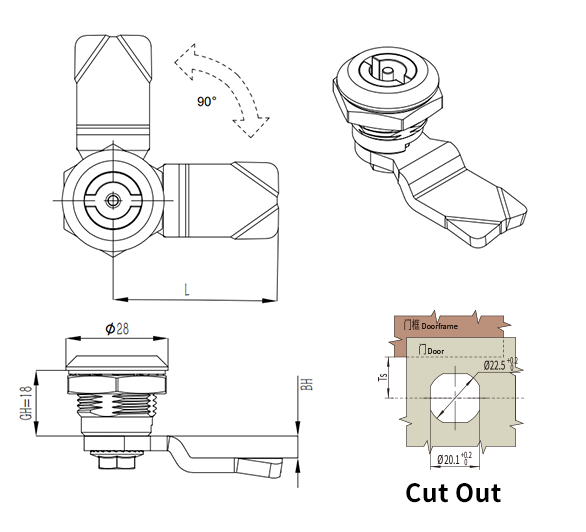

Fixing screw torque 8N.M, fixing nut torque 17N.M,applicable door thickness 1-8mm.
Installation
Material
Protection Rating
Door Thickness
