L-handle lock-B-1524-024-10 Sides
L-handle lock-B-1524-024-10 Sides

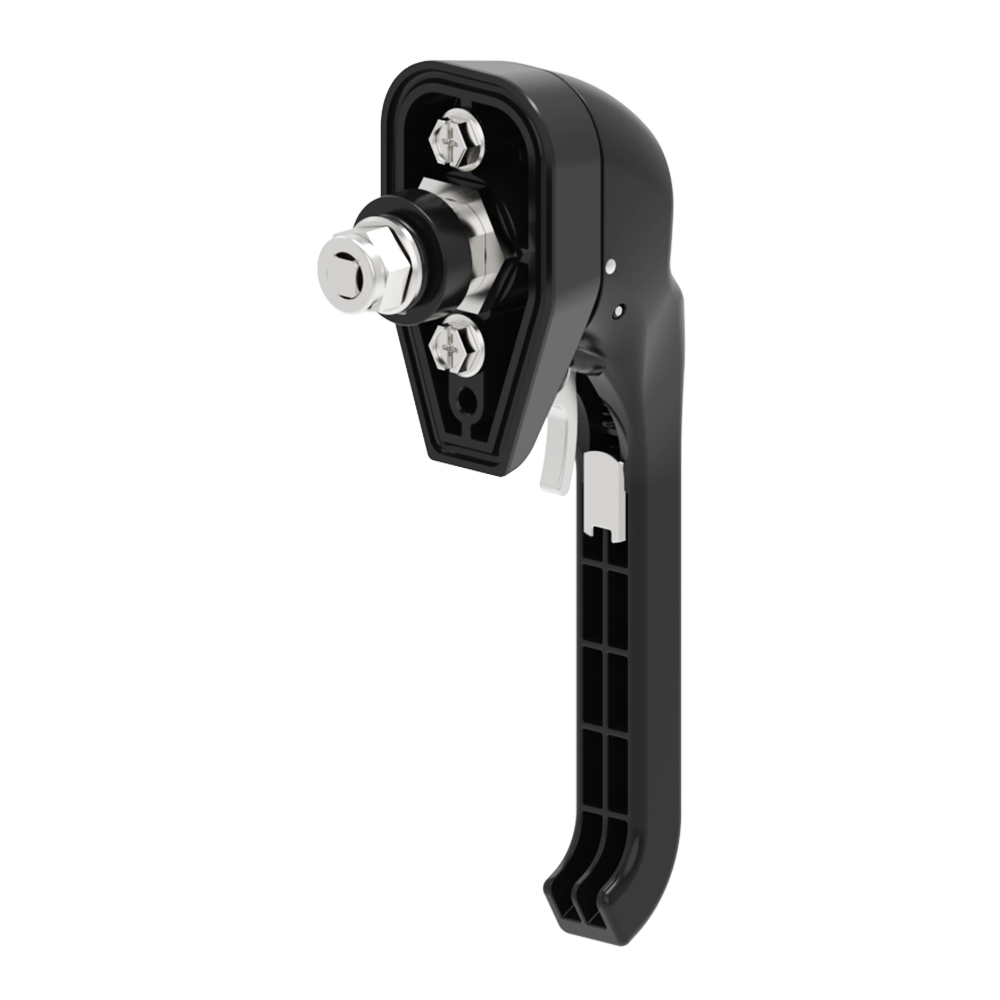

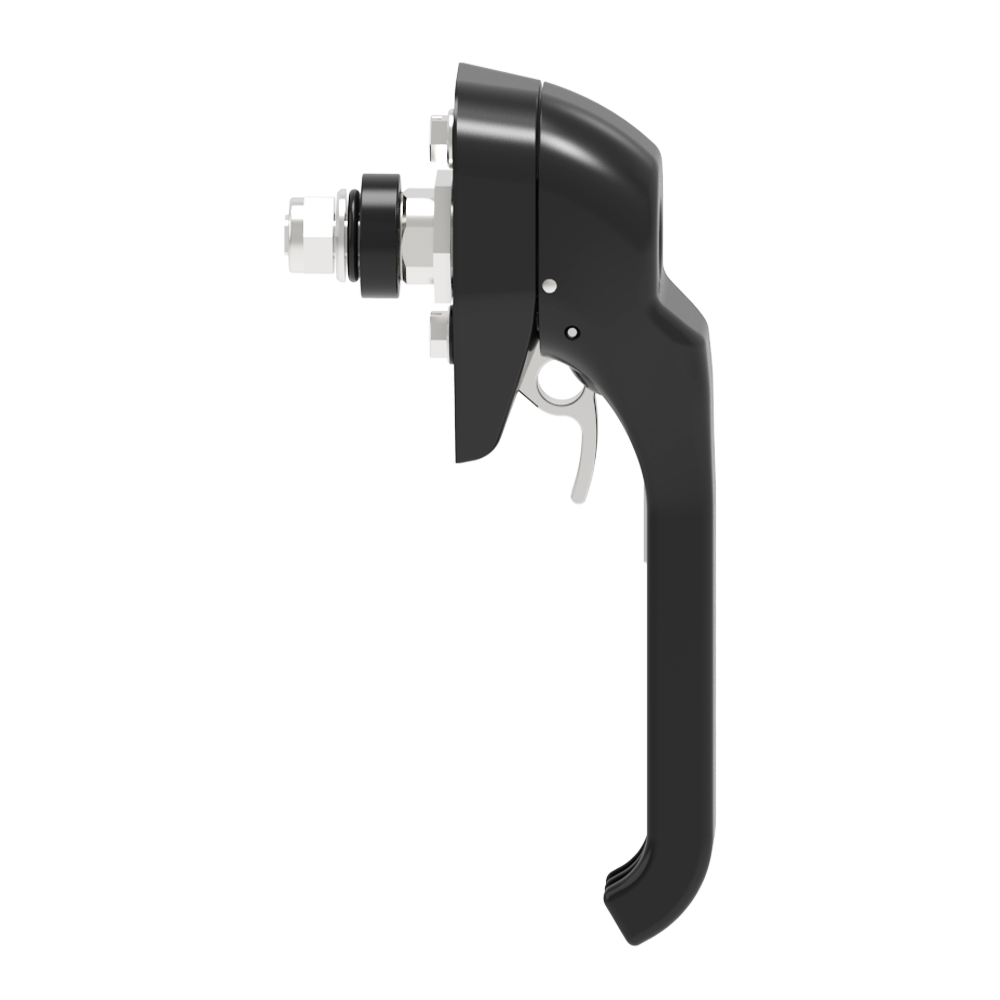

L-handle lock-B-1524-024-10 Back side
L-handle lock-B-1524-024-10 Back side

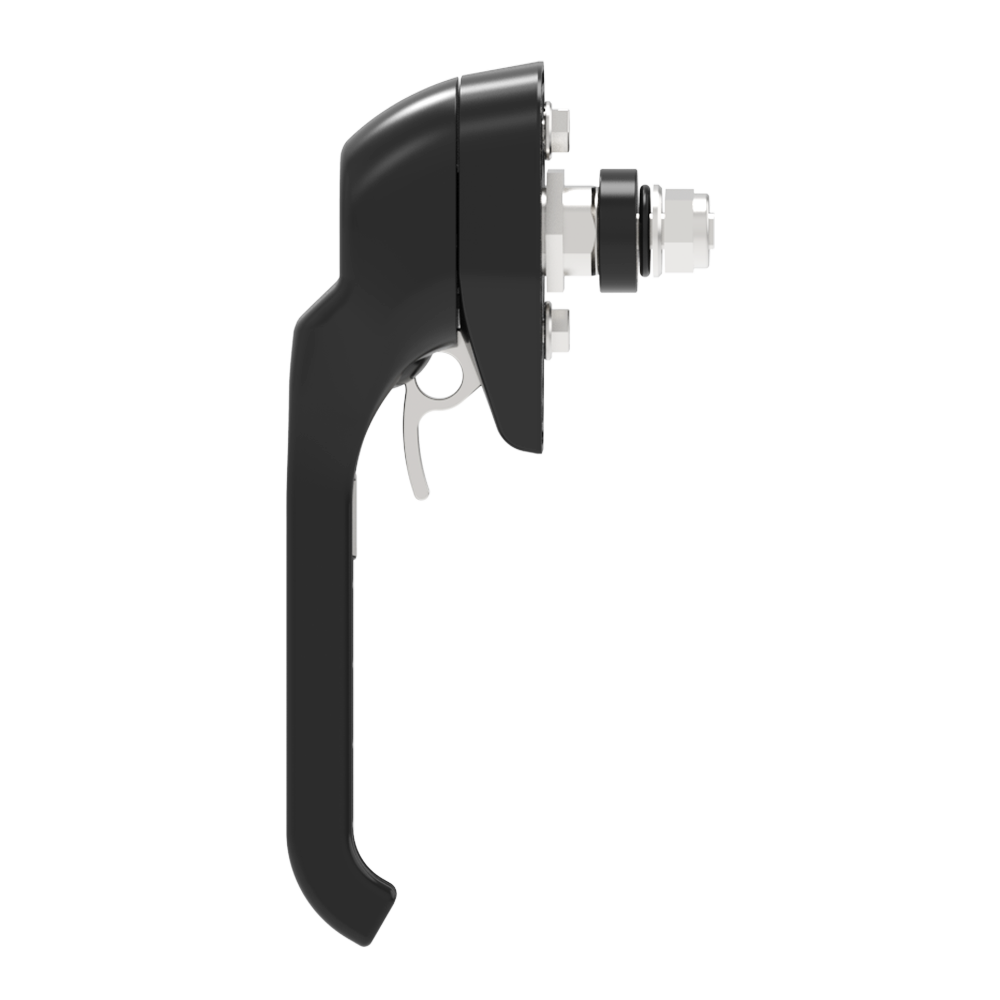

L-handle lock-B-1524-024-10 Right side

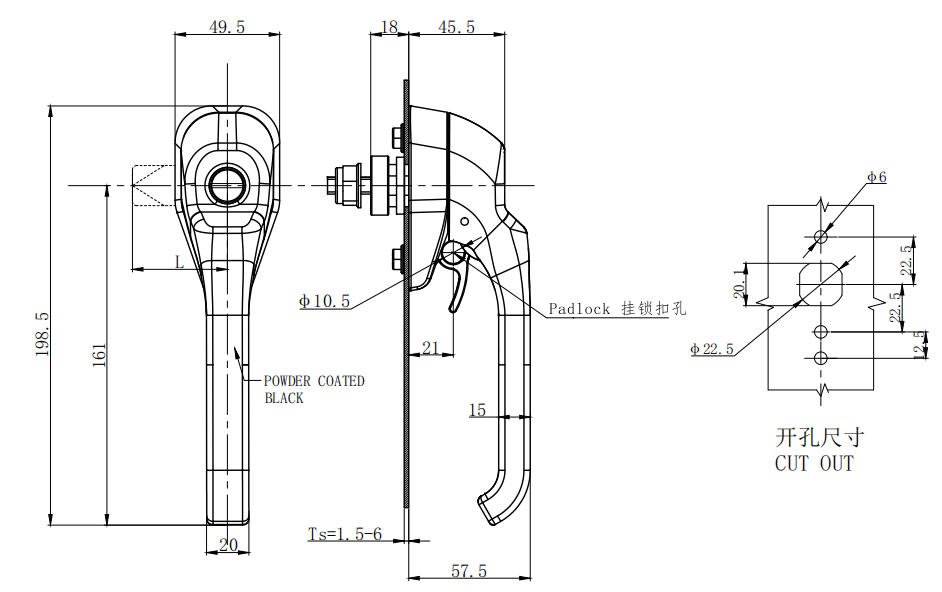

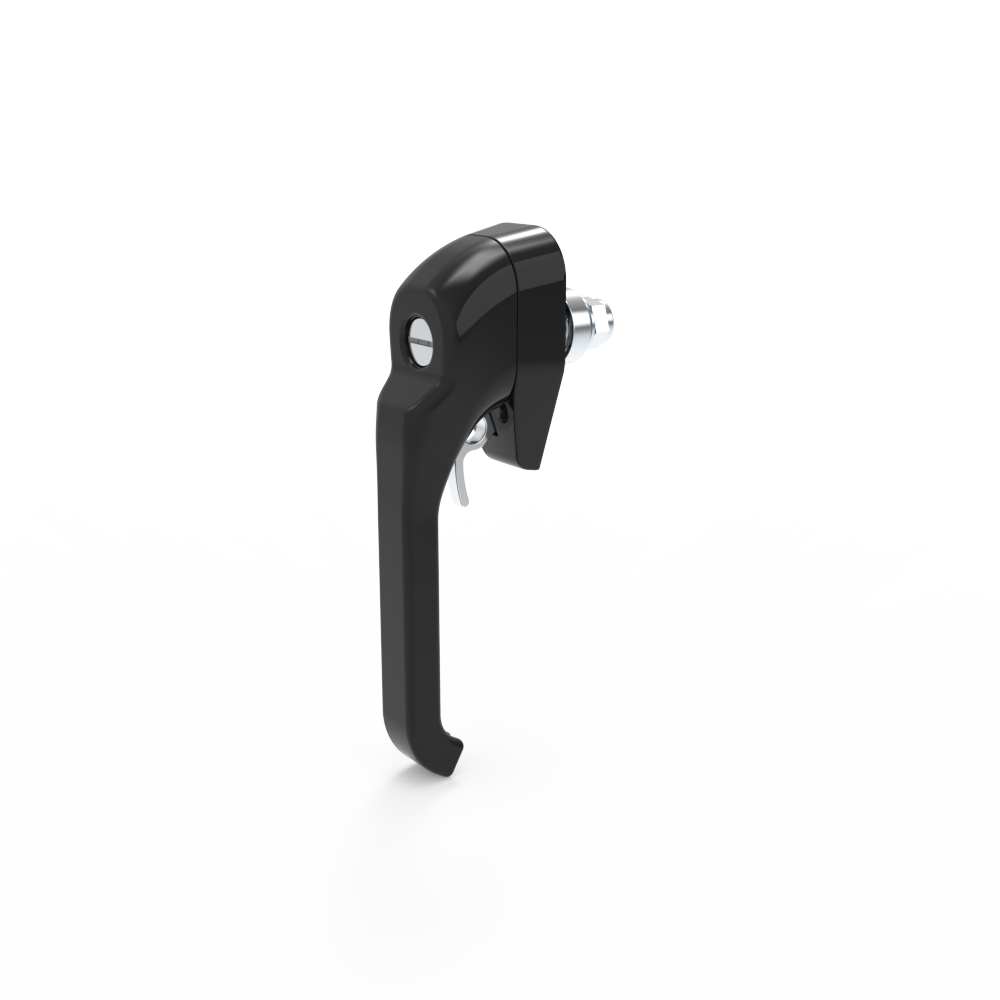

Quarter CAM latch, L-handle, 2*4 straight grooved tool lock core, no CAM, seal, zinc alloy, powder coated, black,B-1524-024-10

1.Material and surface treatment:
Lock body, handler：Zinc Alloy or SUS304
Steel bolt: iron galvanized or SUS304
Sealing ring: EPDM foam
2. Performance parameters:
Protection class: IP65
3. Remarks:
Key different on request
Stainless steel Padlockable on request
Default Keyed K333

L-handle lock-B-1312-A1 Sides
Quarter-turn cam latch, L-handle, cam, padlock, stainless steel, brushed and polished, bright,B-1312-A1
Handle Lock B-1300(MS308-2)
Handle Lock, AISI 304, L Type Handle, 118mm, Key Locking type, IP54 B-1300-1
Handle Lock B-1310-1(MS324-1)
L-handle quarter turn lock, keyed EK 333,stainless steel AISI 304 Brushed surface B-1310-1
L-handle lock-B-1520-015-A1 Sides
Quarter CAM latch, L-handle with padlock, 5mm wing ,with CAM, stainless steel, polished, bright,B-1520-015-A1
Handle Lock MS308-3
Handle Lock, Zinc Alloy, L Type Handle, Bright Chrome Plating, Key Locking type, IP54 MS308-3
L-handle lock-B-1520-1-10 Sides
Quarter CAM bolt, L-handle with padlock, no locking, with CAM, zinc alloy, powder coating, black，B-1520-1-10
L-handle lock-MS325-A1 Sides
Quarter-turn cam latch, L-handle, cam with hanging, stainless steel, Polished, bright,MS325-A1
L-handle lock-B-1528 Sides
Multi-point lock, Lift handle, L handle, unlimited, Zinc alloy, Powder coated, black,B-1528
