1. Detailed Materials, Engineering Grade & Environmental Durability
The D1-1412-014 Stainless Steel Quarter-Turn Cam Latch is engineered for high-end electrical control cabinets, outdoor telecommunications housing, marine equipment bays, and hygienic food/pharmaceutical processing enclosures requiring severe weather protection, tool-restricted access security, high vibration resistance, and complete chemical immunity.
Premium Grade Stainless Steel Metallurgy (AISI 304 / 316 Options): Precision-cast and CNC-machined using high-grade AISI 304 stainless steel (SUS304 / 1.4301) or optional AISI 316 stainless steel (SUS316 / 1.4401) for the main housing body, double-bit drive insert, threaded shaft, and retaining nut. This heavy-duty stainless steel construction provides high tensile yield strength, superior shear resistance, and structural integrity under severe mechanical loads.
Passivated Finish & Extreme Salt Spray Immunity: Features a natural passivated satin stainless steel finish. Chemical passivation optimizes the self-healing chromium oxide layer across all external surfaces, protecting against chemical fumes, salt haze, atmospheric oxidation, and industrial lubricants. It easily withstands 240-hour to 500-hour neutral salt spray testing (ASTM B117 / ISO 9227) without pitting or rust spots, making it ideal for coastal outdoor kiosks, marine vessels, and offshore energy platforms.
Integrated Spring-Loaded Dustproof & Waterproof Cover Cap: Fitted with an integrated stainless steel or heavy-duty composite spring-loaded protective cover cap over the double-bit drive socket. This protective shutter shields the internal drive cavity from windborne dust, mud, sand, rain, ice, and high-pressure water jets, ensuring smooth key insertion in extreme field environments.
Tool-Restricted Security (Double-Bit 4mm Drive Insert): Designed with a standardized Double-Bit 4mm drive insert (DIN 43668 standard / tool lock) that requires a matching double-bit key to operate. This restricts enclosure access to authorized service technicians, helping equipment manufacturers satisfy industrial safety and access restriction protocols.
IP65 / IP66 Certified Environmental Sealing: Equipped with internal shaft O-ring seals and a perimeter rubber flange washer. When clamped tightly against sheet metal doors fitted with continuous perimeter gaskets, the D1-1412-014 achieves an official IP65 / IP66 ingress protection rating (EN 60529 / NEMA Type 4, 4X, 12, 13 equivalent), effectively blocking driving rain, washdown jets, and fine airborne dust particles.
2. Technical Specifications & Parameter Matrix
The parameter table below is structured to optimize search engine rich snippet indexing and facilitate fast engineering procurement evaluations:
| Technical Parameter | Specification / Grade Value |
| Model Code | D1-1412-014 |
| Product Type | Quarter-Turn Cam Latch / Heavy-Duty Stainless Steel Cam Lock |
| Material Grade | Premium AISI 304 Stainless Steel (SUS304 / 1.4301); 316 Optional |
| Surface Finish | Passivated Satin Stainless Steel Finish |
| Drive / Access Type | Tool Lock / Double-Bit 4mm Drive Insert (DIN 43668 Standard) |
| Environmental Protection | Integrated Spring-Loaded Flip Cover Cap (Dustproof & Waterproof Shutter) |
| Operation Angle | 90° Quarter-Turn Rotation to Engage/Disengage Cam |
| IP Protection Rating | IP65 / IP66 Certified Waterproof & Dust-Tight |
| NEMA Rating Equivalent | NEMA Type 4, 4X, 12, 13 |
| Handing / Application | Universal Non-Handed (Right-Hand / Left-Hand Reversible LH/RH) |
| Mounting Style | Single-Hole Panel Cutout Mount with Rear Retaining Nut |
| Grip Range (Grip Distance) | Fully Adjustable Cam / Stepped Offset Cam Options |
| Operating Temperature | -40°C to +120°C (-40°F to +248°F) |
| RoHS / REACH Status | Fully Compliant |
3. High-Frequency Industrial Application Scenarios
The D1-1412-014 stainless steel double-bit 4mm quarter-turn cam latch with protective cover is heavily specified across modern industrial cabinets requiring compact, tool-restricted, severe-environment latching:
Electrical & Control Enclosures: Secures low/medium voltage switchgear panels, junction boxes, and factory automation control bays requiring IP66 weather sealing and chemical resistance.
Outdoor Telecom & 5G Distribution Kiosks: Protects remote telecommunications housing, optical fiber nodes, solar inverter cabinets, and traffic control bays against driving rain, blowing sand, and ice build-up.
Food, Beverage & Pharmaceutical Processing Facilities: Provides sanitary, corrosion-resistant, washdown-ready locking hardware for cleanroom machinery, packaging lines, and stainless steel enclosures.
Marine Vessels & Offshore Oil Platforms: Delivers rust-proof compression latching for boat deck storage compartments, dockside power pedestals, and shipboard control bays subject to continuous salt spray.
HVAC Systems & Outdoor Air Handling Units (AHU): Maintains uniform door seal pressure on compact air handling unit access doors, industrial chillers, and rooftop HVAC control panels.
4. Why Choose CUYUE for Your Industrial Hardware Needs?
At Wenzhou CUYUE Lock Technology Co., Ltd., we combine extensive technical experience with complete internal manufacturing capabilities to support global OEMs, enclosure fabricators, and hardware distributors:
In-House R&D & Engineering Expertise: Supported by a dedicated R&D design team specializing in cabinet locks, hinges, and handles engineered to strictly match global industrial specifications.
Integrated Precision Tooling & Investment Casting: Our manufacturing plant integrates precision mold design and development, stainless steel investment casting, automated CNC machining, chemical passivation, and quality testing under one roof for complete quality management.
Rigorous Quality Testing & Validation: Every production lot undergoes mechanical quarter-turn torque testing, cover cap spring-return checks, IP66 water-tightness validation, salt spray corrosion testing, and dimensional verification before dispatch.
Flexible OEM/ODM Customization & Rapid Delivery: We offer custom cam offsets (straight or stepped cams), alternative driver head profiles (such as triangle, square, or slotted), AISI 316 material upgrades, and rapid prototyping to keep your production schedules on track.
Cost-Effective System Solutions: We empower clients to optimize total procurement costs without sacrificing product longevity, delivering complete industrial enclosure hardware systems under one trusted brand.
5. Frequently Asked Questions (Q&A)
Q1: What is a double-bit 4mm quarter-turn cam latch and how does it function?
A: A double-bit 4mm quarter-turn cam latch features a 90-degree rotating shaft operated by a standardized double-bit key (DIN 43668 standard). Rotating the key turns a rear metal cam behind the door frame keeper to pull the panel shut against the enclosure seal.
Q2: What is the main benefit of the protective dustproof and waterproof cover cap on the D1-1412-014?
A: The spring-loaded protective cover cap seals the drive socket when not in use, preventing dirt, mud, dust, ice, and high-pressure water jets from entering the lock mechanism and jamming key insertion.
Q3: How does the D1-1412-014 achieve its IP65/IP66 weather protection rating?
A: The lock incorporates internal shaft O-ring seals, a base rubber flange gasket, and a protective cover cap. When clamped tightly into a panel cutout on a gasketed door, it blocks driving rain, washdown spray, and fine dust particles.
Q4: What is the difference between AISI 304 and AISI 316 stainless steel for quarter-turn locks?
A: AISI 304 provides high structural strength and excellent corrosion resistance for standard industrial and outdoor applications. AISI 316 includes molybdenum, offering superior resistance to chloride pitting in marine, offshore, and chemical processing environments.
Q5: How does chemical passivation protect stainless steel cam locks?
A: Chemical passivation removes free iron contaminants from the metal surface after CNC machining, optimizing the formation of a uniform chromium oxide passive film that prevents rust spots, pitting, and tarnishing.
Q6: Can the D1-1412-014 stainless steel quarter-turn lock withstand equipment vibration?
A: Yes. Precise mechanical tolerances and positive 90-degree stop detents maintain positive cam engagement, preventing the lock from backing out or rattling during continuous machine operation.
Q7: Is the D1-1412-014 double-bit lock universal for left-hand and right-hand doors?
A: Yes. The D1-1412-014 features a universal non-handed reversible design (LH/RH), allowing panel builders to install the same lock model on both left-hinged and right-hinged doors.

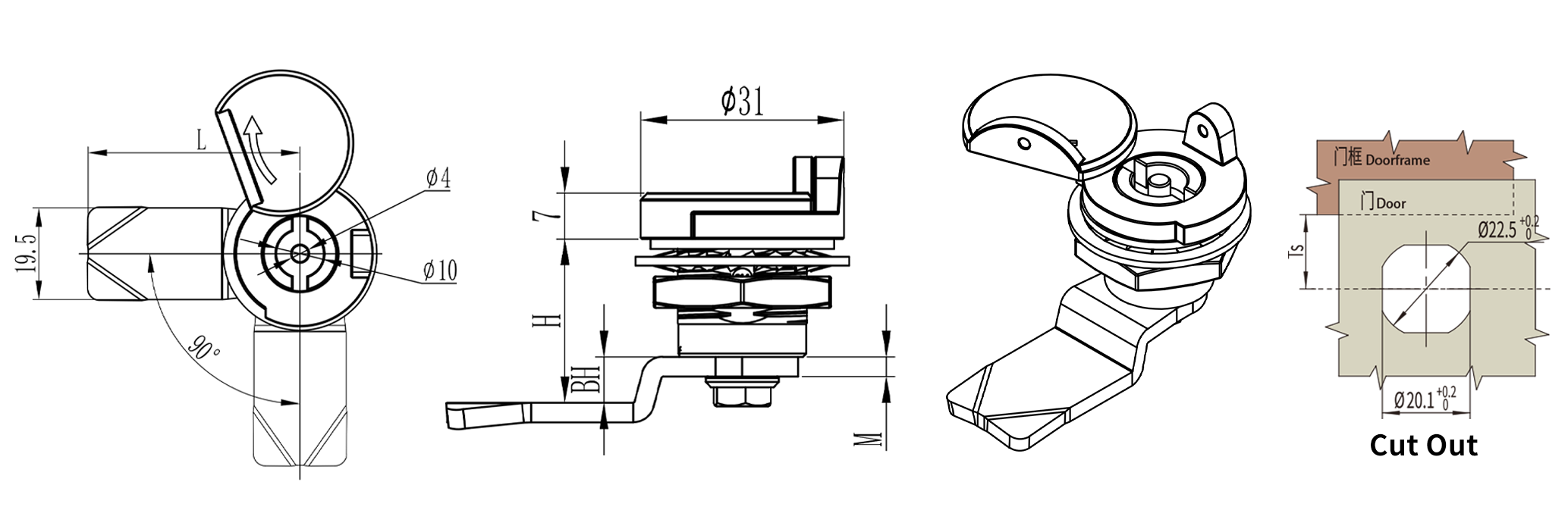

Q8: What panel cutout preparation is required to install the D1-1412-014 lock?
A: The D1-1412-014 installs into a standard industrial single-hole panel cutout (typically round with double-D flats to prevent body rotation). It is clamped securely from behind using a heavy-duty mounting nut.
Q9: What operating temperature range can the D1-1412-014 stainless steel lock handle?
A: Constructed entirely from passivated stainless steel and durable internal sealing rings, the D1-1412-014 operates reliably across temperature extremes ranging from -40°C to +120°C (-40°F to +248°F).
Q10: Why purchase industrial quarter-turn locks directly from a Chinese manufacturer like CUYUE?
A: Sourcing directly from Wenzhou CUYUE Lock Technology Co., Ltd. delivers factory-direct pricing, certified raw material grades, custom tooling capabilities, and rapid order turnaround backed by ISO-aligned quality validation.
