1. Detailed Materials, Engineering Grade & Environmental Durability

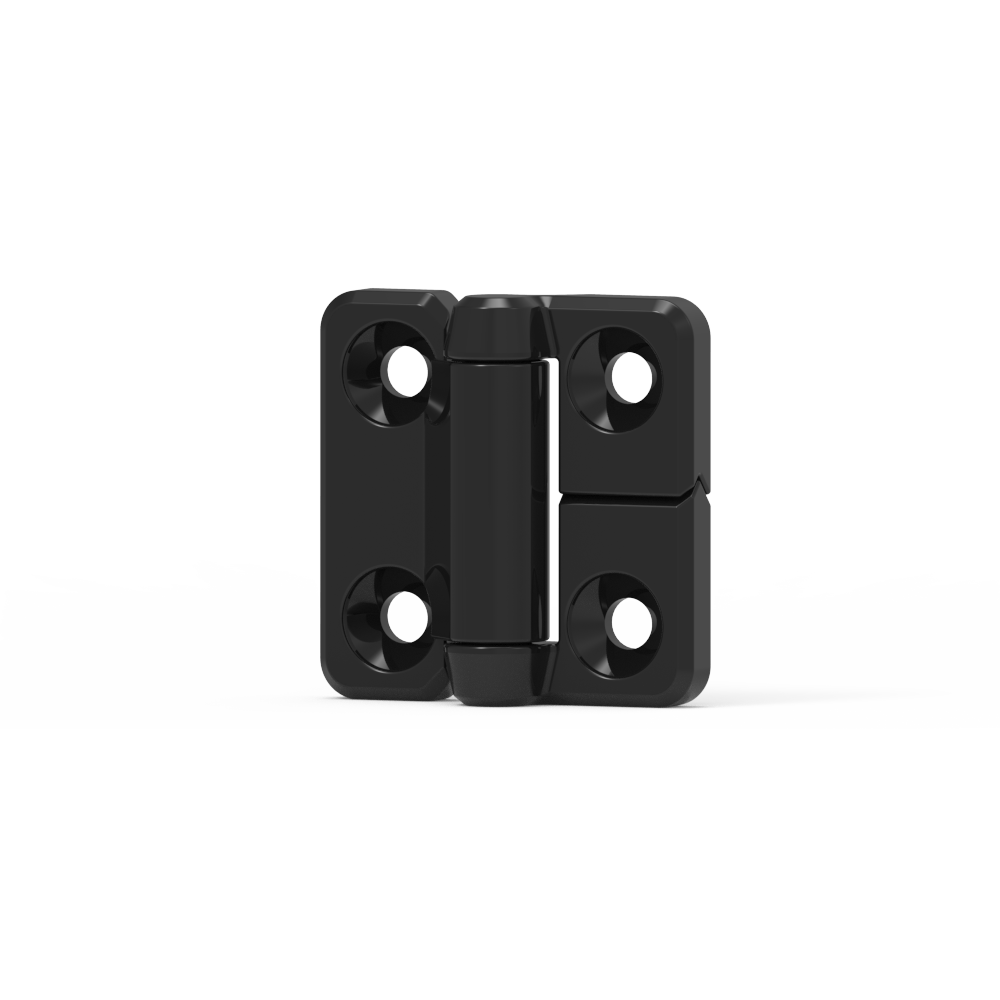

The H1-2423-500-40 Constant Torque Friction Hinge is engineered for electronic display panels, industrial terminal covers, medical equipment access doors, and control console lids requiring smooth, position-holding movement throughout their full rotational range without gas struts, prop rods, or mechanical detents.
High-Density Die-Cast Zinc Alloy Metallurgy: Manufactured using high-strength ZAMAK die-cast zinc alloy (ZDC) for the dual hinge leaves, paired with a hardened alloy steel internal friction shaft and spring washer pack. This structural composition delivers high dimensional accuracy, superior structural rigidity, and consistent torque output over thousands of opening and closing cycles.
Electrostatic Powder Coating & Salt Spray Immunity: The exterior surface of the hinge leaves is coated with a durable, non-reflective matte black electrostatic powder coating. This protective layer shields the zinc alloy substrate against atmospheric oxidation, chemical fumes, oil mist, and UV exposure. It easily withstands 48-hour to 96-hour neutral salt spray testing (ASTM B117 / ISO 9227) without blistering, peeling, or surface corrosion, making it highly reliable for indoor automation lines and sheltered outdoor control kiosks.
Precision Preset Constant Friction Torque: Engineered with an internal preset torque mechanism that provides continuous friction resistance across the entire 270° rotational arc. This enables operators to hold cabinet doors, display screens, or access hatches open at any precise angle without falling shut or swinging loose.
Vibration Resistance & M5 Countersunk Flush Mounting: Designed with four M5 countersunk mounting holes for flush screw installation, eliminating protruding fastener heads. The constant internal friction force absorbs continuous harmonic vibrations from operating machinery, preventing door drift, panel chatter, and unwanted movement.
2. Technical Specifications & Parameter Matrix
The parameter table below is structured to optimize search engine rich snippet indexing and facilitate fast engineering procurement evaluations:
| Technical Parameter | Specification / Grade Value |
| Model Code | H1-2423-500-40 |
| Product Type | Constant Torque Hinge / Friction Hinge Series |
| Dimensions | 50 mm x 50 mm (Square Footprint) |
| Material Grade | High-Density Die-Cast Zinc Alloy (ZAMAK / ZDC); Steel Friction Shaft |
| Surface Finish | Electrostatic Matte Black Powder Coating |
| Mounting Style | M5 Countersunk Screw Thru-Hole Mounting (4 Holes) |
| Rotation Angle | 270° Full Rotational Articulation |
| Torque Resistance | Preset Symmetric Constant Friction Torque Output |
| Operating Temperature | -20°C to +60°C (-4°F to +140°F) |
| Cycle Life Rating | 20,000+ Operational Cycles Minimum |
| RoHS / REACH Status | Fully Compliant |
3. High-Frequency Industrial Application Scenarios
The H1-2423-500-40 50x50mm constant torque friction hinge is heavily specified across modern industrial cabinets requiring position-holding lids, screen angle adjustments, and smooth door control:
Electrical & Control Enclosures: Serves as a position-holding hinge for operator interface panels (HMI), touchscreens, and diagnostic access covers on control cabinets.
Medical Equipment & Diagnostic Consoles: Delivers smooth, hold-in-place positioning for medical display screens, mobile workstation laptops, and laboratory instrument hatches.
Industrial CNC Machinery & Automation Terminals: Maintains custom view angles for CNC control monitors, pendant boxes, and safety guard inspection windows subject to machine vibration.
HVAC Systems & Environmental Monitoring Stations: Provides reliable position control for rooftop HVAC access hatches, air balancing control bays, and environmental sensor covers.
Specialty Vehicles & Marine Electronics: Holds electronic navigation screens, utility vehicle glove bays, and instrument access lids open securely on moving vehicles without rattling.
4. Why Choose CUYUE for Your Industrial Hardware Needs?
At Wenzhou CUYUE Lock Technology Co., Ltd., we combine extensive technical experience with complete internal manufacturing capabilities to support global OEMs, enclosure fabricators, and hardware distributors:
In-House R&D & Engineering Expertise: Supported by a dedicated R&D design team specializing in cabinet locks, hinges, and handles engineered to strictly match global industrial specifications.
Integrated Precision Tooling & Casting: Our manufacturing plant integrates precision mold design and development, zinc alloy die-casting, automated CNC machining, electrostatic powder coating, and quality testing under one roof for complete quality management.
Rigorous Quality Testing & Validation: Every production lot undergoes continuous torque cycle fatigue testing, salt spray corrosion testing, friction consistency verification, and dimensional checks before dispatch.
Flexible OEM/ODM Customization & Rapid Delivery: We offer custom torque ratings (symmetric or asymmetric friction options), custom hole patterns, alternative surface finishes (such as satin chrome), and rapid prototyping to keep your production schedules on track.
Cost-Effective System Solutions: We empower clients to optimize total procurement costs without sacrificing product longevity, delivering complete industrial enclosure hardware systems under one trusted brand.
5. Frequently Asked Questions (Q&A)
Q1: What is a constant torque hinge and how does it work?
A: A constant torque hinge (also known as a friction hinge) uses internal spring washers and a precision shaft to create continuous resistance throughout its rotation. This allows cabinet doors, lids, or display screens to stay fixed at any angle without additional gas struts or support stays.

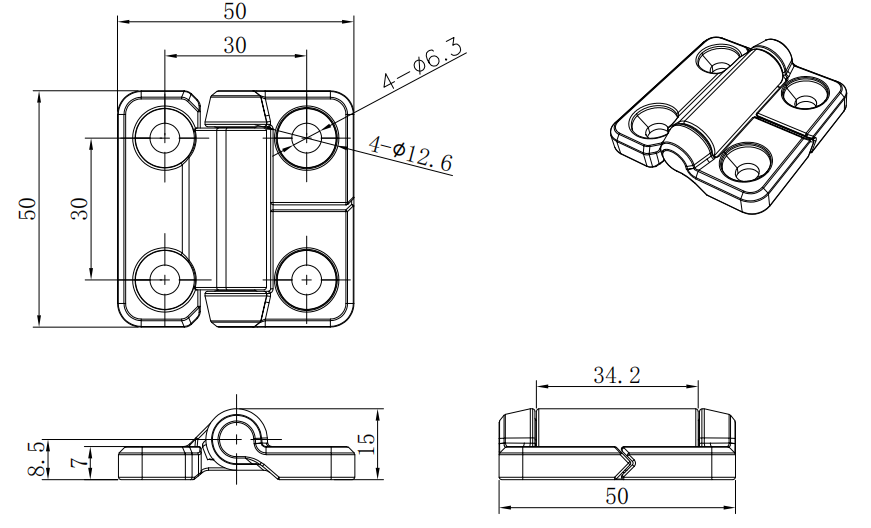

Q2: What are the dimensions and mounting configuration of the H1-2423-500-40 hinge?
A: The H1-2423-500-40 features a compact 50mm x 50mm square footprint with four M5 countersunk mounting holes, enabling clean, flush screw fastening on metal or composite panels.
Q3: Why select zinc alloy for constant torque friction hinges?
A: Die-cast zinc alloy (ZAMAK) provides high structural rigidity, precise dimensional tolerances, and high fatigue resistance needed to house internal friction components reliably over thousands of operations.
Q4: How does the matte black powder coating protect the H1-2423-500-40 hinge body?
A: Electrostatic black powder coating forms a non-porous protective shell over the zinc alloy leaves, passing 48-hour to 96-hour neutral salt spray tests (ASTM B117) to prevent oxidation, rust, and oil staining.
Q5: Can the H1-2423-500-40 friction hinge replace gas struts on small enclosure lids?
A: Yes. For lightweight access covers, HMI displays, and control lids, constant torque hinges eliminate the need for gas struts, prop rods, or mechanical latches, saving space and reducing installation labor.
Q6: What opening angle range does the H1-2423-500-40 friction hinge offer?
A: The H1-2423-500-40 provides up to 270° of rotational movement, giving operators complete freedom to position screens or doors at any desired viewing or access angle.
Q7: Can the H1-2423-500-40 constant torque hinge withstand machinery vibration?
A: Yes. The preset internal friction resistance acts as a continuous dampener, preventing display screens, terminal covers, and doors from drifting, closing, or rattling during machine operation.
Q8: Does the torque output on the H1-2423-500-40 degrade over time?
A: Engineered with high-tensile alloy steel shafts and premium friction materials, CUYUE constant torque hinges maintain consistent friction performance through a minimum of 20,000 operational cycles with minimal torque drop-off.
Q9: What industrial applications commonly specify 50x50mm constant torque hinges?
A: Constant torque hinges are heavily specified across industrial automation HMI panels, medical carts, CNC control monitors, HVAC control covers, marine instrument bays, and server rack accessories.
Q10: Why purchase industrial friction hinges directly from a Chinese manufacturer like CUYUE?
A: Sourcing directly from Wenzhou CUYUE Lock Technology Co., Ltd. delivers factory-direct pricing, certified raw material grades, custom torque rating options, and rapid order turnaround backed by ISO-aligned quality validation.
