Compression type door lock-A7880-1-A1 Sides
Compression type door lock-A7880-1-A1 Sides

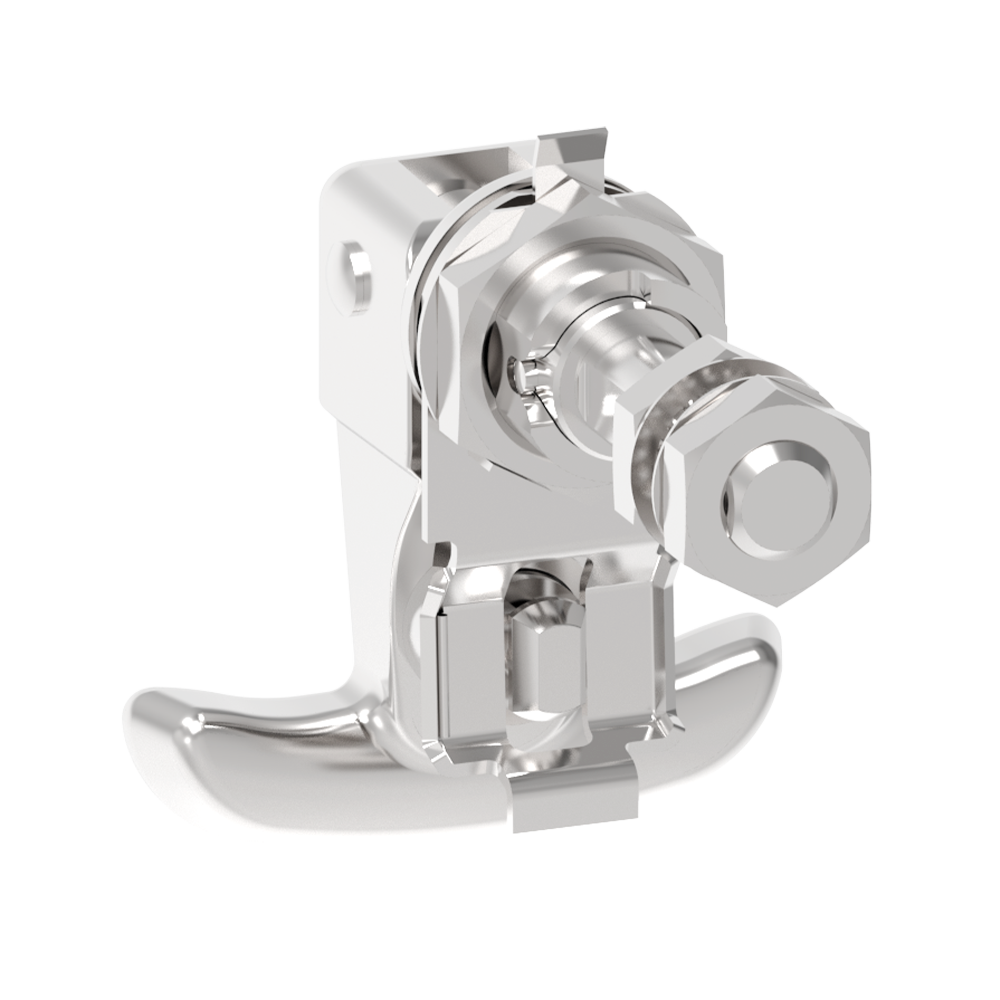

Compression type door lock-A7880-1-10 Sides

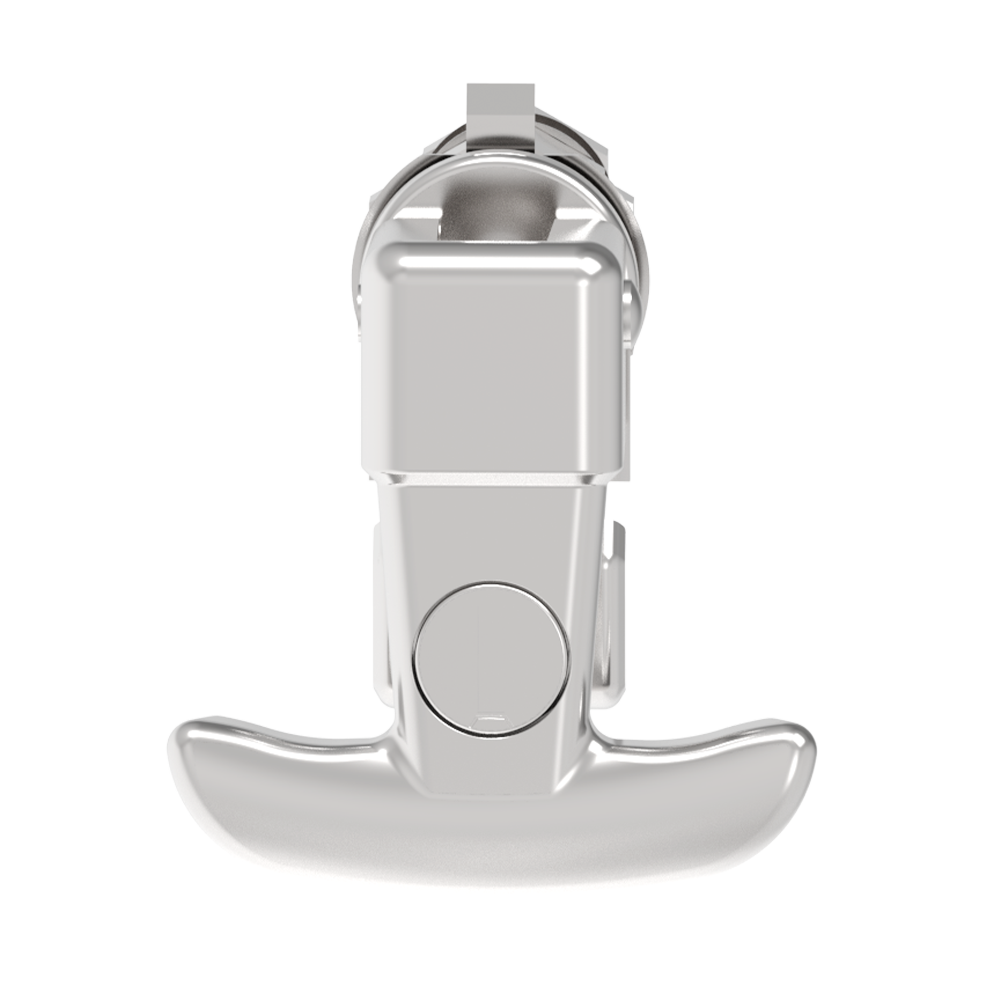

Compression type door lock-A7880-1-A1 Front side

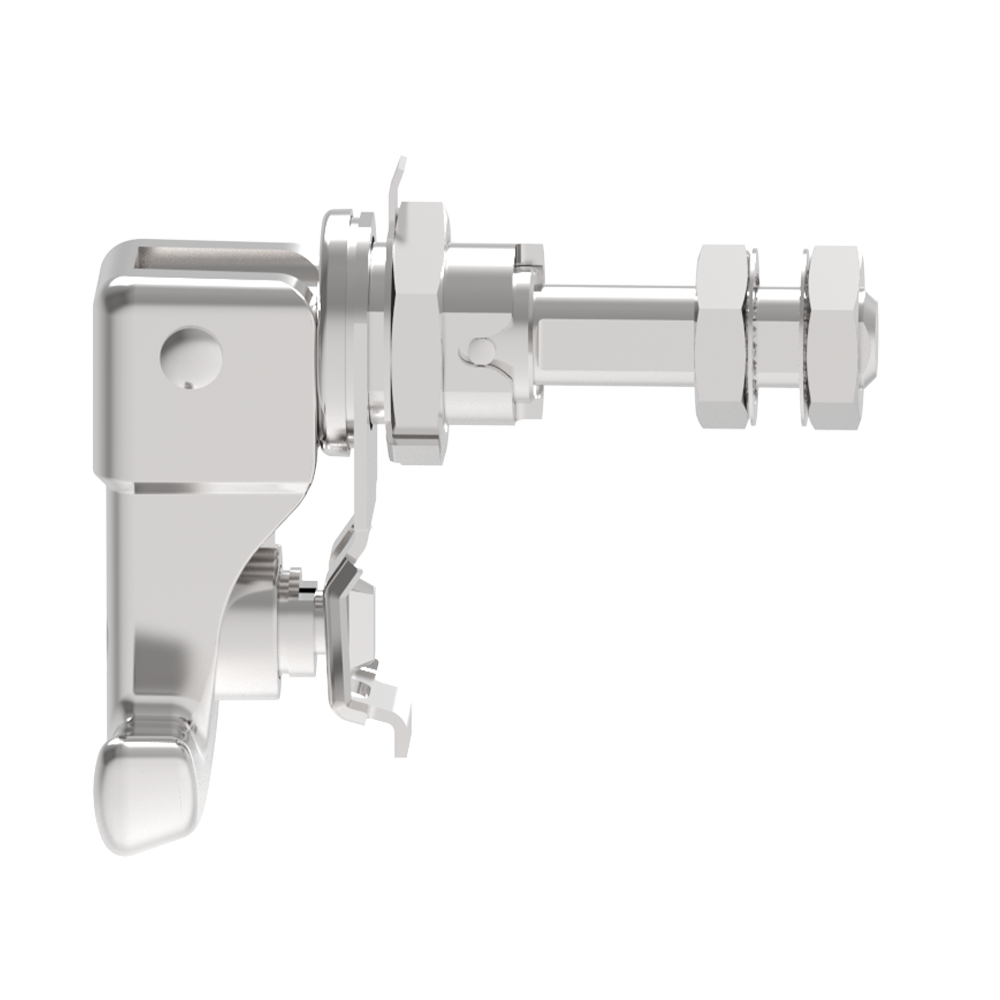

Compression type door lock-A7880-1-A1 Left side

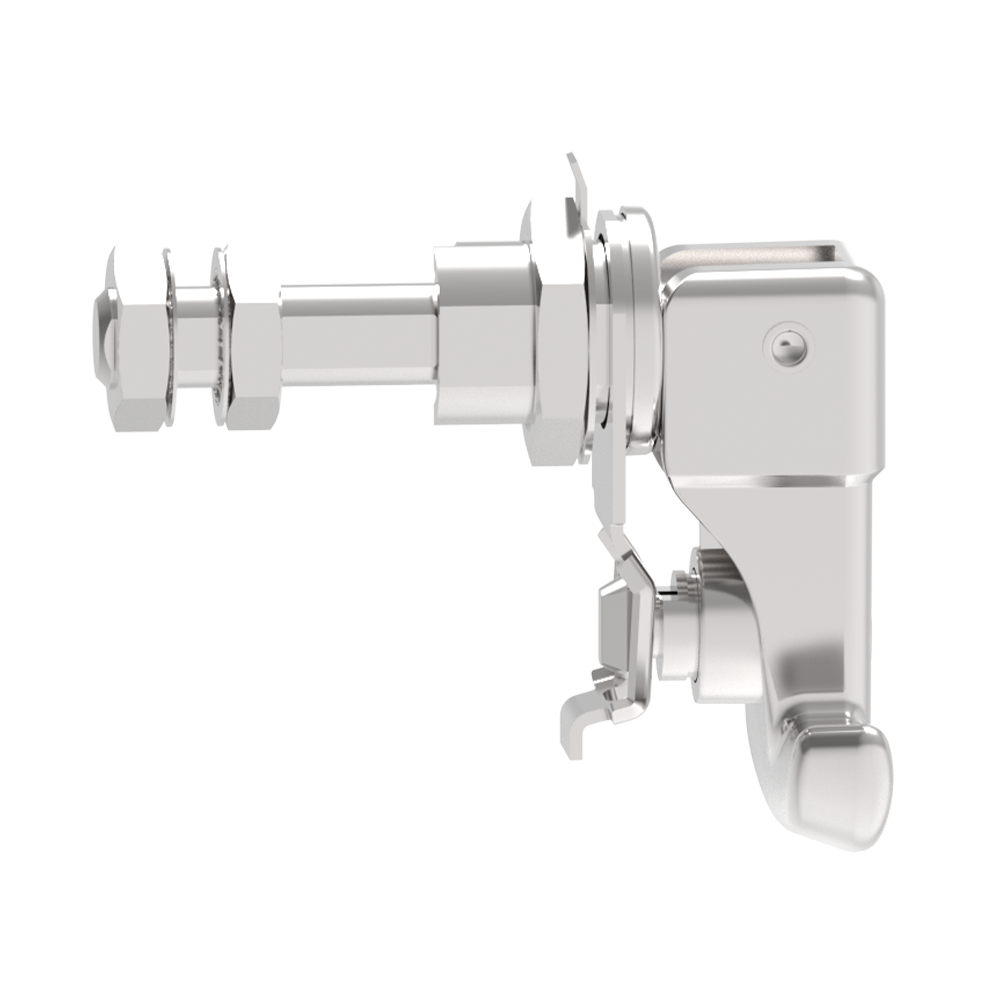

Compression type door lock-A7880-1-A1 Right side

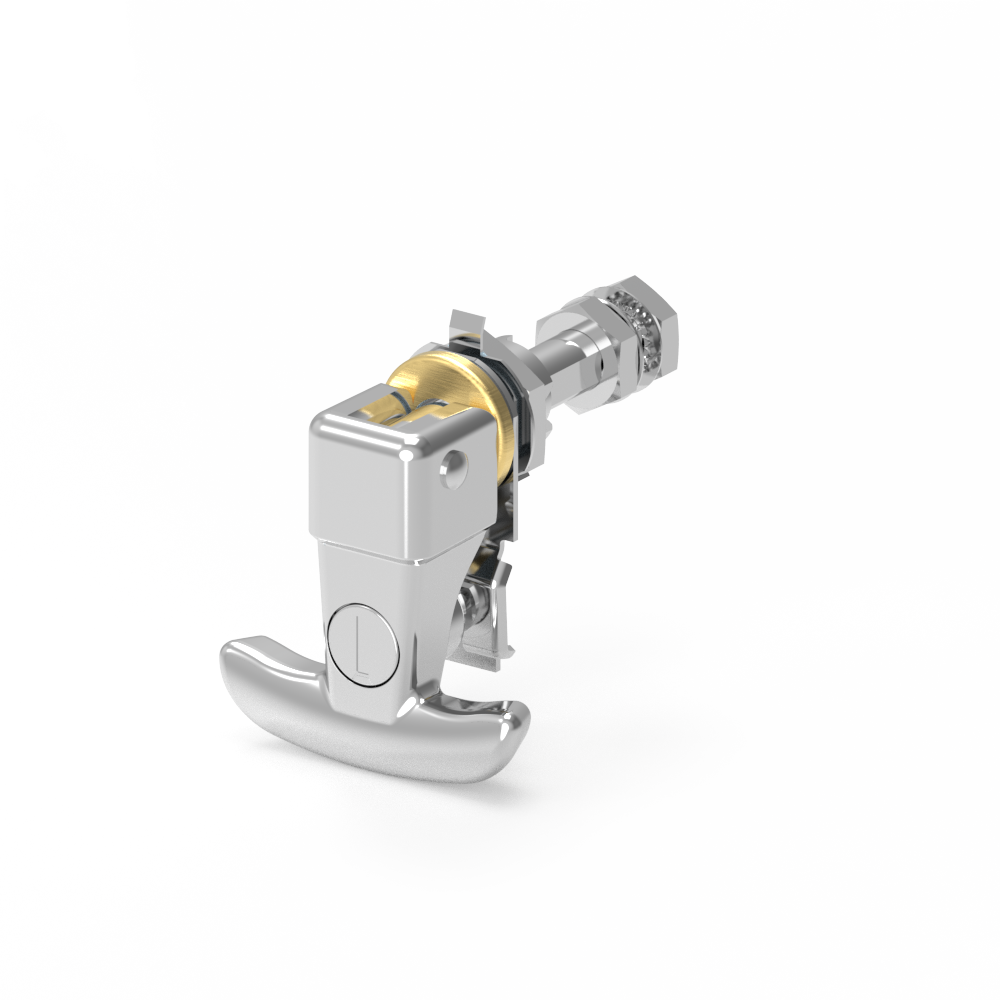

Compression type door lock, lift turn series, heavy duty size, key lock, stainless steel,polishing,bright,A7880-1-A1

1.Material and Surface Treatment:
Lock Body, Handle:Zinc Alloy or Stainless Steel304
Steel Bolt: Iron Galvanized
Sealing Ring: EPDM foam.
2. Performance Parameters:
Protection Class: IP65
Compression Force: 6.4mm
Maximum Static Load: 1000N
3.Remark:
Default CH751 Key Code

concealed hinges | rod lock mechanism | rod locks | rotary door latch | rotary door lock | free swinging hinges | concealed joint parts | kuolien fasteners | quarter turn latches
