1. Detailed Materials, Engineering Grade & Environmental Durability

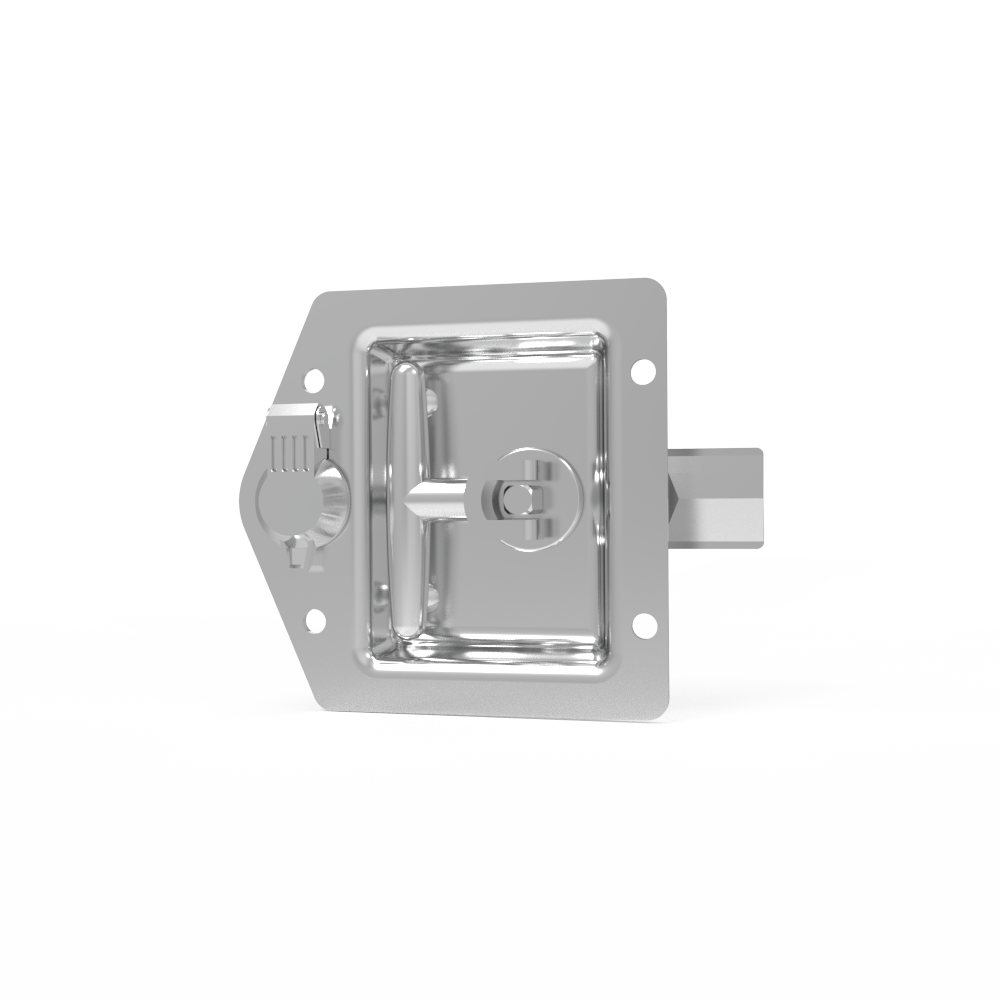

The C8-1129 Heavy-Duty Lift & Turn Compression Latch is engineered for high-vibration industrial machinery enclosures, electrical control panels, outdoor power distribution kiosks, and heavy transit compartments requiring high mechanical compression leverage, key-locking access control, mirror-polished aesthetics, and long-term anti-corrosion protection.
Hybrid High-Grade Metallurgy (Stainless Steel Case & Zinc Alloy Handle): Constructed with a heavy-duty AISI 304 stainless steel (SUS304 / 1.4301) outer housing case and mounting frame, paired with a high-density ZAMAK die-cast zinc alloy (ZDC) lift-and-turn handle lever and internal shaft drive. This hybrid metallic construction provides maximum structural shear strength, high impact resistance, and torsional stability under heavy daily clamping loads.
Multi-Layer Mirror-Finish Chrome Plating & Salt Spray Immunity: The zinc alloy handle features a high-grade electroplated bright chrome mirror finish, while the stainless steel housing is polished to a matching satin/mirror gloss. This protective plating shields the underlying metal from atmospheric oxidation, industrial lubricants, oil mist, and humidity. It easily withstands 48-hour to 96-hour neutral salt spray testing (ASTM B117 / ISO 9227) without blistering, pitting, or surface tarnishing.
Ergonomic “Lift & Turn” Two-Step Compression Action: Operates via an intuitive two-step mechanism: lifting the handle disengages the mechanical compression alignment, and turning it 90 degrees swings the cam clear of the frame keeper. When closing, turning and stowing the handle draws the cam up to 6 mm (0.24 in) axially inward, pulling the cabinet door tightly against perimeter rubber gaskets.
Key-Locking Access Control & Weatherproof Sealing (IP65 Rating Matching): Integrated with a heavy-duty key lock cylinder built directly into the handle hub, allowing facility managers to restrict unauthorized access to critical electrical bays. Fitted with internal shaft O-rings and a perimeter base gasket, the C8-1129 achieves an IP54 to IP65 ingress protection rating (EN 60529 / NEMA Type 4, 12, 13 equivalent), effectively blocking driving rain, washdown spray, and airborne grit.
2. Technical Specifications & Parameter Matrix
The parameter table below is structured to optimize search engine rich snippet indexing and facilitate fast engineering procurement evaluations:
| Technical Parameter | Specification / Grade Value |
| Model Code | C8-1129 |
| Product Type | Lift & Turn Series Heavy-Duty Compression Latch |
| Housing / Case Material | Premium AISI 304 Stainless Steel (SUS304 / 1.4301) |
| Handle & Core Material | High-Density Die-Cast Zinc Alloy (ZAMAK / ZDC) |
| Surface Finish | Electroplated Bright Chrome Mirror Finish / Polished SS |
| Access Control Type | Integrated Key Lock Cylinder (Key-Locking Series) |
| Actuation Mechanism | Ergonomic Two-Step Lift & Turn Pull-Up Compression |
| Compression Stroke | ~5.0 mm to 6.0 mm Axial Pull-Up Distance |
| IP Protection Rating | IP54 / IP65 Certified (Enclosure & Gasket Dependent) |
| NEMA Rating Equivalent | NEMA Type 4, 12, 13 |
| Handing / Application | Universal Non-Handed (Right-Hand / Left-Hand Reversible LH/RH) |
| Mounting Style | Single-Hole Panel Cutout Mount with Rear Retaining Nut/Bracket |
| Operating Temperature | -30°C to +80°C (-22°F to +176°F) |
| RoHS / REACH Status | Fully Compliant |
3. High-Frequency Industrial Application Scenarios
The C8-1129 mirror-finish heavy-duty lift and turn compression latch is heavily specified across modern industrial cabinets requiring high compression clamping, vibration isolation, and restricted key security:
Electrical & Control Enclosures: Secures large low/medium voltage switchgear panels, motor control centers (MCC), and factory automation control bays requiring consistent gasket seal compression.
Power Generators & Soundproof Compressor Canopies: Secures heavy inspection doors, engine hood covers, and acoustic baffle panels on mobile diesel generators subject to continuous vibration.
HVAC Systems & Large Air Handling Units (AHU): Maintains uniform door seal pressure on pressurized air handling unit access doors, industrial chillers, and rooftop HVAC control bays.
Specialty Vehicle & Off-Highway Equipment: Serves as a rugged compression latch for service truck toolboxes, emergency vehicle hatches, and agricultural machinery bays.
Outdoor Telecom & Power Distribution Kiosks: Protects remote telecommunications housing, fiber optic junction nodes, and solar inverter cabinets against windborne sand and rain.
4. Why Choose CUYUE for Your Industrial Hardware Needs?
At Wenzhou CUYUE Lock Technology Co., Ltd., we combine extensive technical experience with complete internal manufacturing capabilities to support global OEMs, enclosure fabricators, and hardware distributors:
In-House R&D & Engineering Expertise: Supported by a dedicated R&D design team specializing in cabinet locks, hinges, and handles engineered to strictly match global industrial specifications.
Integrated Precision Tooling & Fabrication: Our manufacturing plant integrates precision mold design and development, stainless steel stamping, zinc alloy die-casting, automated CNC machining, electroplating, and quality testing under one roof for complete quality management.
Rigorous Quality Testing & Validation: Every production lot undergoes mechanical pull-down compression load checks, key cylinder turn testing, salt spray corrosion testing, and dimensional verification before dispatch.
Flexible OEM/ODM Customization & Rapid Delivery: We offer custom keying options (Keyed Alike / Keyed Different / Master Keying), tailored cam offsets, custom thread lengths for wide grip adjustments, and rapid prototyping to keep your production schedules on track.
Cost-Effective System Solutions: We empower clients to optimize total procurement costs without sacrificing product longevity, delivering complete industrial enclosure hardware systems under one trusted brand.
5. Frequently Asked Questions (Q&A)
Q1: How does a “Lift & Turn” compression latch like the C8-1129 function?
A: A lift-and-turn compression latch operates in two distinct steps: lifting the handle releases the axial clamping pressure against the door frame, and rotating the handle 90 degrees swings the cam out of the way to open the door.
Q2: What is the benefit of axial compression in the C8-1129 latch mechanism?
A: Axial compression pulls the door panel inward by up to 6 mm as the handle is closed. This compresses continuous rubber EPDM gaskets to eliminate water/dust ingress and prevents door rattle caused by machinery vibration.
Q3: Why is the C8-1129 constructed with a stainless steel case and a zinc alloy handle?
A: The stainless steel case provides high structural shear strength and mounting rigidity, while the die-cast zinc alloy handle allows precision ergonomic styling and electroplated mirror chrome finishing for premium aesthetics.
Q4: Does the C8-1129 compression latch feature key-locking security?
A: Yes. The C8-1129 incorporates an integrated key lock cylinder built directly into the handle hub, allowing operators to restrict cabinet entry to authorized personnel.
Q5: How does the bright chrome mirror finish protect the C8-1129 handle against corrosion?
A: Multi-layer bright chrome electroplating forms a hard, non-porous protective barrier over the zinc alloy substrate, passing 48-hour to 96-hour neutral salt spray tests (ASTM B117) to prevent rust, tarnishing, and surface degradation.
Q6: Is the C8-1129 compression latch universal for left-hand and right-hand opening doors?
A: Yes. The C8-1129 features a universal non-handed reversible design (LH/RH), allowing panel builders to install the same latch model on both left-hinged and right-hinged doors.
Q7: How does the C8-1129 help achieve an IP65 protection rating on enclosure doors?
A: The axial compression force forces the cabinet door tight against continuous rubber perimeter gaskets, while internal sealing O-rings prevent dust and moisture from entering through the mounting cutout.
Q8: Can the C8-1129 heavy-duty compression latch handle high vibration environments?
A: Yes. The positive mechanical pull-up compression maintains constant tension against the door frame keeper, preventing handle chatter, gasket separation, and accidental unlatching during heavy equipment operation.
Q9: What panel cutout preparation is required to install the C8-1129 lift and turn latch?
A: The C8-1129 installs into a standard industrial single-hole panel cutout (typically round with double-D flats to prevent body rotation). It is clamped securely from behind using a heavy-duty mounting bracket or nut.
Q10: Why purchase industrial compression latches directly from a Chinese manufacturer like CUYUE?
A: Sourcing directly from Wenzhou CUYUE Lock Technology Co., Ltd. delivers factory-direct pricing, certified raw material grades, custom mold development capabilities, and rapid order turnaround backed by ISO-aligned quality validation.
