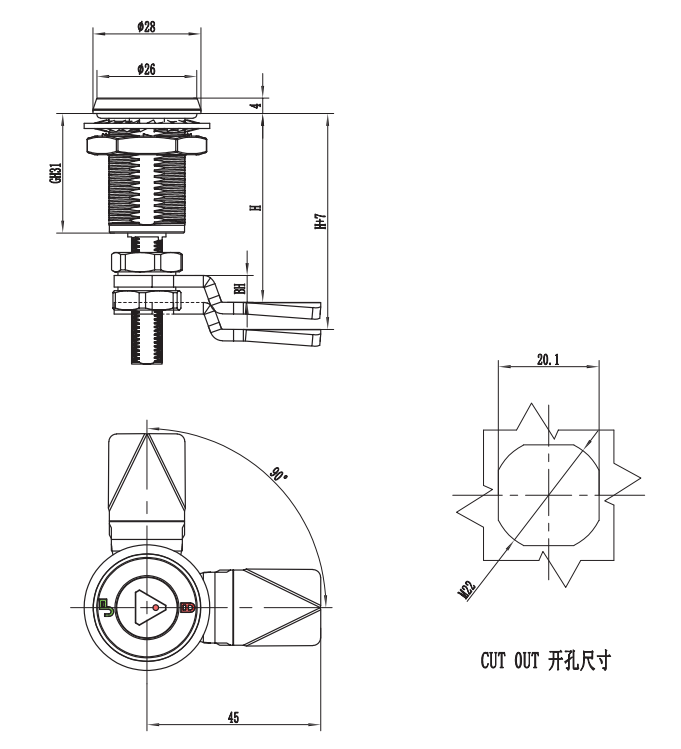

Compression latch Quarter trlangle 8mm Adjustable Grip Range Cam Lock,Stainless steel AISI 304 C3-1617-238-WB
1. Material and surface treatment：
Stainless steel 316 or 304
2. Performance parameters:
Unlock torque: less than or equal to 0.79N/M
Ultimate load: 700N
Stretching amount: 7mm
Protection level: IP65
3. Installation instructions:
Fixing screw torque 8N.M
Fixing nut torque 17N.M
Applicable door thickness: 1-15mm
