1. Detailed Materials, Engineering Grade & Environmental Durability

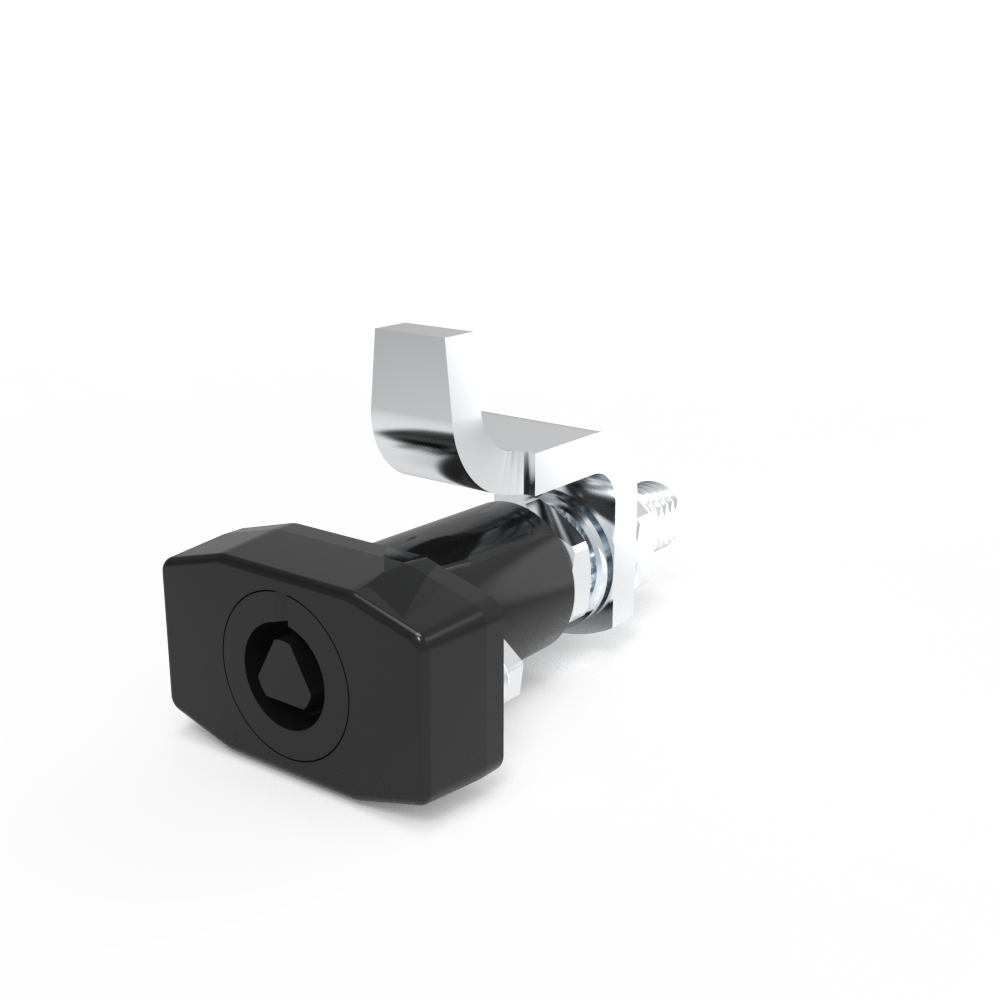

The CY3-33-15 Large-Size 7 mm Triangle Compression Latch is engineered for high-demand industrial cabinets, electrical enclosures, and outdoor machinery housings that require cost-effective physical security, continuous gasket compression, and robust surface protection.
High-Density Die-Cast Zinc Alloy Metallurgy: Manufactured using premium ZAMAK die-cast zinc alloy (ZDC) for the main housing, shaft, and heavy-duty compression cam. This structural composition provides exceptional dimensional accuracy, high tensile strength, and superior impact resistance under continuous mechanical tension.
Electrostatic Powder Coating & Salt Spray Resistance: The body and driver insert are finished with a durable, scratch-resistant matte black electrostatic powder coating. This protective coating shields the zinc alloy substrate against atmospheric oxidation, chemical fumes, oil splashes, and UV exposure. It withstands 48-hour to 96-hour neutral salt spray testing (ASTM B117 / ISO 9227) without corrosion or blistering, making it highly reliable for indoor industrial bays and sheltered outdoor enclosures.
Ingress Protection & Continuous Gasket Compression (IP Rating Matching): Features a standardized 6 mm compression stroke action. Rotating the 7 mm triangle driver 90 degrees rotates the cam into place, and an additional 90-degree turn pulls the latch cam tight against the enclosure frame. When paired with continuous EPDM or silicone perimeter gaskets, the CY3-33-15 achieves an IP65 / IP66 ingress protection rating (EN 60529 / NEMA 4X equivalent), effectively blocking high-pressure water jets, ambient dust, and atmospheric humidity.
Vibration & Shock Resistance: The mechanical leverage created during the compression stroke creates positive detent tension. This prevents cam back-off caused by continuous harmonic vibrations from operating pumps, industrial compressors, or transport vehicle motion.
2. Technical Specifications & Parameter Matrix
The parameter table below is structured to optimize search engine rich snippet indexing and facilitate fast engineering procurement evaluations:
| Technical Parameter | Specification / Grade Value |
| Model Code | CY3-33-15 |
| Latch Type | Compression Latch / Quarter-Turn Compression Series |
| Material Grade | High-Density Die-Cast Zinc Alloy (ZAMAK / ZDC) |
| Driver Head Profile | Large-Size 7 mm Triangle Insert (DIN 43668 compliant) |
| Surface Finish | Electrostatic Matte Black Powder Coating |
| IP Protection Rating | IP65 / IP66 (Enclosure & Gasket Dependent) |
| NEMA Rating Equivalent | NEMA Type 4, 4X, 12, 13 |
| Compression Stroke Length | 6.0 mm linear compression |
| Grip Range (Grip Distance) | Adjustable / Fixed offset options available |
| Mounting Style | Single-hole cutout mounting with retaining hex nut |
| Operation Angle | 90° Turn to position, 90° Turn to compress |
| Latch Body Scale | Large-Size Industrial Series |
| Operating Temperature | -30°C to +80°C (-22°F to +176°F) |
| RoHS / REACH Status | Fully Compliant |
3. High-Frequency Industrial Application Scenarios
The CY3-33-15 zinc alloy powder-coated compression latch is widely deployed across critical equipment housings requiring reliable gasket sealing and restricted security access:
Electrical & Control Enclosures: Provides vibration-resistant gasket tension and secure access for low/medium voltage switchgear panels, motor control centers (MCC), and factory automation control cabinets.
Outdoor 5G Telecom & Broadband Cabinets: Protects remote telecommunications housing, optical fiber distribution nodes, and battery backup bays against driving rain, dust, UV exposure, and environmental humidity.
Industrial CNC Machinery & Automation Access Panels: Delivers quick-access, vibration-proof latching on metalworking machine guards, air compressor hoods, generator housings, and conveyor control bays.
HVAC Systems & Air Handling Units (AHU): Maintains continuous pull-up pressure on pressurized air handling doors, industrial chiller panels, and duct access covers to stop air leaks and reduce thermal loss.
Server Data Center Racks & Power Kiosks: Ensures sleek, black powder-coated aesthetics and secure access control for modular enterprise IT server racks, network distribution hubs, and power distribution kiosks.
4. Why Choose CUYUE for Your Industrial Hardware Needs?
At Wenzhou CUYUE Lock Technology Co., Ltd., we combine extensive technical experience with complete internal manufacturing capabilities to support global OEMs, enclosure fabricators, and hardware distributors:
In-House R&D & Engineering Expertise: Backed by a dedicated R&D design team specializing in cabinet locks, hinges, and handles engineered to strictly match global industrial specifications.
Integrated Precision Tooling & Casting: Our manufacturing plant integrates precision mold design and development, zinc alloy die-casting, automated CNC machining, electrostatic powder coating, and quality testing under one roof for complete quality management.
Rigorous Quality Testing & Validation: Every production lot undergoes mechanical load testing, salt spray corrosion checks, compression stroke verification, and dimensional testing before dispatch.
Flexible OEM/ODM Customization & Rapid Delivery: We offer custom grip ranges, tailored cam offsets, alternative driver inserts (square, slotted, double-bit), custom powder coating colors, and rapid prototyping to keep your production schedules on track.
Cost-Effective System Solutions: We empower clients to optimize total procurement costs without sacrificing product longevity, delivering complete industrial enclosure hardware systems under one trusted brand.
5. Frequently Asked Questions (Q&A)
Q1: What is the main benefit of a 7 mm triangle driver head on a compression latch?
A: A 7 mm triangle driver head (DIN 43668 standard) provides restricted access control, requiring a matching security key tool to operate. This prevents unauthorized tampering on electrical control panels and outdoor utility cabinets.
Q2: How does the CY3-33-15 compression latch achieve IP65 and IP66 sealing ratings?
A: The latch incorporates internal shaft O-rings and applies 6 mm of linear pull-up compression when rotated. This compression forces the enclosure door gasket evenly against the frame, effectively blocking dust, oil, and water jets.
Q3: Why select zinc alloy over stainless steel for industrial compression latches?
A: Die-cast zinc alloy (ZAMAK) offers exceptional structural strength and high dimensional accuracy at a more competitive cost than stainless steel. With a durable powder coating, it provides excellent protection for indoor and general outdoor industrial environments.
Q4: How does the matte black powder coating protect the CY3-33-15 latch from corrosion?
A: The electrostatic black powder coating forms a tough, non-porous barrier over the zinc alloy substrate, passing 48-hour to 96-hour neutral salt spray tests (ASTM B117) to prevent oxidation, rust, and chemical staining.
Q5: Can the CY3-33-15 latch handle continuous machine vibration?
A: Yes. The compression cam mechanism locks past center under mechanical tension. Once fully rotated and compressed, internal friction prevents the latch from loosening under heavy vibration from operating CNC machinery or compressors.
Q6: What cutout dimensions are required for mounting the CY3-33-15 compression latch?
A: The CY3-33-15 mounts into a standard single-hole industrial cutout with double-D flats (such as 22.5 mm or 20.2 mm cutouts) to prevent the latch body from spinning during key operation.
Q7: How do you adjust the grip range on a 7 mm triangle zinc alloy compression latch?
A: Grip range (the distance from the outer door panel to the latching face of the cam) can be adjusted by repositioning the heavy-duty mounting hex nut along the shaft or selecting an offset cam to fit specific frame depths.
Q8: What industries commonly specify black powder-coated compression latches?
A: Powder-coated compression latches are heavily specified across electrical switchgear, outdoor 5G telecom enclosures, HVAC units, server data center cabinets, and factory automation machinery.
Q9: Does CUYUE provide custom OEM driver keys or alternative colors for the CY3-33-15 series?
A: Yes. Wenzhou CUYUE Lock Technology Co., Ltd. provides full OEM/ODM customization. We can supply matching 7 mm triangle keys, offer alternative driver profiles (such as square or slot), or customize powder coating colors (such as grey or chrome plating).
Q10: Why purchase industrial cabinet latches directly from a Chinese manufacturer like CUYUE?
A: Sourcing directly from CUYUE provides direct factory pricing, certified material quality, in-house mold development capabilities, and rapid order turnaround backed by ISO-aligned quality validation.
