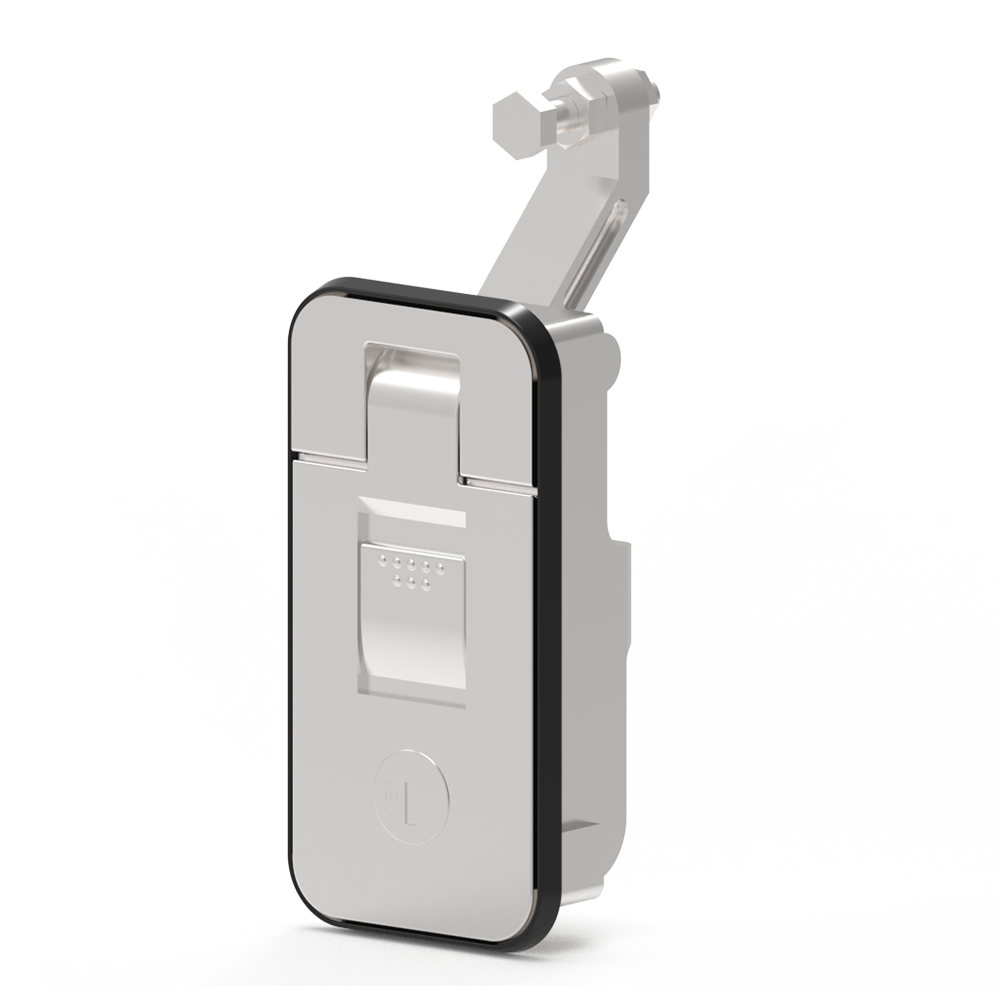

Compression Latches-A-1446-11-20 Sides
Compression Latches-A-1446-11-20 Sides
Compression Latches-A-1446-11-20 Front side

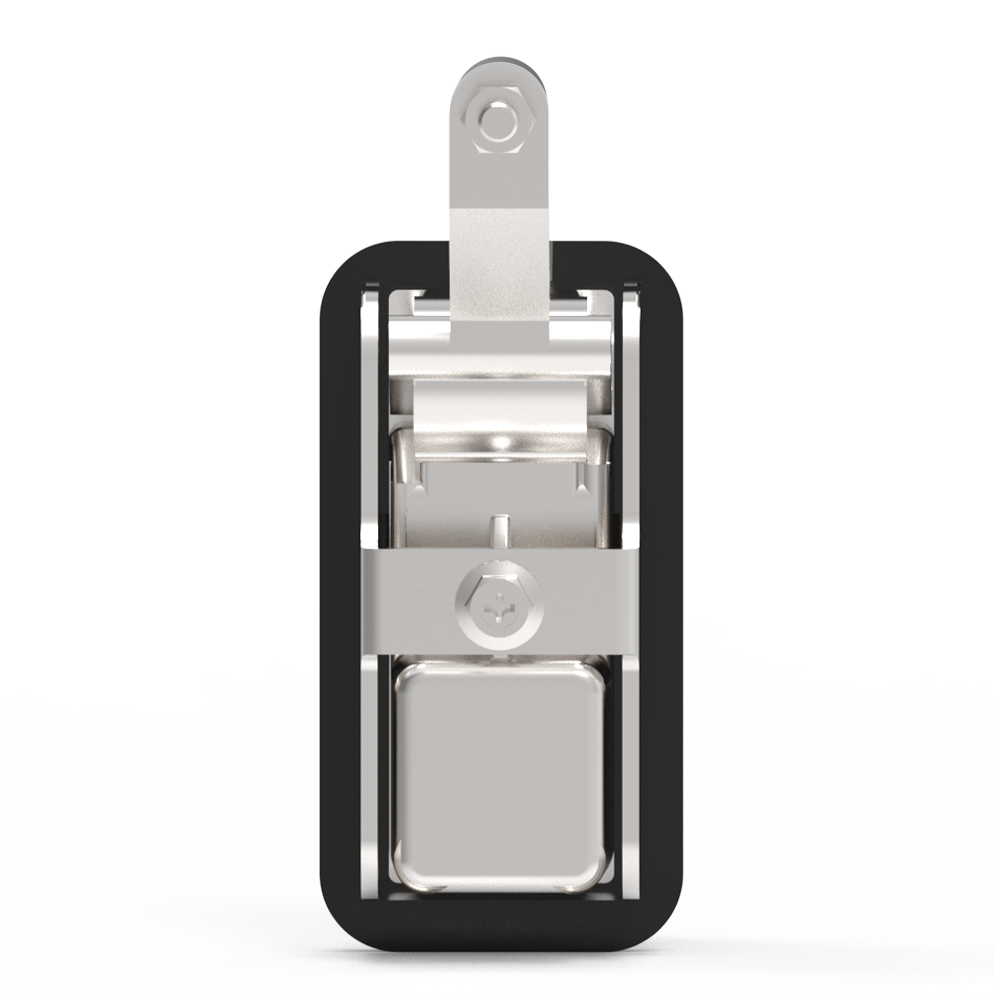

Compression Latches-A-1446-11-20 Back side

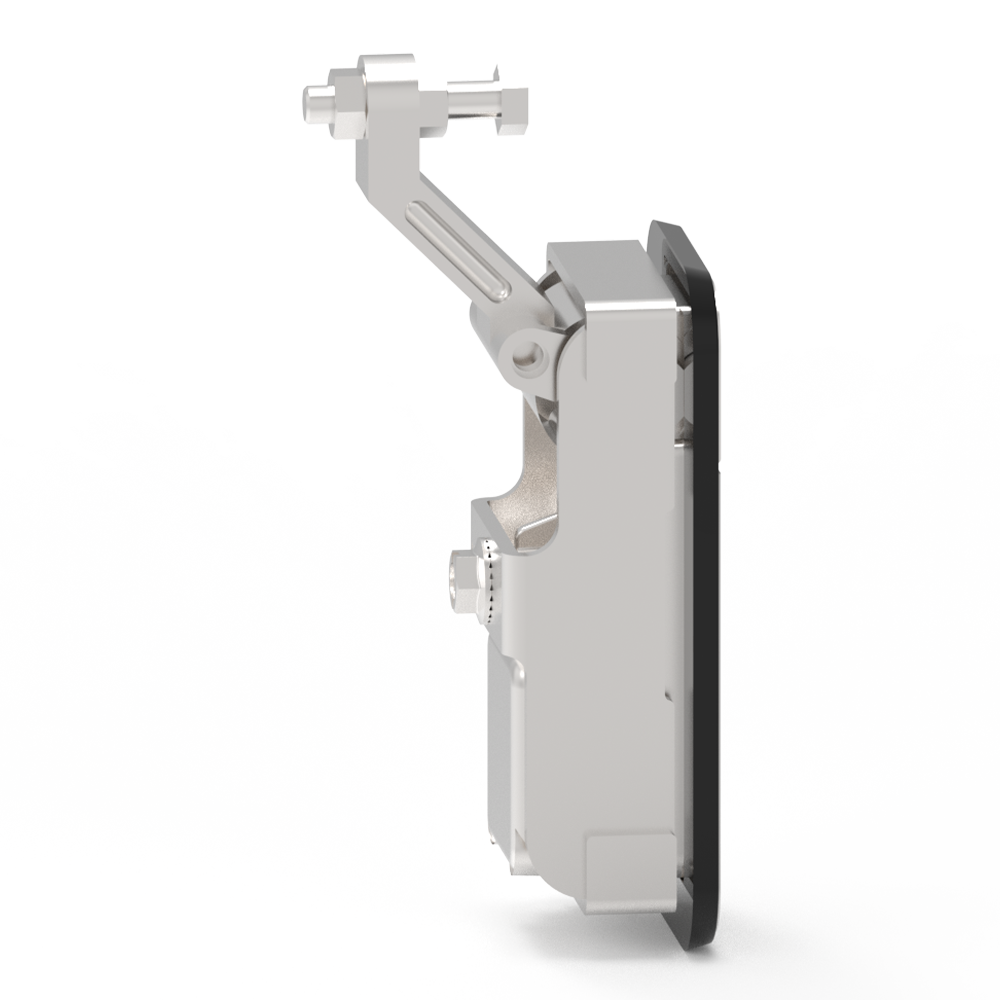

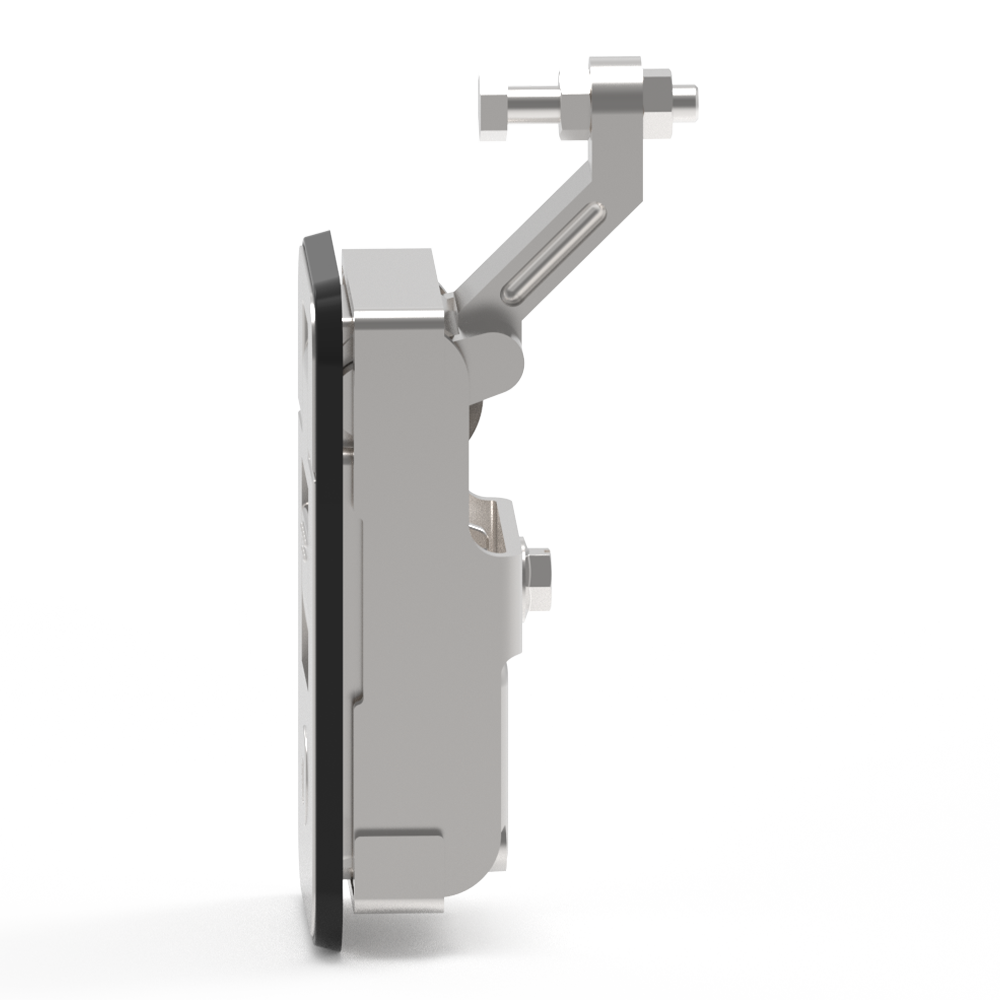

Compression Latches-A-1446-11-20 Left side
Compression Latches-A-1446-11-20 Left side

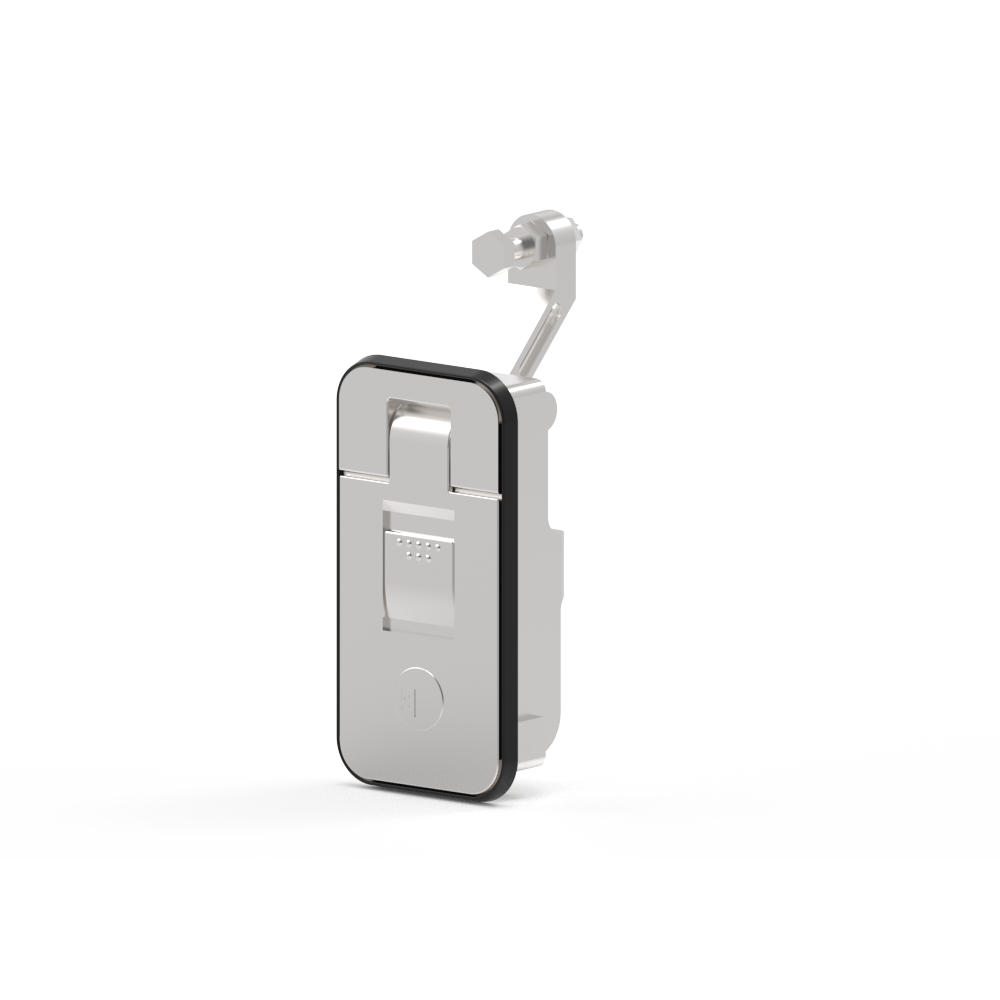

Compression Door Lock, Sealing Rod, Key Lock, Lock Belt Dust Cover, Zinc Alloy, Chrome Plated, Bright A-1446-11-20

1.Material and Surface Treatment:
Lock body, Handle:Zinc  Alloy
Steel bolt: iron galvanized
Sealing ring: EPDM foam.
2. Performance Parameters:
Protection class: IP65
Handle bearing tension value: ≤ 750N
Maximum static load: 200N
3.Remark:
Default CH751 key code
