1. Detailed Materials, Engineering Grade & Environmental Durability

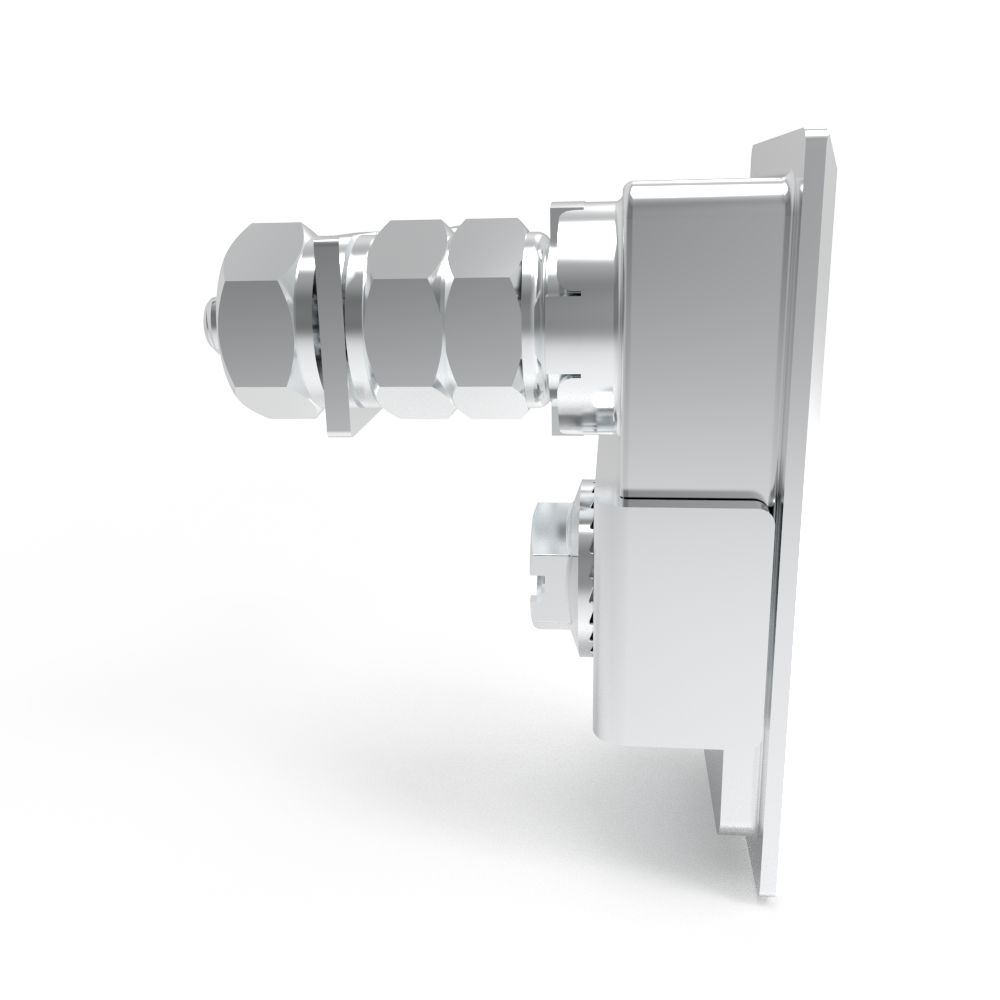

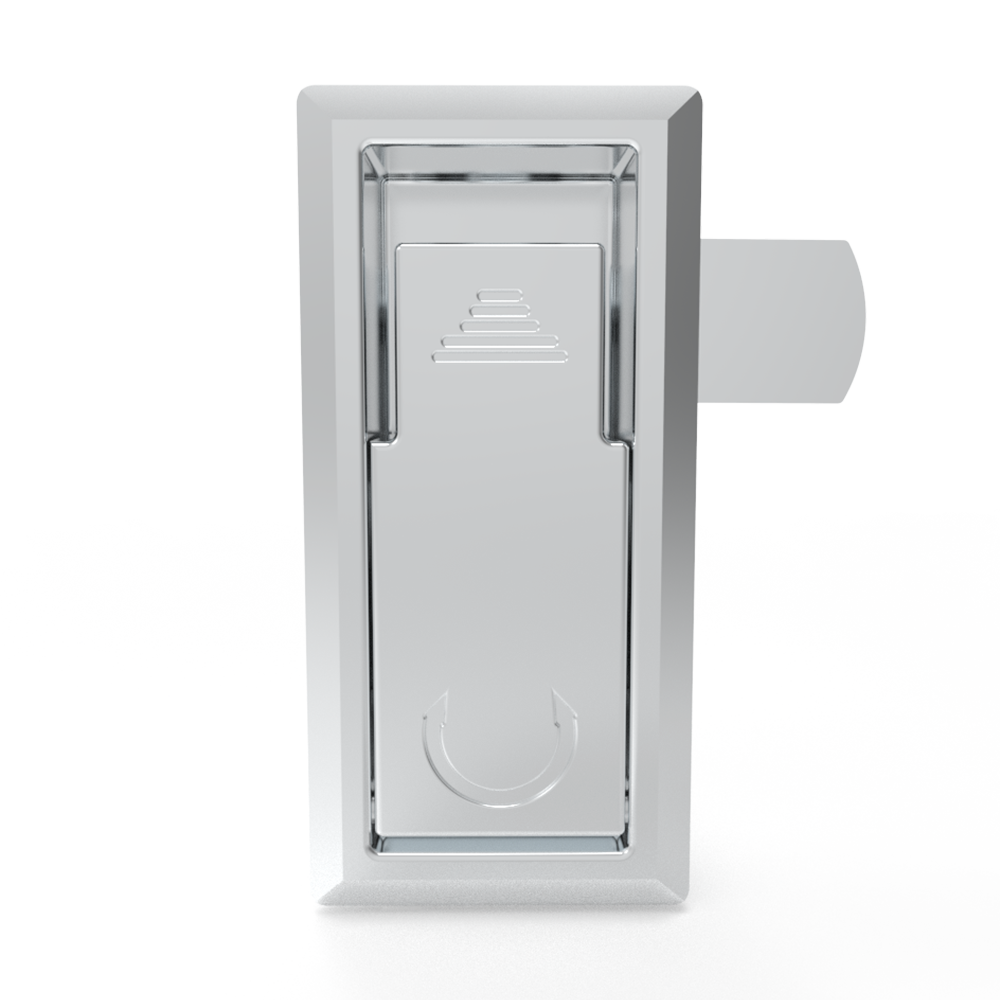

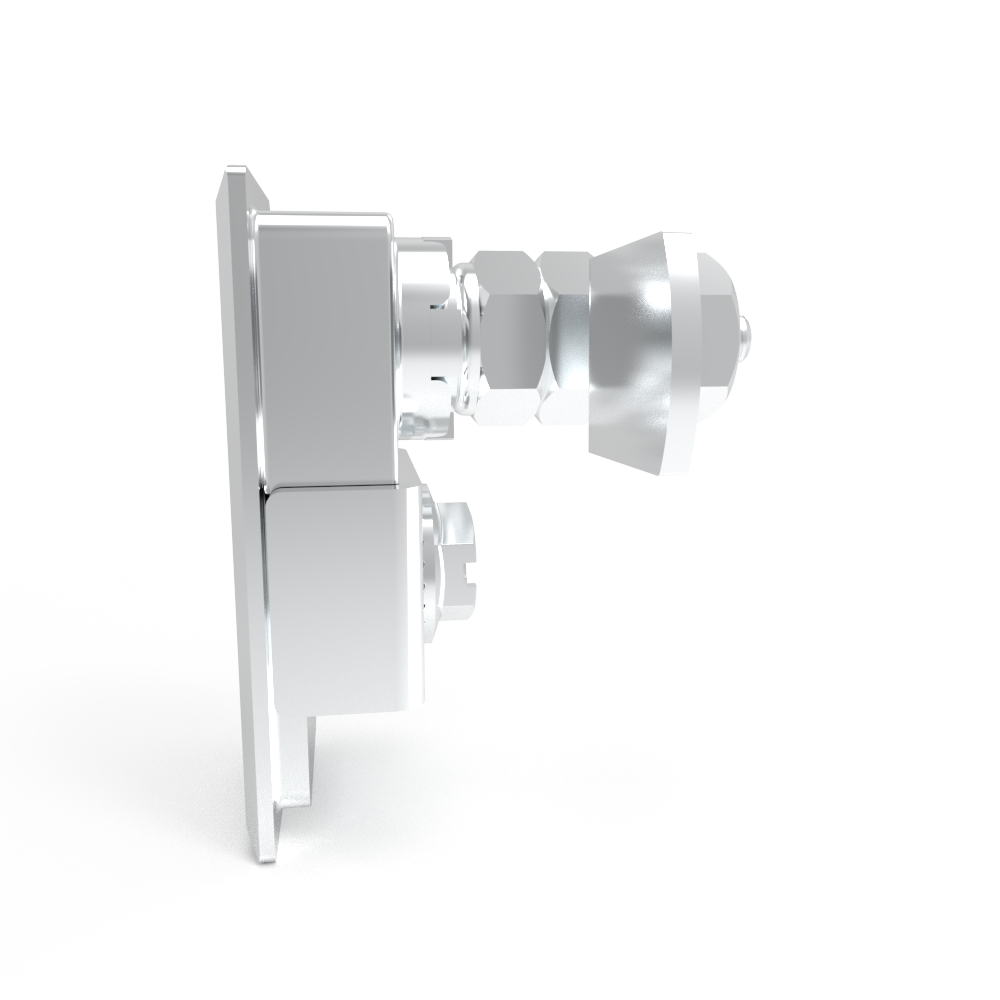

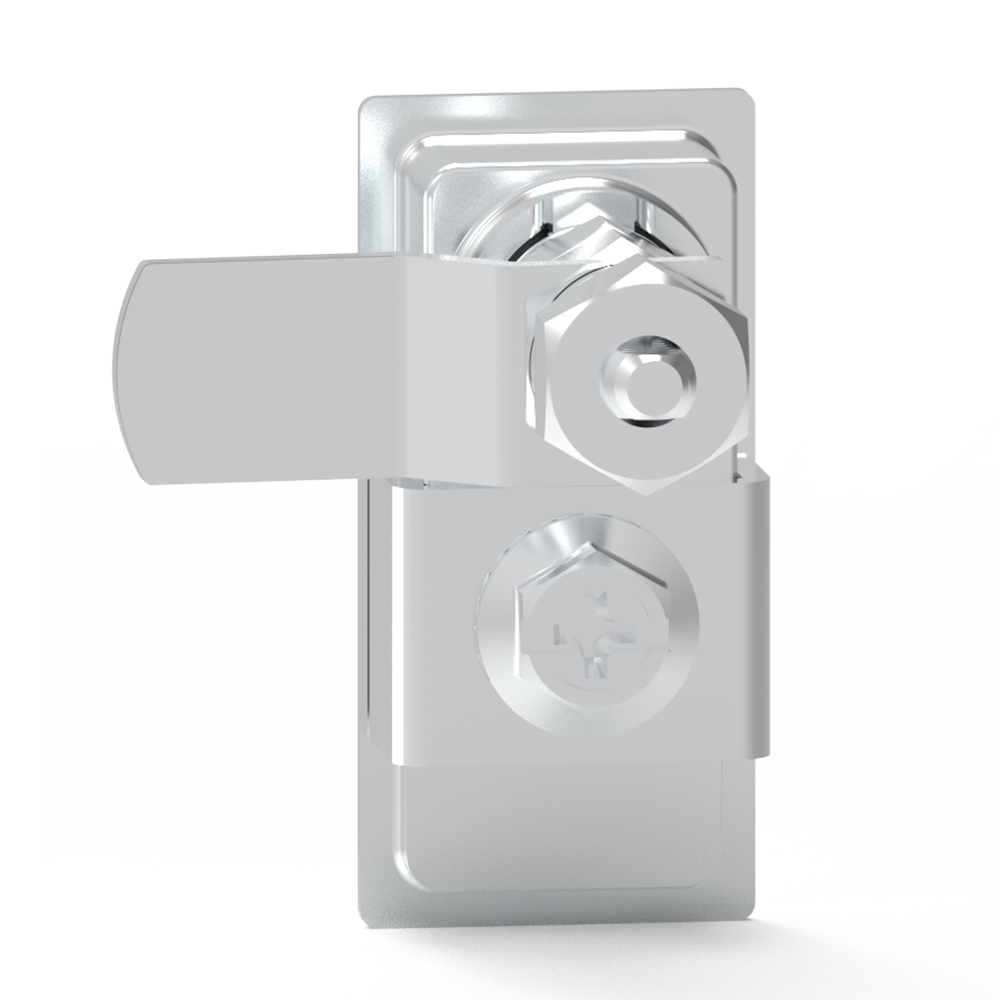

The MS726-4-20 Medium Recessed Lift-and-Turn Compression Latch is engineered for high-end industrial machinery access doors, electrical switchgear, and outdoor power kiosks requiring flush aesthetic mounting, continuous gasket compression, smooth mechanical leverage, and long-term environmental durability.
High-Density Die-Cast Zinc Alloy Metallurgy: Precision-cast using high-strength ZAMAK die-cast zinc alloy (ZDC) for the main recessed pan housing, lift-and-turn handle, and internal compression drive mechanism. This structural composition delivers exceptional tensile strength, structural rigidity, and resistance to deformation under continuous mechanical pull loads.
Bright Chrome Plating & Superior Surface Immunity: Finished with a multi-layer bright chrome plating (copper-nickel-chromium electroplating process). This mirror-bright protective layer shields the zinc alloy substrate against atmospheric oxidation, chemical fumes, oil splashes, and UV degradation. It easily withstands 48-hour to 96-hour neutral salt spray testing (ASTM B117 / ISO 9227) without corrosion, pitting, or blistering, making it ideal for indoor factory automation lines and sheltered outdoor control enclosures.
Ingress Protection & Gasket Compression (IP Rating Matching): Features a standardized 6.0 mm linear compression stroke. Lifting the recessed handle disengages the cam compression, while rotating it 90 degrees turns the cam away from the frame. When installed with continuous EPDM or silicone perimeter gaskets, the MS726-4-20 achieves an IP65 / IP66 ingress protection rating (EN 60529 / NEMA 4X equivalent), effectively blocking high-pressure water jets, ambient dust, and industrial lubricants.
Vibration Resistance & Recessed Ergonomic Design: The lift-and-turn mechanism features an unlimited (non-locking) drive design that folds completely flush into the recessed housing cup when closed. The over-center mechanical compression tension prevents door rattle, seal wear, and cam loosening caused by continuous harmonic vibrations from operating CNC machinery or transportation equipment.
2. Technical Specifications & Parameter Matrix
The parameter table below is structured to optimize search engine rich snippet indexing and facilitate fast engineering procurement evaluations:
| Technical Parameter | Specification / Grade Value |
| Model Code | MS726-4-20 |
| Latch Type | Compression Latch / Lift-and-Turn Series |
| Material Grade | High-Density Die-Cast Zinc Alloy (ZAMAK / ZDC) |
| Access Control Type | Unlimited / Non-Locking (Hand-Operated Lift-and-Turn Handle) |
| Surface Finish | Multi-Layer Bright Chrome Plated Finish |
| IP Protection Rating | IP65 / IP66 Certified (Enclosure & Gasket Dependent) |
| NEMA Rating Equivalent | NEMA Type 4, 4X, 12, 13 |
| Compression Stroke Length | 6.0 mm linear mechanical compression |
| Grip Range (Grip Distance) | Fully Adjustable Cam / Threaded Shaft Adjustment |
| Mounting Style | Recessed Cutout Panel Mounting with Rear Retaining Bracket |
| Operation Angle | 90° Turn to position, Lift to uncompress |
| Latch Body Scale | Medium-Size Industrial Series |
| Operating Temperature | -30°C to +80°C (-22°F to +176°F) |
| RoHS / REACH Status | Fully Compliant |
3. High-Frequency Industrial Application Scenarios
The MS726-4-20 bright chrome recessed lift-and-turn compression latch is heavily specified across modern industrial cabinets requiring flush surface aesthetics, easy hand operation, and vibration-proof gasket sealing:
Electrical & Control Enclosures: Secures low/medium voltage switchgear panels, motor control centers (MCC), and factory automation control bays requiring consistent gasket pull-up compression.
Outdoor 5G Telecom & Broadband Cabinets: Protects remote telecommunications housing, optical fiber junction nodes, and power supply bays against rain, dust, and environmental humidity.
HVAC Systems & Air Handling Units (AHU): Maintains uniform door seal pressure on pressurized air handling unit access doors, industrial chillers, and rooftop HVAC control bays to prevent air leaks.
Industrial CNC Machinery & Automation Access Panels: Delivers quick-access, vibration-proof latching on metalworking machine guards, air compressor hoods, and conveyor control enclosures.
Medical Equipment & Testing Instruments: Serves as an aesthetically pleasing, bright chrome recessed latch for laboratory instrument housings, diagnostic equipment access doors, and cleanroom control panels.
4. Why Choose CUYUE for Your Industrial Hardware Needs?
At Wenzhou CUYUE Lock Technology Co., Ltd., we combine extensive technical experience with complete internal manufacturing capabilities to support global OEMs, enclosure fabricators, and hardware distributors:
In-House R&D & Engineering Expertise: Supported by a dedicated R&D design team specializing in cabinet locks, hinges, and handles engineered to strictly match global industrial specifications.
Integrated Precision Tooling & Casting: Our manufacturing plant integrates precision mold design and development, zinc alloy die-casting, automated CNC machining, electroplating, and quality testing under one roof for complete quality management.
Rigorous Quality Testing & Validation: Every production lot undergoes mechanical pull fatigue testing, 6 mm compression stroke checks, salt spray corrosion testing, and dimensional verification before dispatch.
Flexible OEM/ODM Customization & Rapid Delivery: We offer custom grip ranges, tailored cam offsets, alternative key-locking or tool-operated cylinders, custom surface finishes (black powder coating / satin nickel), and rapid prototyping to keep your production schedules on track.
Cost-Effective System Solutions: We empower clients to optimize total procurement costs without sacrificing product longevity, delivering complete industrial enclosure hardware systems under one trusted brand.
5. Frequently Asked Questions (Q&A)
Q1: How does a lift-and-turn compression latch work on industrial enclosure doors?
A: A lift-and-turn latch operates in two distinct steps: lifting the handle releases the 6 mm linear compression on the door gasket, while turning the handle 90 degrees rotates the latching cam clear of the frame for smooth door opening.
Q2: What is the main advantage of a recessed pan housing on the MS726-4-20 latch?
A: The recessed cup allows the lift-and-turn handle to fold completely flat within the door surface cutout. This creates a smooth exterior profile that prevents accidental snagging by operators working in narrow machinery aisles.
Q3: What does the “Unlimited” feature mean on the MS726-4-20 compression latch model?
A: “Unlimited” indicates a non-locking, tool-less version that allows operators to open and close the latch using the built-in hand lever without needing a key or special driver tool.
Q4: How does the MS726-4-20 compression latch achieve IP65 and IP66 sealing ratings?
A: The latch incorporates internal shaft O-rings and applies 6 mm of linear mechanical compression when closed. This compression forces the door gasket tightly against the frame, forming a dust-tight and high-pressure water-jet-resistant seal.
Q5: Why select zinc alloy with bright chrome plating for lift-and-turn compression latches?
A: Die-cast zinc alloy (ZAMAK) provides high structural strength and precise mechanical detail at a competitive cost. Multi-layer bright chrome plating delivers superior scratch resistance, bright mirror aesthetics, and corrosion protection.
Q6: Can the MS726-4-20 lift-and-turn compression latch handle heavy machinery vibration?
A: Yes. The mechanical leverage created during the compression phase locks past center under positive tension. Once closed, internal friction prevents the cam from loosening under continuous vibration from operating CNC machinery or compressors.

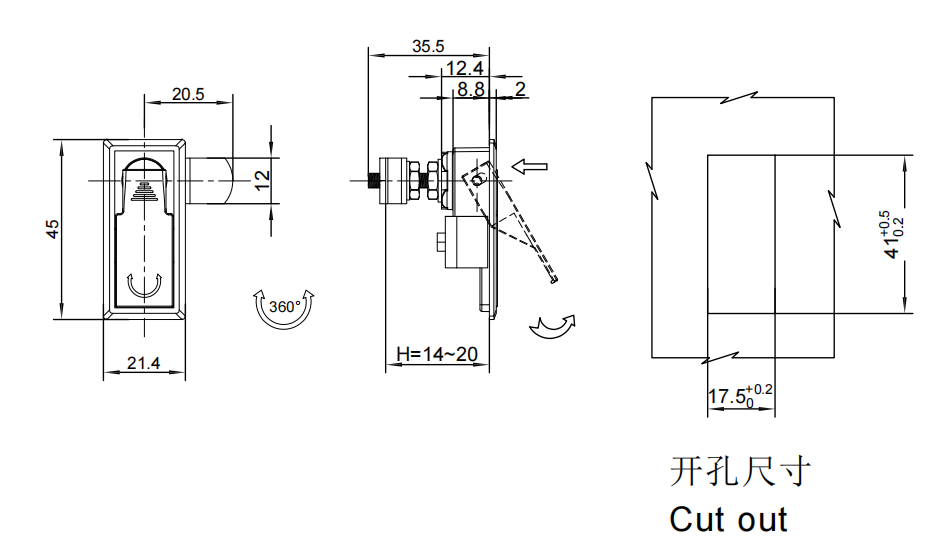

Q7: What door cutout preparation is required to install the MS726-4-20 latch?
A: The MS726-4-20 installs into a standard rectangular panel cutout. It is clamped securely from the inside using mounting brackets and studs, leaving a clean exterior surface with no exposed screws.
Q8: How do you adjust the grip range on the MS726-4-20 medium compression latch?
A: Grip range (the distance from the outer door panel to the latching face of the cam) can be adjusted by moving the adjustment nuts along the threaded shaft or selecting a stepped offset cam to match your frame depth.
Q9: What operating temperature range can the MS726-4-20 zinc alloy latch handle?
A: Equipped with durable zinc alloy construction and high-grade internal seals, the MS726-4-20 operates reliably across temperatures ranging from -30°C to +80°C (-22°F to +176°F).
Q10: Why purchase industrial enclosure locks directly from a Chinese manufacturer like CUYUE?
A: Sourcing directly from Wenzhou CUYUE Lock Technology Co., Ltd. delivers factory-direct pricing, certified raw material grades, custom mold development capabilities, and rapid order turnaround backed by ISO-aligned quality validation.
