I. Mass Production Pain Point in the Lock Industry: Why Stainless Steel Lock Cylinders Are No Match for Zinc Alloy?
In hardware lock production, the lock cylinder, as a core safety component, its material selection directly determines product quality and market competitiveness. Zinc alloy lock cylinders have long dominated the mass production market with mature die-casting technology—low mold cost and high molding efficiency make them the preferred choice for mid-to-low-end locks. However, as consumers’ requirements for anti-theft performance upgrade, stainless steel lock cylinders have gradually become the core configuration of high-end locks due to their higher hardness, wear resistance and corrosion resistance.
Nevertheless, mass production of stainless steel lock cylinders has always faced three major challenges:

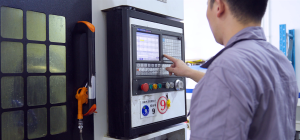

- High Cost: Traditional CNC machining requires piece-by-piece cutting, with material utilization rate less than 60%. The superposition of labor and consumable costs makes the price of stainless steel lock cylinders 2-3 times that of zinc alloy products;
- Severely Limited Output: A single CNC equipment can only process dozens of stainless steel lock cylinders per day, which is difficult to meet the demand of large-scale orders;
- Precision Control Difficulty: Burrs and dimensional deviations are prone to occur during cutting. Subsequent polishing processes increase production costs and may affect the smooth opening and closing of lock cylinders.
II. MIM Technology: Redefining the Cost Logic of Stainless Steel Lock Cylinders
Many lock manufacturers have a misunderstanding about Metal Injection Molding (MIM) technology: “High mold investment = high overall cost”. In fact, the cost advantage of MIM lies precisely in mass production scenarios, and its core logic is “high initial investment + low later loss”, which perfectly matches the mass production needs of stainless steel lock cylinders.
1. Core Differences Between MIM and Traditional Processes
表格
| Process Type | Mold Investment | Single Piece Processing Time | Material Utilization Rate | Suitable for Batch |
| CNC Machining | Low (about 10,000-30,000 RMB) | 15-20 minutes/piece | ≤60% | Small batch (<1,000 pieces) |
| Die-Casting Process | Medium (about 50,000-80,000 RMB) | 30 seconds/piece | 85% | Mass production, but only for zinc alloy |
| MIM Technology | Medium-High (about 100,000-150,000 RMB) | 1-2 minutes/piece | ≥95% | Mass production (≥5,000 pieces) |

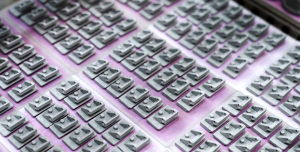

According to actual production data in the lock industry, when the order quantity of stainless steel lock cylinders exceeds 5,000 pieces, the unit cost of MIM technology will surpass that of die-casting process (after correction for stainless steel material adaptability). The larger the order quantity, the more obvious the cost advantage—this is because MIM molds can achieve “multi-cavity molding at one time”. A single injection molding equipment with molds can produce thousands of pieces per day, which is more than 50 times the efficiency of CNC machining.
2. Adaptability Advantages of MIM Technology in the Lock Industry
In addition to cost reduction and efficiency improvement, MIM technology also solves the precision pain points of stainless steel lock cylinders:
- Molding precision can reach ±0.03mm, no need for subsequent polishing, directly meeting the assembly requirements of lock cylinders;
- It can integrally form complex internal structures (such as multi-tooth key slots, anti-theft pin holes), avoiding splicing errors in CNC machining;
- The material density is close to forged stainless steel, and the strength and hardness are consistent with CNC machined parts, fully complying with the safety standards of anti-theft lock cylinders.
III. Savvy Lock Manufacturers Have Seized the High-End Market with MIM Technology
In the current fiercely competitive lock industry, “reducing costs without reducing quality” is the key for enterprises to break through. MIM technology is not only applicable to stainless steel lock cylinders, but also can be extended to the production of precision metal parts such as lock body accessories and anti-theft bolts, covering the whole category of household anti-theft locks, smart door locks, industrial security locks, etc.
A leading lock enterprise has achieved three major breakthroughs after mass-producing stainless steel lock cylinders through MIM technology:
- The unit cost is reduced by 35%, maintaining price competitiveness in the high-end lock market;
- The annual output is increased to 1 million pieces, meeting the order needs of national distributors;
- The product defect rate is reduced from 8% to 1.2%, and the customer complaint rate is significantly reduced.
IV. Conclusion: Not All Precision Parts Are Suitable for CNC, MIM Is the Optimal Solution for Mass Production
For lock manufacturers, abandoning MIM technology is not because it is “expensive”, but due to insufficient understanding of its cost logic. When the order quantity meets the standard, the mold investment of MIM technology will be amortized by the low loss and high efficiency of mass production, ultimately achieving the dual advantages of “lower cost than die-casting and more stable quality than CNC”.
If you are troubled by the mass production cost of stainless steel lock cylinders, or want to establish technical barriers in the high-end lock market, you may wish to re-examine MIM technology—this underestimated precision molding technology may be the core code for you to break through production bottlenecks and seize market opportunities.
