Toggle Latch C1-1505
Toggle Latch C1-1505

Stainless steel 304 compression latch, Squqre 7mm, with marking left version C1-1505-248

1. Material and Surface Treatment：
Stainless Steel 316 or 304
2. Performance Parameters:
Unlock torque: less than or equal to 0.79N/M
Ultimate load: 700N
Stretching amount: 8.8mm
3. Installation Instructions:
Fixing nut torque 17N.M
Applicabledoorthickness: 1-15mm

Push-to-Close Slide Latch-DK729-1 Sides
Psuh-to-close latch, snap-in, large size, CH751 Key lock, 1.6mm(. 060 in) Panel thickness, ABS, black DK729-1

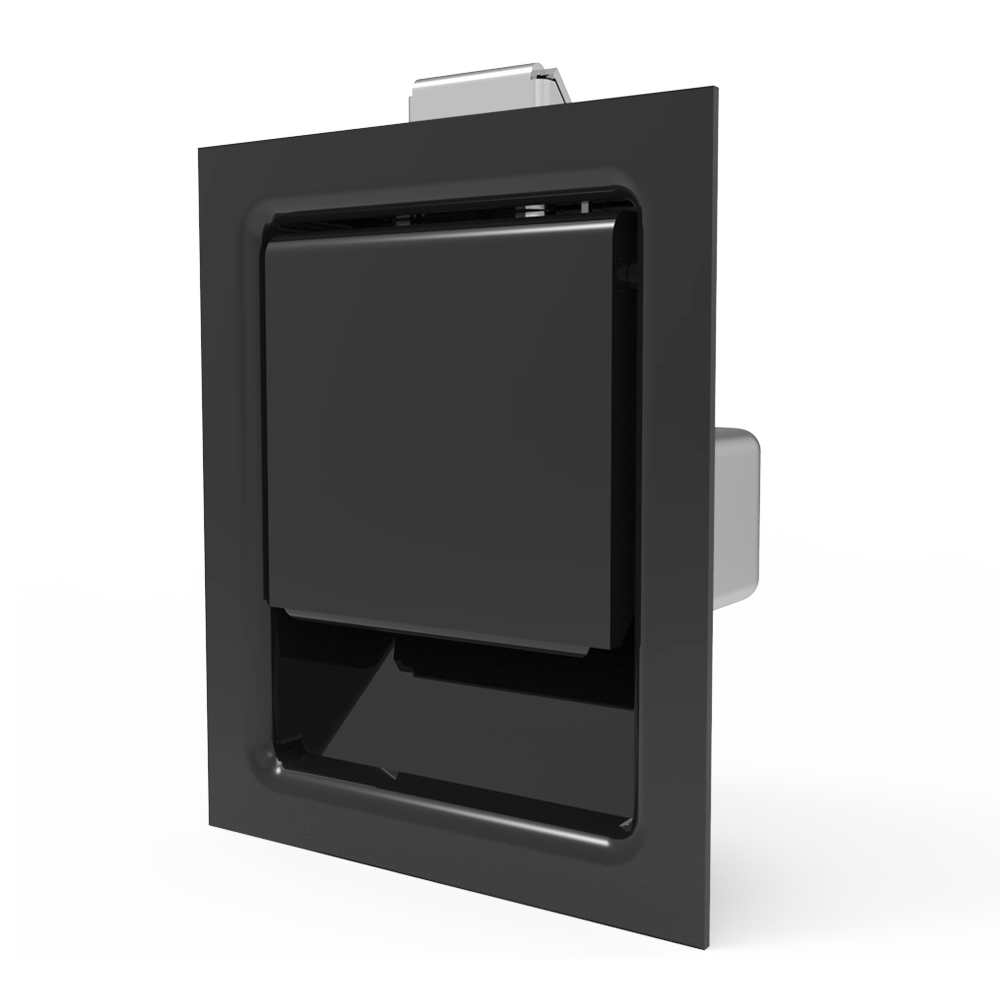

Paddle latch-MS912-10-1 Sides
Paddle latch, medium,No limit, 7.9 mm (.31 in) grip, stainless steel, Powder coating, black MS912-10-1
Push-to-Close Latch-M1-1103-10 Sides
Push-to-Close Latch, Medium Size, No limit, 2 – 7mm (.075 – .275 in) Door thickness, 25.5mm (1.00 in) Grip,zinc alloy,black M1-1103-10
Push To Close Latch-C1-1515-2 Sides
Push to Close Latch, Push Button, Pull tab perpendicular to latching pawl, Plastic, Black C1-1515-2

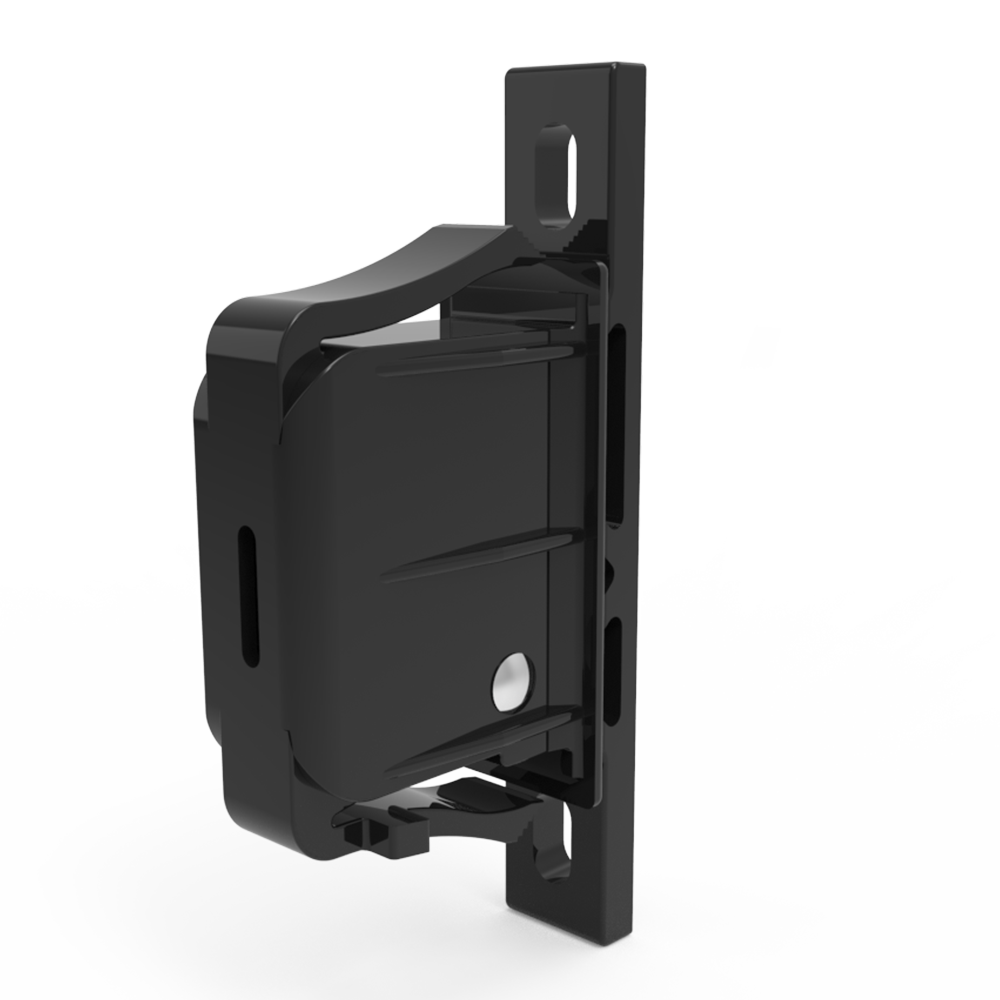

Push-to-Close Latch-DK737-2 Sides
Push-to-Close Latch, Snap-In Mounting, 13N (3 lbf), Plastic, Black，DK737-2

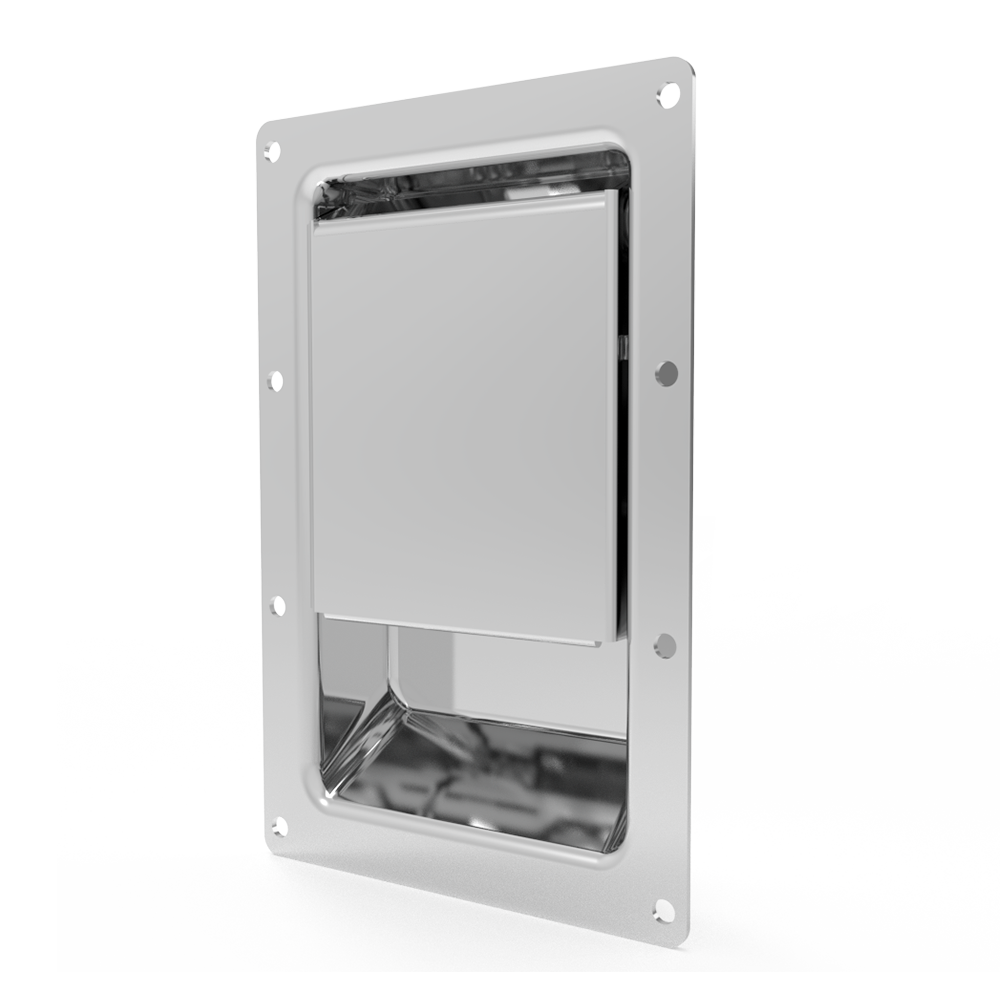

Paddle latch-MS919-2-A1 Sides
Paddle latch, large, No limit, stainless steel, mirror polished, bright，MS919-2-A1

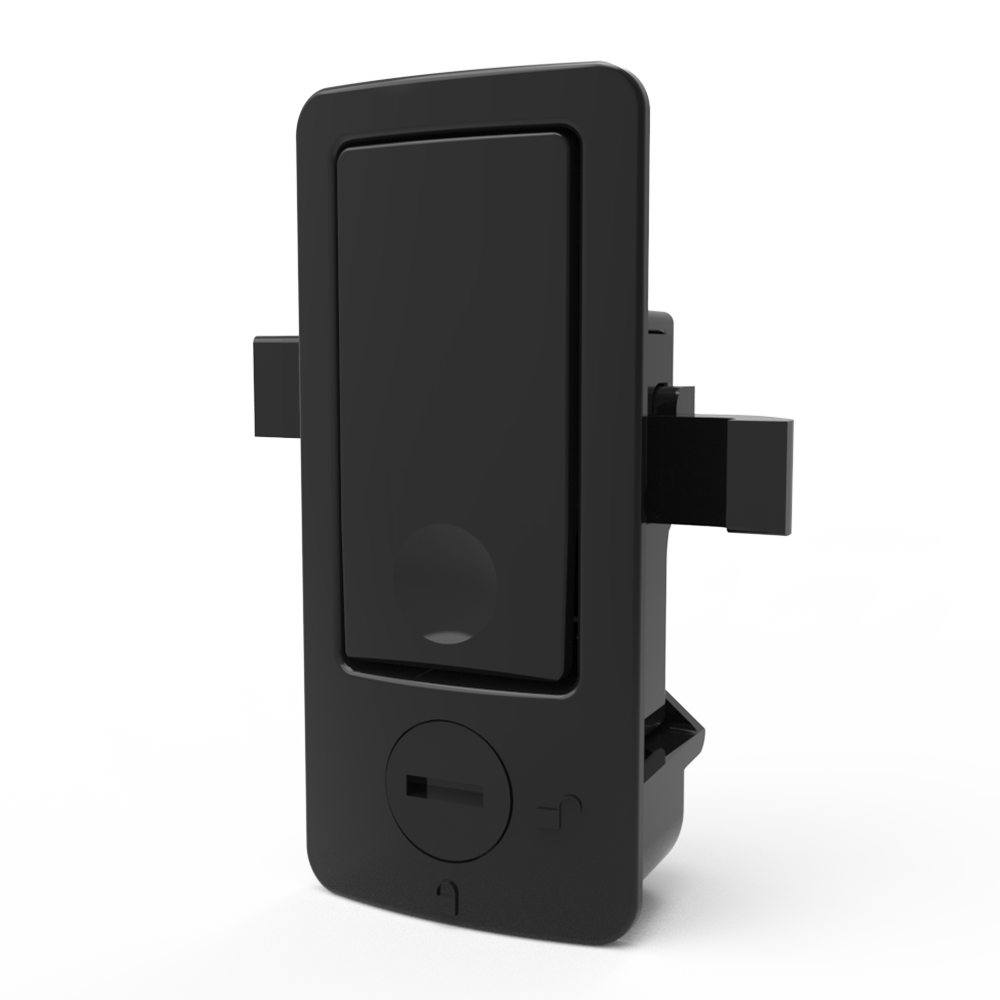

Push-to-Close Slide Latch-DK731-2 Sides
Push-to-Close Latch, lift&right，Key Locking, Plastic DK731-2
Paddle latch-MS914-A1 Sides
Paddle latch, small size, key lock, rivet mount, stainless steel, polished finish, MS914-A1
