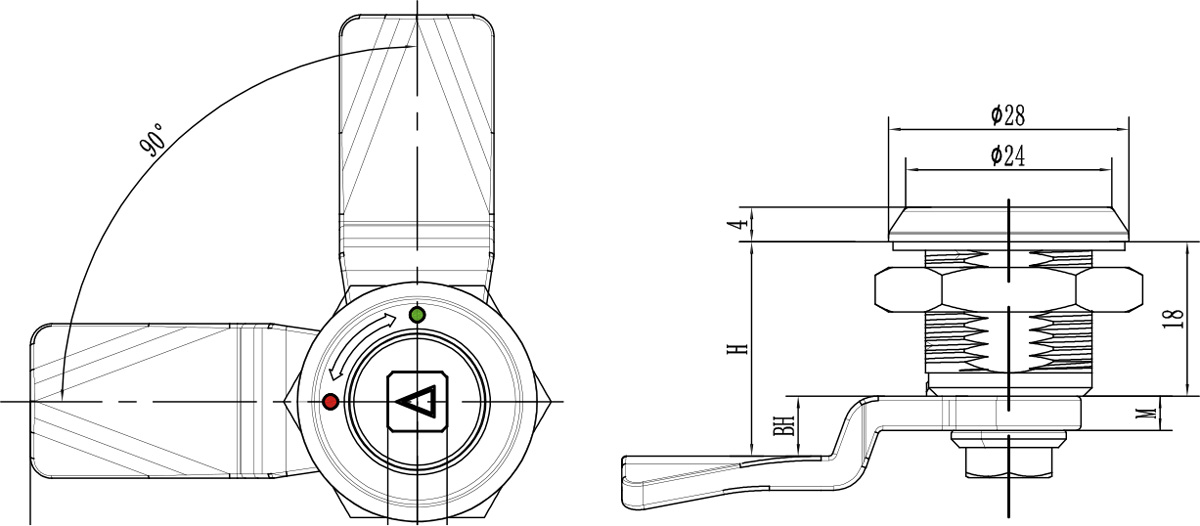

Quarter turn latch D1-1440
1. Material and surfacetreatment：
Stainless steel 316 or 304
2. Performance parameters:
Protection level: lP65
3.installation instructions:
Fixing screw torque 8N.M
Fixing nut torque 17N.M
Applicable doorthickness: 1-8mm
| Lock core selection | Lock code | Left open | Right open |
| Square 7mm | 247 | D1-1440-247L | D1-1440-247R |
| Square 8mm | 248 | D1-1440-248L | D1-1440-248R |
| Triangle 7mm | 237 | D1-1440-237L | D1-1440-237R |
| Triangle 8mm | 238 | D1-1440-238L | D1-1440-238R |
| Square 7mm Arrow | 347 | D1-1440-347L | D1-1440-347R |
| Square 8mm Arrow | 348 | D1-1440-348L | D1-1440-348R |
