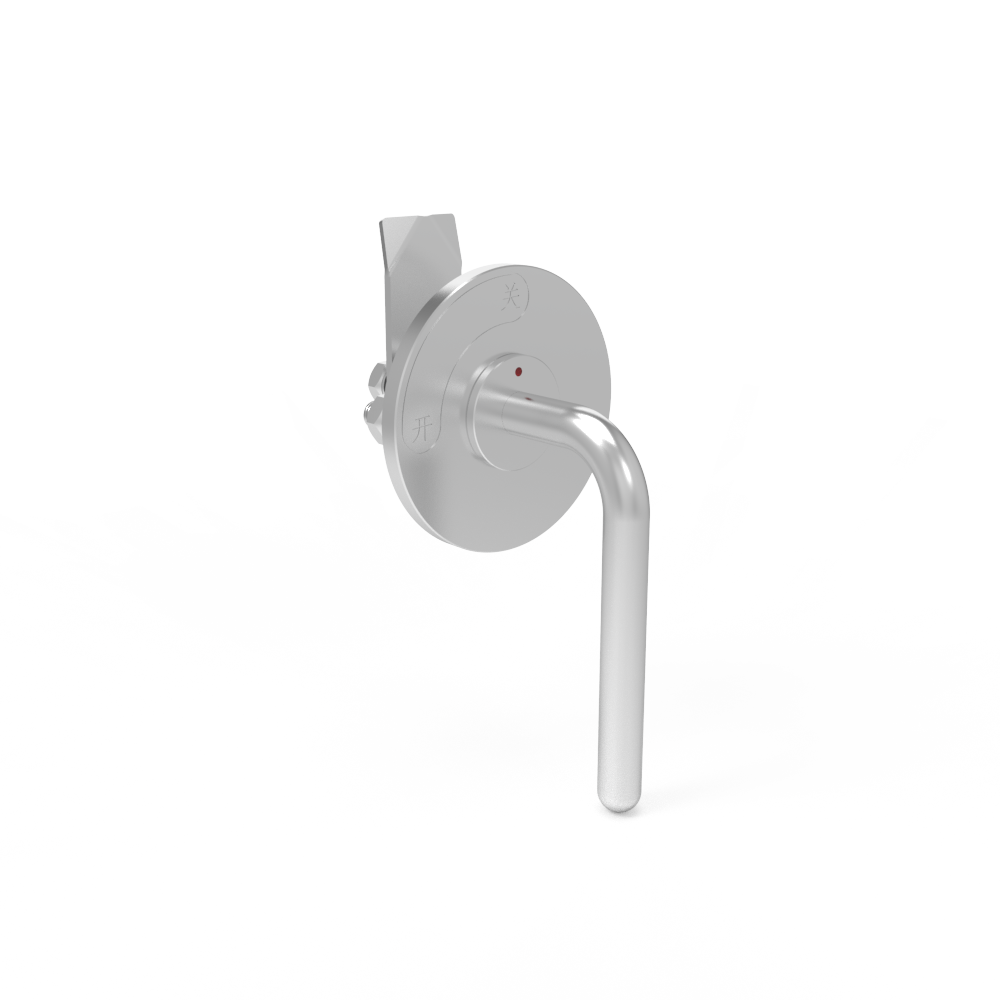

Quarter turn lock B-1324
Quarter turn lock B-1324

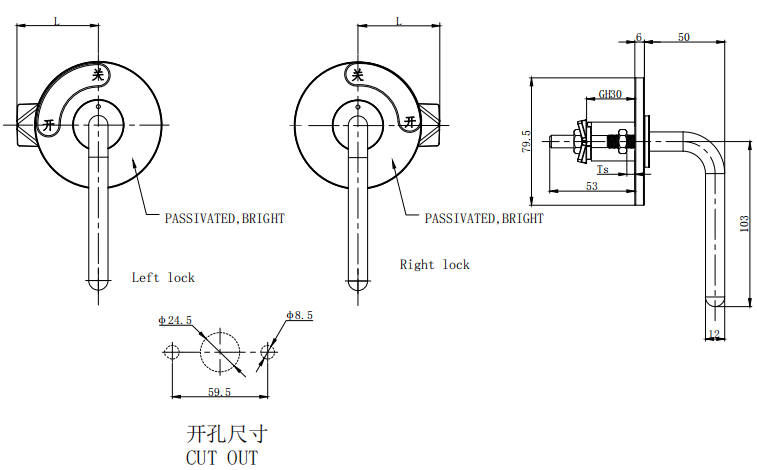

Quarter turn lock, Railroad L-Handle Type, Stainless Steel, Passivated,bright,B-1324

1.Material and surface treatment:
Main body：Zinc Alloy and SUS304
Handle panel,Steel bolt : SUS304
Sealing ring: EPDM foam.
2. Performance parameters:
Protection class: IP65
3. Installation instructions:
Fixed screw torque 8N. M
Fixed nut torque 17N. M
Applicable door panel thickness: 1-5mm

Quarter Turn Latch B-1312-A1
Quarter-turn cam latch, L-handle, cam, padlock, stainless steel, brushed and polished, bright,B-1312-A1
Quarter Turn Latch B-1312-10
Quarter Turn Cam Latch, L-Handle, Cam, Padlock, Black Powder Coat,B-1312-10
Quarter Turn Latch B-1312-20
Quarter CAM latch, L handle, with CAM, Seal, zinc alloy, Chrome plating, bright,B-1312-20
Quarter Turn Latch MS325-10
Quarter Turn Cam Latch, L-Handle, Cam, with Hanging, Zinc Alloy, Powder Coated, Black,MS325-10
Quarter Turn Latch MS325-20
Quarter-turn cam latch, L-handle, cam with hanging, zinc alloy, chrome plating, bright,MS325-20
Quarter Turn Latch B-1520-038-10
Quarter CAM latch, L-handle with padlock, Triangle 8,with CAM, zinc alloy, powder coating, black,B-1520-038-10
Quarter Turn Latch B-1520-015-A1
Quarter CAM latch, L-handle with padlock, 5mm wing ,with CAM, stainless steel, polished, bright,B-1520-015-A1
Quarter Turn Latch B-1520-015-10
Quarter CAM latch, L-handle with padlock, 5mm wing, with CAM, zinc alloy, powder coating, black,B-1520-015-10
Quarter Turn Latch B-1520-1-10
Quarter CAM latch, L-handle with padlock, key locking ,with CAM, zinc alloy, powder coating, black,B-1520-1-10
Quarter Turn Latch B-1520-1-A1
Quarter CAM latch, L-handle with padlock, key locking ,with CAM, stainless steel, polished, bright,B-1520-1-A1
